White LED Dock Piling Light Cap Warm White – 12V DC Marine Lighting

White Light PilingLight Caps – 12V DC LED Dock Lighting Warm White 3000K

Coastal Durability & Nighttime Elegance

Protect your pilings and light up your dock with these crisp white piling caps. Engineered for the marine environment, they combine low-glare, energy-efficient LED lighting with a clean, modern look that guards your pilings from water damage and keeps birds from roosting. It’s a smart, corrosion-proof upgrade built to last.

⭐ Why You’ll Love These White PilingLight Caps

✅ 12V Marine-Grade LED Lighting
Safe, low-voltage illumination for docks, boat lifts, and marinas.

✅ Better Night Visibility & Safety
Classic 3000K warm white lighting creates an inviting dock glow.

✅ Maintenance-Free LEDs
Integrated long-life LEDs mean no bulbs to replace.

✅ Corrosion-Resistant Composite
Handles salt air, rain, and harsh sun without cracking or fading.

✅ Clean, Low-Profile Look
No bulky fixtures or messy wires, just a smooth, seamless cap.

✅ Protects Pilings & Deters Birds
Seals the top to keep out water and makes it harder for birds to perch.

Other color options available: black LED piling light caps.

💡 Lighting Details

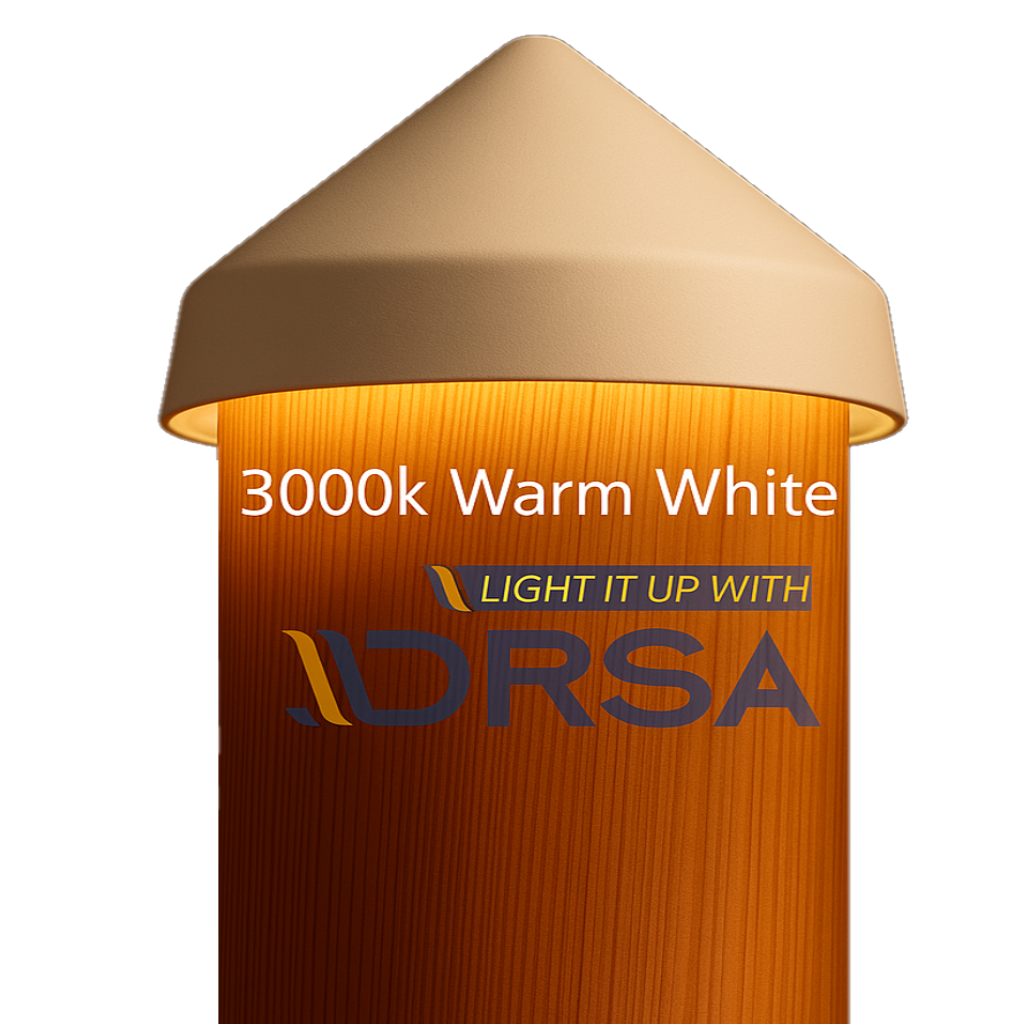

• 3000K Warm White:
  Soft, timeless dock lighting. No remote needed.

• Optional Color Changing piling caps available :

• White RGBWW (WW 3000k) or RGBWC (CW 6000k)Color-Changing:
  Let's you dial in the perfect color with the included remote—create vibrant dock parties or soft evening tones.



⚡ Power It Right

These lights require pairing with a non-dimmable LED Driver / Power Supply (AC to DC, 12V).
Select the model based on your total wattage and specific installation requirements.
View compatible LED Drivers here ›

📏 How to Choose Your Size

Measure each piling individually. For best fit, select a light cap 1.5" to 2" larger than your piling diameter.

(Detailed specs listed with each product variant.)

How to Measure for Pile Caps

Properly measuring your wooden pilings ensures you get the right cap the first time. Even if your pilings were installed at the same time, measurements can vary by 2–3 inches—so it’s important to check each one individually.

✅ Most Accurate Method: Use a String

1. Wrap a piece of string snugly around the piling’s full circumference

2. Measure the total length of the string in inches

3. Divide that number by π (3.1416) to calculate the diameter

4. Round up to the next half inch to choose your cap size

Example:
25" string ÷ 3.1416 = 7.96 → You need an 8" piling cap

💡 You can also use a free circumference calculator for quick results

✅ Quick Steps Recap

• A. Wrap string around the piling

• B. Measure the string’s length

• C. Divide by 3.1416

• D. Choose the next closest half-size cap

🔎 Less Accurate Method (If You Don’t Have String)

If string isn’t available, use a tape measure to take two measurements:

• Measure across the piling North/South

• Measure again East/West

• Average the two numbers and round up to the nearest half inch

Example:
If the piling measures 8.3" x 8.1", choose an 8.5" piling cap

⚙ Technical Details

Note:
For single-color warm white installations, polarity may be reversed on some caps. If your light does not illuminate on first connection, simply swap the red and white wires.

📍 Perfect For

• Private docks

• Marinas & piers

• Boat lift systems

• Dock-to-boat lighting

🛠 Warranty

3-Year Prorated Warranty (Original Owner)

• Year 1: Free replacement for light failures

• Year 2: Replace at 20% of the original price

• Year 3: Replace at 30% of the original price

🌊 Upgrade Your Dock

Transform your dock with stylish, reliable lighting that protects your pilings and brightens your nights no more bulky fixtures or constant bulb changes.

❓ FAQs

Q: Does the warm white option include a remote?
No. The 3000K warm white option is a fixed soft white light without a remote.

What if my light doesn’t turn on after wiring?
In rare cases with single-color warm white caps, polarity may be reversed. Just swap the red and white wires, and it’ll power right up.

Is wholesale pricing available?
Yes, after approval as a DRSA wholesaler.

Click the form to apply.

Q: What power supply do I need?
These lights require a non-dimmable LED Driver / Power Supply (AC to DC, 12V), sized according to your total wattage and wire run. View compatible power supplies ›

Q: How do I know which size to order?
Measure your piling’s diameter and choose a light cap that’s 1.5" to 2" larger for proper fit.

Are these fully sealed?
Yes, they’re designed for tough marine environments.

Do they keep birds off?
Yes. The shape helps discourage roosting.

Who can install them?
DRSA handles installations in Florida. Most marine electricians or dock builders can install them easily.

Q: Are replacement remotes available?
Yes. RGBW controller replacements are $60 and include return shipping (light must be returned for servicing).

Q: What’s the warranty?
3-Year prorated warranty:

• Year 1: 100% replacement

• Year 2: 20% of original price

• Year 3: 30the % of original price

Q: Who can install these?
DRSA can complete all local installations in Florida. Most are easily installed by dock builders or electricians familiar with marine lighting.

📞 Need help sizing or selecting the right power supply?
Call us today—we’re here to make it easy.
