Victron GX-IO Extender 150 [BPP900800150]

Victron GX-IO Extender 150 [BPP900800150]

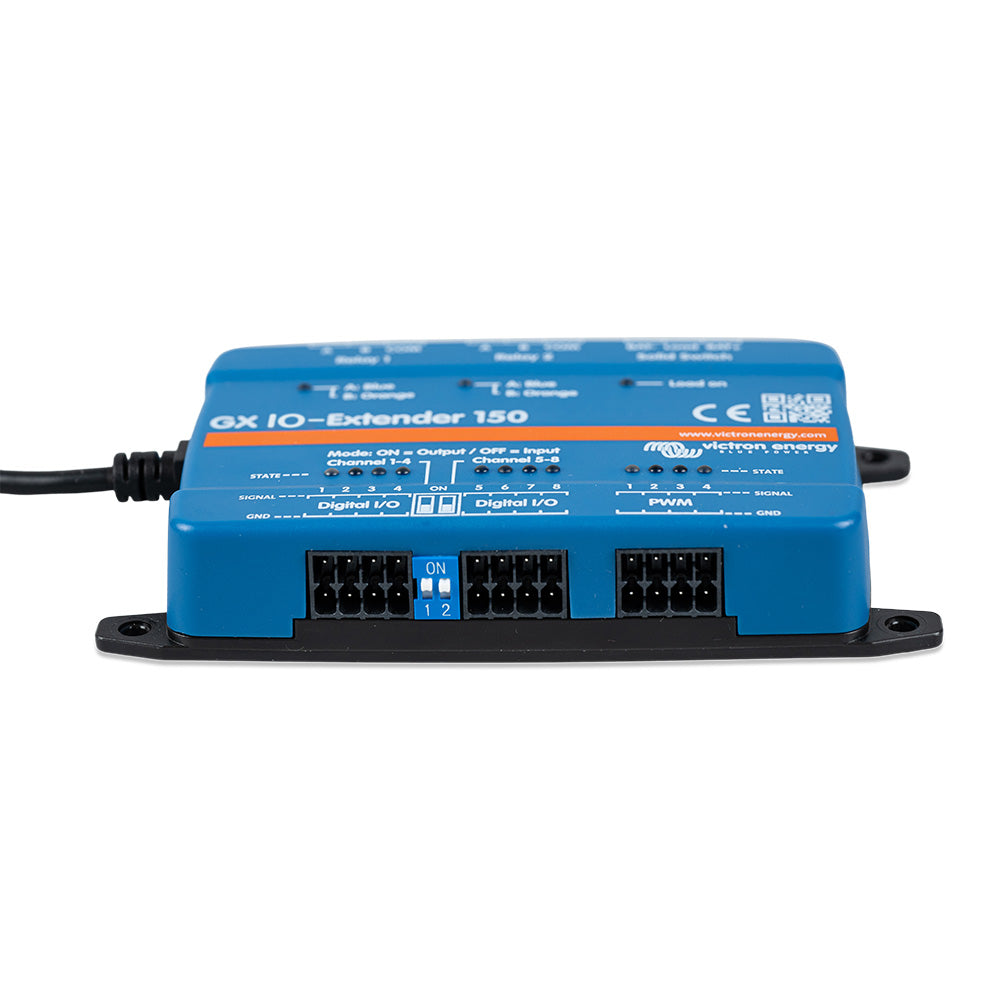

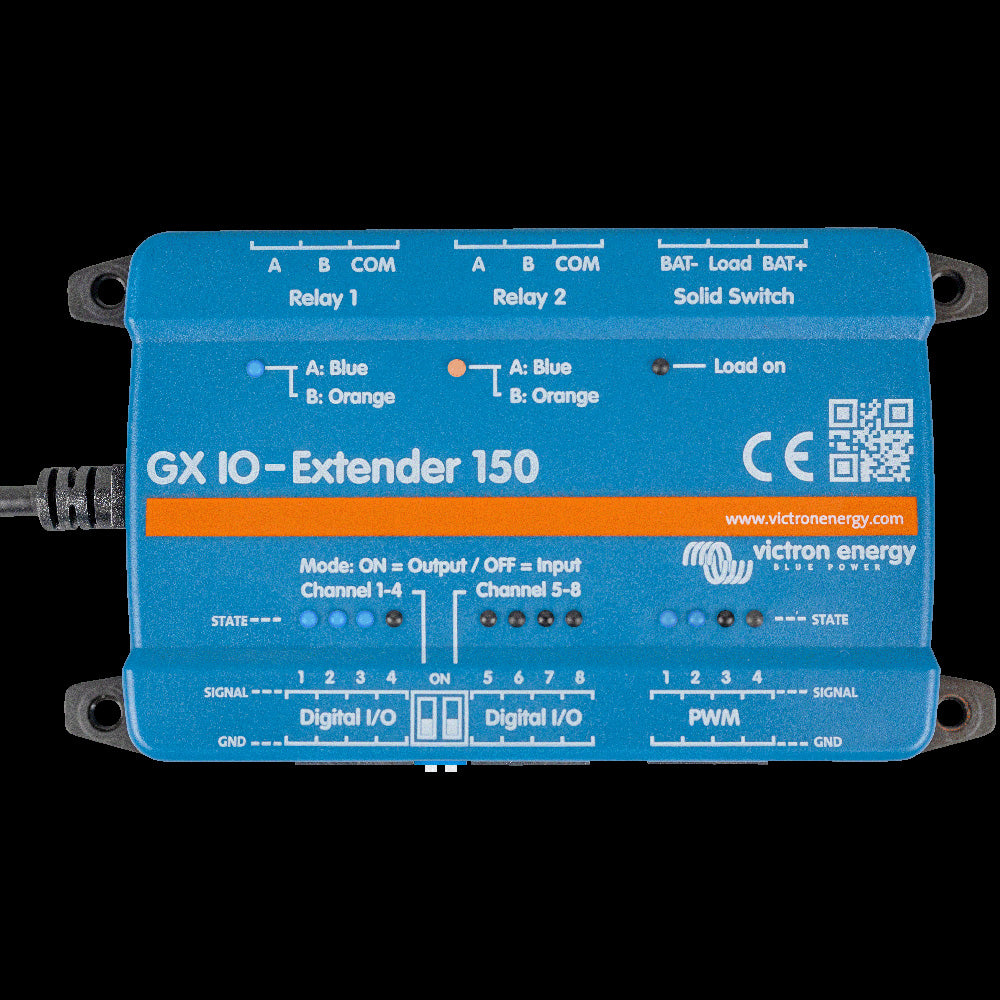

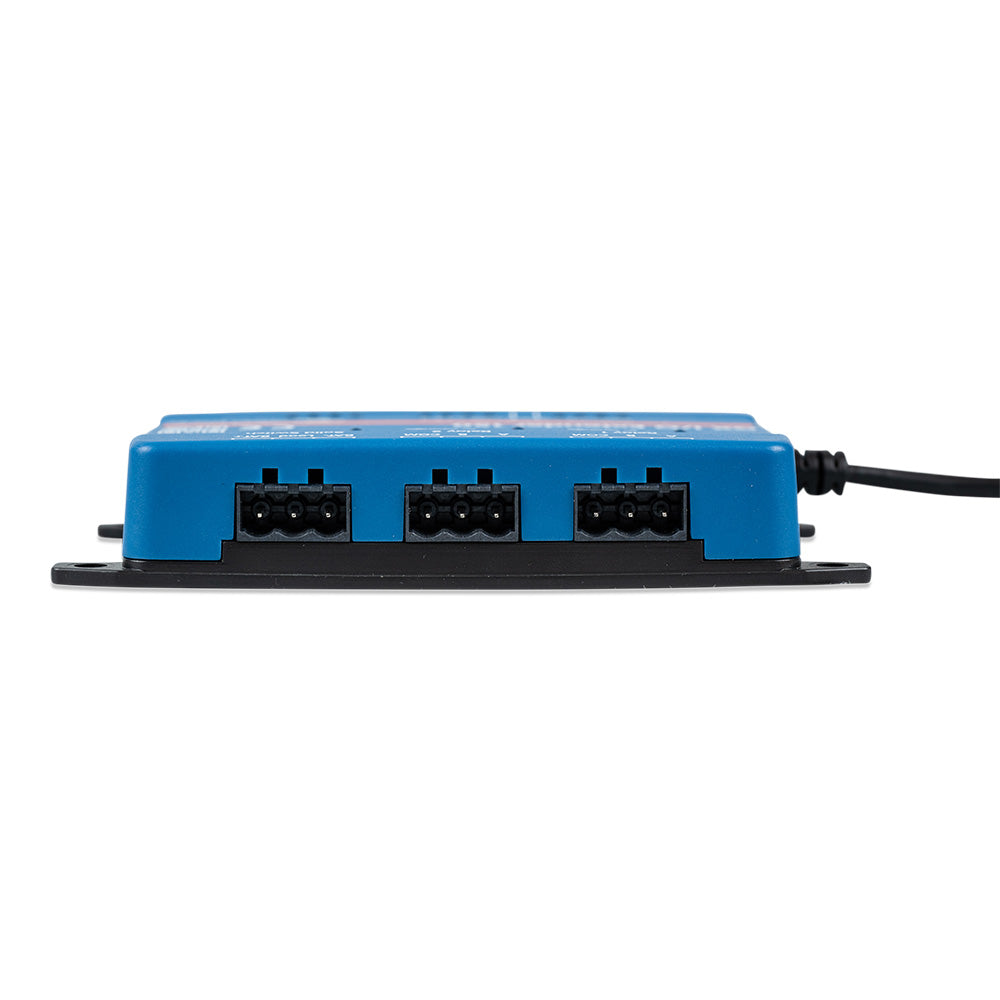

The Victron GX-IO Extender 150 is a compact, USB-powered module that expands the input/output capabilities of Victron GX devices, like the Cerbo GX or Venus GX, for advanced automation in marine, RV, and off-grid systems. With 8 configurable digital I/Os, PWM outputs, and latching relays, it integrates seamlessly with sensors and controls, offering flexible, low-power solutions. Node-RED support enables custom automation, making it ideal for smart energy management.

Key Features

• Versatile I/O Options: 8 digital I/Os configurable as 8 inputs, 8 outputs, or 4 inputs + 4 outputs for flexible control.
• Precise PWM Control: Four 8-bit PWM channels (1.5625 kHz) for dimming lights or controlling motors.
• Efficient Latching Relays: Two bi-stable relays for low-power switching of AC/DC loads up to 3A at 30V DC or 2A at 60V AC.
• Solid-State Relay: Supports high-speed switching of resistive, capacitive, or inductive DC loads, like high-power contactor coils.
• Easy Installation: Pluggable spring terminals ensure fast, secure connections.
• USB-Powered: Draws power and data via USB, consuming <200mA at 5V, simplifying setup.
• Node-RED Integration: Enables custom automation logic for advanced energy system control.
• Status Indicators: LED indicators for each I/O and PWM channel for easy diagnostics.
• Rugged Design: Operates from -20°C to +50°C, ideal for harsh marine or off-grid environments.
• Flexible Mounting: Supports wall or DIN-rail mounting (DIN35 adapter optional).

Perfect For

• Marine vessels needing automated battery or lighting control
• RV energy systems for sensor integration
• Off-grid setups managing solar or battery systems
• Industrial applications requiring custom automation
• Tiny homes with smart energy management

Technical Specifications

What’s in the Box

• Victron GX-IO Extender 150
• USB cable
• Pluggable spring terminal connectors
• Installation guide

Frequently Asked Questions

• Is the GX-IO Extender 150 waterproof?
  No, it has an IP20 rating and is designed for indoor or protected environments.
• Can I install it myself?
  Yes, it connects via USB and uses spring terminals for easy, tool-free wiring.
• Is it compatible with 12V systems?
  The device is USB-powered (5V), but its digital inputs accept 3.8–5.5V, and relays support 12V system loads with external power.
• How do I configure it with Node-RED?
  Use the Venus OS Node-RED interface on your GX device to create custom automation flows, supported by Victron’s example flows.
• Can multiple extenders be used?
  Yes, multiple GX-IO Extenders can be connected to a GX device via USB for expanded I/O capacity.
• This extender enhances your Victron GX system with versatile I/O options, enabling precise control and automation for marine, RV, or off-grid setups. Its USB-powered design and Node-RED compatibility make it easy to integrate and customize, while the 5-year warranty ensures long-term reliability. Upgrade your energy system with confidence.

Quick Guide (pdf)
