Trident Marine Stainless Steel Constant Torque Clamp 5/8" Band, Hose I.D. - 4", Hose O.D. - 4.25" TO 5.125" [730-4000]
“All pricing is subject to change without notice due to tariffs, supply chain fluctuations, or manufacturer adjustments. Please call DRSA for the most up-to-date pricing.”
Description
Description

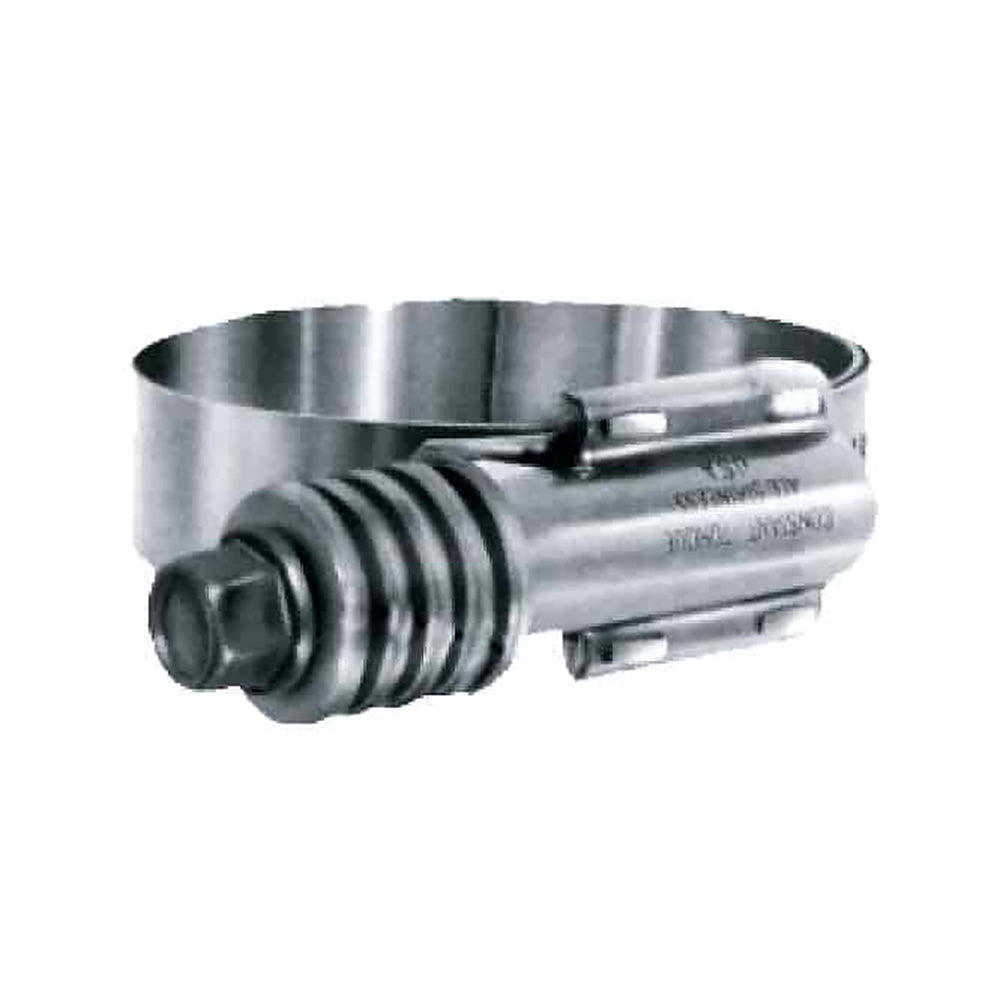

Stainless Steel Constant Torque Clamp 5/8" Band, Hose I.D. - 4", Hose O.D. - 4.25" TO 5.125"
Virtually all rubber hose compresses (cold flow) after installation of a clamping device, resulting in an almost immediate torque loss that can exceed 80% of installation torque. Similarly, virtually all metal connections expand as a system heats up, and then contract as the system cools. Conventional worm gear, T-bolt, and other clamps are passive, in that expansion or contraction of components cannot be compensated for without re-tightening or loosening the clamps. This clamping system is an “active” clamping mechanism, which monitors and then compensates for the changes by actually changing diameter through a unique worm gear Belleville assembly.
Specifications:
- Recommended max. torque - smaller ID. Sizes up to 730-3000: 30 to 70 in.-lbs, larger ID. Sizes above 730-3000: 50 to 120 in.-lbs.
- Hose I.D. - 4", Hose O.D. - 4.25" TO 5.125"
Construction:
- Band & Housing: 304 Stainless Steel 5/8” Wide Band
- Bellville Spring Washers & Screw: 401 Stainless Steel
Trident Marine Stainless Steel Constant Torque Clamp 5/8" Band...
