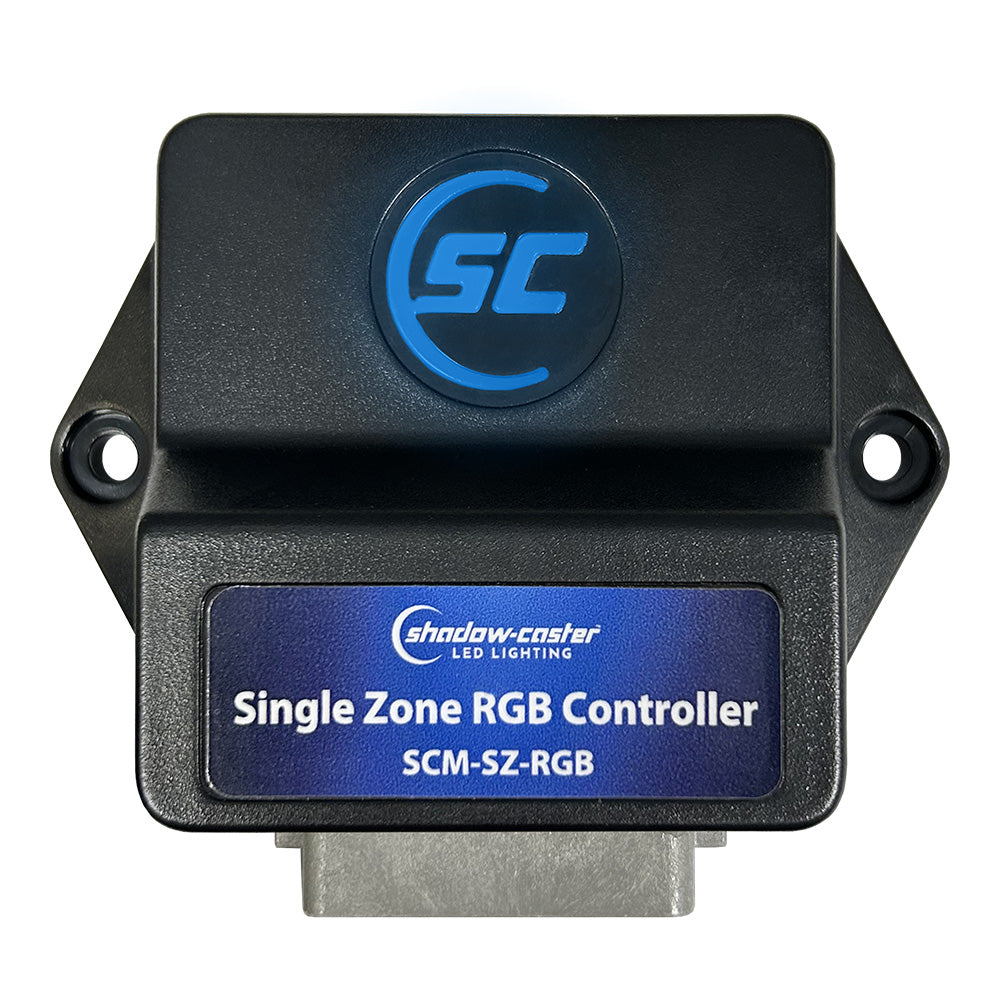

Shadow-Caster Single Zone RGB(W) Controller [SCM-SZ-RGB]
Simplify Your Lighting. Control Every Color.
The Shadow-Caster Single Zone RGB(W) Controller delivers intuitive, reliable control for any marine RGB or RGBW lighting setup. Designed for boats, yachts, and custom marine lighting systems, this compact controller lets you manage color and brightness directly from a standard push-button switch no complex setup required.
Built with Shadow-NET® technology, it syncs effortlessly with other Shadow-Caster® products, keeping your underwater lights, courtesy lighting, and accent LEDs perfectly matched. The result is a seamless, unified lighting experience across your entire vessel.
Why You’ll Love It
-
Simple, Intuitive Control: Operates from a basic on/off or momentary switch.
-
Shadow-NET® Enabled: Sync lighting color and brightness across multiple Shadow-Caster® devices.
-
Marine-Grade Construction: IP67-sealed for complete protection from salt, spray, and moisture.
-
Compact and Powerful: Handles up to 10 amps with overcurrent protection built in.
-
Expandable System: Add the SCM-RGB-EXP module for more zones when your lighting setup grows.
Key Features
Seamless Shadow-NET® Integration
-
Syncs multiple Shadow-Caster® products for coordinated color and brightness control.
-
Perfect for unifying interior and underwater lighting effects.
Smart Operation Modes
-
Choose from color rotation, single-color fade, or multi-color fade.
-
Auto-detects white channels on RGBW lighting.
-
The LED-backlit SC logo shows brightness and color or flashes red to signal a fault.
Reliable Marine-Grade Performance
-
IP67-rated housing and connectors withstand harsh marine conditions.
-
Integrated overcurrent protection ensures safe, long-term use.
Technical Specifications
| Feature | Specification |
|---|---|
| Voltage | 12/24 V DC |
| Max Current Draw | 10A |
| Interface | Shadow-NET® |
| Control | On/Off/Momentary Switch |
| IP Rating | IP67 |
| Dimensions | 3.5" x 2.9" x 1.2" (88 x 72.4 x 30.6 mm) |
| Weight | 0.6 lbs |
| Box Dimensions | 2"H x 4"W x 4"L |
| UPC | 8500563200234 |
| Warranty | 3 Years |
Perfect For
-
Marine RGBW lighting control
-
Underwater light synchronization
-
Accent and interior boat lighting
-
Single-zone lighting systems
FAQs
Q: Can I control this with a regular switch?
Yes. The controller works with any standard on/off or momentary push-button switch.
Q: Does it support RGBW lighting?
Absolutely. The controller automatically detects and manages the white channel for true RGBW control.
Q: Can I expand to multiple zones?
Yes. Pair it with the Shadow-Caster SCM-RGB-EXP expansion module to add additional zones.
Q: Is it waterproof?
Yes. The IP67-rated housing protects against water and salt exposure, making it ideal for marine environments.
Warranty
3-Year Limited Warranty
Covers defects in materials and workmanship under normal marine use for three years from the date of purchase.
