Sea-Dog LED Top Mount Side Lights - Stamped 304 Stainless Steel Housing/Investment Cast 316 Stainless Steel Base [400069-1]
Description
Description

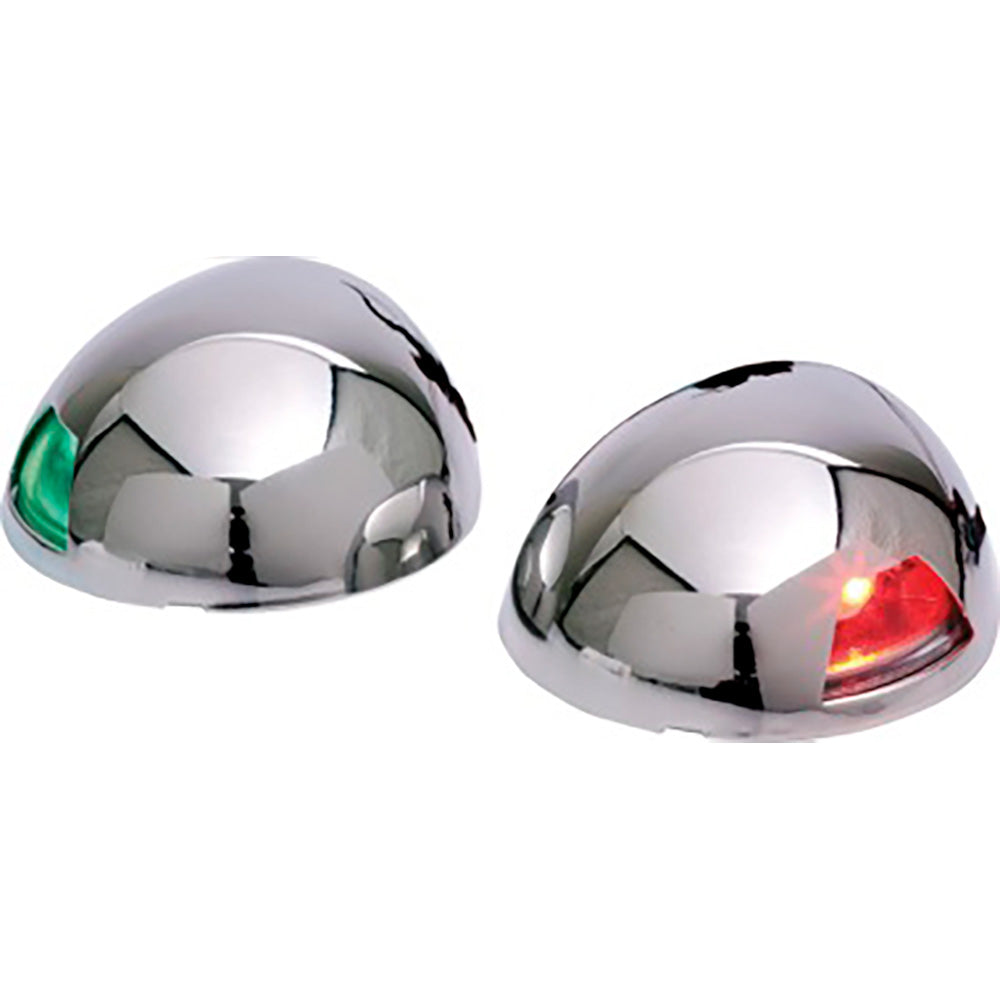

Sea-Dog LED Top Mount Side Lights – 304/316 Stainless Steel, Red/Green [400069-1]
Reliable Navigation for Boats Up to 50’ – Built to Last in Harsh Marine Conditions
Ensure safe and compliant navigation with the Sea-Dog LED Top Mount Side Lights [400069-1]. Featuring red (port) and green (starboard) LEDs with 2NM visibility, these lights are ideal for boats up to 50 feet. Built with stamped 304 stainless steel housing and an investment-cast 316 stainless base, they’re engineered to withstand saltwater, spray, and UV exposure without corroding.
With IP67 waterproof protection and low power draw, these lights are a smart upgrade for modern boaters looking to improve nighttime visibility, safety, and compliance with USCG, COLREG72, and ABYC A-16 standards. Whether you're docking in Stuart or cruising out of Palm Beach Shores, these sidelights are a compact, top-mounted solution that installs easily and performs when you need them most.
Why You’ll Love It
-
Certified Safety
USCG 2NM-certified for boats up to 50’—meets COLREG72 and ABYC A-16. -
Built Tough for Saltwater
304 stainless steel housing and 316 base resist rust, corrosion, and UV degradation. -
Efficient & Long-Lasting
Energy-saving LED draws <0.5A at 12V with a lifespan of 50,000+ hours. -
Top-Mount Simplicity
Compact form factor installs easily with four #8 RH fasteners (not included). -
IP67 Waterproof
Sealed for total protection from spray, rain, and dust.
Key Features
-
Red (port) and green (starboard) LED light set
-
Visible up to 2 nautical miles (2NM)
-
Operates on 12V DC systems
-
IP67 waterproof and corrosion-resistant
-
Low current draw (<0.5A estimated)
-
Ideal for vessels up to 50 feet in length
-
Easy top-mount installation
-
304 stainless housing with 316 stainless base
-
ABYC A-16, USCG, and COLREG72 compliant
Perfect For
-
Powerboats & Sailboats up to 50’
-
Saltwater Cruising in Jupiter, Naples, or West Palm Beach
-
Nighttime Docking or Maneuvering
-
Retrofit Projects replacing old incandescent sidelights
-
DIY Marine Electrical Upgrades
Technical Specifications
| Feature | Detail |
|---|---|
| LED Colors | Red (Port), Green (Starboard) |
| Visibility | 2 Nautical Miles (2NM) |
| Voltage | 12V DC |
| Current Draw | <0.5A (estimated) |
| IP Rating | IP67 (waterproof/dustproof) |
| Materials | 304 SS housing / 316 SS base |
| Mount Type | Top-mount, 4x #8 RH fasteners (not incl.) |
| Operating Temp | -25°C to 55°C (-13°F to 131°F) |
| Certifications | USCG, COLREG72, ABYC A-16 |
| Warranty | 1–2 Years (Sea-Dog standard, confirm w/ DRSA) |
What’s in the Box
-
1x Port (Red) Side Light
-
1x Starboard (Green) Side Light
-
Installation Instructions
Sold as a pair. Mounting hardware not included.
