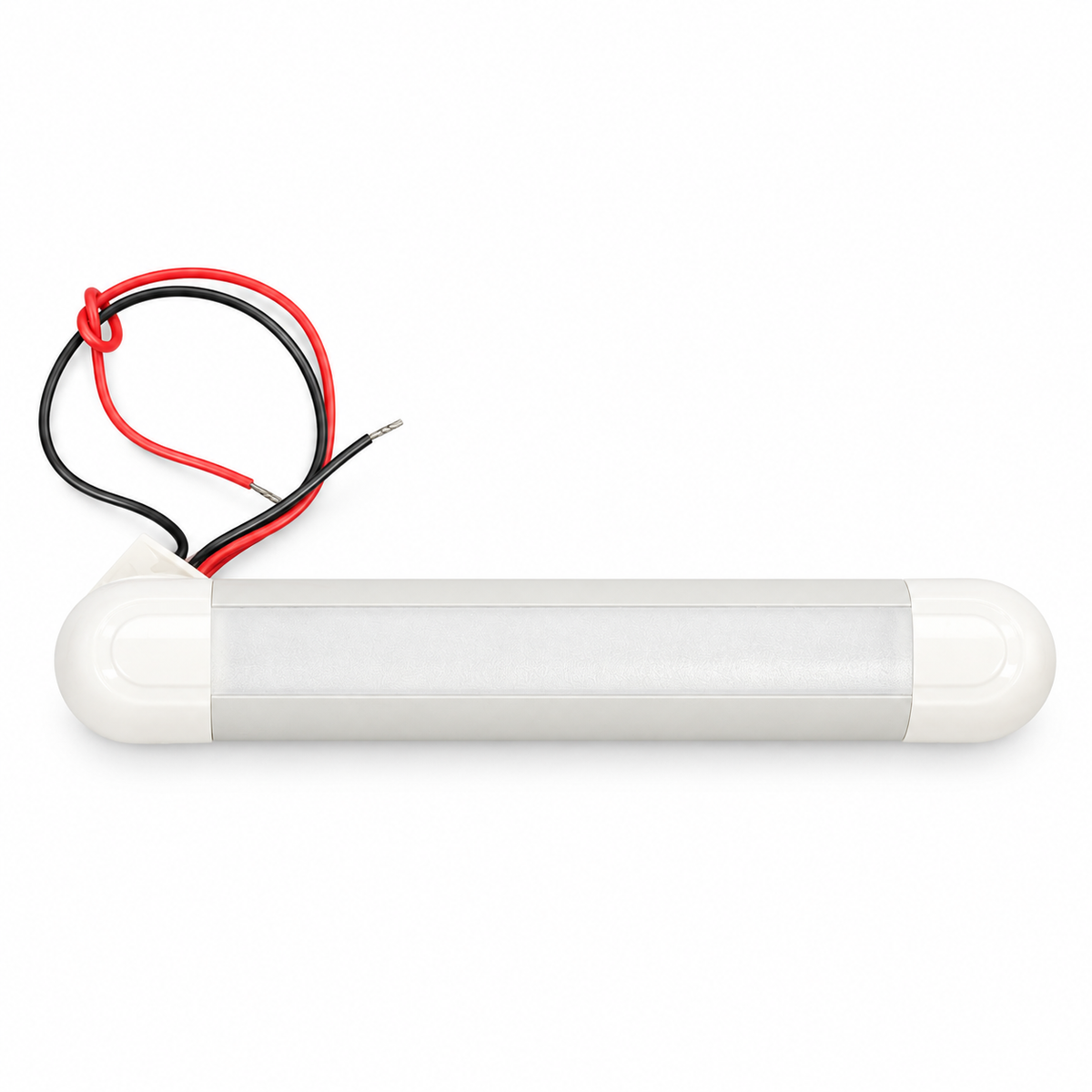

Scandvik 41761P 6" RGBW+ Color Change LED Rail Light
“All pricing is subject to change without notice due to tariffs, supply chain fluctuations, or manufacturer adjustments. Please call DRSA for the most up-to-date pricing.”
RGBW Color Change on Two Wires
Most color change lighting needs a controller, a dedicated bus, and a wiring diagram nobody wants to troubleshoot at 2am. The Scandvik 41761P skips all of that. Onboard circuitry handles the color sequencing, so the fixture runs on a simple 2-wire connection off any standard on/off switch.
Flip the switch and it steps from White to Blue to Red to Green, then into a dynamic fade mode that cycles colors on its own. Leave it off for more than 4 seconds and it starts at white the next time you power up. That reset is what makes it practical on a working boat. You always come back to clean white light at the next start, no matter what color the last person left it on.
24 RGBW LEDs in a 6" Extruded Aluminum Body
The housing is extruded aluminum with sealed, weatherproof construction rated IP65. It runs on 10-30 VDC, so the same part works on a 12V center console or a 24V system without a converter. That's one less SKU to stock if you rig both.
Where This Fits
- T-tops and hardtops on center consoles where you want ambient color at the helm
- Bimini top frames as clip-on accent and utility lighting

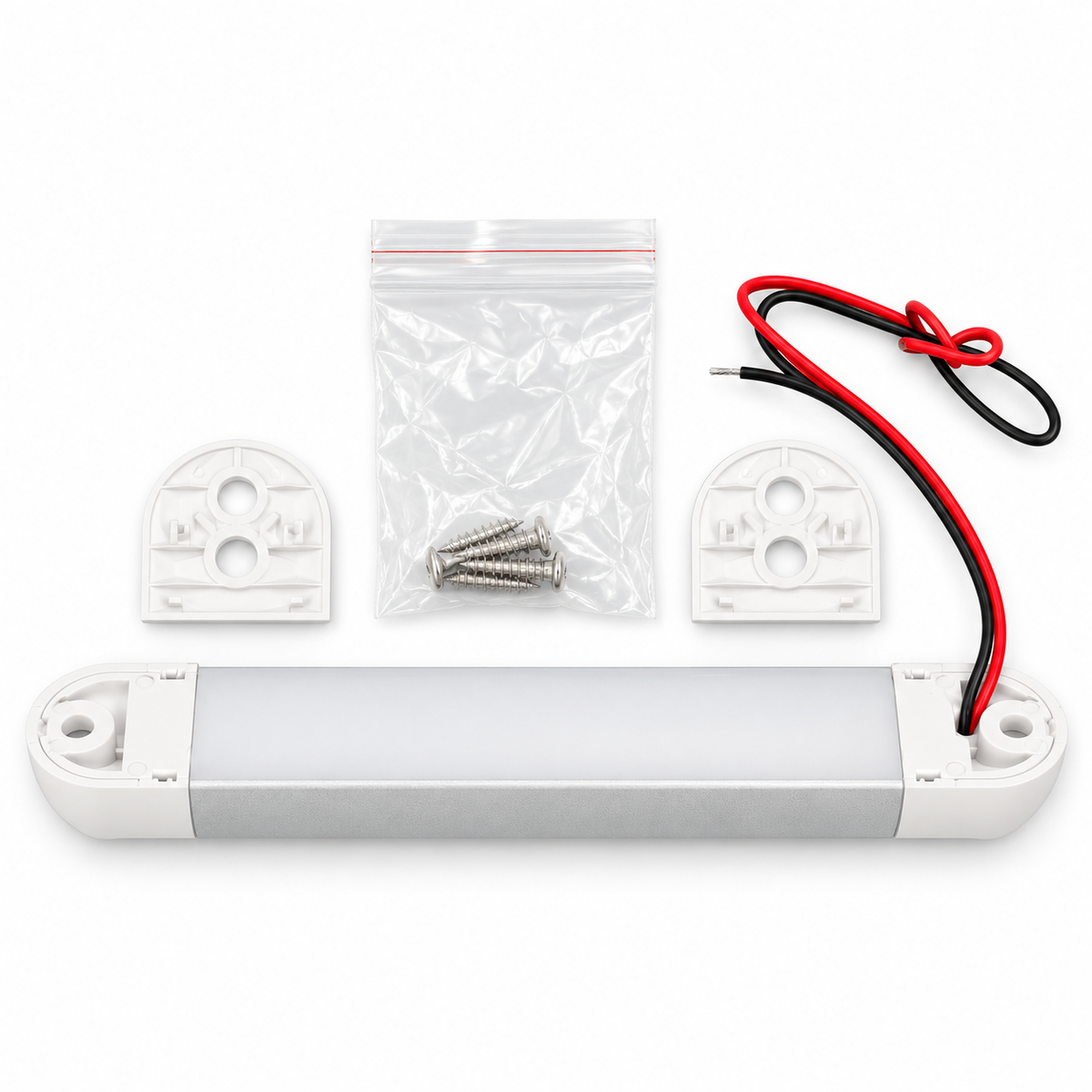

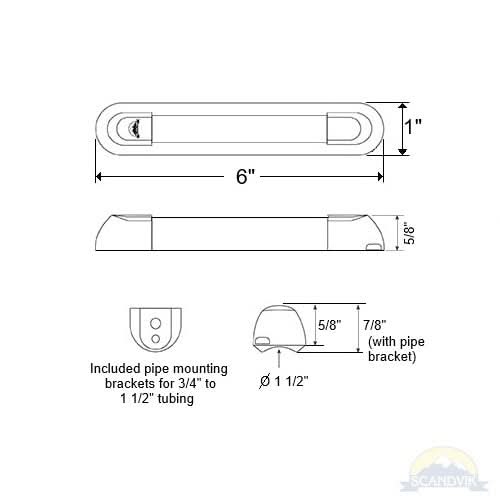

- Rail mounting on tube from 3/4" to 1-1/2" using the included brackets
- Surface mounting under gunwale caps, in cockpits, or along the coaming
- Boatbuilder installs where fewer wires and no controller cut build hours
Why Builders Use These
No controller means no controller failure. On a production line, a 2-wire fixture a rigger can land on an existing switch leg is worth more than a fixture with extra features and its own harness. For refits, it's the same story. Run it off the switch you already have.

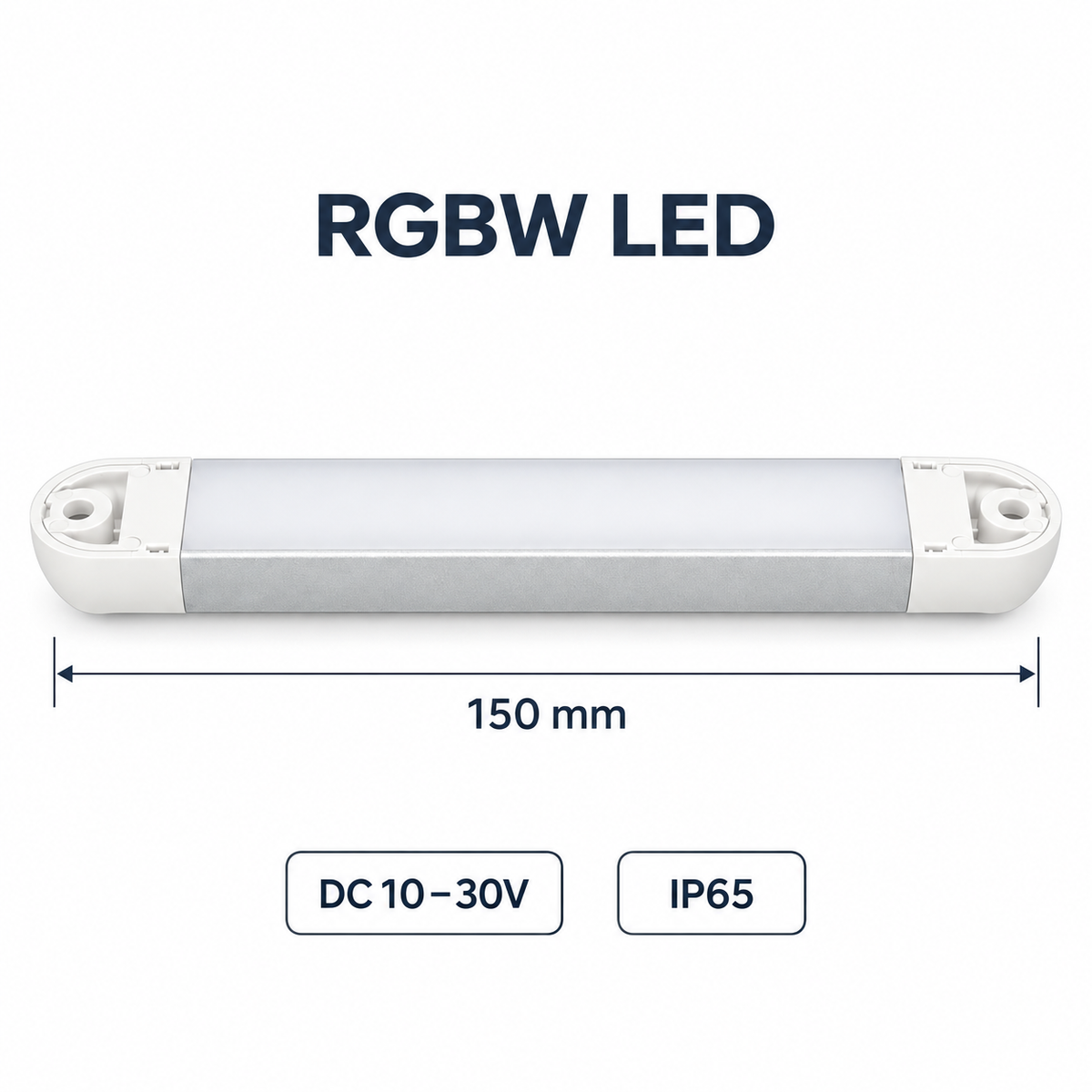

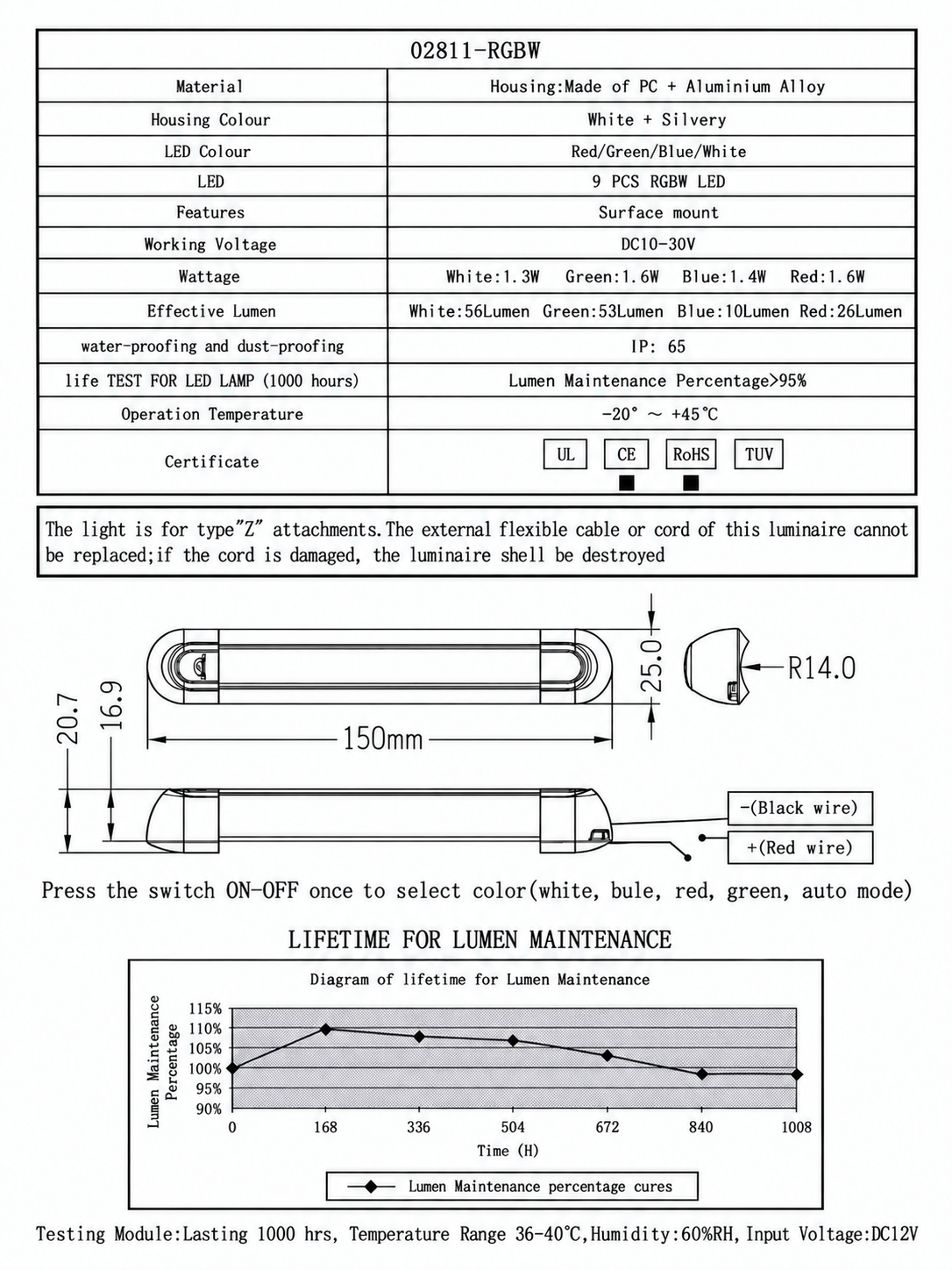

Specifications
| Part Number | 41761P |
| Length | 6 in |
| Voltage | 10-30 VDC |
| LED Type | RGBW |
| LED Count | 24 |
| Color Sequence | White, Blue, Red, Green, Dynamic fade |
| Control Method | 2-wire, any on/off switch |
| Reset Behavior | Off for 4+ seconds resets to white |
| Ingress Protection | IP65 |
| Housing | Extruded aluminum |
| Construction | Sealed, weatherproof |
| Mounting | Surface mount or rail bracket |
| Bracket Range | 3/4" to 1-1/2" diameter tubing |
| Applications | T-top, Bimini, surface mount |
Frequently Asked Questions
Does the Scandvik 41761P need a controller or special switch?
No. It uses a 2-wire connection and works off any standard on/off switch. Color sequencing happens inside the fixture.
How do you change colors?
Cycle the switch. Each quick off/on advances through White, Blue, Red, Green, then a dynamic color fade mode.
How does it reset to white?
Leave it off for more than 4 seconds. The next time you switch it on, it starts at white.
Will it run on a 24V system?
Yes. It accepts 10-30 VDC, so 12V and 24V systems both work without a converter.
What size rail does it mount to?
The included brackets fit tubing from 3/4" to 1-1/2" in diameter. You can also surface mount it directly.
Is the 41761P OK for open cockpit exposure?
Yes. It's IP65 with sealed, weatherproof construction, which handles rain, spray, and washdown. For continuous immersion or below-waterline use, choose an IP67 or IP68 fixture.
What's the difference between the 41761P and the 41763P?
Length. The 41761P is 6 inches and the 41763P is 12 inches. Same RGBW+ platform and same 2-wire control.
