Samlex BGW-60 Waterproof Battery Guard - 60 Amps [BGW-60]
“All pricing is subject to change without notice due to tariffs, supply chain fluctuations, or manufacturer adjustments. Please call DRSA for the most up-to-date pricing.”
Description
Description

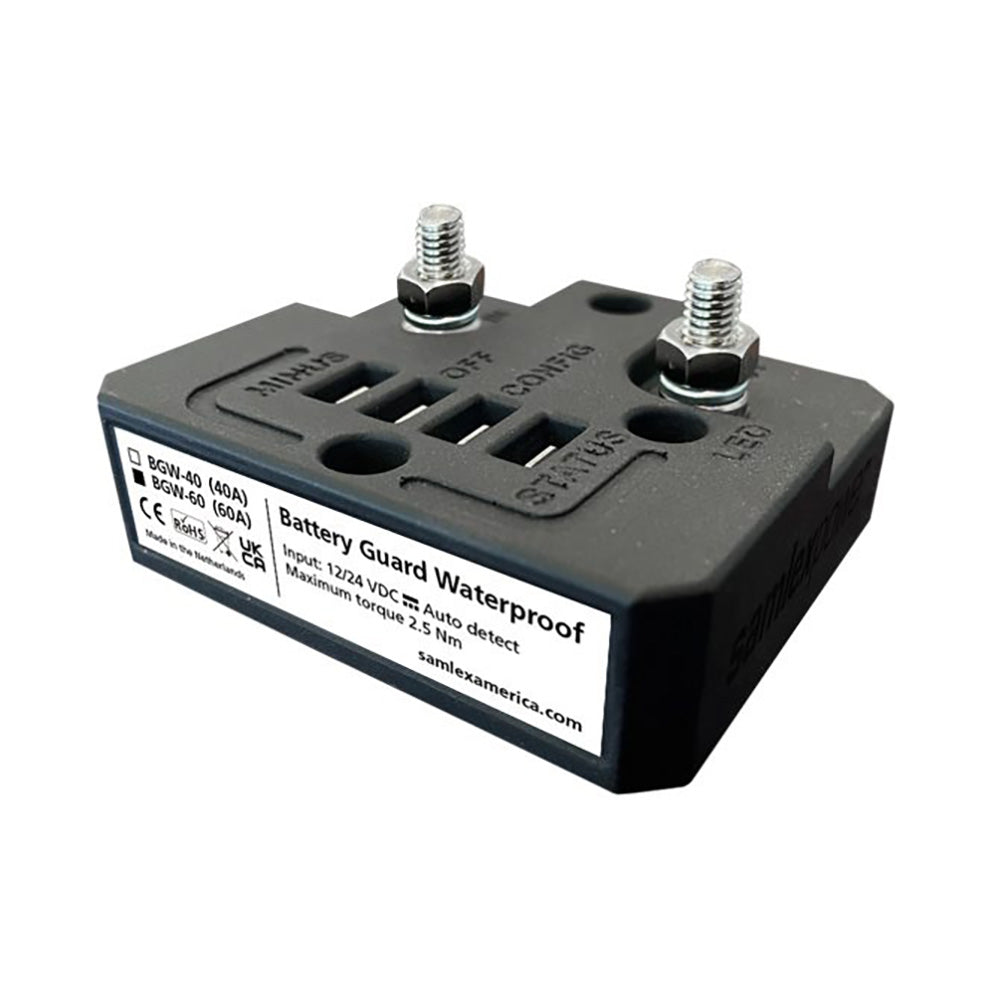

BGW-60 Waterproof Battery Guard - 60 Amps
The Battery Guard Waterproof BGW-60 is an intelligent, user-programmable, fully waterproof battery guard. The battery guard prevents the excessive discharge of the battery (which would damage the battery) and protects electronic appliances against overvoltage. Includes “Automatic Board System Detection,” the BG automatically detects the battery voltage (12 or 24V). The battery guard is capable of carrying 60A continuous load and 65A transient load. There is a choice out of 10 on/off threshold voltage programs, for both 12V and 24V battery systems, which can be easily programmed. The BGW-60 has additional options for a remote off switch and an alarm output for connecting a buzzer, LED strip, or relay.
Features:
- Can be set to connect/disconnect at several different voltages with jumpers
- Helps batteries last longer
- Prevents damage to connected components
- Prevents excessive voltage caused by faulty alternators or chargers
- Fully waterproof
Applications:
- Marine, automotive, and recreational
Specifications:
- Input: 6-35 VDC
- Output: 6-35 VDC
- Amps: 60 Amps
- Weight: (lbs) 0.4 / (kg) 0.2
- Dimensions: (inch) 2.44" x 2.83" x 1.26" / (mm) 62 x 72 x 32
*No battery included
Specifications:
- Type: Covers
Owner's Manual (pdf)
Brochure (pdf)
