OceanLED Discover Series D3 Underwater Light - Ultra White with Isolation Kit [D3009WI]
Description
Description

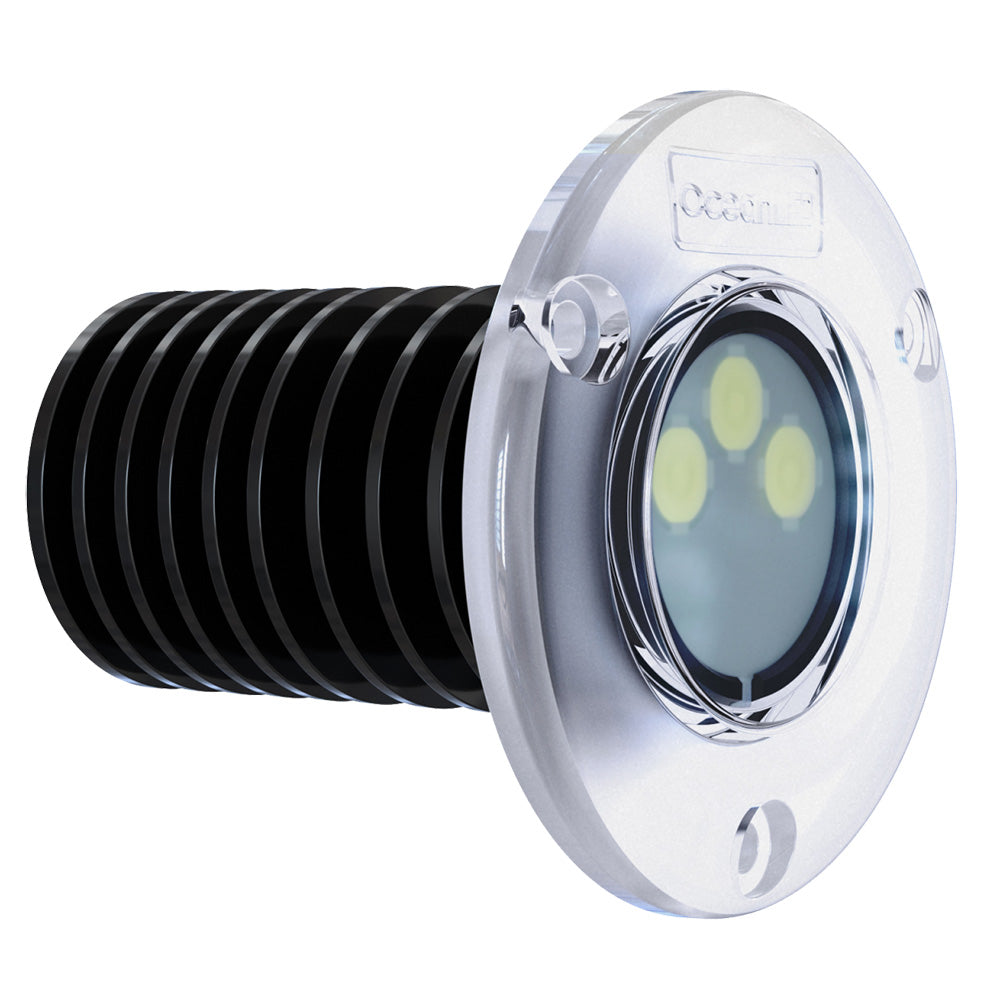

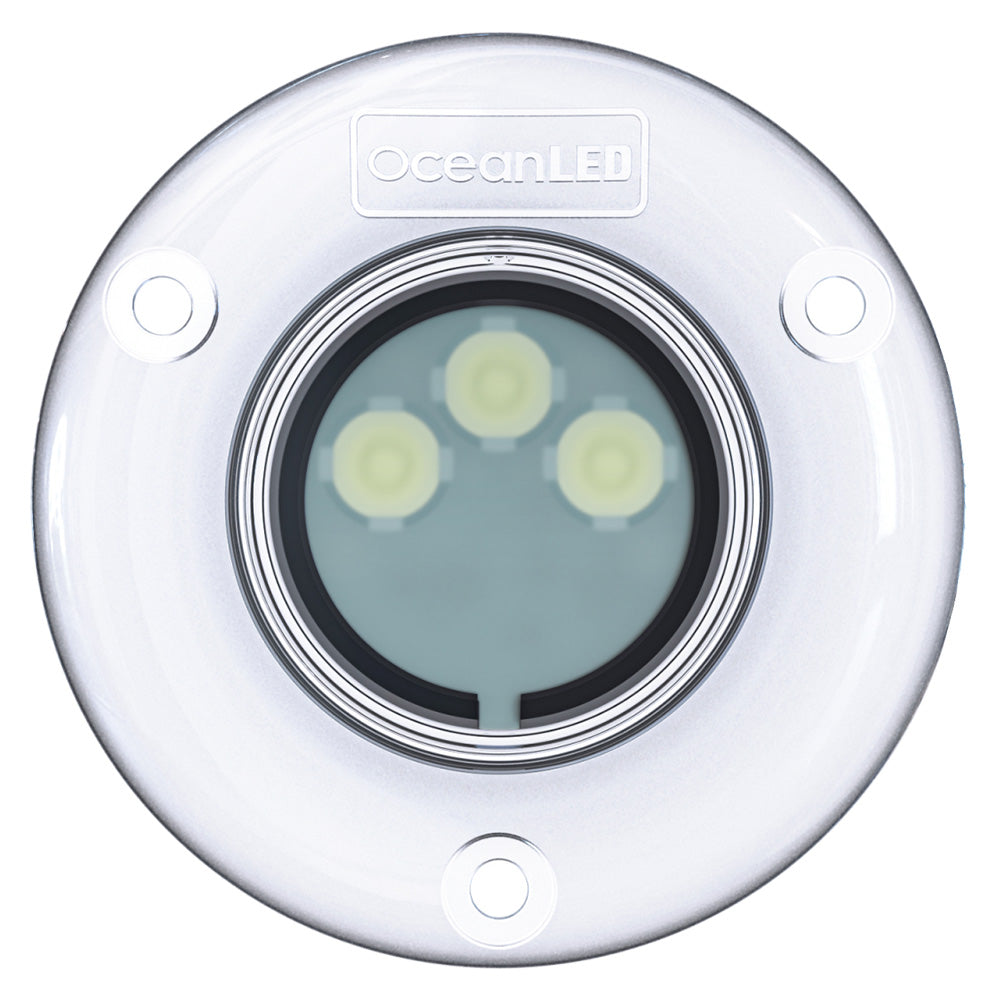

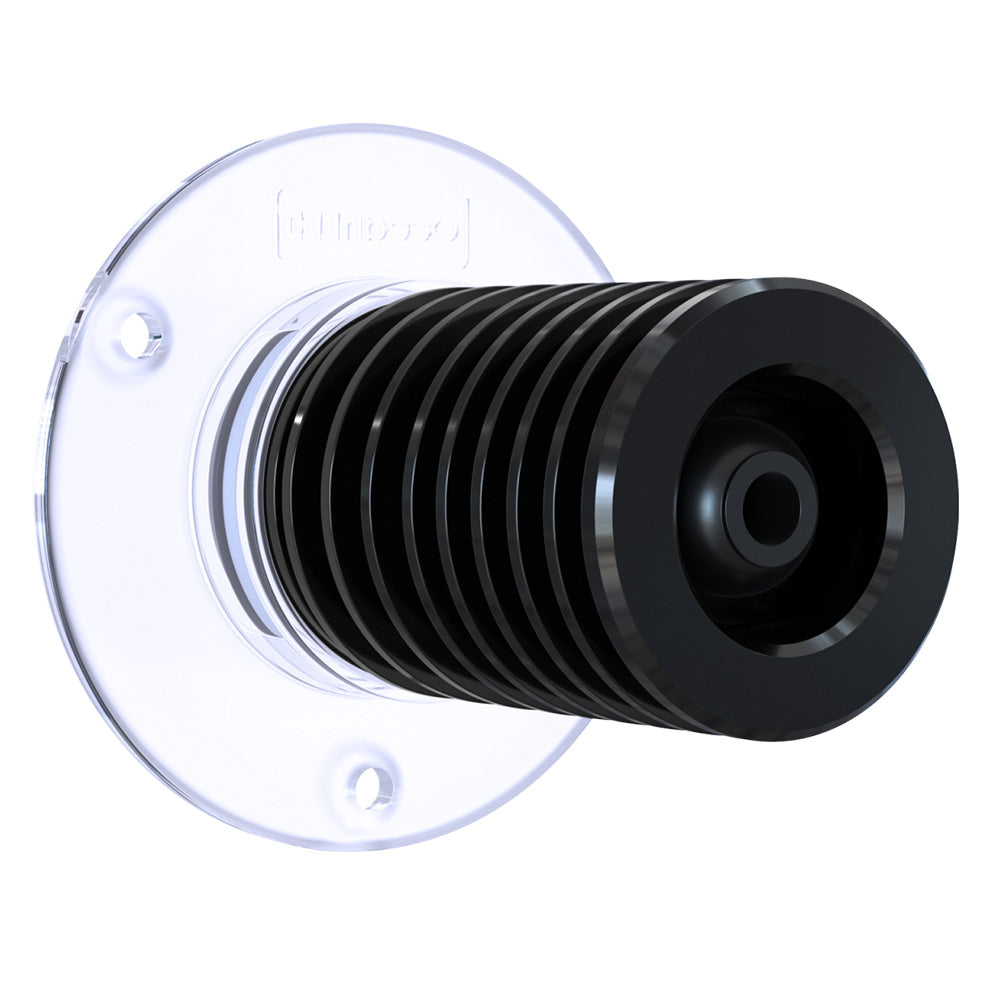

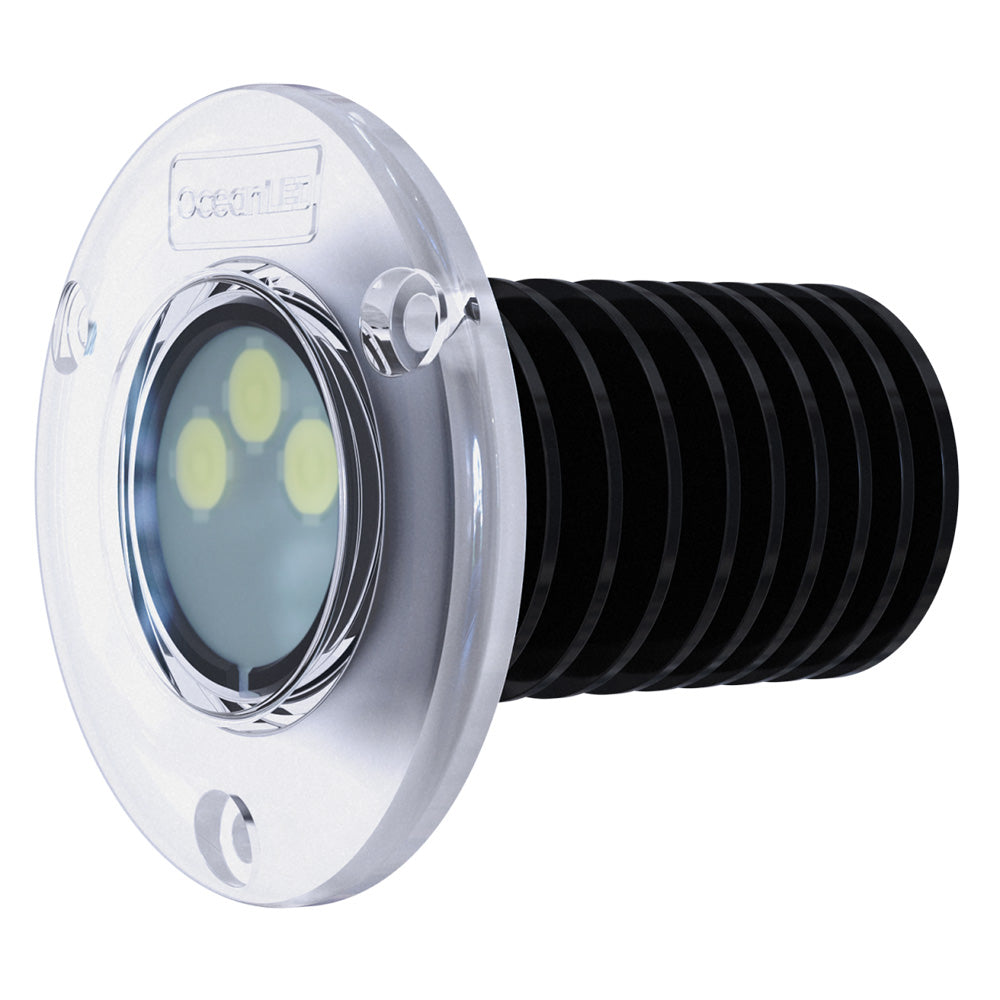

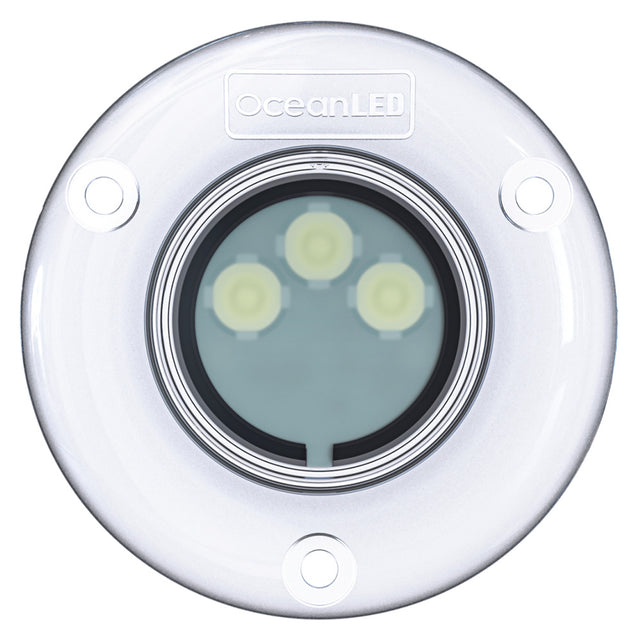

OceanLED Discover Series D3 Ultra White with Isolation Kit – Underwater Boat Light [D3009WI]
The Compact Powerhouse for Brilliant Underwater Lighting
The OceanLED Discover D3 Ultra White with Isolation Kit delivers serious brightness in a small footprint. Engineered for boats up to 26 feet, this compact underwater LED light produces 700 fixture lumens with a 90° x 20° elliptical beam, casting wide, even coverage across your wake and below the surface.
Its IP69K waterproof rating and Tritonium-coated lens are built to handle salt, pressure, and growth, while the included isolation kit ensures safe mounting on metal hulls. Whether you’re cruising, fishing, or just lighting up your dock, the D3 packs a punch without taking up space.
Why You’ll Love the OceanLED Discover D3
-
Powerful Output: 700 lumens of crisp 6500K ultra-white light
-
Signature Beam Control: 90° top x 20° side beam for wide, focused coverage
-
Ultra-Rugged Construction: IP69K rating with rear submersion protection
-
Tritonium-Coated Lens: Easy to clean, resists marine growth
-
Compact Design: Only 2.76" in diameter perfect for tight installs
-
Corrosion Protection: Isolation kit included for metal hull compatibility
-
Energy Efficient: Low amp draw (approx. 0.5A @ 12V)
-
Long-Lasting: 40,000+ hour CREE LEDs
-
Easy DIY Install: Requires just a 45mm hull hole and 2-wire hookup
Perfect For
-
Transom lighting on small boats and center consoles
-
Dockside illumination while moored
-
Night fishing and cruising with visibility
-
Above-water applications like cockpit, trailer, or deck lighting
Technical Specifications
| Feature | Specification |
|---|---|
| Color Temperature | Ultra White (6500K) |
| Fixture Lumens | 700 |
| Beam Angle | 90° top / 20° side elliptical |
| LED Lifespan | 40,000+ hours |
| Voltage | 9–32V DC (assumed, per OceanLED specs) |
| Current Draw | ~0.5A @ 12V, ~0.25A @ 24V |
| Housing Material | Anodized aluminum |
| Lens | Tritonium-coated polycarbonate |
| Mounting Type | Thru-hull (requires 45mm / 1.75” hole) |
| Dimensions | 2.76” diameter x 0.79” depth (70mm x 20mm) |
| Weight | 0.6 lbs |
| IP Rating | IP69K |
| Certifications | CE-approved, EMC-compliant |
| Warranty | 2 Years (see exclusions) |
| UPC | 5051803008361 |
What’s in the Box
-
OceanLED Discover D3 Ultra White LED Light [D3009WI]
-
Isolation kit for use on metal hulls
-
Stainless steel mounting hardware
-
Installation instructions
Sold as a single unit.
FAQs
Is this light fully waterproof?
Yes. The D3 is rated IP69K, the highest level of waterproof protection. It’s safe for submersion and resistant to high-pressure jets.
Can I use this above the waterline?
Absolutely. The D3 can be used for above-water lighting on cockpits, trailers, or decks.
Do I need the isolation kit?
You’ll need the included isolation kit if your boat has a metal hull to prevent galvanic corrosion.
Is it hard to install?
Not at all. Most users complete the installation with a 45mm hole saw and basic tools. Just connect to a standard DC switch or push-button.
Can I pair this with my onboard power system?
Yes. The D3 is compatible with 12V and 24V DC systems and pairs well with gear such as the Victron Phoenix Inverter or the Samlex NTX-3000S-12.
Why Choose OceanLED’s D3 Ultra White?
If you want bright, clean underwater lighting for a small boat, the OceanLED D3 is a top pick. Compact and durable, it fits tight transoms and punches far above its size class. The IP69K rating means it handles real-world marine abuse. With over 40,000 hours of life, Tritonium-coated optics, and a corrosion-blocking isolation kit, the D3 is a smart long-term investment for serious boaters.
Shop the OceanLED Discover D3 Ultra White Today
Get the brightness, build quality, and performance OceanLED is known for—now available for compact boats. Buy the Discover D3 Ultra White [D3009WI] with isolation kit today at DRSA.com, or contact us at sales@drsa.com | +1 561 842 5704.
📍 420 US Highway 1, Suite 8, North Palm Beach, FL 33408
Control your Discover D3 lights via a third-party switch or push button of your choice. Refer to the installation manual for additional information.
Features:
- 700 Fixture lumens
- 90° Top Beam
- Elliptical Beam Shape
- 20° Side Beam
- IP69k Protection
- Compact size for tight spaces and smaller boats
- Rear Submersion Protection
- Can be used above water
Specifications:
- Color: White
- Material: Anodized Aluminum
- Mounting Style: Thru-Hull
- Box Dimensions: 4"H x 4"W x 4"L WT: 0.6 lbs
- UPC: 5051803008361
