Lumishore ECLIPSE CL30 Courtesy Light [010-04542-00]
Description
Description

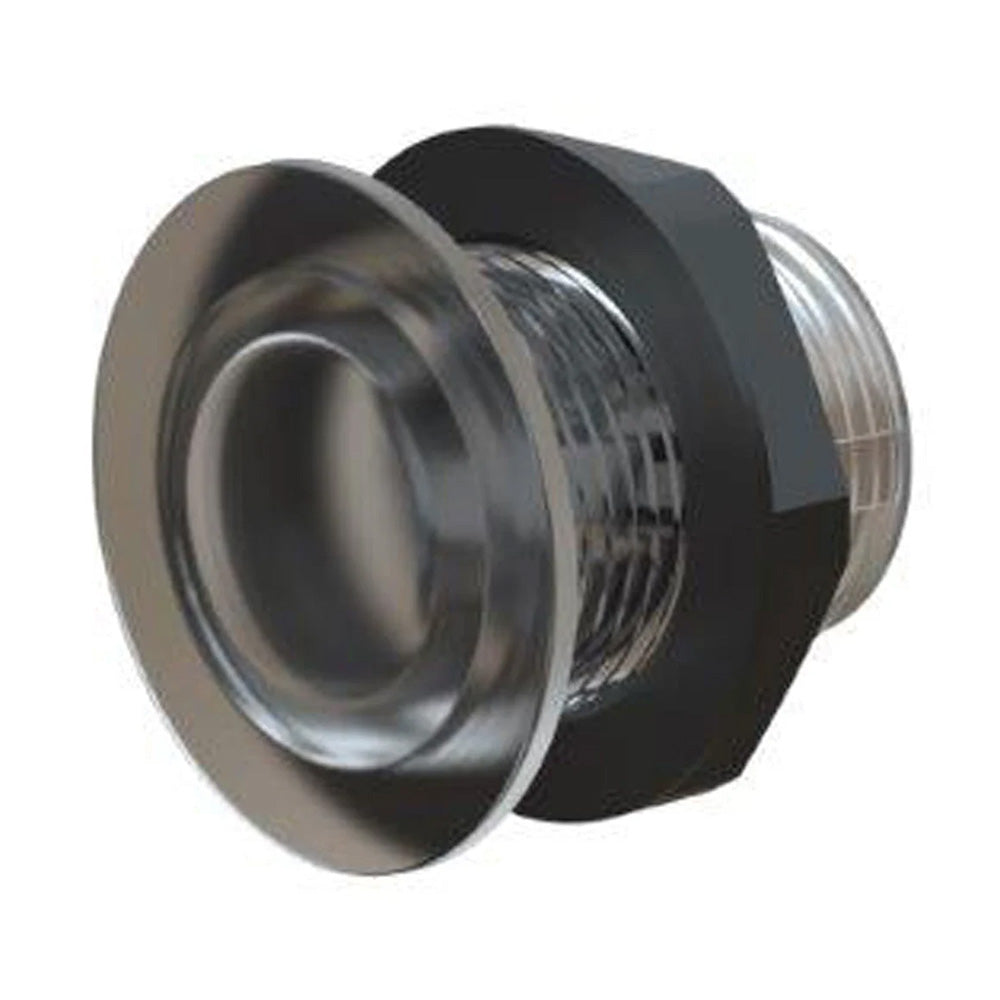

Lumishore ECLIPSE CL30 Courtesy Light
The Lumishore ECLIPSE CL30 Courtesy Light adds subtle, reliable illumination to your boat’s walkways, stairwells, and helm stations. Its compact 33mm design and clear acrylic body deliver a sleek look while ensuring durability in marine environments. With a simple 2-wire hookup and flush-mount installation, it’s easy to add anywhere onboard. Fully IP67 waterproof and backed by a 5-year warranty, this light offers dependable performance for enhancing safety and aesthetics.
Key Features
-
Compact 33mm (1.3") diameter fits discreetly on any surface
-
Single color white output for clear, consistent illumination
-
Durable clear acrylic body resists corrosion and wear
-
IP67 rating ensures complete water and dust protection
-
Simple 2-wire installation for quick, hassle-free setup
-
Flush-mount design requires only a 25.4mm (1") hole
-
Low 0.1A power draw at 12V DC minimizes energy use
-
Compatible with on/off switch or ECLIPSE Command Center
-
3 x 0.5W LEDs deliver efficient, bright output
-
3-year warranty guarantees long-term reliability
Perfect For
-
Illuminating walkways and stairwells on boats for safety
-
Adding subtle lighting to helm stations or cockpits
-
Enhancing design elements in marine interiors or exteriors
-
12V DC systems needing low-power, reliable lighting
-
Flush-mount installations in tight or compact spaces
Technical Specifications
|
Specification |
Details |
|---|---|
|
Lumens |
90 |
|
IP Rating |
IP67 |
|
Dimensions |
33mm Dia. x 30mm D (1.3" x 1.18") |
|
Voltage |
12V DC (10-15V DC) |
|
Current Draw |
0.1A @ 12V DC |
|
Material |
Clear Acrylic |
|
Warranty |
3 Years |
|
LED Type |
3 x 0.5W LEDs |
|
LED Color |
Single Color White |
|
Mounting |
Flush Mount (25.4mm/1" hole) |
|
Control Options |
On/Off Switch or ECLIPSE Command Center |
|
UPC |
Not specified |
|
Box Dimensions |
2"H x 4"W x 4"L; Weight: 0.2 lbs (est.) |
What’s in the Box
-
ECLIPSE CL30 Courtesy Light in single color white
-
Installation hardware for flush mounting
-
User manual and wiring instructions
Frequently Asked Questions
-
Is the ECLIPSE CL30 waterproof?
Yes, it’s IP67 rated, fully sealed against water and dust for marine use. -
Can I install it myself?
Absolutely, it uses a simple 2-wire hookup and flush mounts with a 1" hole. -
Is it compatible with my 12V system?
Yes, it’s designed for 12V DC systems (10-15V range). -
Can I control it with a dimmer?
It works with an on/off switch or the ECLIPSE Command Center for advanced control. -
How bright is the light?
It outputs 90 lumens, ideal for subtle courtesy lighting without glare.
Why Choose Lumishore ECLIPSE CL30 Courtesy Light?
This light combines a sleek, durable design with easy installation and low power use. Its IP67 rating and acrylic construction ensure it thrives in marine conditions. Lumishore’s reputation for quality makes it a trusted choice for boaters.
