Bob's Machine 6" Fixed Setback Brackets w/1.5" Built-In Lift - Silver [100-406000-NOPC]
“All pricing is subject to change without notice due to tariffs, supply chain fluctuations, or manufacturer adjustments. Please call DRSA for the most up-to-date pricing.”
Description
Description

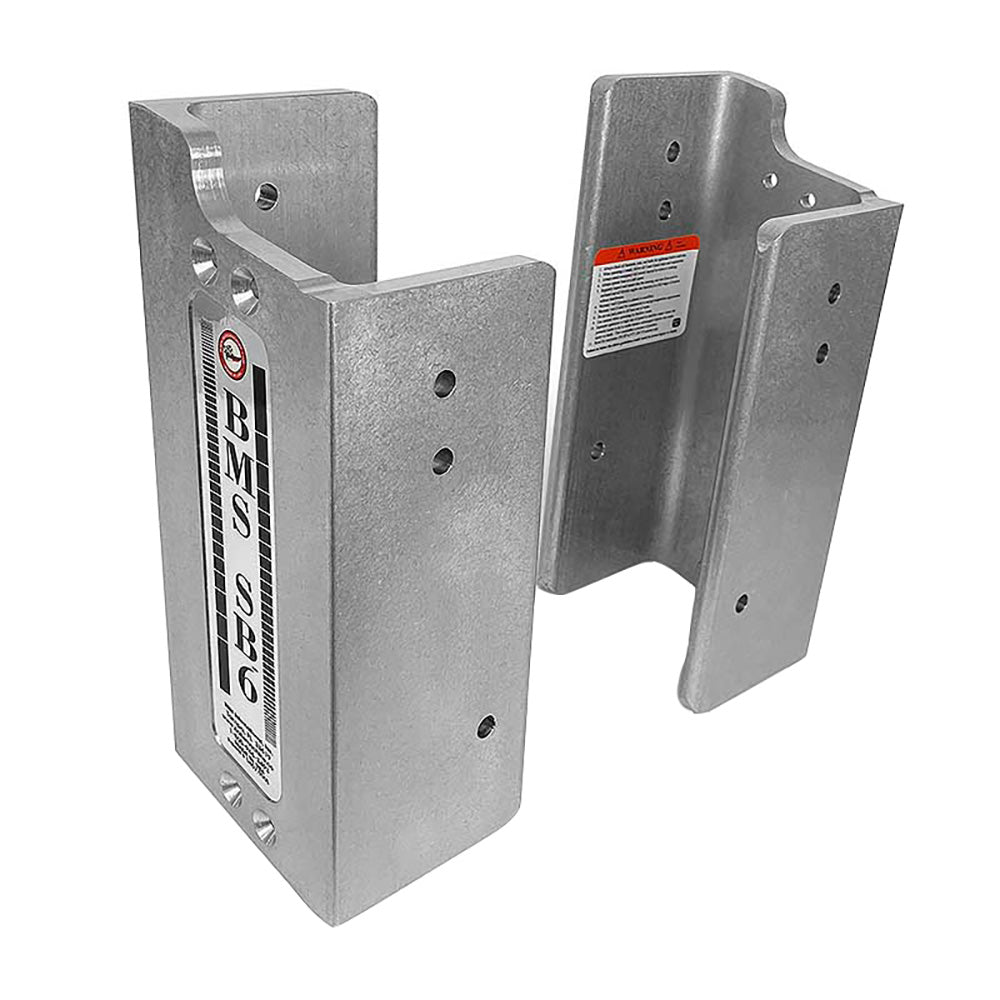

6" Fixed Setback Brackets with 1.5" Built-In Lift - Silver
Setback brackets re-position the motor into cleaner water to increase propeller efficiency and minimize prop slippage. Drag is reduced and the boat exhibits more bow lift, which results in a drier ride. The increased distance between the propeller and the hull also improves boat operation in reverse.
The fixed setback brackets are made of 5/8’s inch thick, heavy-duty 6061 T6 aircraft-grade aluminum and can handle up to 550-hp engines. They have the same industrial design and appearance as hydraulic jack plates to give an overall look and feel of consistency.
Installing the brackets is easy. Remove the motor and install the brackets in the transom’s existing holes. Then re-mount the motor on the brackets.
Because the brackets are designed to fit all motors with the standard BIA bolt pattern, there is no need to plug and re-glass the old holes. The brackets are also pre-drilled with two sets of mounting holes to provide different engine height adjustments.
Features:
- Fixed Setback bracket rated for up to 550HP
- Designed for installation directly to transom and motor. Not for use as spacer. If you want to spacer jack plate back further, please see no lift version.
- 1.5″ of built-in lift
- Thick material and large radius make these the one of the strongest available!
- The fixed setback brackets provide advantages for all boaters, including improved fuel economy and better top speed.
