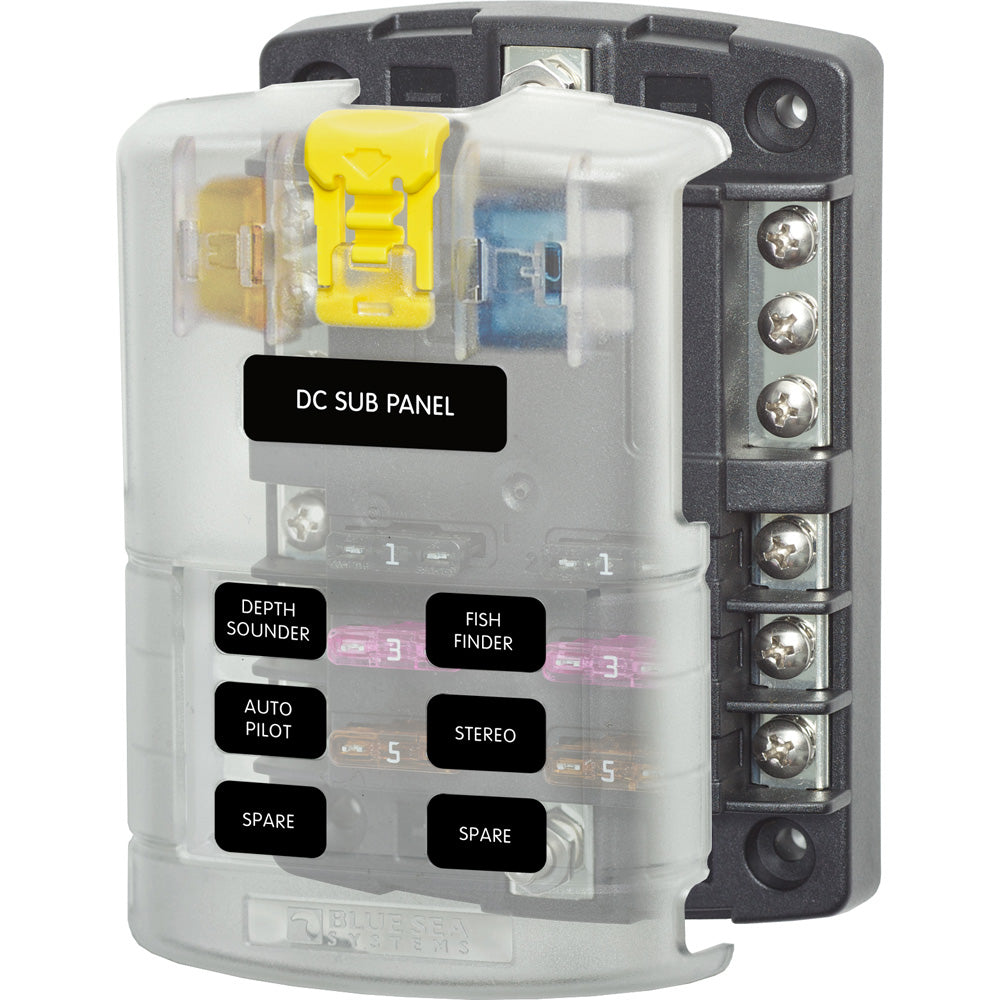

Blue Sea 5025 ST Blade Fuse Block w/Cover - 6 Circuit w/Negative Bus [5025]
This fuse block organizes up to six circuits in your boat's electrical system, keeping wiring clean and protected. It handles 30 amps per circuit with tin-plated copper components that resist corrosion in marine settings. The snap-on cover meets ABYC and USCG standards, ensuring reliable safety without added hassle.
Key Features
- Clear insulating cover stores Small Format Labels for easy circuit identification
- Snap-on cover with push-button latch satisfies ABYC/USCG insulation rules
- Tin-plated copper buses and clips support 30 amps per circuit
- Accepts standard ATO and ATC blade fuses for quick replacements
- Positive distribution bus with #10-32 stud for solid power input
- Negative bus with #10-32 stud simplifies grounding
- Consolidates branch circuits to reduce clutter in tight panels
- Built for 24-hour circuits in constant-use setups
- Vibration-resistant design holds up in rough water
- Includes 20 write-on labels to mark circuits right away
Perfect For
- Small boats under 30 feet with basic electrical needs
- Bass boats or center consoles adding fuse protection
- RV panels needing compact circuit management
- Custom 12V or 24V wiring jobs in marine or off-road rigs
- Upgrading old fuse holders to ABYC-compliant gear
Technical Specifications
| Feature | Specification |
|---|---|
| Circuits | 6 |
| Max Amperage per Circuit | 30A |
| Max Amperage per Block | 100A |
| Max Voltage | 32V DC |
| Fuse Type | ATO/ATC Blade Fuses |
| Mounting | #8 Screw (M4) |
| Positive Bus | #10-32 Stud |
| Negative Bus | #10-32 Stud |
| Dimensions | 3.32" W x 4.9" H |
| Material | Tin-Plated Copper |
| Certifications | ABYC/USCG Compliant |
What’s in the Box
- Blue Sea 5025 ST Blade Fuse Block with cover
- 20 write-on circuit identification labels
Frequently Asked Questions
- Does this work with ATO fuses? Yes, it accepts both ATO and ATC blade fuses up to 30 amps.
- Is the cover waterproof? It provides full insulation per ABYC/USCG standards but mount it in a dry area for best protection.
- Can I use it on 24V systems? Yes, it's rated up to 32V DC for 12V, 24V, or mixed setups.
- How do I mount it? Use #8 screws through the M4 holes; it's straightforward for most panels.
- What's the max load for the whole block? It handles a total of 100 amps across all circuits.
Why Choose Blue Sea 5025 ST Blade Fuse Block? Boaters pick this for its no-fuss organization that cuts down on wiring mess and fault risks. The marine-grade build lasts through salt and bumps, and the labels make troubleshooting simple. It delivers solid value by meeting strict safety rules without overcomplicating installs.
Upgrade your system with marine-grade reliability. Shop now at DRSA.com.
