ASEA Power Systems | SKU:
DRSA-111440
ASEA Power Systems 12 kVA Isolation Transformer [634103]
$4,543.99
$4,950.00
Unit price
/
Unavailable
Shipping calculated at checkout.
Description
Description

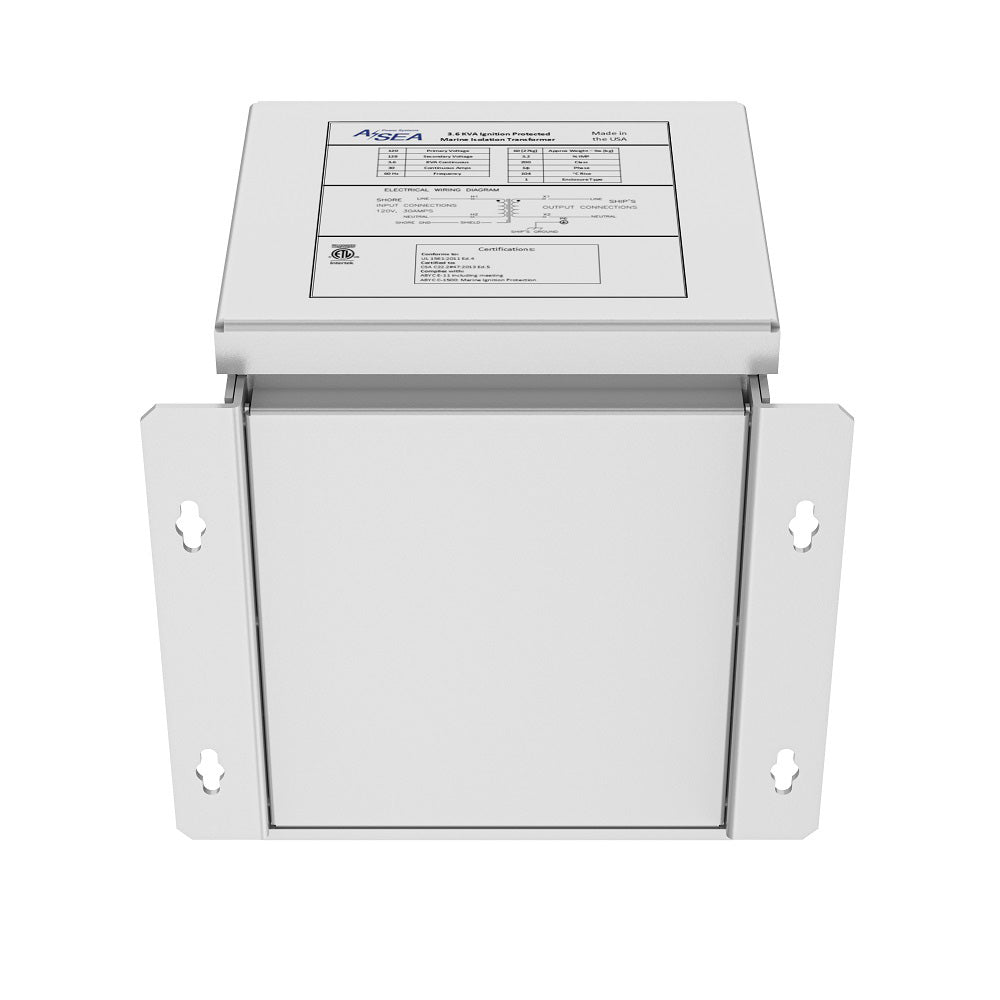

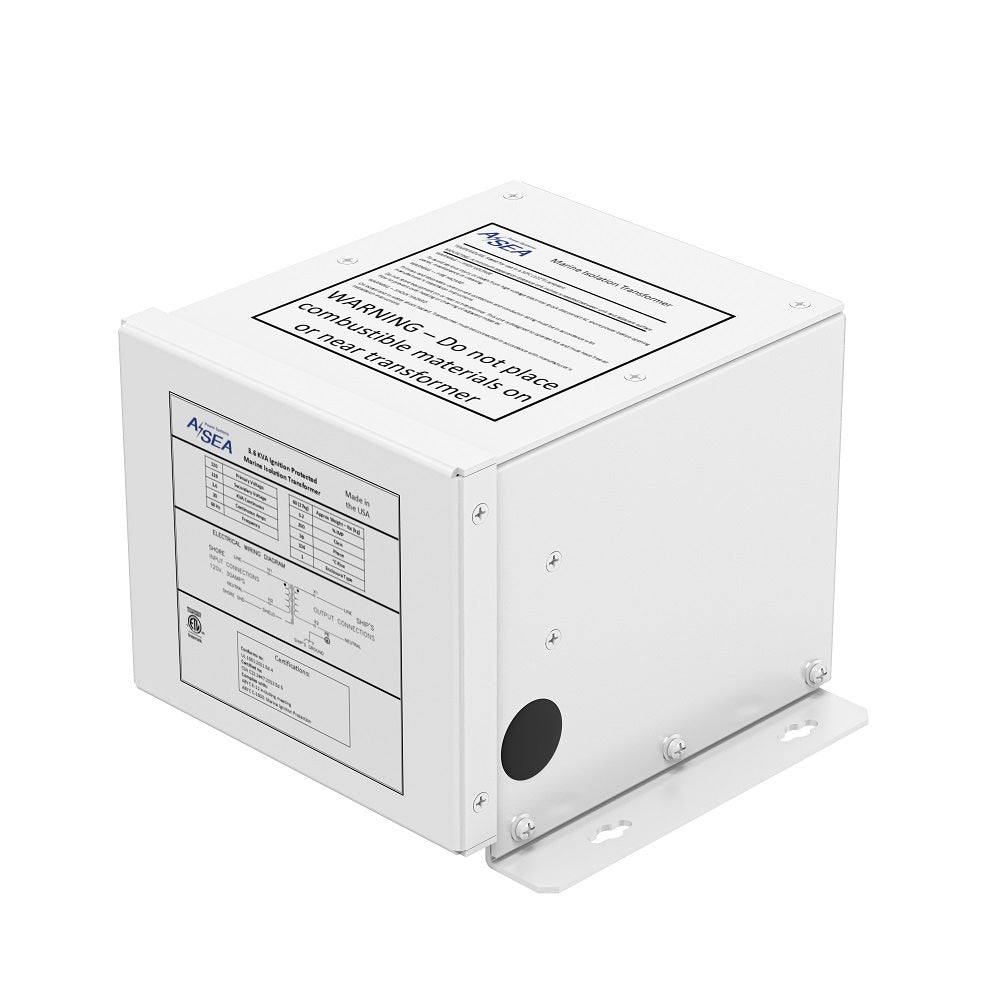

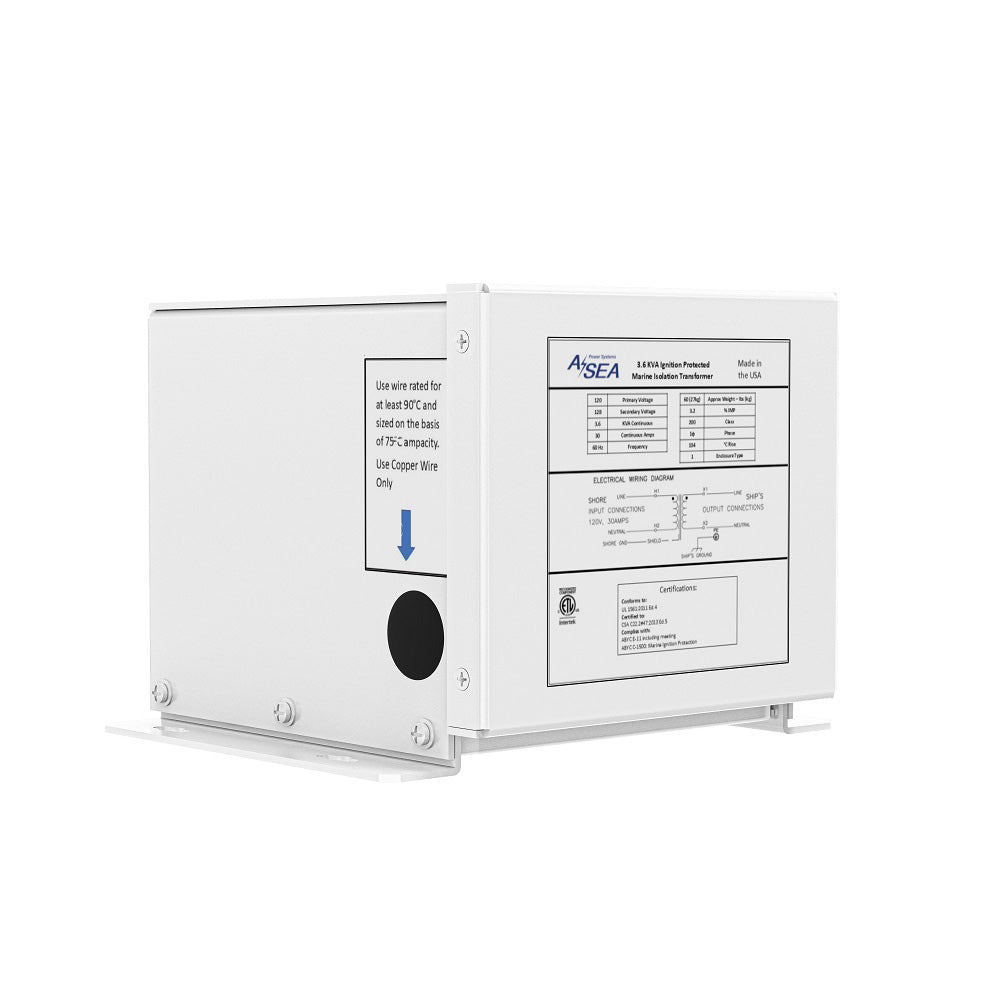

12 kVA Isolation Transformer
ASEA’s Isolation Transformer is a drop-in replacement for Charles IsoG2, designed to protect vessel under-fittings from galvanic corrosion and to shield onboard electronics from reverse polarity and shore power fluctuations. It also ensures safety by preventing the boat from sending unintended electric currents into the surrounding water.
Features:
- Ignition-protected, safe for gasoline-powered vessels
- Complete Electrical Isolation prevents dockside ELCI breaker trips
- Maintains a safer marine environment by mitigating the risk of ESD
- Ensures clean and stable AC power for on-board equipment
- Reduces galvanic corrosion
- Meets the latest NEC 555.35 marina code that ensures GFPE limits are not exceeded
Specifications:
- Input Voltage: 120 VAC
- Input Current: 30 A
- Output Voltage: 120 VAC
- Output Current: 30 A
- Output Frequency: 60 Hz
- Weight: 55 lbs
- Height: 21.6 cm / 8.5 in
- Width: 21.6 cm / 8.5 in
- Width (with flange): 27.4 cm / 10.8 in
- Depth: 26.7 cm / 10.5 in
Certifications:
- ABYC E-11 Compliant
- ABYC C-1500 (for ignition protection)
- UL 1500 (for ignition protection)
- UL 1561
