12" LED Rail Light, 550 Lumen White | Scandvik | DRSA
“All pricing is subject to change without notice due to tariffs, supply chain fluctuations, or manufacturer adjustments. Please call DRSA for the most up-to-date pricing.”

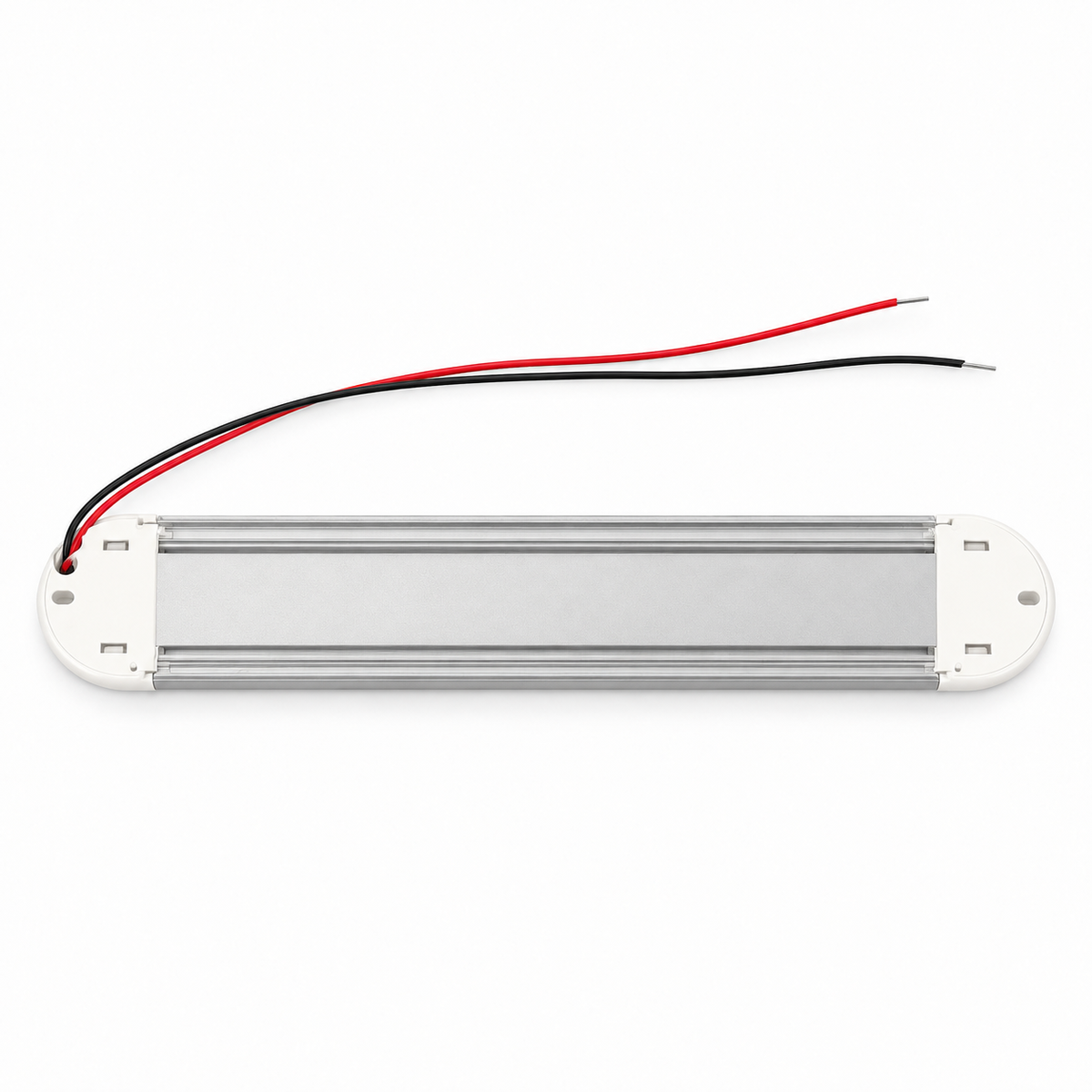

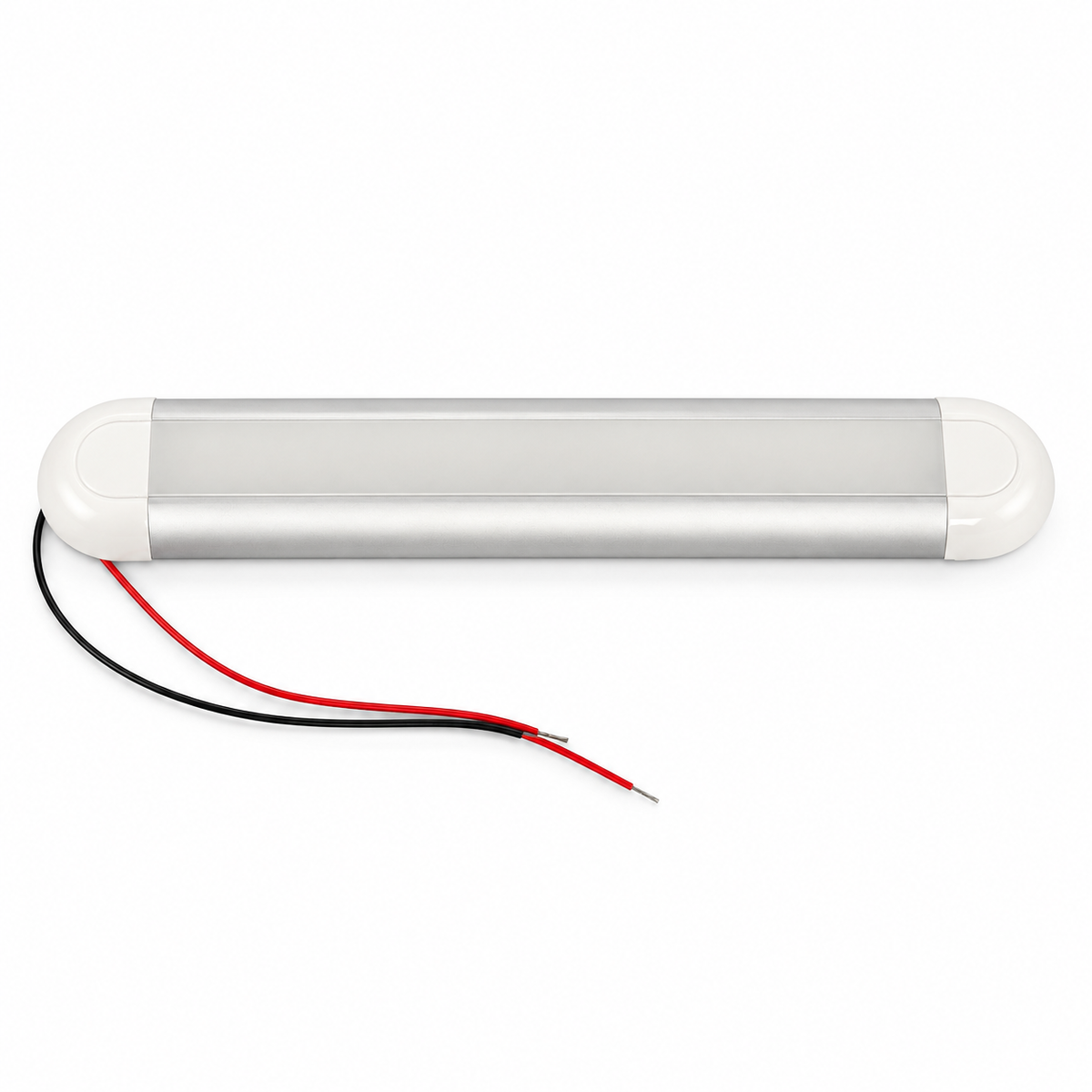

The Scandvik 12" LED Rail Light puts 550 lumens of even, neutral white light into a slim aluminum bar. Fifty-eight small LEDs sit behind a high-impact lens, so you get one smooth line of light with no bright dots. It mounts with two screws and runs on 12V or 24V.
It's bright enough to work by under a T-top or in an engine room, and it dims down when you want a softer glow.
Key features
- Smooth light with no hot spots: 58 x 0.2W 2835 LEDs behind a diffusing lens
- Real working light: 550 effective lumens at 4500K neutral white
- Sealed for wet spaces: IP67 rated against dust and temporary immersion
- Fits 12V or 24V boats: 0.73A at 12V, 0.37A at 24V, 8.88 watts
- Set the brightness you want: dimmable with the Scandvik 41598P dimmer
- Clean wire runs: notched end cap routes wires out the side or back through the mounting surface
- Built for salt air: extruded aluminum housing with stainless mounting screws included
A 12-inch LED rail light that lights the whole space
Point-source LEDs throw bright spots and dark gaps, which gets old fast when you're rigging or working on an engine. This fixture packs 58 LEDs into 12 inches and spreads them through a lens. The result reads like a single tube of light.
The 4500K color sits between warm and cool white. Colors look true, so you can read wire colors, spot leaks, and see what's on deck without the blue cast of cooler LEDs.
The notched end cap is a small detail that saves time. Drop the wires straight through the mounting surface for a hidden install, or run them out the side when you can't drill behind it.
Where to use it
- Under T-tops and hardtops on center consoles
- Engine rooms and bilges where you need bright, true color
- Cockpits, wet bars, and outdoor galleys
- Under gunwales and along cockpit coaming
- Storage lockers, lazarettes, and cabin overheads
Need color instead of white? See the Scandvik 12" RGBW color change rail light. For step and walkway markers, add the Scandvik oval blue LED courtesy light. Browse all engine room and utility lights, or see more courtesy and accent lights .
FAQ
How bright is the Scandvik 12" LED rail light? It puts out 550 effective lumens at 4500K neutral white. That's enough to light a work area under a T-top or a small engine room.
Does it work on 12V and 24V boats? Yes. It runs on either 12V or 24V DC. It draws 0.73 amps at 12V and 0.37 amps at 24V, about 8.88 watts in both cases.
Can I dim this LED rail light? Yes. It's dimmable with the Scandvik 41598P dimmer, sold separately. It also needs an external on-off switch, since there's no switch built into the fixture.
Is it waterproof? It's rated IP67, which means it's sealed against dust and can handle temporary immersion. Rain, spray, washdowns, and engine room humidity won't get inside.
How do I hide the wires? One end cap has a notch for the power leads. Drill a small hole behind it and run the wires straight through the mounting surface, or route them out the side if you can't get behind the panel.
Why buy from DRSA
DRSA has supplied marine lighting from North Palm Beach since 1988. We'll help you figure out how many fixtures your T-top or engine room needs and how to wire the dimmer. Call 561-842-5704.
