Vertical sector requirements define how navigation lights must perform when a vessel is in motion. These requirements ensure that a light remains visible above and below the horizontal plane as the boat pitches, trims, or heels. Unlike marine deck lights, Deck Lighting, Dock Lighting, or marine dock lighting, navigation lights are governed by strict optical standards because they directly affect collision avoidance and legal compliance.
What Vertical Sector Requirements Mean in Regulatory Standards
Vertical sector requirements are established to ensure consistent visibility under real operating conditions rather than static dockside inspection. Regulatory bodies evaluate navigation lights based on measurable photometric performance across defined angles, not just perceived brightness.
Vertical Sector Definition Under ABYC A 16 and COLREGS
Under ABYC A 16 and COLREGS, navigation lights must maintain minimum required luminous intensity from 7.5 degrees above the horizontal plane to 7.5 degrees below it. This angular range accounts for normal vessel motion and ensures visibility during acceleration, wave action, and load shifts.
The horizontal plane is defined by the vessel’s design waterline, meaning compliance is based on underway conditions rather than a level dock or trailer position.
Why Vertical Sector Compliance Is Critical for Marine Safety
Vertical sector compliance directly affects how other vessels detect and interpret your presence on the water. When a navigation light fails to maintain intensity across its vertical range, visibility can be lost at critical moments.
Impact of Vessel Motion on Light Visibility
As a vessel moves through chop or swell, its bow and stern continuously rise and fall. If a navigation light has a narrow vertical beam, it may disappear when the vessel pitches outside that beam. This can lead to delayed recognition or misjudgment by other operators, increasing collision risk.
The same visibility challenges occur when poorly designed marine deck lights or Dock Lighting systems create glare or shadow zones that interfere with nighttime navigation near docks and marinas.Â
Common Vertical Sector Failures in LED Navigation Lights
Many vertical sector failures occur not because LEDs are inadequate, but because they are used in fixtures not designed for their optical characteristics.Â
LED Retrofit Optical Limitations
Incandescent navigation lights were designed around omnidirectional filaments. LEDs emit light directionally, and when installed in legacy housings, the light source often does not align with the lens focal point. This causes the vertical beam to narrow, resulting in:
- Adequate brightness only at limited viewing angles
- Loss of required intensity as the vessel pitches
- Non compliance despite high lumen output
Thermal Degradation and Output Loss
Heat buildup inside enclosed fixtures causes LED output to decrease over time. As intensity drops, vertical sector performance degrades first. This issue is especially relevant for marine engine room lights, where elevated ambient temperatures accelerate thermal stress. You can also visit our Glossary page for more information.
How Purpose Built Fixtures Maintain Vertical Sector Compliance
Vertical sector compliance must be engineered into the fixture rather than achieved through aftermarket modification.

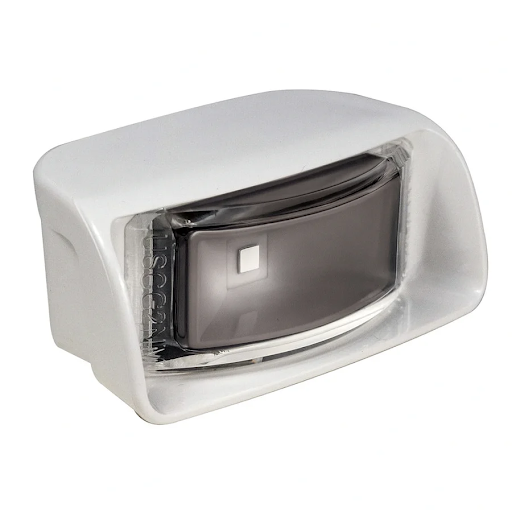

Integrated Optical Design
Navigation lights designed specifically for LED use incorporate optics that distribute light evenly across the required vertical range. These fixtures are tested as complete systems to ensure consistent performance under motion, heat, and vibration.
This same optical control approach improves safety and usability in marine dock lighting and Dock Lighting applications by directing light where it is needed without excessive spill or glare.
Vertical Sector and Accurate Signal Interpretation
Vertical sector performance works together with horizontal sector control to ensure navigation signals are correctly interpreted by other vessels.
Preventing Signal Confusion
If a navigation light fails vertically, it may appear intermittently or from incorrect angles. This can cause other operators to misinterpret whether a vessel is crossing, overtaking, or stationary. Similar issues arise when marine deck lights are poorly aimed, affecting night vision and situational awareness.
Applying Vertical Sector Principles Across Marine Lighting Systems
While vertical sector requirements apply specifically to navigation lights, the underlying optical principles are relevant throughout the vessel.
Consistency in Marine Lighting Design
Marine engine room lights must deliver stable illumination despite vibration and heat. Marine deck lights must provide safe footing without harsh shadows. Marine dock lighting must illuminate approach areas without blinding operators or neighboring vessels. In each case, controlled beam geometry is essential for safety and performance.
Conclusion
Vertical sector compliance cannot be corrected with brighter bulbs or post installation adjustments. It must be designed into the fixture from the start. Understanding this requirement helps installers and vessel owners reduce liability, maintain compliance, and ensure safe nighttime navigation.
In marine lighting, optical precision is not optional, it is fundamental to professional grade installations and regulatory acceptance.
Â
Frequently Asked Questions
The vertical sector is the angle above and below the horizontal plane where a navigation light must maintain required brightness. Regulations specify 7.5° up and 7.5° down to ensure visibility during vessel movement.
It ensures navigation lights stay visible when a vessel pitches or trims. Poor vertical coverage can cause lights to disappear, creating safety risks and regulatory non-compliance.
Generally, no. LED retrofit bulbs emit light directionally and often don’t align with traditional fixture optics, reducing vertical beam coverage.
If a navigation light drops out of view, other vessels may misjudge your position or direction, increasing collision risk especially at night.
Yes. Heat and aging reduce LED output, and vertical sector performance is often the first area to fail, particularly in enclosed fixtures like marine engine room lights.
Yes. While specific to navigation lights, the same optical principles apply to marine deck lights, Deck Lighting, Dock Lighting, and marine dock lighting to improve visibility and reduce glare.
By installing purpose-built, certified navigation light fixtures designed as complete LED systems compliance cannot be achieved with bulb swaps alone.
