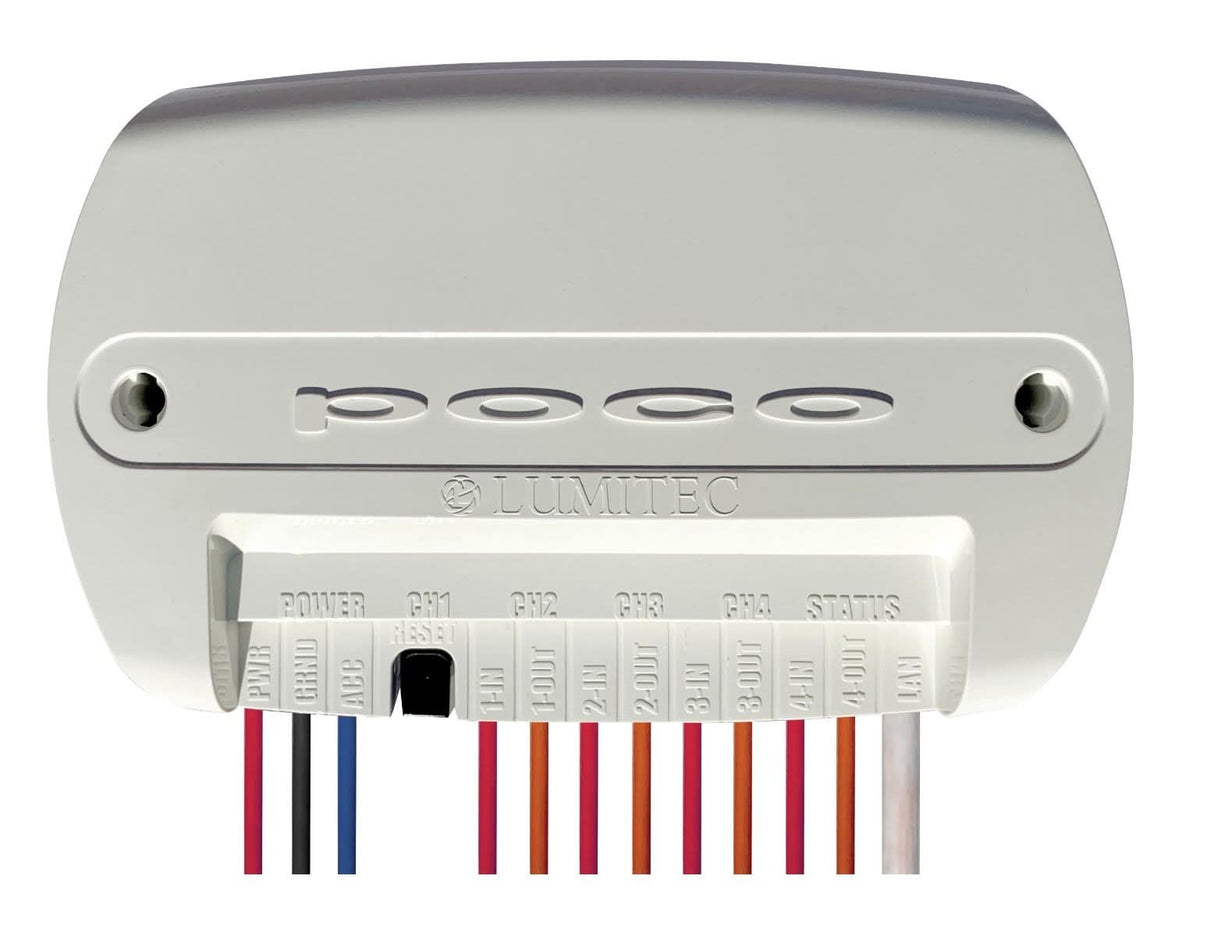

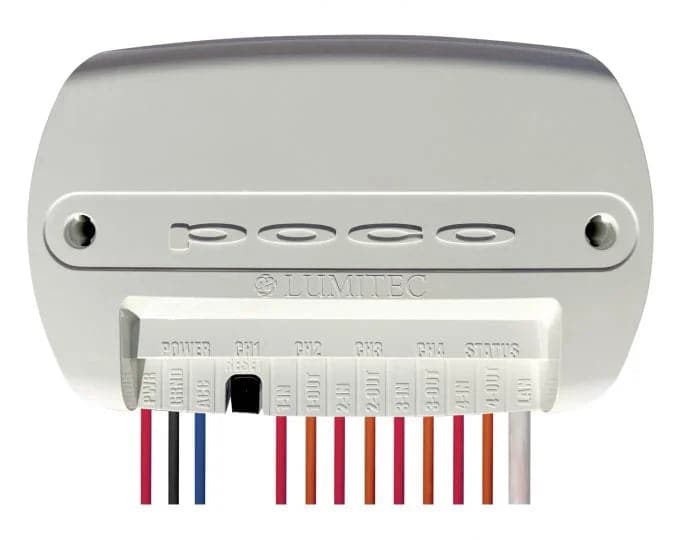

Lumitec - Poco 3 Digital Lighting Control Module
Description
Description
The Poco 3 Digital Lighting Control Module delivers sophisticated, low-cost on-board lighting control, revolutionizing the way lighting is managed on boats. Compact, sealed, and easy to install, it’s ideal for both new builds and refits, offering advanced features previously found only on high-end yachts.
- Powerful Control Options: Manage on-board lighting through a compatible MFD or smart device with an intuitive interface.
- Effortless Installation: Replaces physical circuits, wires, and switches, reducing installation costs and simplifying refits or upgrades.
- Enhanced Functionality with PLI-Enabled Lights: Unlock advanced features like precise color and intensity control, custom lighting scenes, and virtual circuits on a single channel.
- Scalable and Flexible: Compatible with the Pico S8 module for assigning up to 8 physical switches to Poco virtual switch commands, allowing control even when the MFD is powered off or dedicated to other tasks.
- Future-Ready Design: Allows for easy integration of aftermarket lights and improved lighting layouts without additional wiring runs.
Specifications:
- Compatibility: MFDs, smart devices, Lumitec’s PLI-enabled lights, and the Pico S8 module
- Applications: Marine lighting control for new builds or retrofits
- Features: Compact, sealed, cost-effective, and highly versatile
CE Certified | Yes |
---|---|

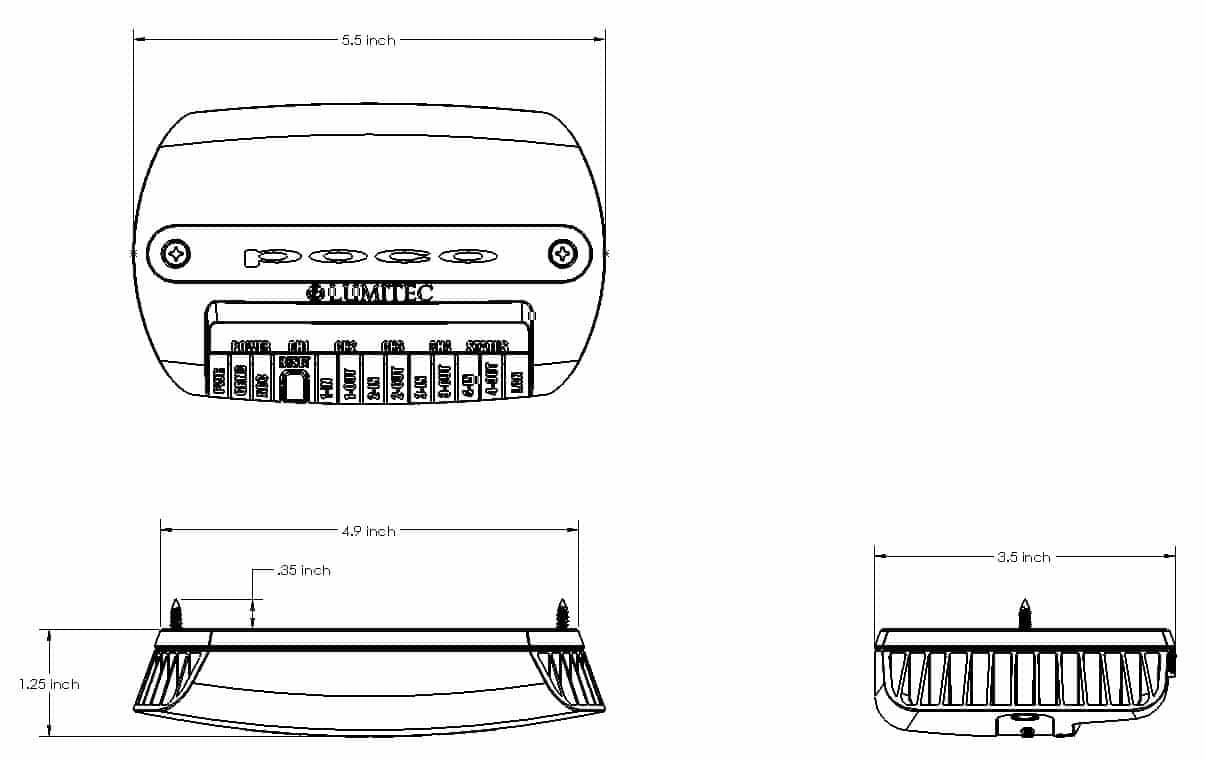

Depth | 1.24 in (3.14cm) |
Finish / Housing | White |
Height | 3.5 in (8.89cm) |
IP Rating | 67 |
Max Amp/ch | 10A |
Number of Channels | 4 |
Op. Temp F/C | -31/35 to + 131/55 |
PLI Enabled | Yes |
Sub Category | Poco System |
Timed Toggled Protocol (TTP) | Yes |
UL Certified | No |
Voltage | 10vDC-30vDC |
Width | 5.5 in (13.97cm) |
