Feature

Specification

Voltage

12V DC Only

Current Draw

30mA @ 12V

Ingress Protection

IP67 (Completely Waterproof)

Housing Material

Durable Polycarbonate

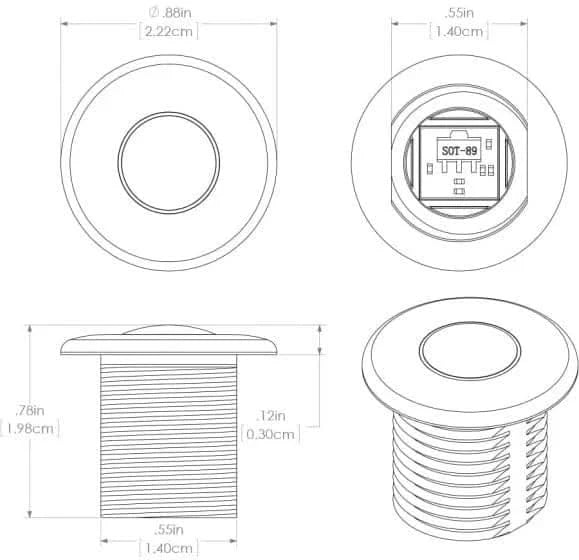

Dimensions

0.875" dia x 0.780" x 0.550"

Available Colors

White, Blue, Red

Lumens

Voltage

10-16 vDC

12v DC Amps

45mA

Related Watts

0.55

Correlated Corrected Temperature (CCT)

3000

Color Rendering Index (CRI)

80+

Op. Temp F/C

-31/35 to +131/55

Diameter

0.88in (2.22cm)

Depth

0.78in (1.98cm)

IP Rating

PLI Enabled

Timed Toggled Protocol (TTP)

Third Party Dimmer Compatibility (3PD)

Yes

Color Match Commitment (CM)

Yes

CE Certified

Yes

UL Certified

Sub Category

Courtesy & Accent Lights

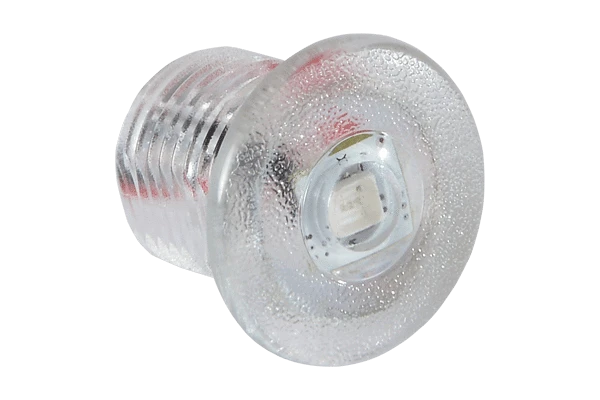

Lumitec NEWT LED Courtesy & Livewell Light

Tiny but Mighty—Versatile, Waterproof, and Built for Any Application

The NEWT LED Courtesy & Livewell Light is small in size but powerful in performance, making it the perfect lighting solution for livewells, storage lockers, step risers, gunwales, cabinets, and even overhead lighting. Originally designed as a livewell light, its compact design, waterproof construction, and impressive output make it one of the most versatile LED lights in its class. Lumitec - Courtesy & Livewell Light product specs

Why the NEWT Stands Out

✔ Compact & Powerful: Small but delivers exceptional brightness.
✔ Versatile Applications: Perfect for livewells, toe kicks, gunwales, step risers, cabinets, and overhead use.
✔ Durable & Waterproof: Completely sealed and IP67-rated for wet and dry environments.
✔ Energy-Efficient: Low current draw (only 30mA @ 12V) ensures minimal battery impact.
✔ Easy Installation: Silicone gasket included for quick, hassle-free mounting.

Key Features

Brilliant & Versatile Illumination

Compact but High-Output: Provides bright, even lighting in tiny spaces.
Multiple Color Options: Available in White, Blue, or Red LEDs to fit your lighting needs.

Built for Wet & Dry Environments

Polycarbonate Housing: Durable and resistant to marine conditions.
Completely Water-Sealed: IP67-rated for use in livewells, lockers, and outdoor areas.

Energy-Efficient & Low-Draw

Only 30mA @ 12V: Operates with minimal power consumption, extending battery life.

Effortless Installation

Compact Design: Fits even the tightest spaces onboard.
Includes Silicone Gasket: Ensures a secure and watertight mount.

Technical Specifications

Feature	Specification
Voltage	12V DC Only
Current Draw	30mA @ 12V
Ingress Protection	IP67 (Completely Waterproof)
Housing Material	Durable Polycarbonate
Dimensions	0.875" dia x 0.780" x 0.550"
Available Colors	White, Blue, Red

Perfect For:

🐟 Livewells & Bait Tanks – Keeps bait illuminated in low-light conditions.
🚤 Step Risers, Gunwales & Toe Kicks – Provides subtle yet effective lighting for nighttime visibility.
⚓ Cabinets & Storage Lockers – Brightens dark spaces without drawing excess power.

Why Choose the NEWT LED Light?

✅ The Best Performing Light in Its Class – Bright, efficient, and ultra-compact.
✅ Completely Waterproof & Sealed – IP67-rated for extreme marine environments.
✅ Low Power Draw – Uses only 30mA, ensuring minimal impact on your battery.

Upgrade Your Boat’s Lighting with the NEWT LED Courtesy & Livewell Light

The NEWT LED Light is the ultimate solution for small yet powerful lighting in wet or dry conditions. Whether you're illuminating a livewell, upgrading step lighting, or enhancing storage visibility, the NEWT delivers unmatched performance, efficiency, and durability.

✨ Light up your vessel—order your NEWT LED Light today! ✨
