Vimar Idea 16245 USA Socket Outlet – 2P+E, 15 A, 127 V, IP20
“All pricing is subject to change without notice due to tariffs, supply chain fluctuations, or manufacturer adjustments. Please call DRSA for the most up-to-date pricing.”
The Vimar Idea 16245 USA Socket Outlet is a compact, marine-ready power solution designed for installations that follow American and Saudi Arabian standards. Built for reliability and clean integration, it delivers dependable performance in boats, yachts, and interior spaces where space and safety matter.
This single 2P+E outlet is rated at 15 A, 127 V, and supports both 50 Hz and 60 Hz systems, making it versatile for international marine and residential use. Its modular format allows it to fit seamlessly into Idea series frames, while the flush-mounted design keeps the finished installation clean and unobtrusive.
Constructed from halogen-free thermoplastic, the outlet is impact-resistant and designed for safety. A label space is included for clear identification, which is useful in technical or multi-outlet installations.
Why You’ll Love It
- Compatible with American and Saudi Arabian standards
- Compact, modular design for tight installation spaces
- Halogen-free construction for added safety
- Clean flush-mounted finish for marine and interior use
Key Features
-
2P+E USA Socket Outlet
Rated 15 A at 127 V, suitable for a wide range of onboard and interior electrical needs. -
Wide Frequency Support
Operates across 50–60 Hz, ideal for international and marine applications. -
Durable Thermoplastic Housing
Impact-resistant, halogen-free material designed for long-term reliability. -
Modular Idea System Compatibility
Integrates easily into Idea series frames and cover plates. -
Label Space Included
Allows for clear circuit or use identification.

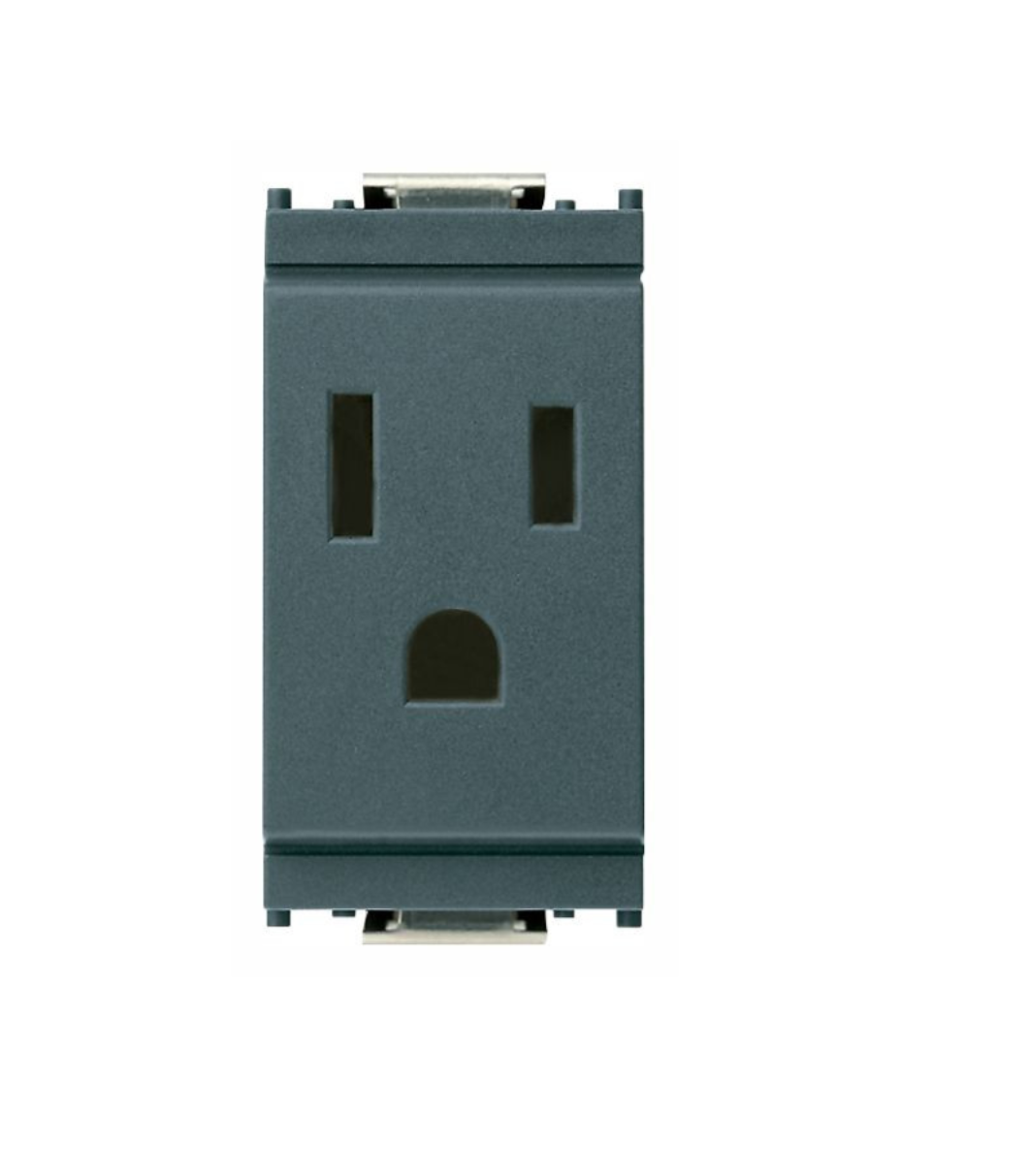

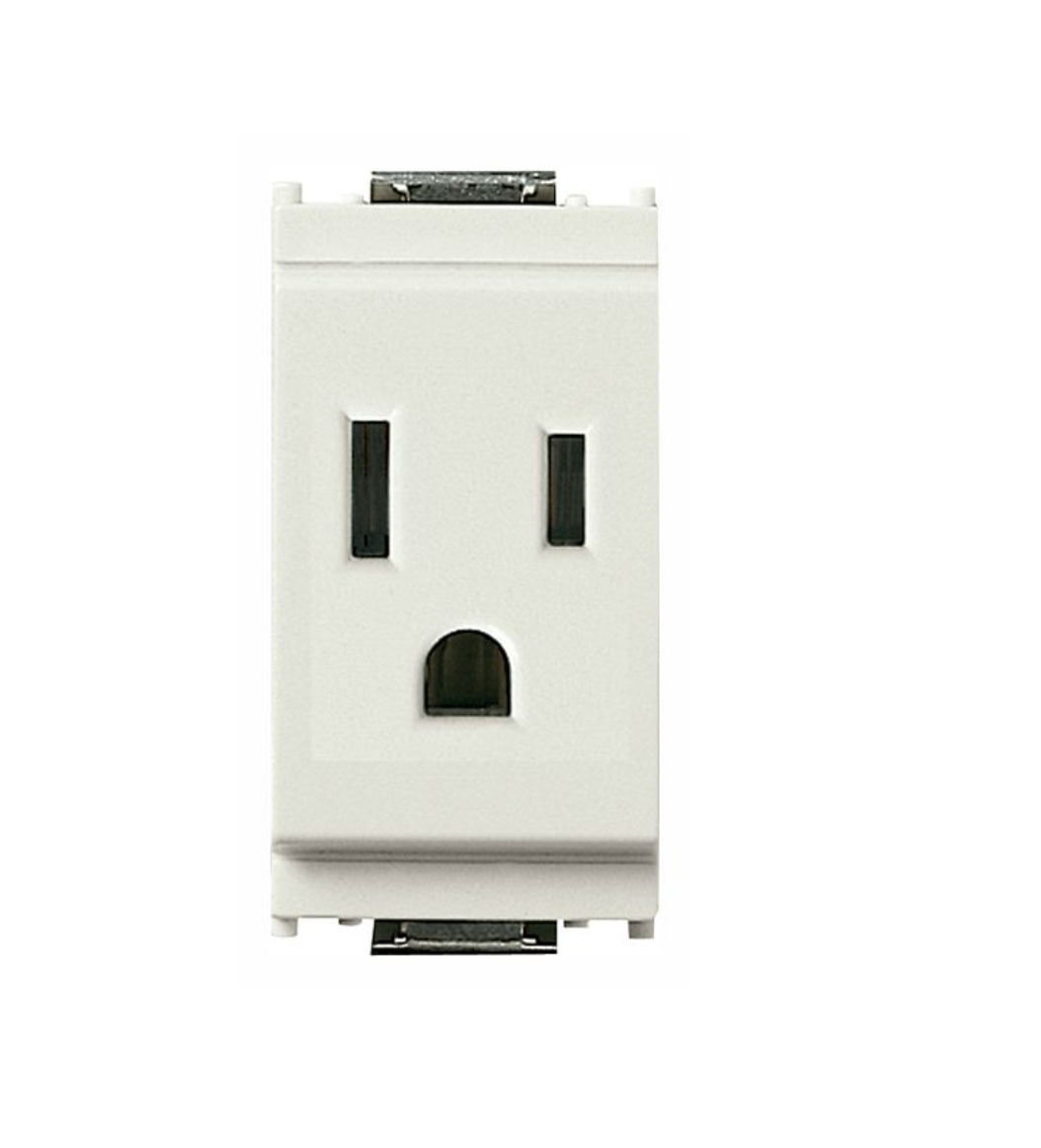

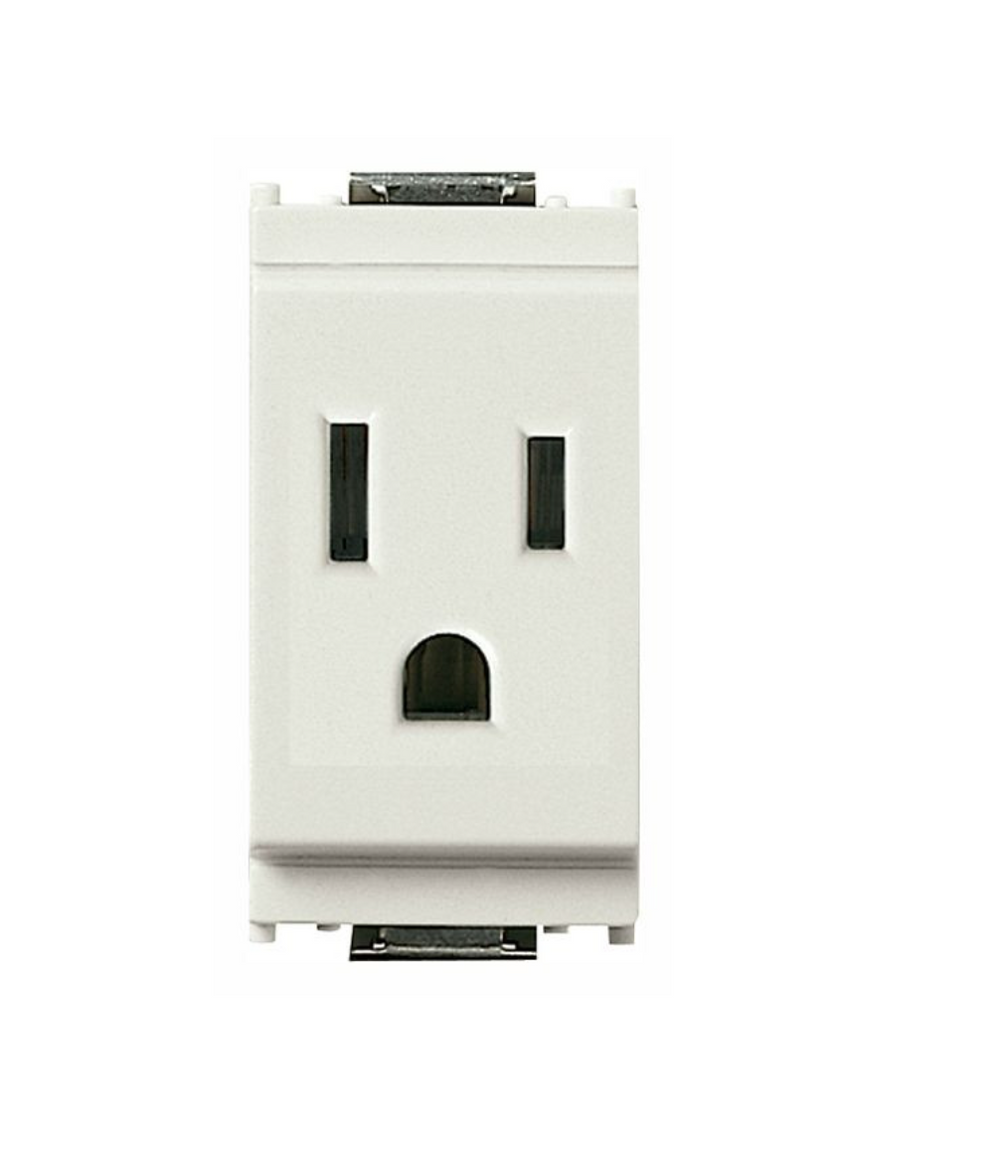

Available Colors
- White
- Gray
Technical Specifications
| Feature | Specification |
|---|---|
| Product Type | Socket Outlet |
| Outlet Type | 2P+E, USA standard |
| Nominal Current | 15 A |
| Nominal Voltage | 127 V |
| Frequency | 50–60 Hz |
| Mounting Method | Flush mounted (plaster) |

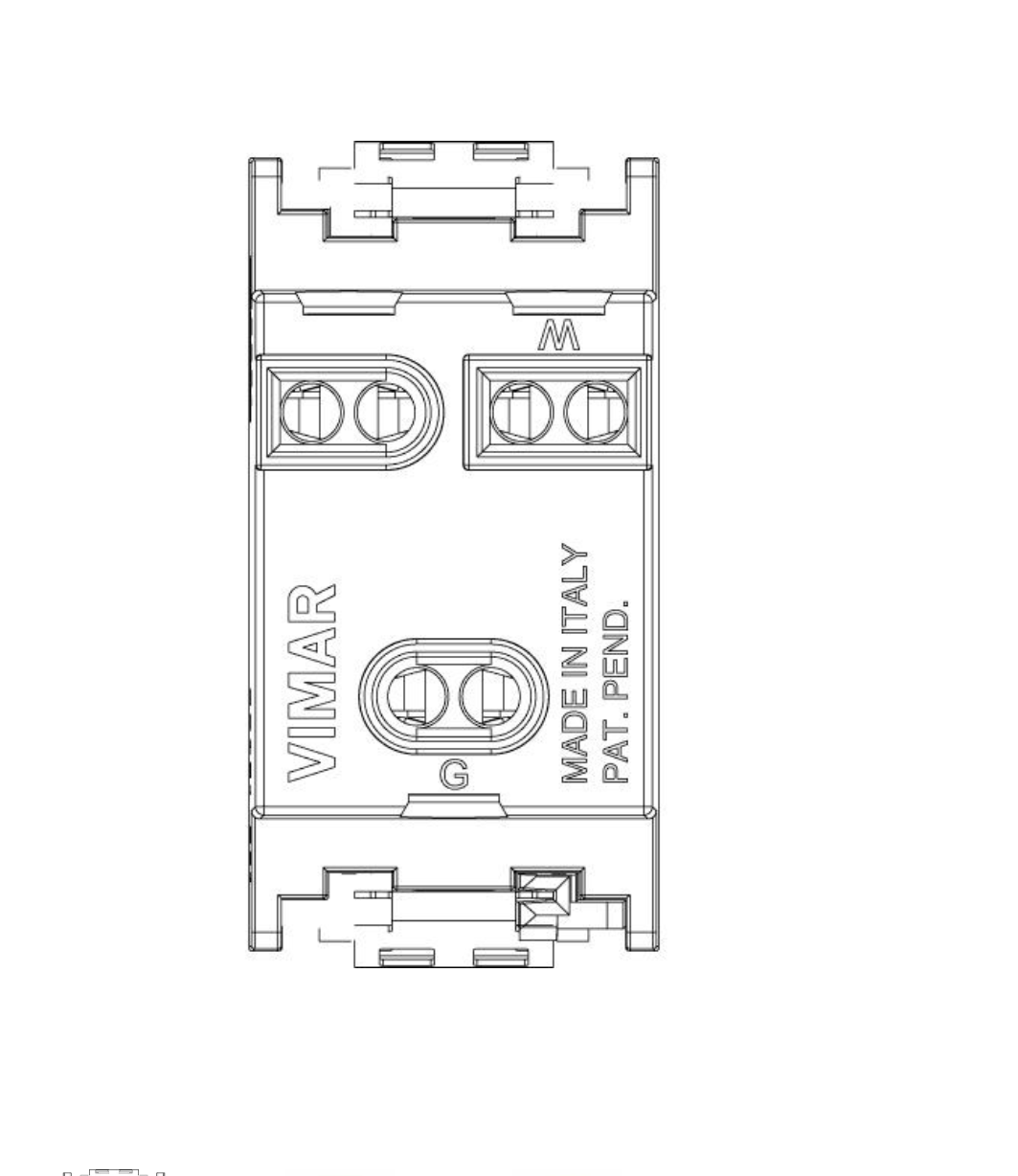

| Connection Type | Screw terminals |
| Degree of Protection | IP20 |
| Material | Halogen-free thermoplastic |

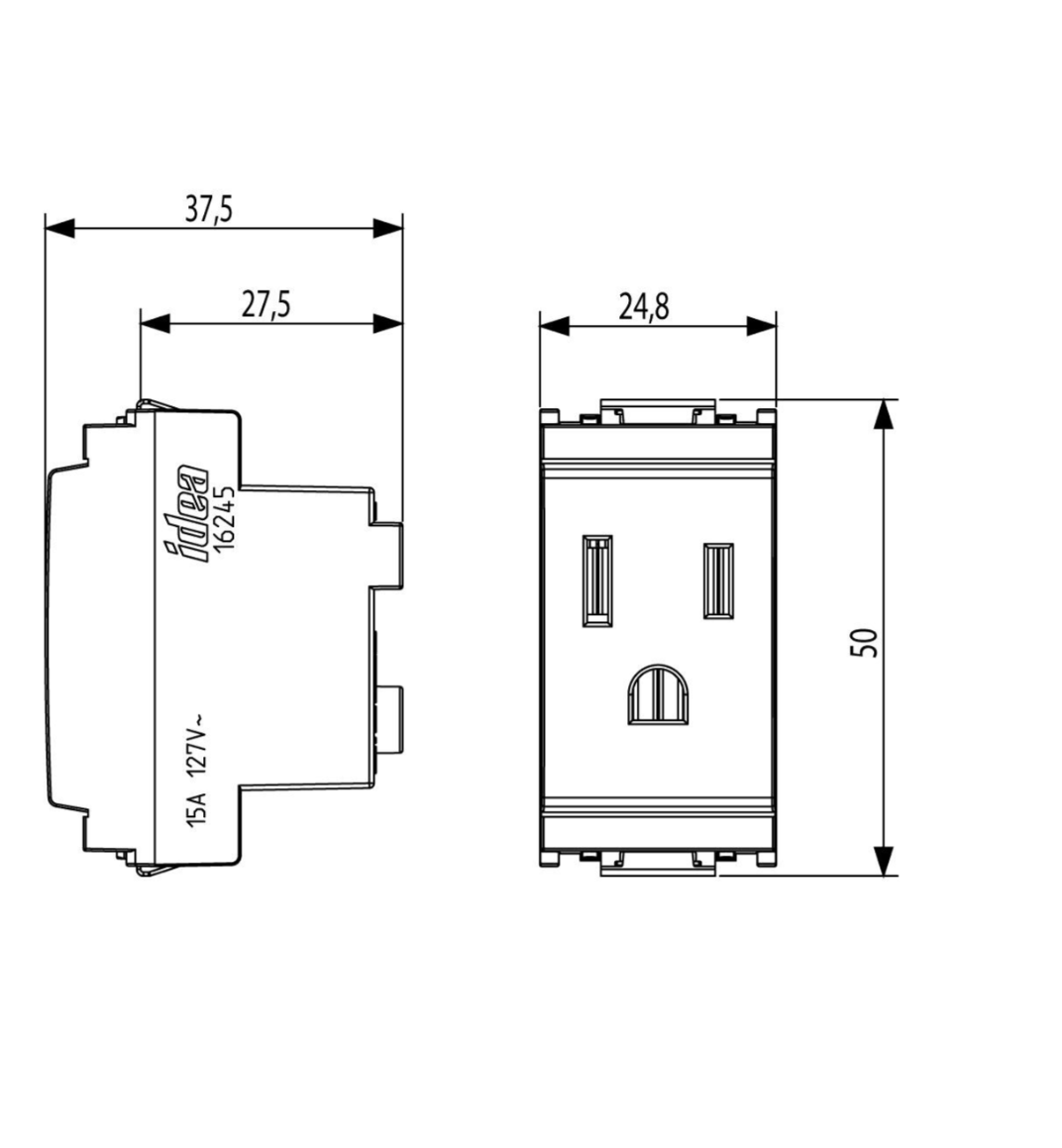

| Width | 24.80 mm |
| Height | 74.80 mm |
| Depth | 37.50 mm |
| Impact Resistance | Yes |
| Condition | New |
Perfect For
- Marine vessels and yachts
- RVs and specialty vehicles
- Residential and commercial interiors using Idea systems
- Installations requiring US-standard outlets in compact spaces
