Vimar Eikon USB Supply Units - 5V, Flush Mounted, Plastic

Vimar Eikon USB Supply Units - 5V, Flush Mounted, Plastic

Category: Marine Electrical / USB Chargers / Flush Mounted Devices

Overview

The Vimar Eikon USB Supply Unit series offers versatile, high-performance charging solutions for marine vessels, RVs, and residential applications. Designed for flush mounting, these units provide reliable power for smartphones, tablets, cameras, and other electronic devices. With a sleek Eikon design, durable plastic construction, and multiple USB port configurations, they blend style, functionality, and durability. Available in grey, white, and Next (silver) finishes, these units cater to diverse charging needs in demanding environments.

Key Features

• Efficient Charging: Outputs ranging from 5V 1.5A to 25W for fast, reliable device charging.

• Elegant Design: Eikon’s minimalist aesthetic with premium finishes (grey, white, Next).

• Flush Mounted: Compact 1-module design ensures a seamless, professional installation.

• Multiple Configurations: Options include USB-A, USB-C, or dual-port variants for broad device compatibility.

• Marine-Grade Durability: Built to withstand harsh marine environments.

• Wide Voltage Range: Operates on 120-240 V~ 50/60 Hz for global use.

• Certified Safety: Complies with CE, IMQ, RoHS, UKCA, EAC, NOM, and Morocco standards.

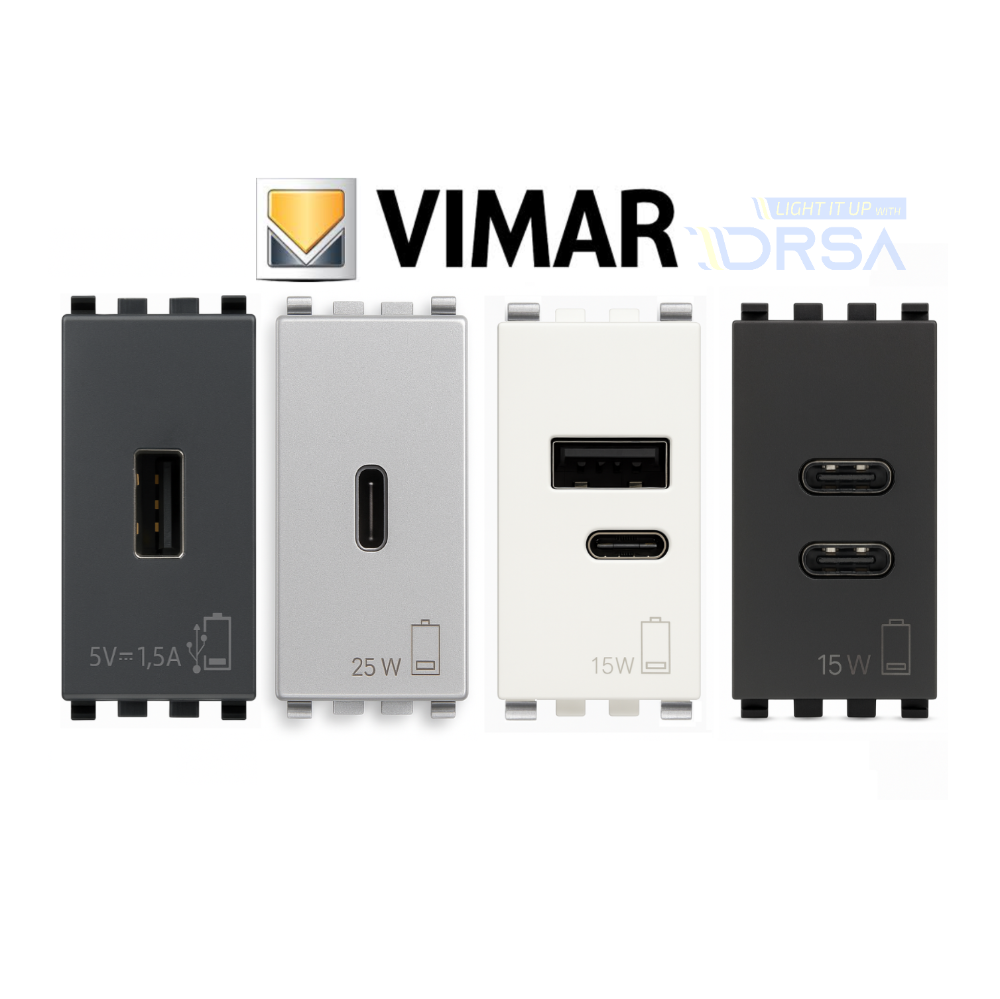

Product Variants

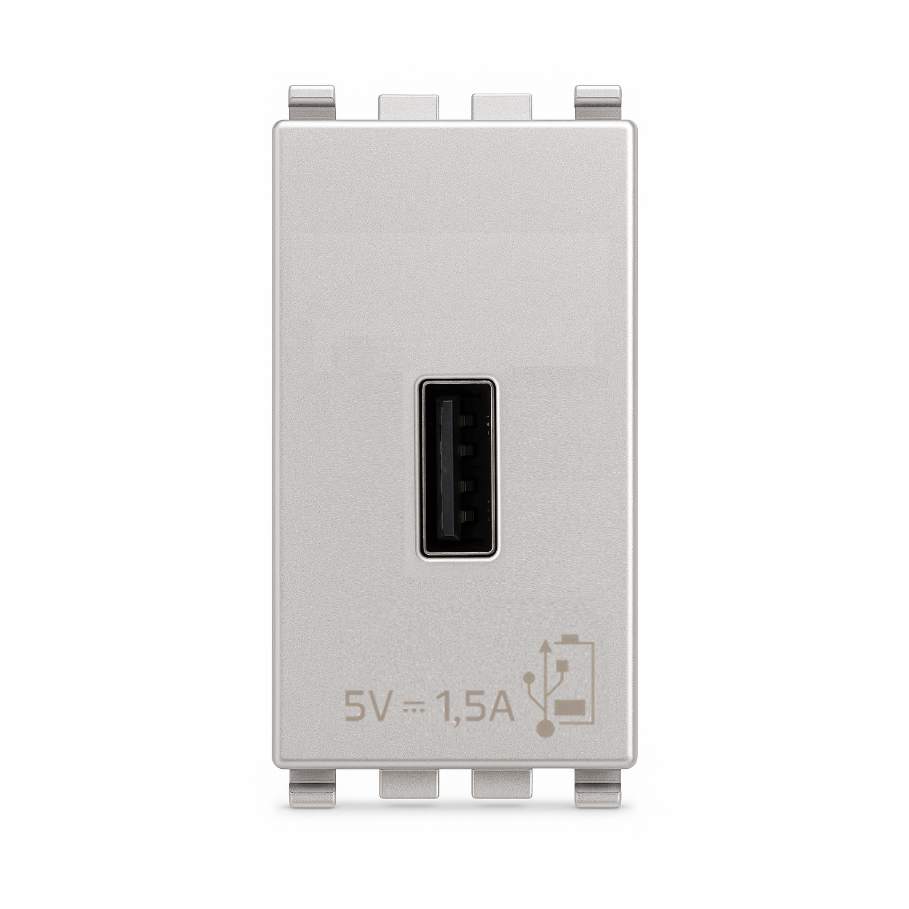

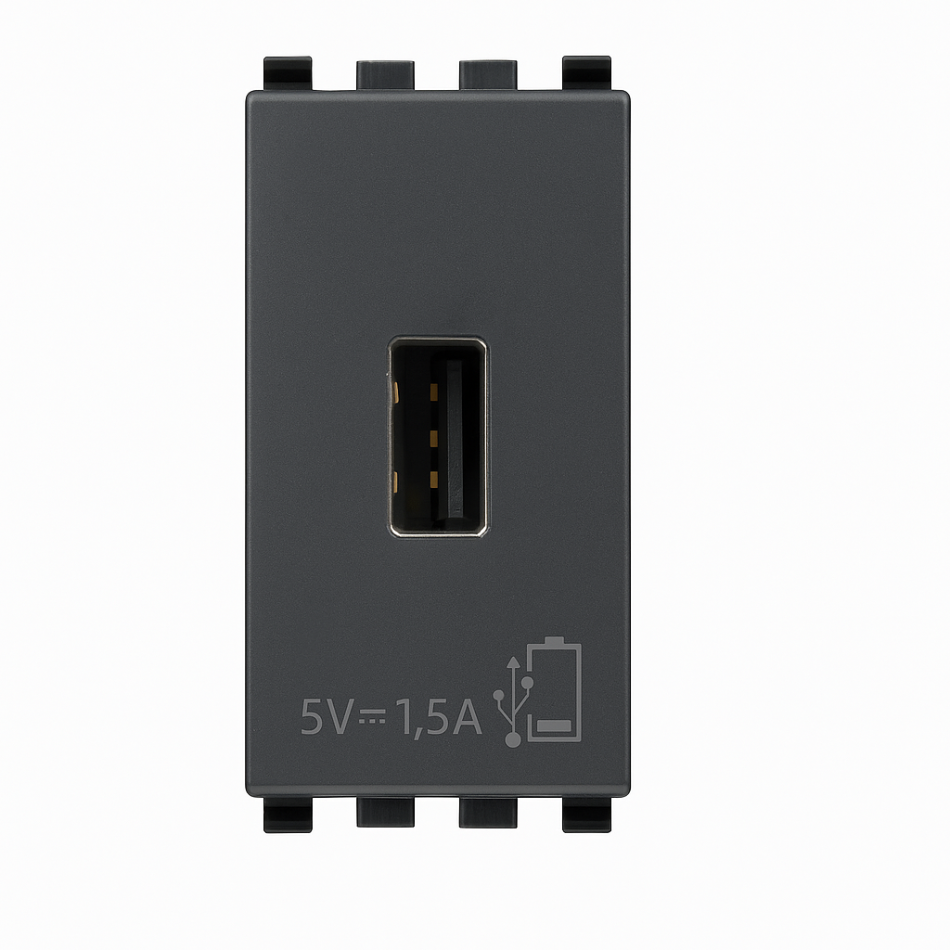

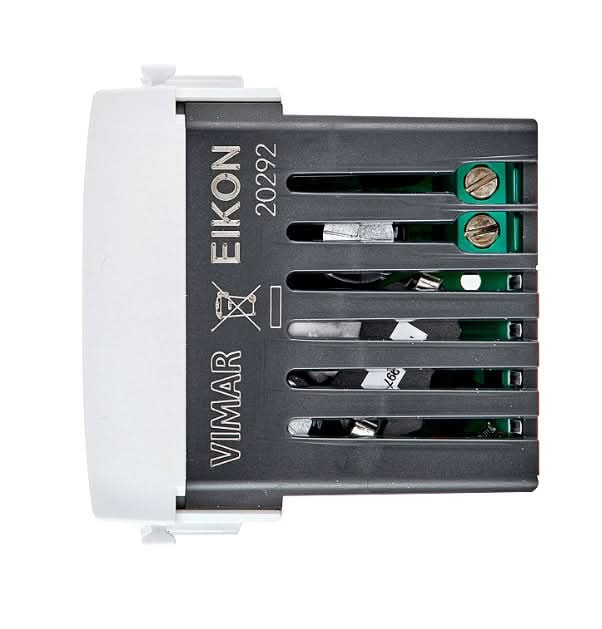

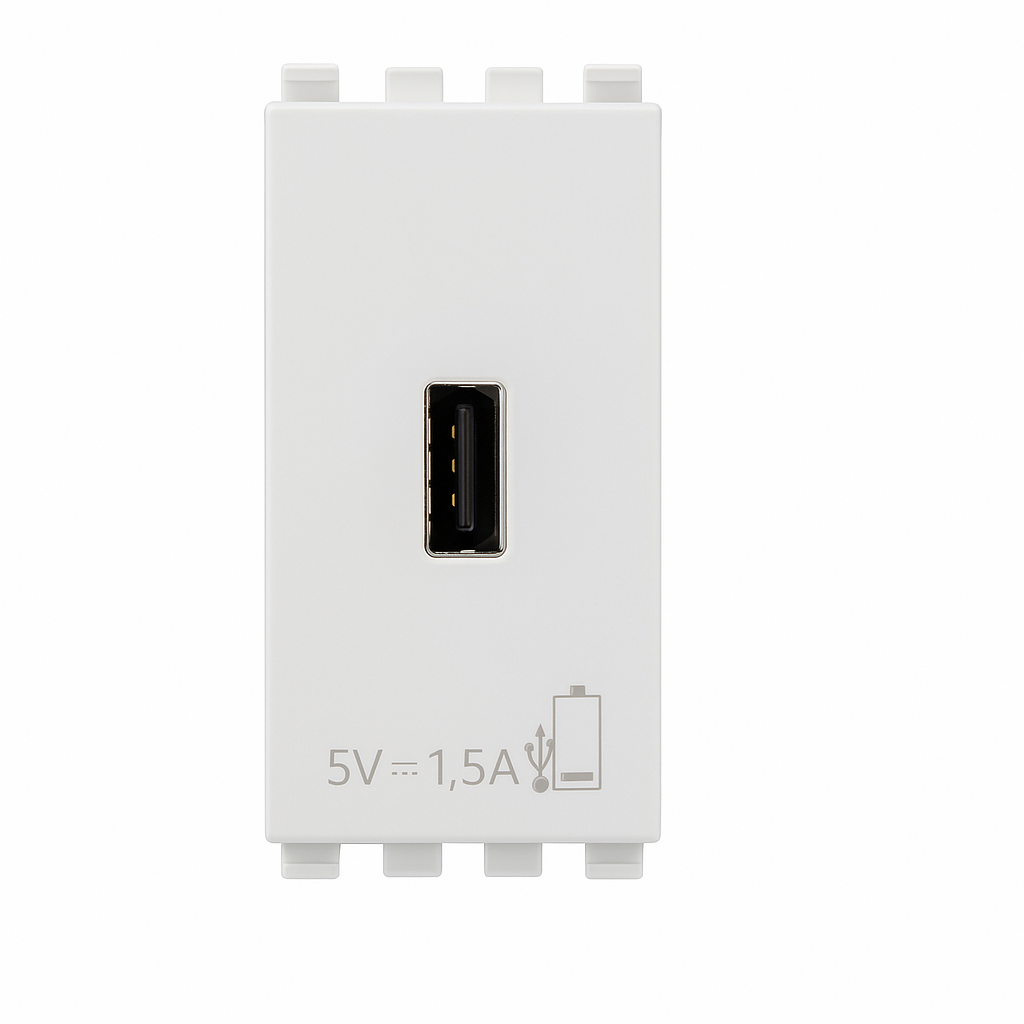

1. USB Supply Unit 5V 1.5A (Single USB-A Port)

• 20292: Grey, 5V 1.5A, 1 USB-A port

• 20292.B: White, 5V 1.5A, 1 USB-A port

• 20292.N: Next (silver), 5V 1.5A, 1 USB-A port

• Description: 5V 1.5A power supply unit for electronic devices, ideal for charging smartphones and small gadgets.

• Max Output Current: 1.5A

• Power Consumption: 160mA @ 120V, 110mA @ 230V

2. A+C USB Supply Unit 12W 2.4A 5V

• 20292.AC.B: White, 5V 2.4A, 1 USB-A + 1 USB-C port

• Description: Dual-port USB power supply delivering a total of 2.4A, perfect for simultaneous charging of modern devices.

• Max Output Current: 2.4A (shared)

• Power Consumption: 160mA @ 120V, 110mA @ 230V

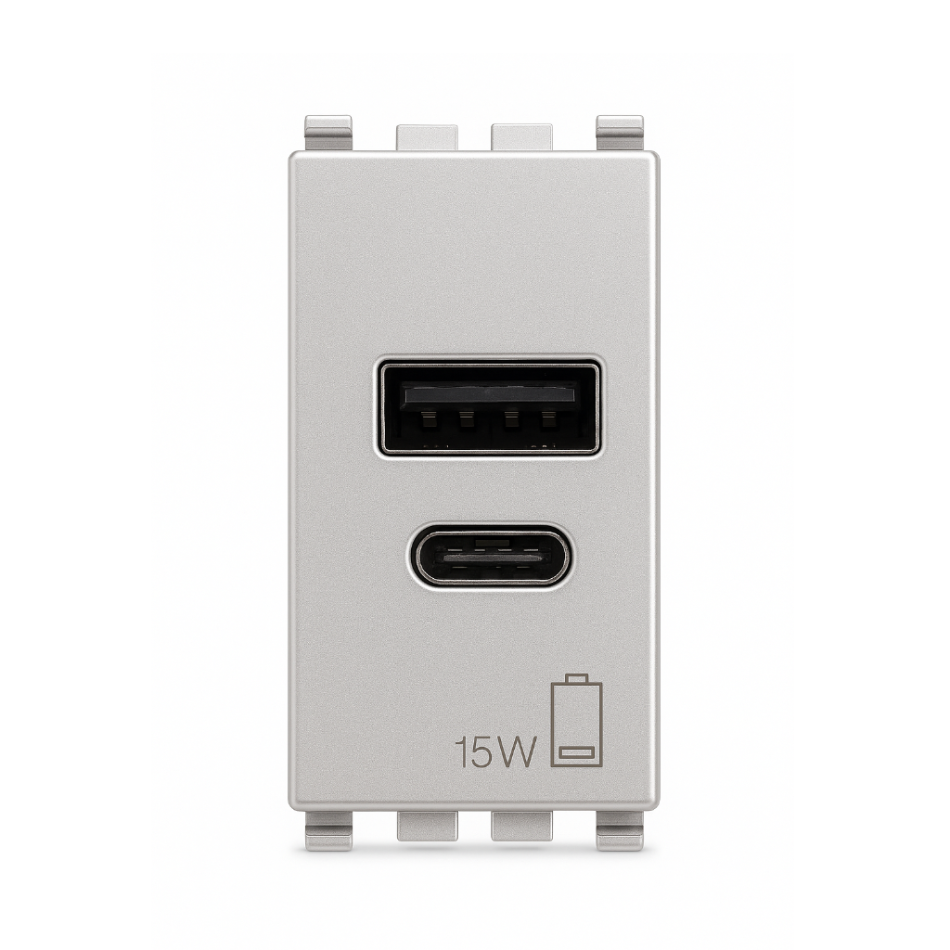

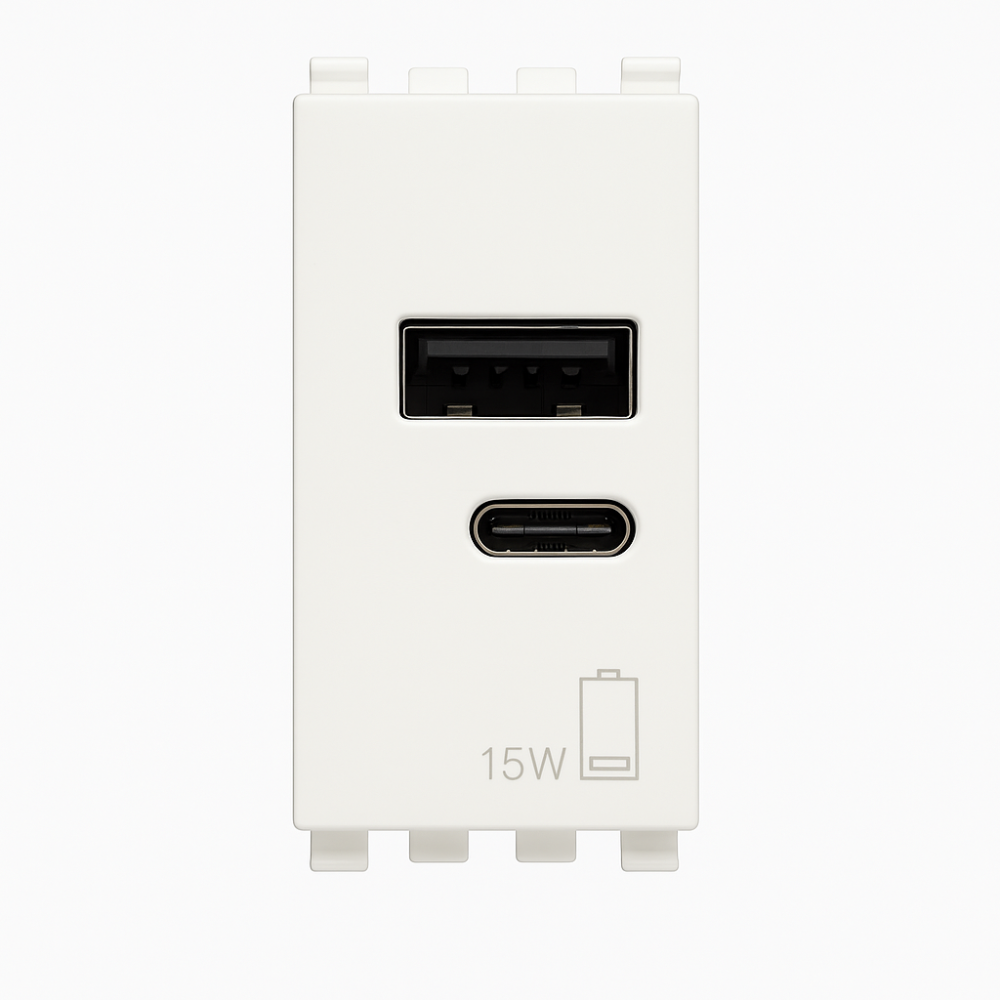

3. A+C USB Supply Unit 15W 5V

• 20292.AC.15: Grey, 15W, 1 USB-A + 1 USB-C port

• 20292.AC.15.B: White, 15W, 1 USB-A + 1 USB-C port

• 20292.AC.15.N: Next (silver), 15W, 1 USB-A + 1 USB-C port

• Description: 15W dual-port USB power supply for efficient charging of smartphones, tablets, and more.

• Max Output Current: 3A (shared)

• Power Consumption: 160mA @ 120V, 110mA @ 230V

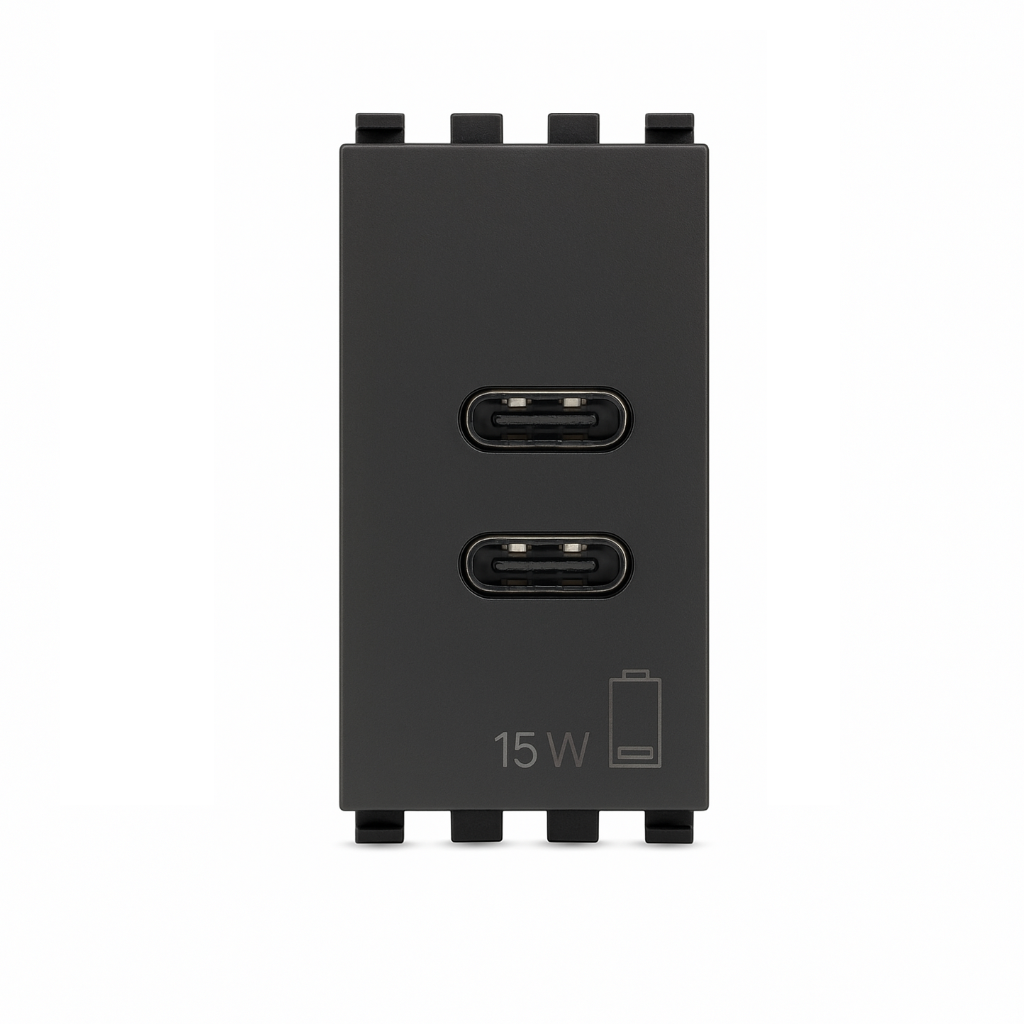

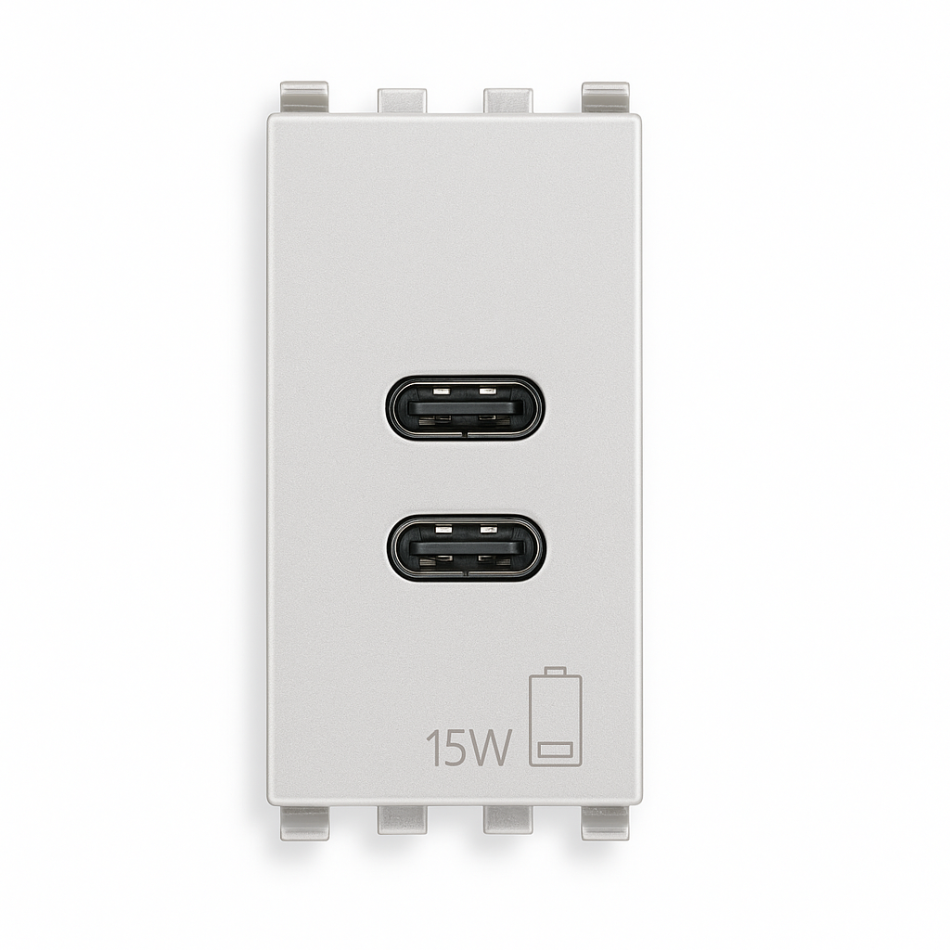

4. C+C USB Supply Unit 15W 3A 5V

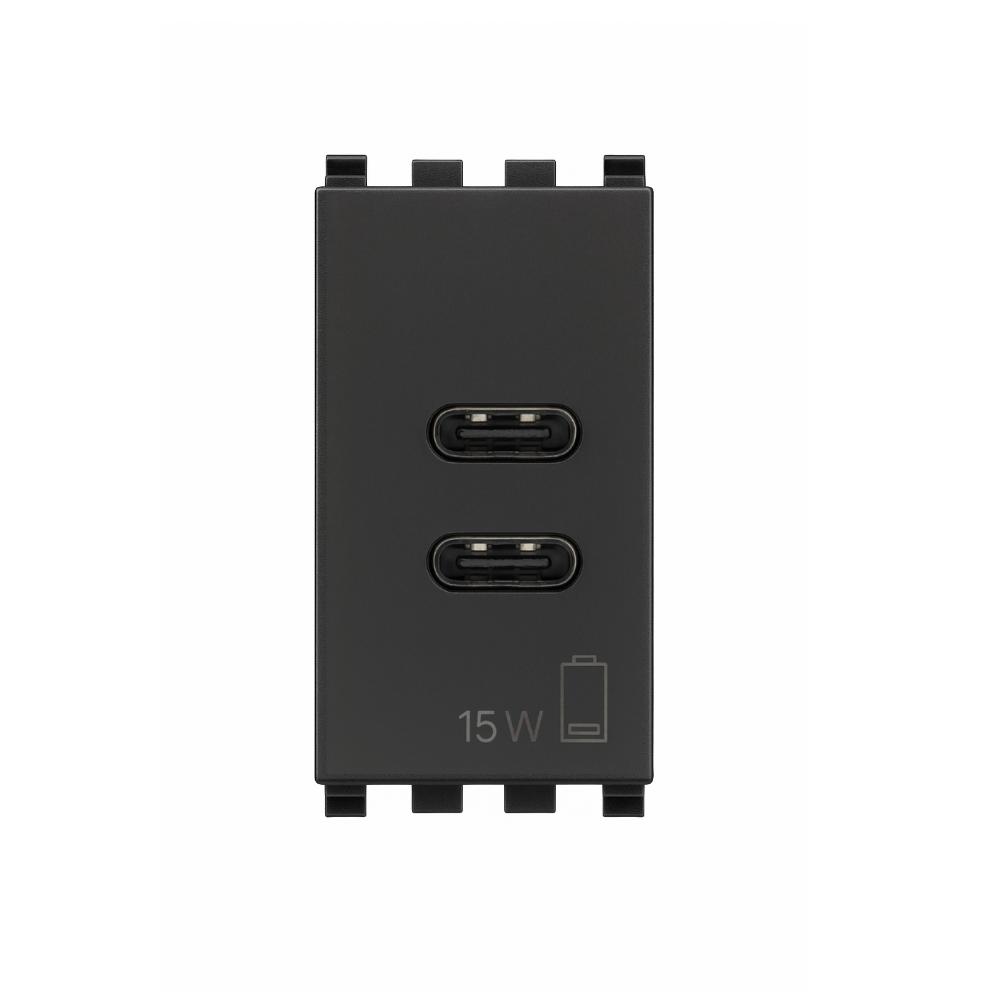

• 20292.CC: Grey, 15W, 2 USB-C ports

• 20292.CC.B: White, 15W, 2 USB-C ports

• 20292.CC.N: Next (silver), 15W, 2 USB-C ports

• Description: Dual USB-C power supply delivering 15W, ideal for charging multiple USB-C devices simultaneously.

• Max Output Current: 3A (shared)

• Power Consumption: 160mA @ 120V, 110mA @ 230V

5. PD C-USB Power Unit 25W

• 20292.C.25: Grey, 25W, 1 USB-C port (Power Delivery)

• 20292.C.25.B: White, 25W, 1 USB-C port (Power Delivery)

• 20292.C.25.N: Next (silver), 25W, 1 USB-C port (Power Delivery)

• Description: High-power 25W USB-C Power Delivery unit for fast charging of laptops, tablets, and other USB-C devices.

• Max Output: 25W (5V/3A, 9V/2.77A, 12V/2.08A)

• Power Consumption: 160mA @ 120V, 110mA @ 230V

Common Specifications

• Output Voltage: 5V DC (±5%) (except 20292.C.25 variants, which support 5V/9V/12V)

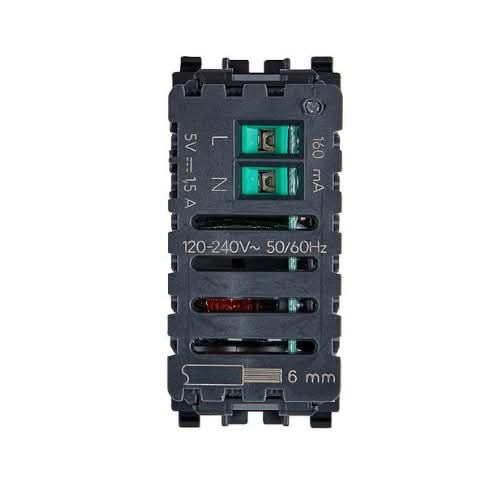

• Input Voltage: 120-240 V~ 50/60 Hz

• Standby Current: <100mA

• Efficiency: 0.75

• Mounting: Flush-mounted (plaster)

• Material: Plastic

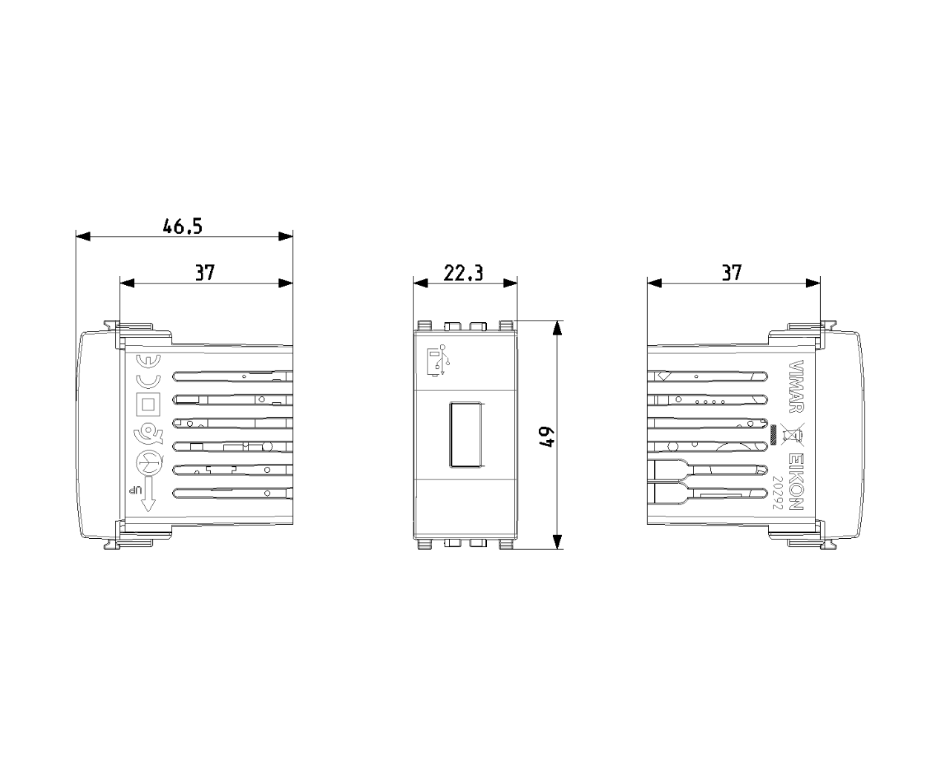

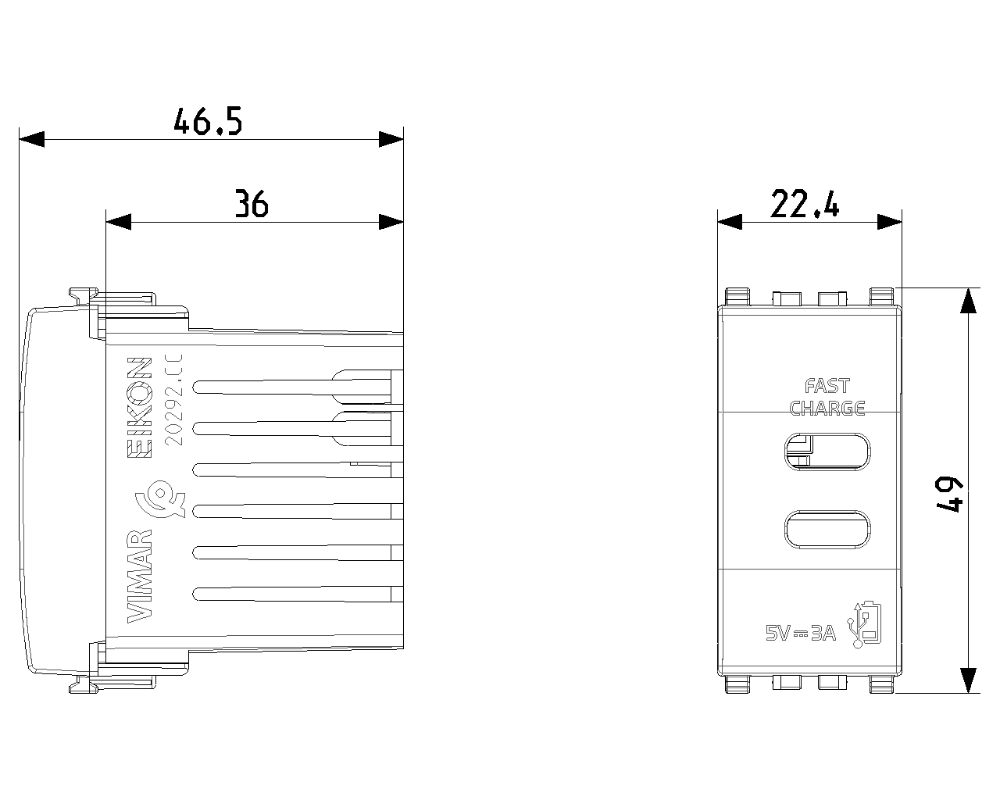

• Dimensions: 0.87" (22.3mm) x 1.93" (49mm) x 1.83" (46.5mm)

• Recessed Depth: 1.46" (37mm)

• Ingress Protection: IP20

• Operating Temperature: Up to 95°F (35°C)

• Certifications: CE, IMQ, UKCA, RoHS, EAC, NOM, Morocco

• Class: Class I, II (Bus)

Included in the Box

• Vimar Eikon USB Supply Unit (specific variant)

• Installation instructions (multilingual)

• Compatible with Vimar Eikon

Applications

Perfect for marine vessels, yachts, RVs, and residential settings, the Vimar Eikon USB Supply Units provide discreet, reliable charging for cabins, galleys, or living spaces. Their marine-grade durability and versatile port options ensure compatibility with both legacy and modern devices, making them ideal for demanding environments.
