AC to DC Wizard Dimmable LED Driver – Reliable Power for LED Applications
Description
Description
Why Choose the Wizard Series?
The Wizard Series sets itself apart from generic LED drivers by delivering true dimmable performance without strobing or brightness drop-off at low levels. Each unit is rigorously tested to meet marine-grade reliability standards, ensuring consistent output and long-lasting performance even in saltwater environments.
Trusted by professionals, the Wizard Series provides flicker-free lighting and durable construction that outperforms traditional drivers.
Installation Tips
- Use 14–18 AWG wire for AC input and 16–20 AWG wire for DC output.
- Mount in a ventilated area with at least 2 inches of clearance for heat dissipation.
- For marine or RV use, seal connections with dielectric grease or waterproof connectors.
- Always verify dimmer compatibility before full installation.
Why You’ll Love It
-
True Dimmable Control – Works seamlessly with standard triac and ELV dimmers for smooth fade control and zero flicker.
-
Marine-Ready Durability – Engineered for harsh, humid, or outdoor conditions with IP-rated protection and overload safeguards.
-
High Efficiency – Converts power with up to 92% efficiency, reducing energy loss and heat buildup.
-
Universal Input Range – Accepts 100–277V AC, ideal for both U.S. and international electrical systems.
-
Plug-and-Play Installation – Compact form factor mounts easily in bulkheads, cabinets, or lighting compartments.
Available Variants & Specifications:
| Part Number | Output Voltage | Wattage | Input Voltage | Max Amperage |
|---|---|---|---|---|
| 007.120800.120 | 12VDC | 12W | 100-120V AC | 1A |

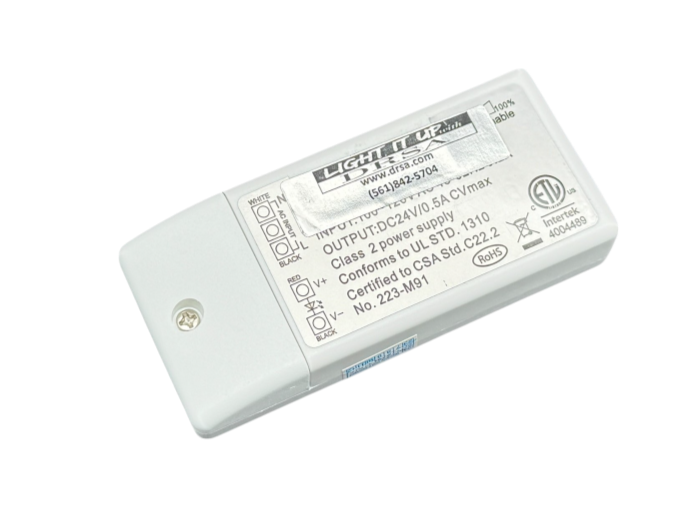

| 007.120800.120-24 | 24VDC | 12W | 100-120V AC | 0.5A |
| 007.301000.G2 | 12VDC | 30W | 100-277V AC | 2.5A |

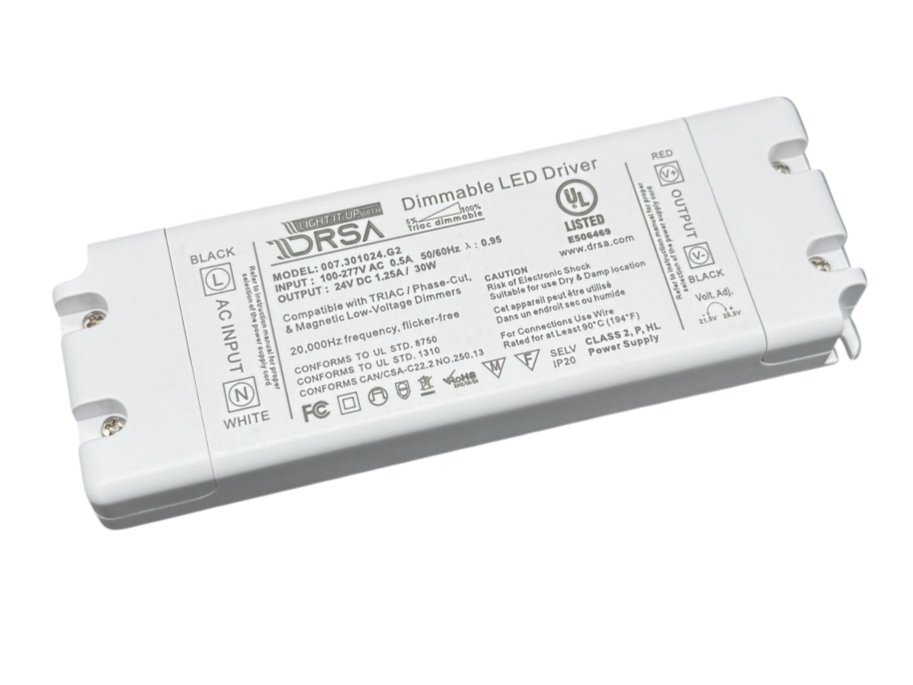

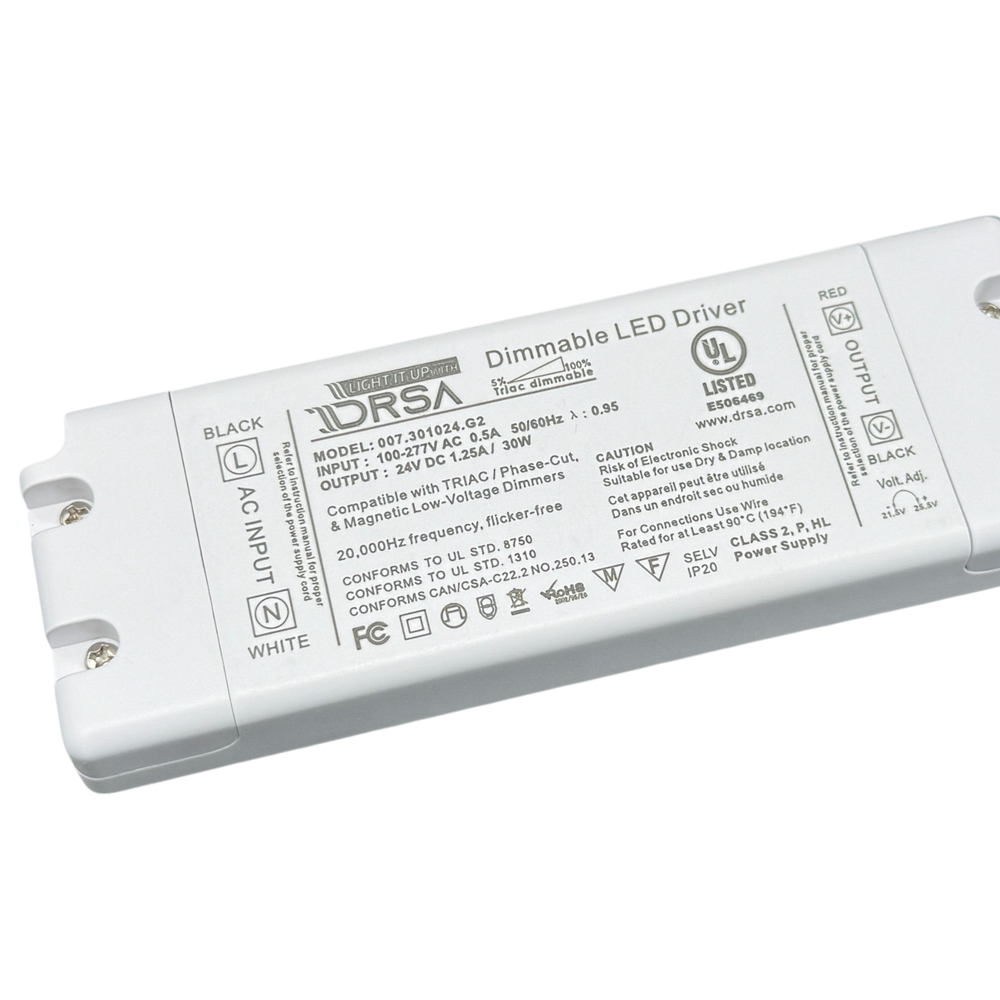

| 007.301024.G2 | 24VDC | 30W | 100-277V AC | 1.25A |

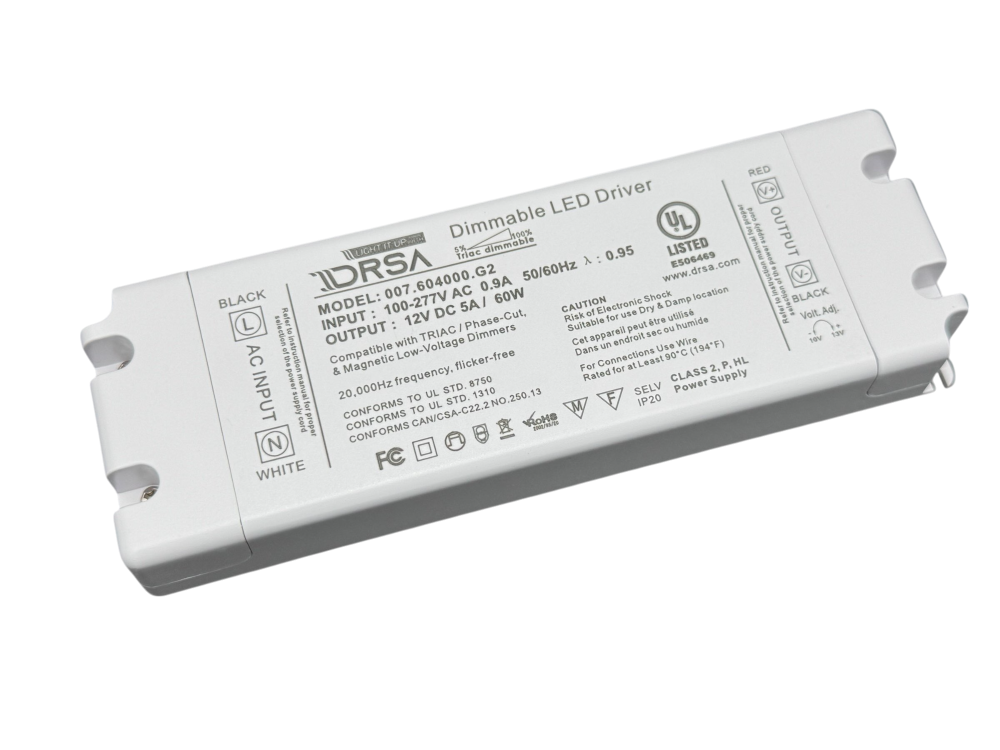

| 007.604000.G2 | 12VDC | 60W | 100-277V AC | 5A |
| 007.604000.G2-24 | 24VDC | 60W | 100-277V AC | 2.5A |

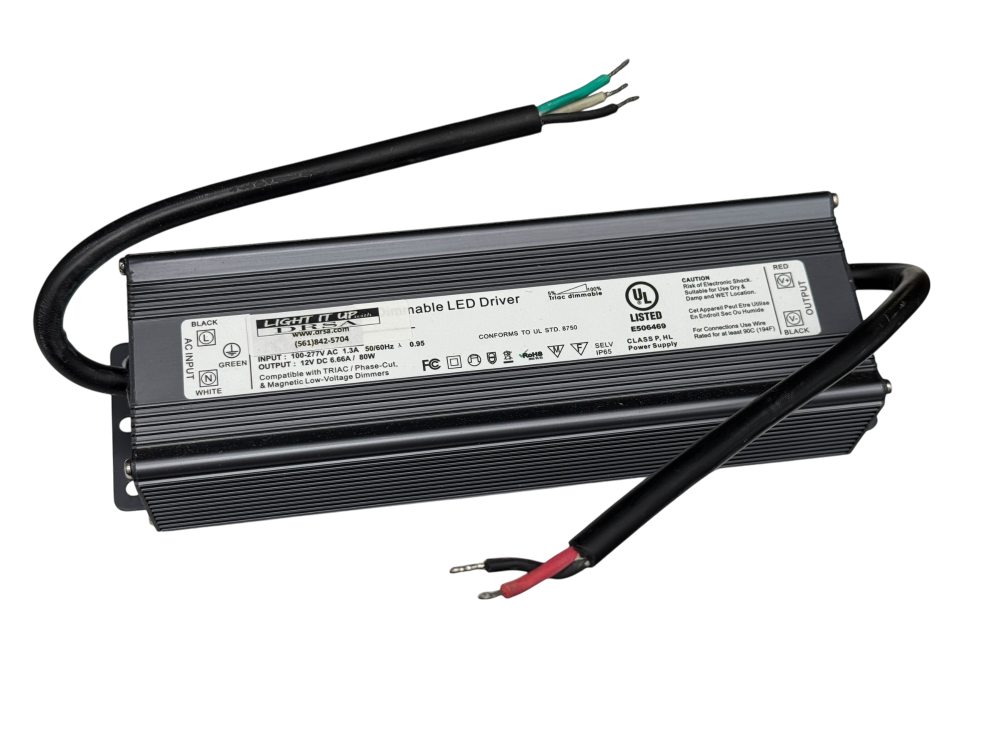

| 007.805500.G2 | 12VDC | 80W | 100-277V AC | 6.67A |
| 007.805524.G2 | 24VDC | 80W | 100-277V AC | 3.33A |
| 007.120700.G2 | 12VDC | 120W | 100-277V AC | 10A |
| 007.120724.G2 | 24VDC | 120W | 100-277V AC | 5A |
| 007.12200.G2 | 12VDC | 200W | 100-277V AC | 16.67A |
| 007.24200.G2 | 24VDC | 200W | 100-277V AC | 8.33A |
| 007.24300.G2 | 24VDC | 300W | 100-277V AC | 12.5A |
Perfect For:
💡 Marine LED lighting systems
🏠 Architectural & home lighting
🚐 RV & automotive LED applications
🏢 Commercial LED installations
🔌 Custom dimmable LED setups
Why Choose the Wizard Series
The Wizard Series stands apart from generic LED drivers by offering true dimmable performance without strobing or drop-off at low brightness levels. Every unit is tested to meet marine-grade reliability standards, ensuring consistent output and long life even in saltwater environments.
Customers trust the Wizard series for flicker-free lighting and durable construction that outlasts traditional drivers.
Installation Tips
-
Use 14–18 AWG wire for AC input and 16–20 AWG for DC output.
-
Mount in a ventilated area with at least 2 inches of clearance for heat dissipation.
-
For marine or RV use, seal connections with dielectric grease or waterproof connectors.
-
Always verify dimmer compatibility before full installation.
Warranty
DRSA 3-Year Warranty
Covers defects in materials and workmanship for three years from the purchase date.
For technical support or wiring guidance, contact DRSA at (561) 842-5704 or email sales@drsa.com.
