SI Bausch Flush Mount LED Navigation Light, Port/Red or Starboard/Green
Description
Description
Bausch American Towers LED Marine Navigation Lights (Model BTG/R/W)
Original OEM Replacement for 2005–2011 Bausch American Towers
The Perfect OEM Replacement for Legacy Bausch Navigation Lamps

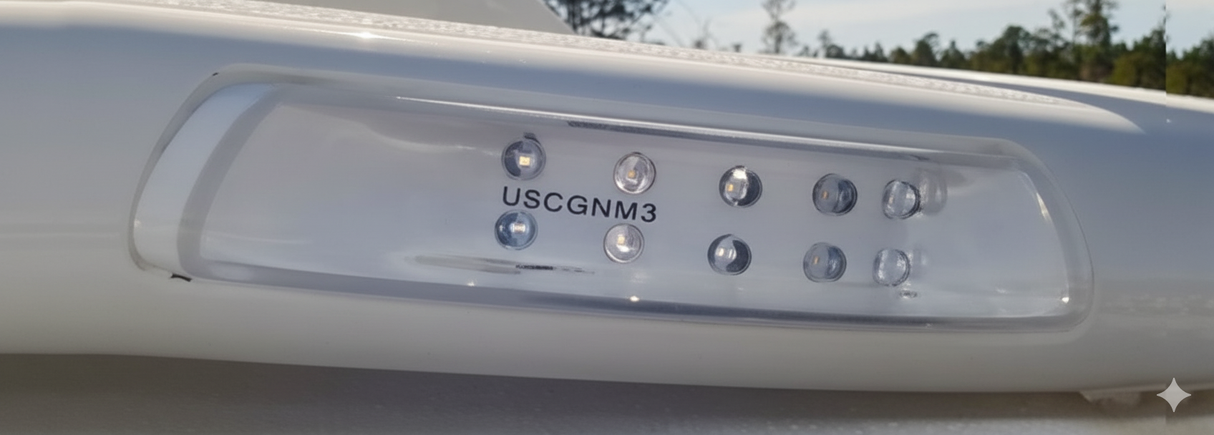

The Bausch American Towers LED Marine LED Navigation Light is the exact OEM replacement for the original navigation lamps installed on 2005–2011 Bausch American Towers hard tops. Designed and manufactured exclusively for Bausch American Towers, these lights deliver reliable, high-visibility performance that meets USCG, ABYC, and IMO COLREGS standards for vessels up to 50 meters (164 feet).
Each light features precision-molded acrylic lenses, a clean white housing, and a flush-mount design to match the original tower profile perfectly. Built with the same internal modules as the Sonic Illusions ST lamp, these fixtures maintain the authentic fit and finish of the original tower configuration while offering modern LED efficiency and longevity.
Why Choose These OEM Bausch Tower Lights
-
Authentic OEM Replacement – Exact fit for 2005–2011 Bausch American Towers hard tops.
-
Exclusive Design – Custom radii and flush-mount housing contour seamlessly with the tower’s surface.
-
Marine-Grade Durability – Acrylic clear lens and white housing resist UV damage and saltwater corrosion.
-
High Visibility – Meets USCG 3NM (Port/Starboard) and 2NM (Stern) requirements.
-
Energy Efficient & Safe – Operates between 10–32V DC with polarity and spike protection up to 1500V.
-
Easy Installation – Flush-mount design installs cleanly using white silicone caulk.
-
Tested & Certified – Verified by IMANNA Lab, Inc. to comply with ABYC A-16 and IMO COLREGS standards.
-
Backed by a 5-Year Warranty – Long-lasting reliability and peace of mind on every trip.
Product Options
-

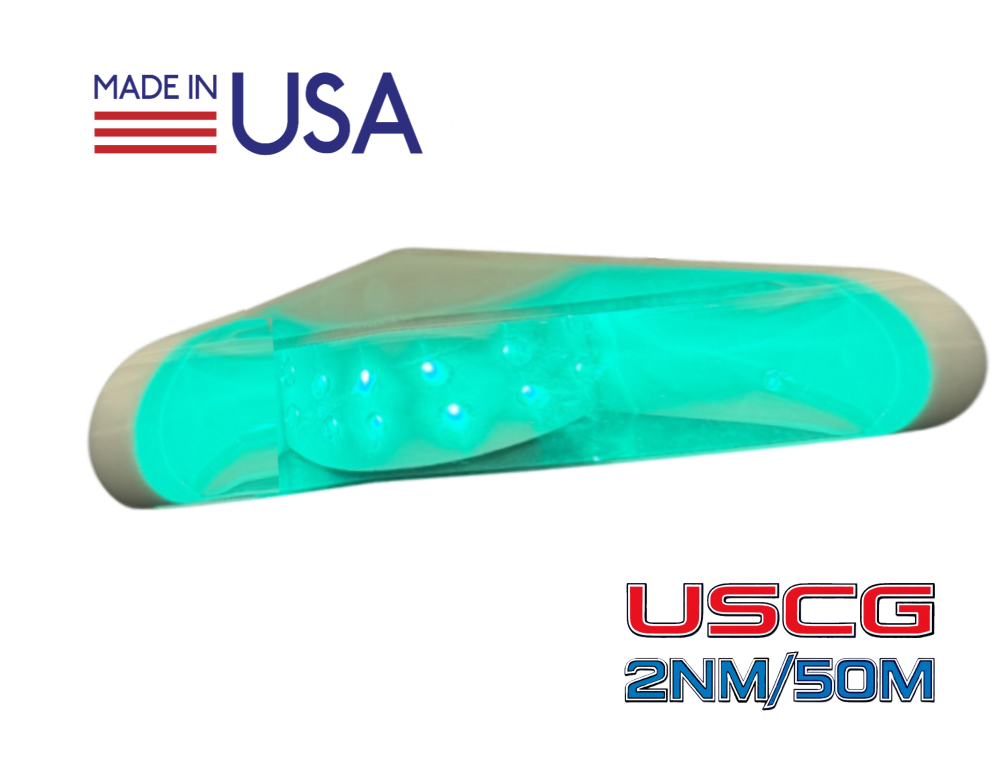

SI-BTG – Green Starboard LED Sidelight, USCG 3NM
-

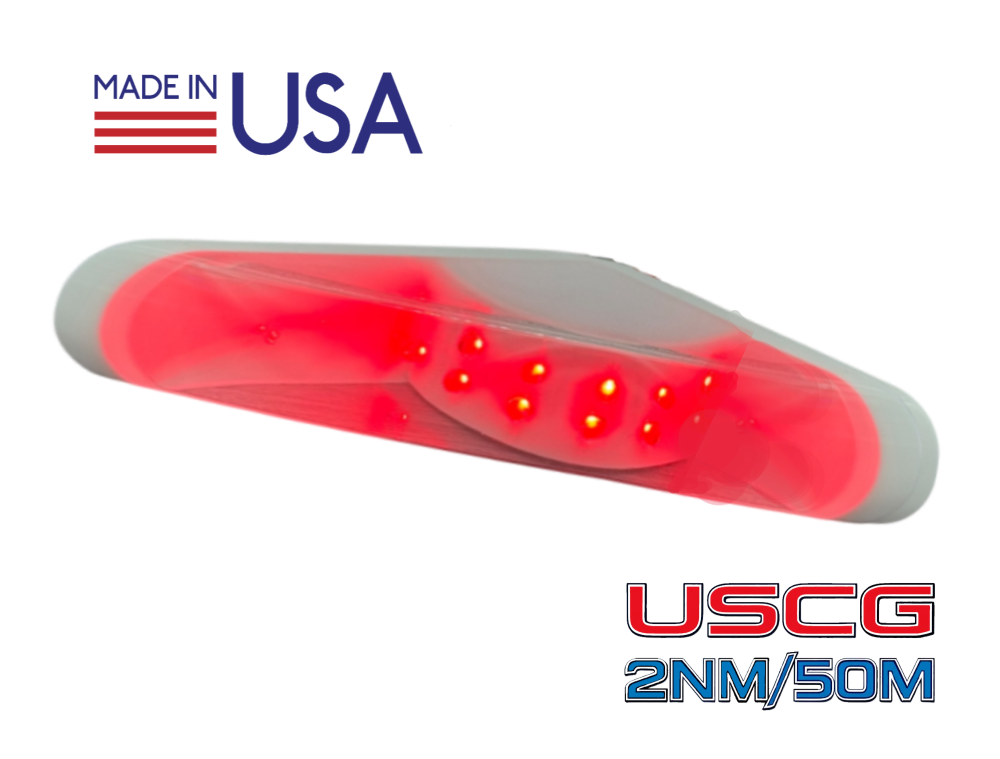

SI-BTR – Red Port LED Sidelight, USCG 3NM
-

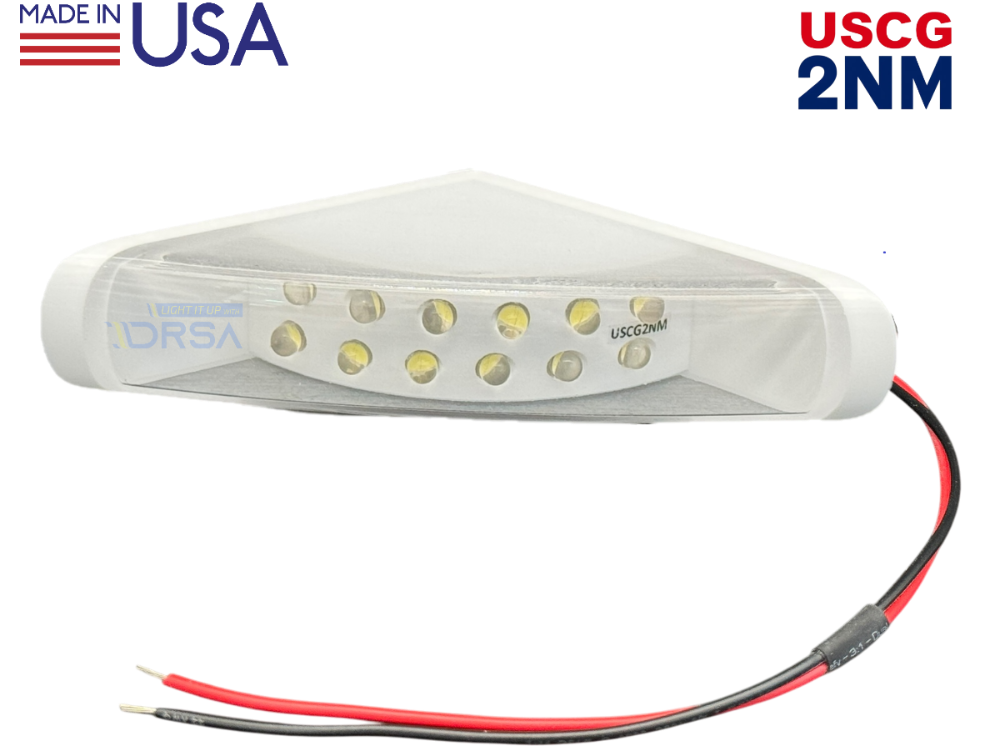

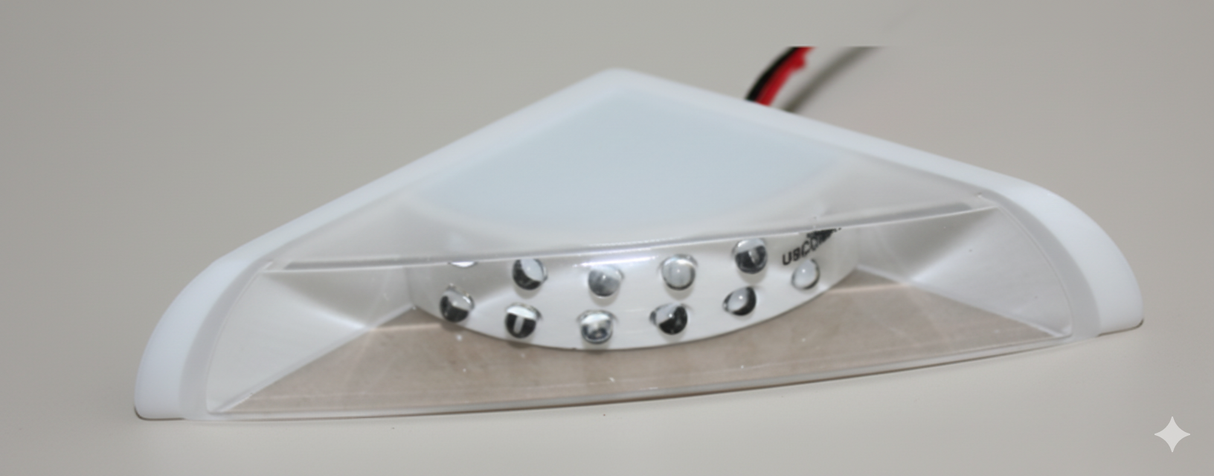

SI-BTW – White Stern LED Light, USCG 2NM
Each unit includes flush-mount housing, 12" 22AWG leads (black/red), and sealed PVC insulation for waterproof performance.
Technical Specifications
| Feature | Specification |
|---|---|
| Application | Navigation Lights for Bausch American Towers (2005–2011) |
| Light Color | Green (Starboard), Red (Port), White (Stern) |
| Housing Material | White Acrylic |
| Lens Material | Clear Acrylic |
| Mounting Type | Flush, Caulk in Place (White Silicone) |
| Input Voltage | 10–32V DC |
| Current Draw (12/24V) | 90mA / 50mA |
| Number of LEDs | 12 |
| Polarity Protection | Yes, lamp will not operate with reverse polarity |
| Spike Protection | 1500V |
| Circuit Configuration | Four Separate Circuits |
| Certifications | USCG 33CFR 183.810, ABYC A-16, IMO COLREGS |
| Range | 3NM (Port/Starboard), 2NM (Stern) |
| Testing Agency | IMANNA Lab, Inc. (2005–2006) |
| Manufacturer | Sonic Illusions |
| Warranty | 5 Years |
Perfect For
-
Replacement of original lamps on Bausch American Towers (2005–2011)
-
Custom sportfishing and center console boats with Bausch hard tops
-
OEM service and restoration projects requiring factory-correct fitment
-
Marine lighting technicians seeking authentic USCG-approved LED retrofits
Why Choose DRSA
✅ Authorized supplier of genuine Sonic Illusions and OEM marine lighting
✅ Exclusive source for discontinued Bausch American Towers navigation lights
✅ Fast nationwide shipping and knowledgeable customer support
Warranty
5-Year Limited Warranty
Covers defects in materials and workmanship for the full term of use. Designed for reliable performance in harsh marine environments.
