ACR RCL-50 LED Black Searchlight w/URP-103 Wired Point Pad URC-104 Master Controller [1983]
Description
Description

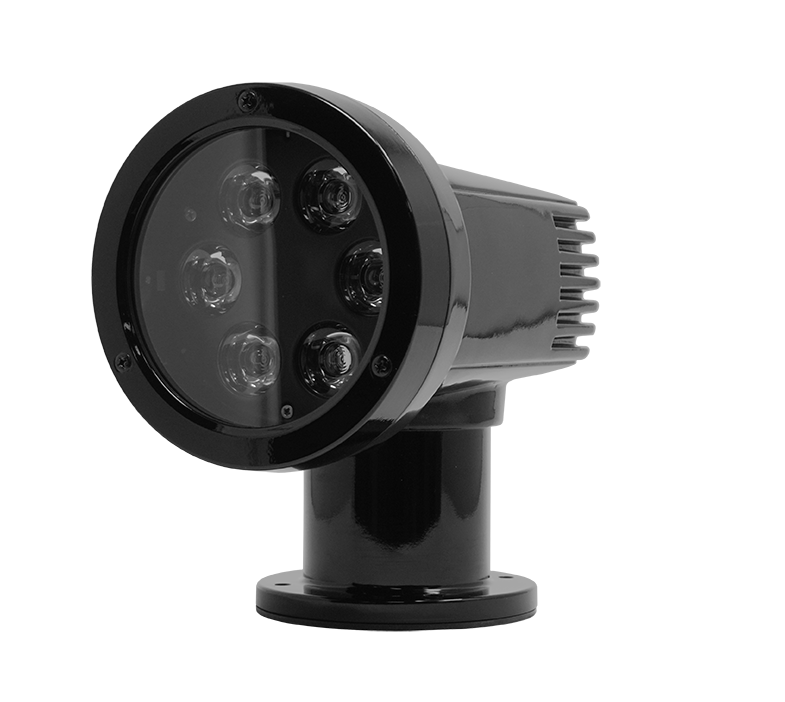

ACR RCL-50 LED Black Searchlight with URP-103 Wired Point Pad & URC-104 Master Controller
Rugged Marine-Grade Illumination for Small to Mid-Size Vessels
The ACR RCL-50 LED Black Searchlight delivers powerful, long-range illumination in a compact, sleek design. Engineered for small-to-mid-size pleasure crafts, sport fishers, and light commercial vessels, this high-performance searchlight produces over 100,000 candela with a 6-LED array, all while consuming up to 50% less power than traditional halogen models.
Its die-cast aluminum housing is triple-primed and fully sealed to withstand the harshest marine environments. With 360° continuous rotation, 40° tilt, and ACR’s exclusive XRCiZ™ corrosion-prevention technology, the RCL-50 is built for reliability season after season.
This package includes the URP-103 Wired Point Pad, designed with a modern, low-profile aesthetic for today’s dashboards, and the URC-104 Master Controller, the central hub enabling seamless operation of your searchlight.
Why You’ll Love It
-
Ultra-Bright Illumination – 6-LED array delivering 100,000 candela
-
Efficient Performance – Up to 50% less power draw on 12V vessels
-
Marine-Grade Housing – Rugged, die-cast aluminum construction resists corrosion and impact
-
Advanced Protection – XRCiZ™ system automatically cycles the light every 30 days to prevent corrosion and maintain functionality
-
Complete Control – Includes URP-103 Wired Point Pad and URC-104 Master Controller for intuitive operation
Key Features
✅ 360° continuous rotation and 40° tilt for maximum coverage
✅ Spot beam optimized for long-distance visibility
✅ URP-103 wired controller blends with modern dashboards
✅ URC-104 master hub enables up to 3 control stations
✅ Compact footprint (4.75") makes installation easy
✅ Designed for upgrades and retrofits from halogen searchlights
Technical Specifications
| Feature | Specification |
|---|---|
| Color | Black |
| Material | Marine-grade die-cast aluminum |
| Voltage Input | 12 VDC |
| Light Source | 6-LED Array |
| Output | 100,000 candela |
| Rotation | 360° Continuous |
| Tilt | 40° |
| Beam Pattern | Spot |
| Dimensions (H x W x D) | 8.4" x 6" x 8" (21.3 x 15.2 x 20 cm) |
| Footprint Diameter | 4.75" (120.7 mm) |
| Weight | 7.72 lbs (3.5 kg) |
| Waterproofing | Fully sealed housing |
| Wireless | No |
| Controllers | URP-103 Wired Point Pad, URC-104 Master Controller |

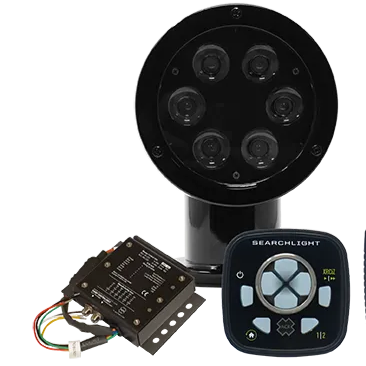

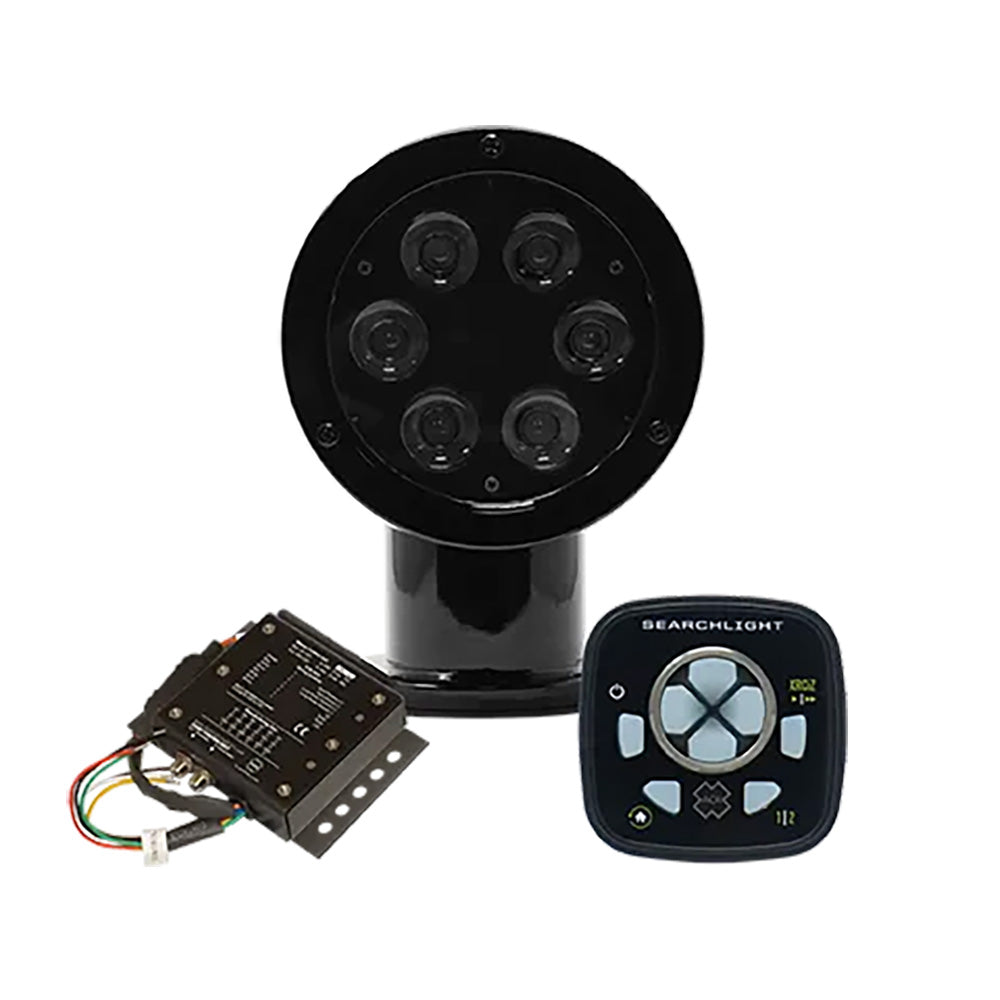

Included Components
-
ACR RCL-50 LED Black Searchlight
-
URP-103 Wired Point Pad Controller
-
URC-104 Master Controller
-
Mounting & installation hardware
Perfect For
-
Small to mid-size pleasure crafts
-
Sport yachts and sport fishing boats
-
Light commercial vessels and workboats
-
Boaters upgrading from halogen to LED searchlights
Why Choose ACR?
✅ Over 60 years of marine safety and lighting expertise
✅ Industry-leading reliability and performance
✅ Designed for demanding marine conditions
✅ Trusted by commercial and recreational boaters worldwide
Upgrade Your Vessel with Reliable Marine Illumination
The ACR RCL-50 LED Black Searchlight with full control package delivers unmatched lighting power, corrosion protection, and user-friendly operation. A must-have for serious boaters upgrading from halogen to advanced LED technology.
