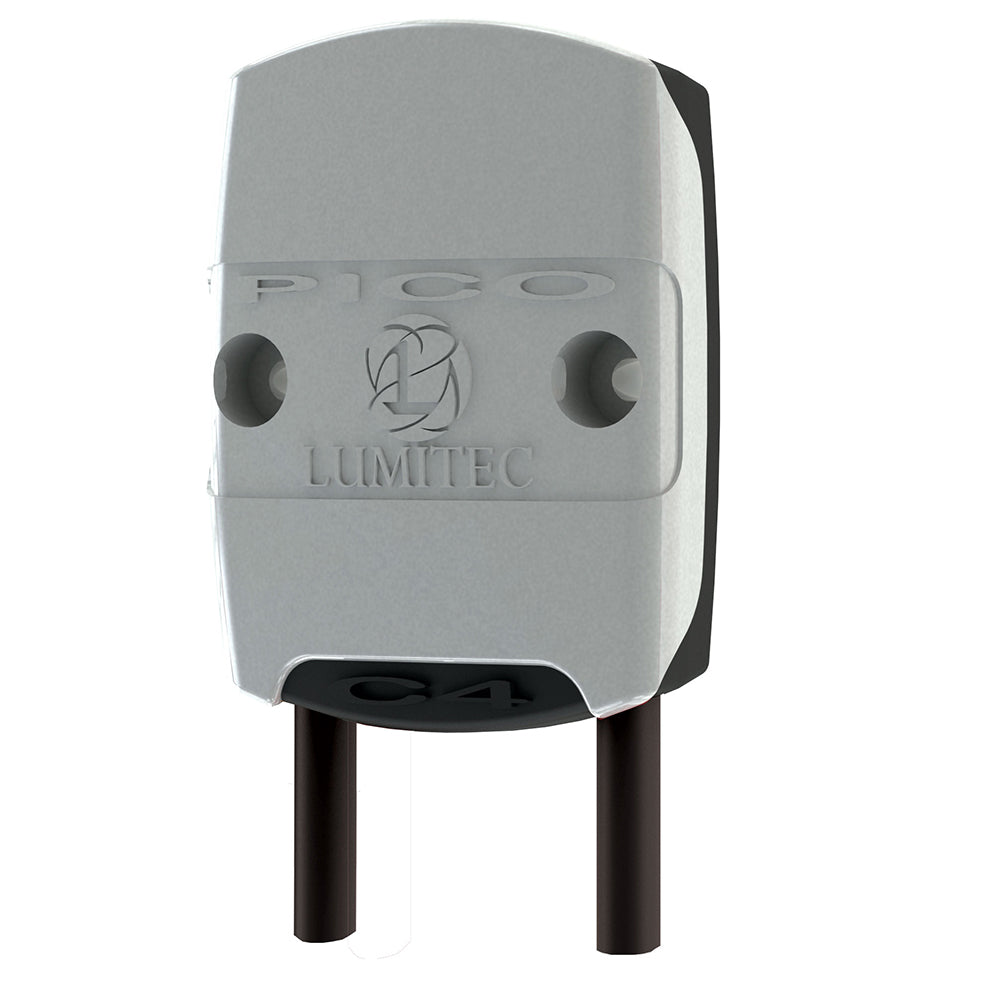

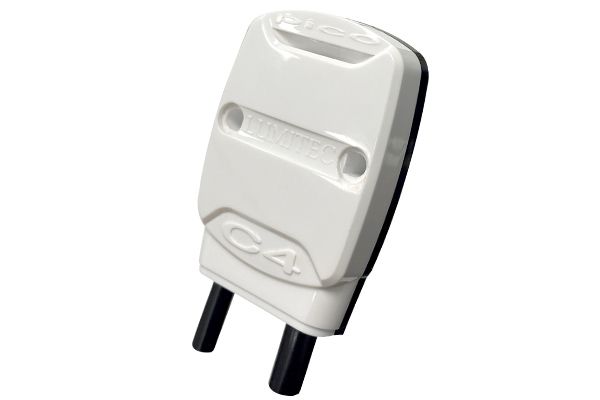

Lumitec Pico C-4 Expansion Module [101609]

Lumitec Pico C-4 Expansion Module [101609]

Add more versatility to your lighting system.

What it does
This expansion module works with the Lumitec Poco Digital Lighting Control system and allows you to extend control to lights or accessories from other manufacturers that don’t include built-in PLI (Proprietary Lighting Interface) technology.

Specifically:

• It provides Poco or TTP (Timed Toggled Protocol) control over RGB or RGBW lighting accessories.

• On vessels not already equipped with a full Poco system, it offers color and intensity control via a standard on/off switch using TTP.

Key specs

• Voltage: 10-30 V DC

• IP 67 rated housing (suitable for marine/environments)

• 4 output channels (so you can control multiple circuits)

• Max current per channel: approx. 2.5 A

• Operating temp: -31 °F/-35 °C to +131 °F/+55 °C

Why you might pick it

• If you already run a Poco system (or plan to) and want to bring in non-Lumitec RGB/W lights, this gives you that bridge.

• If you have a simpler system (just an on/off switch) and want color/intensity control without full control hardware, this is a tidy option.

• Marine-rated build means it’s designed for demanding environments.

Things to watch

• Even though it supports RGB/RGBW accessories, you’ll still need compatible lights or accessories to hook into this module isn’t the lights themselves.

• Make sure the current draw of your accessories fits the module’s channel limits (≈ 2.5 A per channel).

• Confirm your existing wiring, switches, and control system are compatible (10-30 V DC, etc.).

• For full system control (smartphone, MFD integration, etc.), you’ll want the full Poco backbone, not just this module in isolation.
