Lumitec Orbit Spectrum Flush Mount Down Light - Brushed Housing - White Dimming Red/Blue Non-Dimming [112507]
Description
Description

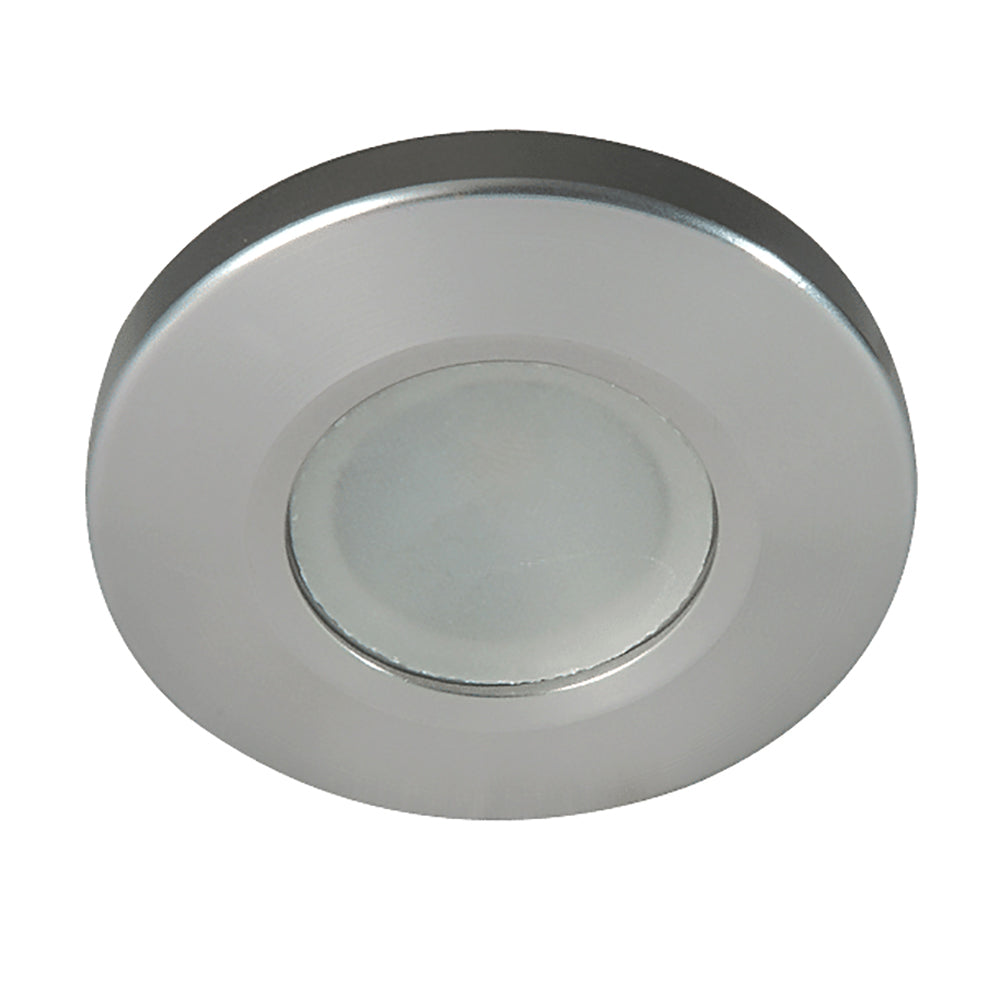

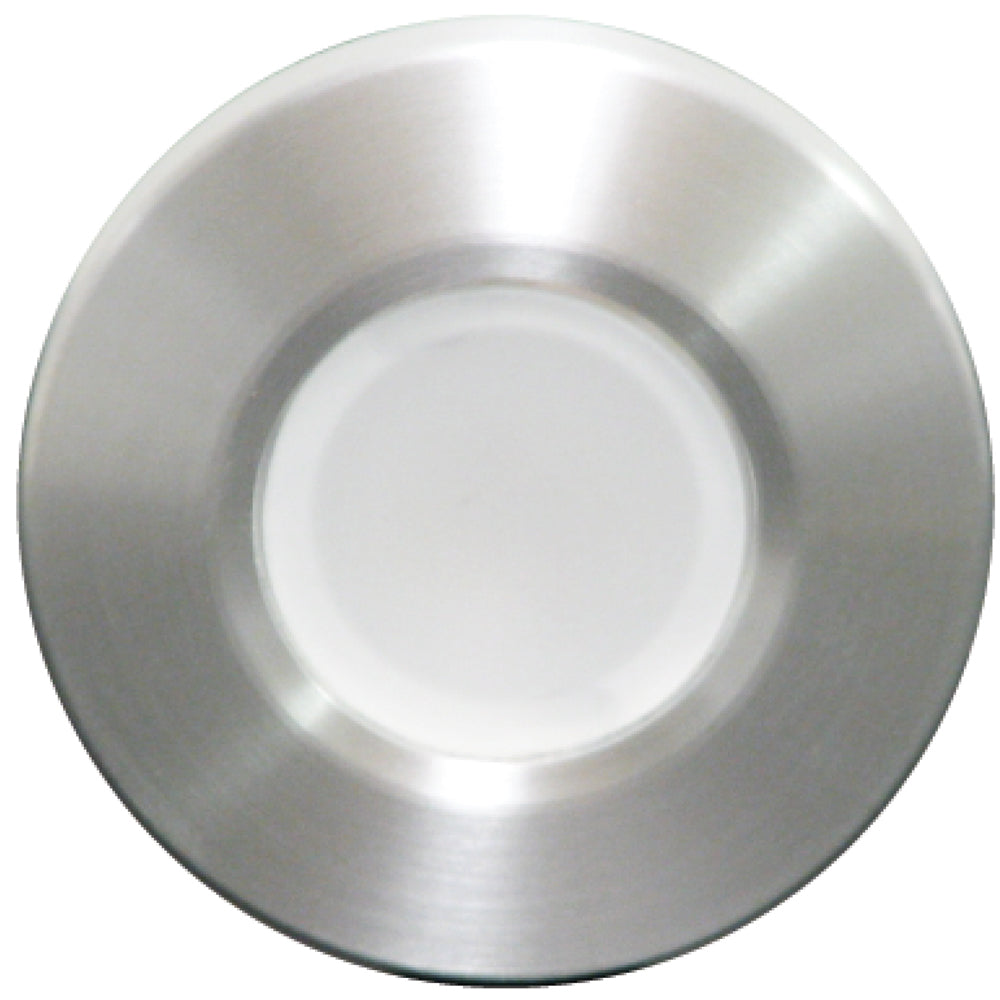

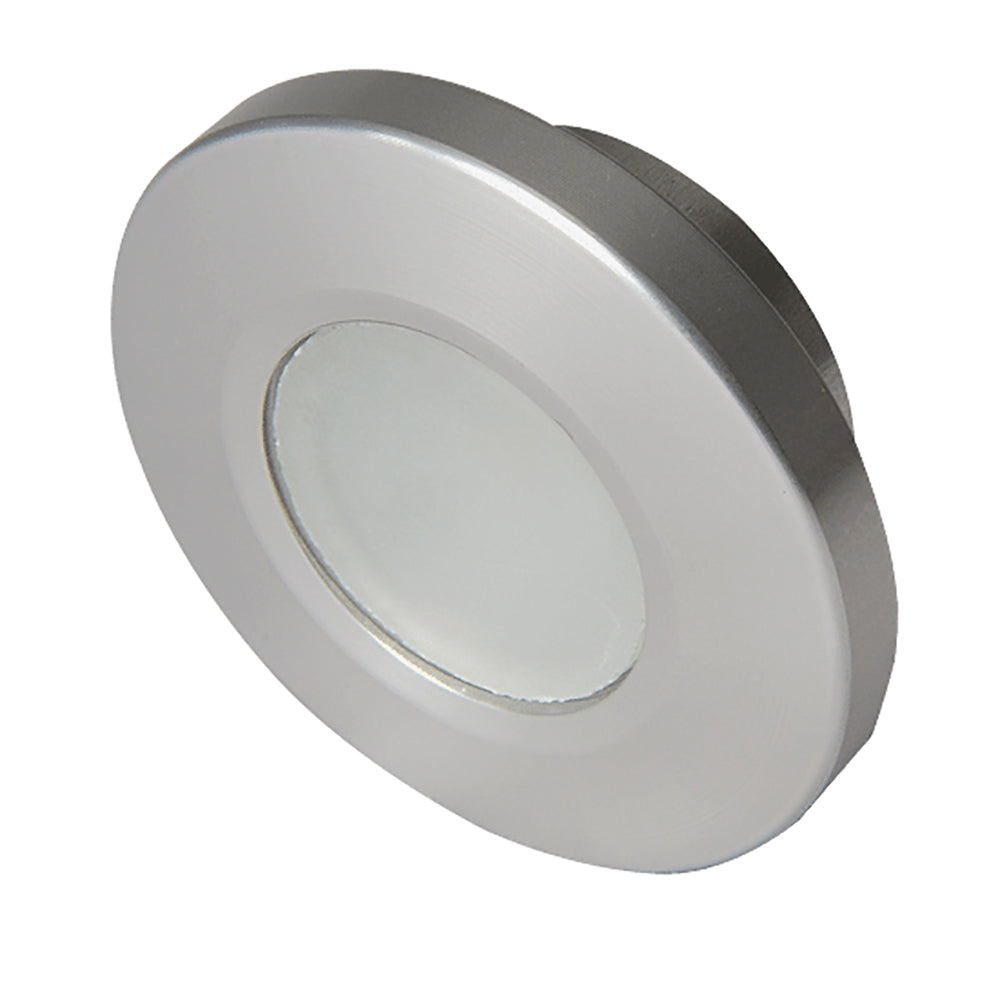

Lumitec Orbit Spectrum Flush Mount Down Light – Brushed Housing – White Dimming / Red & Blue Non-Dimming
The Next Generation of Compact Marine Lighting
The Lumitec Orbit Spectrum Flush Mount Down Light delivers high performance and durability in a sleek, low-profile design. Engineered for the toughest marine environments, this light combines brilliant illumination, intelligent circuitry, and effortless installation, making it one of the most versatile downlights available for boats, yachts, and marine cabins.
With a shallow ½-inch mounting depth and a secure composite mounting system, the Orbit Spectrum installs cleanly into tight spaces, making it perfect for T-tops, cabins, galleys, or cockpits. Its weatherproof, IP67-rated housing ensures lasting performance against moisture, salt, and vibration, while Lumitec’s signature smart circuitry allows for full dimming and color control without the need for external modules or extra wiring.
Why You’ll Love It
-
Multi-Color Brilliance: Switch between white, red, and blue lighting modes to set the perfect onboard atmosphere.
-
Smart Dimming Control: Enjoy smooth dimming and advanced control without needing special switches or modules.
-
Ultra-Slim Design: Less than ½-inch mounting depth fits virtually anywhere on your vessel.
-
Marine-Grade Durability: Completely water-sealed, corrosion-resistant, and built for long-term reliability.
-
Energy Efficient: Consumes minimal power while delivering a crisp, powerful 187-lumen output.
Perfect For
-

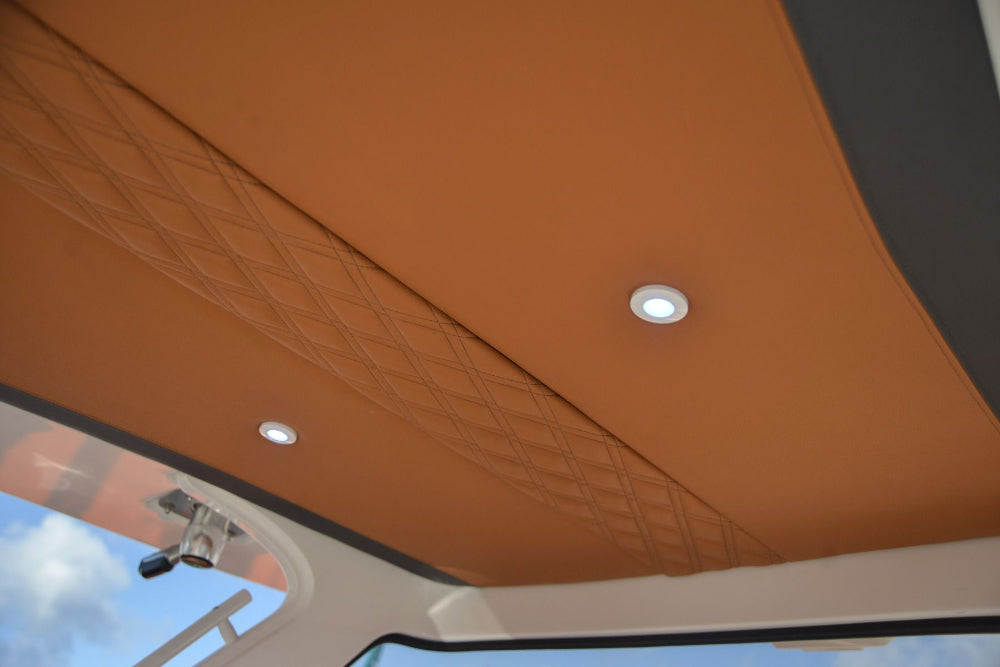

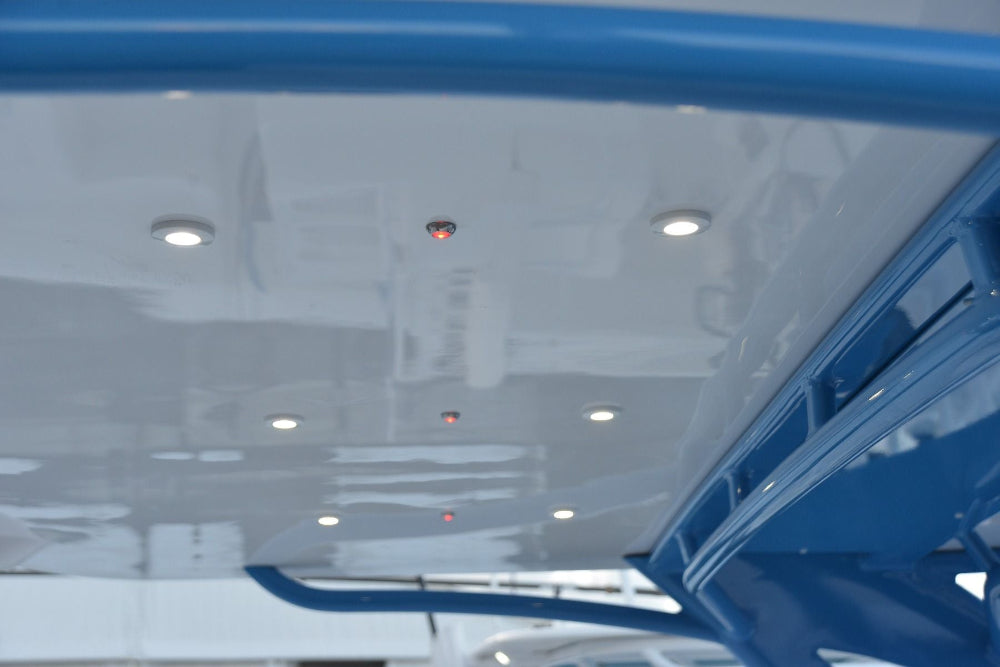

T-Tops and hardtops
-
Boat cabins and cockpits
-
Helm lighting and consoles
-
Marine interiors and headliners
Technical Specifications
| Feature | Specification |
|---|---|
| Lumens (White) | 187 |
| Voltage | 10–30V DC |
| Amperage (12V / 24V) | 300mA / 150mA |
| Power Draw | 4 Watts |
| CCT (Color Temperature) | 5000K |
| CRI (Color Rendering Index) | 70+ |
| Operating Temp | -31°F to 131°F (-35°C to 55°C) |
| Waterproof Rating | IP67 |

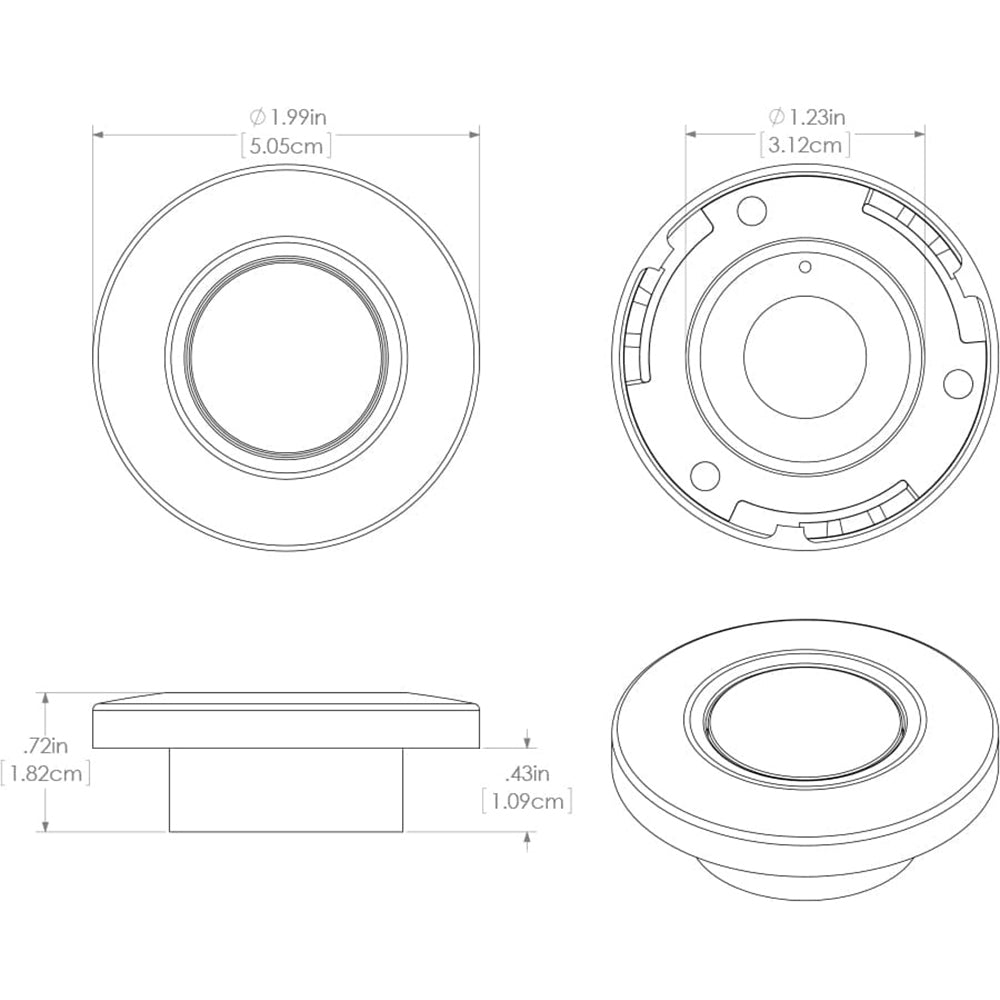

| Mounting Hole Diameter | 1.25" |
| Fixture Depth | 0.70" (1.77 cm) |
| Diameter | 1.99" (5.05 cm) |
| Housing Finish | Brushed |
| LED Colors | White (dimmable), Red/Blue (non-dimmable) |
| Dimming Support | Yes (TTP & 3PD Compatible) |
Why Choose Lumitec
✅ Proven marine lighting innovation
✅ IP67 waterproof reliability
✅ Advanced dimming and color technology
✅ Easy installation with no extra modules required
Lumitec 5-Year Warranty
Effective January 1, 2025, all Lumitec products include a standard 5-year warranty, covering defects in materials and workmanship to give you complete peace of mind season after season.
