OceanLED X-Series X8 - Midnight Blue LEDs [012305B]
Description
Description

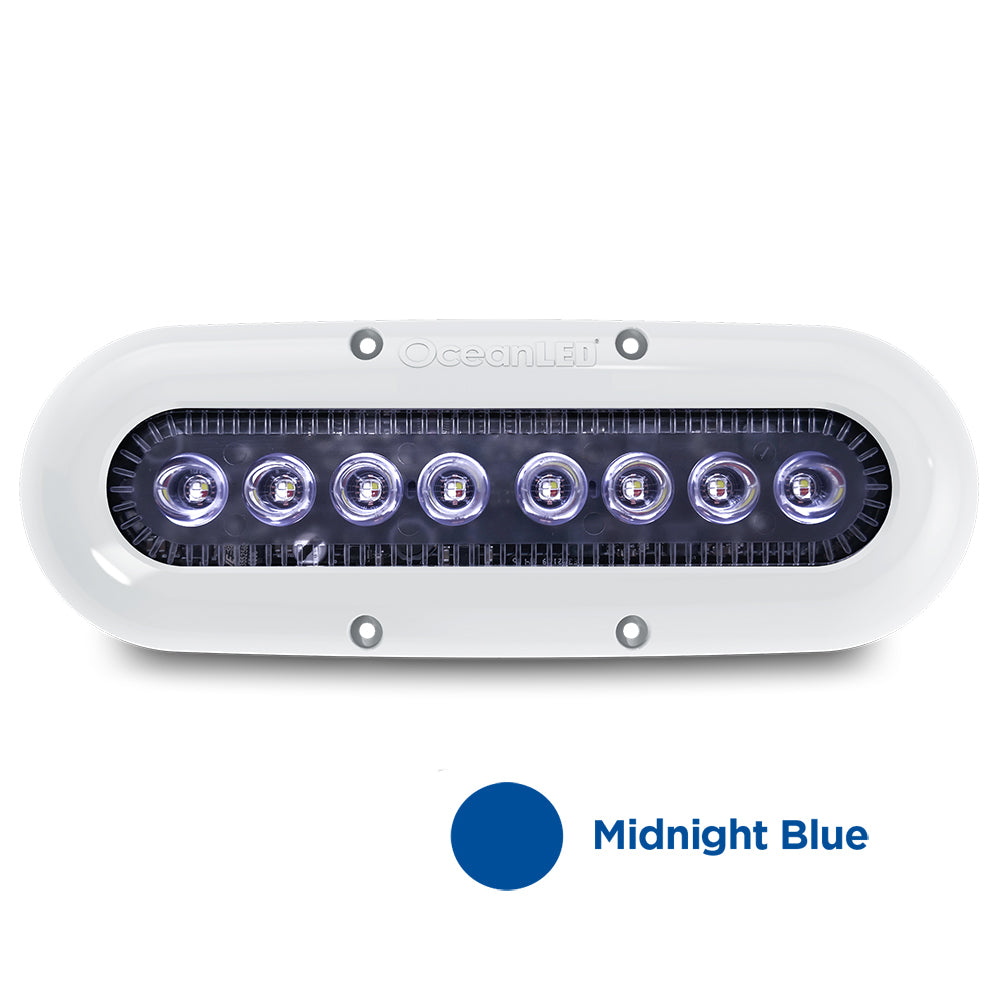

OceanLED X-Series X8 – Midnight Blue LEDs Underwater Boat Light [012305B]
Illuminate the Deep with the OceanLED X-Series X8 – Midnight Blue
The OceanLED X-Series X8 – Midnight Blue [012305B] is a powerhouse in compact marine lighting. With 2,300 fixture lumens and focused 60° beam optics, this IP68-rated underwater light delivers deep water penetration, vivid illumination, and unmatched durability. Whether you're cruising at night or setting the scene dockside, this light’s rich blue hue adds depth, style, and function to boats up to 50 feet.
Engineered for simplicity, its ultra-slim body requires just a 12.5mm hull hole and four screws for install. Its chemically resistant polymer housing and Tritonium-coated lens resist marine growth and saltwater corrosion, wipe it clean after use. The Fish-Strobe mode mimics the movement of baitfish with a randomized flash pattern proven to attract game fish.
Whether you're lighting up the hull for aesthetics or attracting tuna at night, the X8 delivers premium performance with minimal maintenance.
Key Features
-
2,300 Fixture Lumens
Packs the power of a 50W Xenon light in an efficient LED unit. -
Midnight Blue Output
Ideal for enhancing aesthetics or attracting fish at night. -
60° Beam Angle
Wide, circular beam pattern penetrates deep and covers large areas. -
Compact & Easy to Install
Low-profile design needs only a 12.5mm cable hole and 4 screws. -
Fish-Strobe Mode
Randomized pulsing attracts baitfish, increasing your catch chances. -
Tritonium-Coated Lens
Anti-fouling coating resists buildup and wipes clean with ease. -
Energy Efficient
Draws only 1.65A @ 12V or 0.75A @ 24V, with internal driver and polarity protection. -
Built to Last
Uses high-performance CREE LEDs rated for 40,000+ hours.
Perfect For
-
Boat transom lighting up to 50’ (15m)
-
Nighttime fishing enhancement
-
Dockside or marina lighting ambiance
-
Weekend DIY installation
-
Upgrades from outdated halogen or Xenon lights
Technical Specifications
| Feature | Specification |
|---|---|
| Fixture Lumens | 2,300 |
| Total Lumens | 2,900 |
| Beam Angle | 60° circular |
| Voltage | 9–32V DC |
| Current Draw | 1.65A @ 12V DC / 0.75A @ 24V DC |
| LED Lifespan | 40,000+ hours |
| Light Penetration | 26' avg / 72' in clear water |
| Mounting Style | Surface mount |
| Housing Material | Chemically resistant optical polymer |
| Lens | Pilkington Optiwhite w/ Tritonium coating |

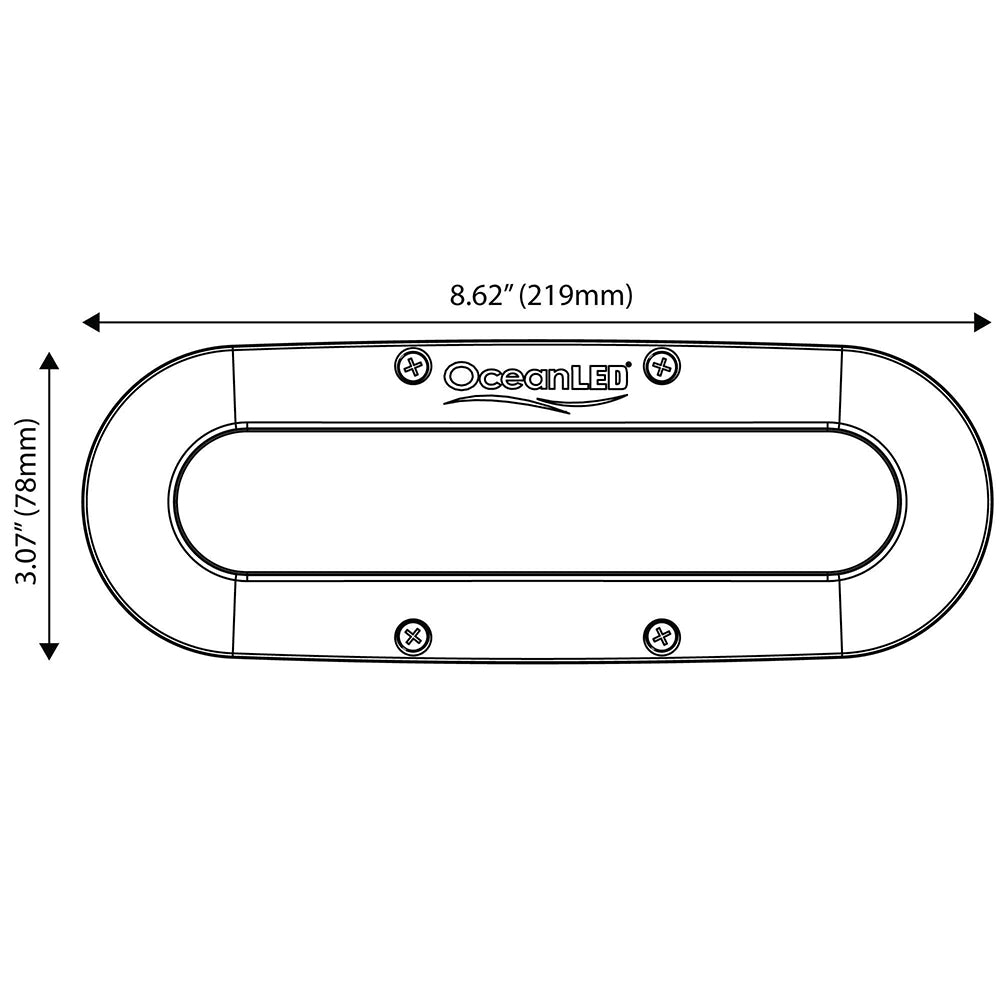

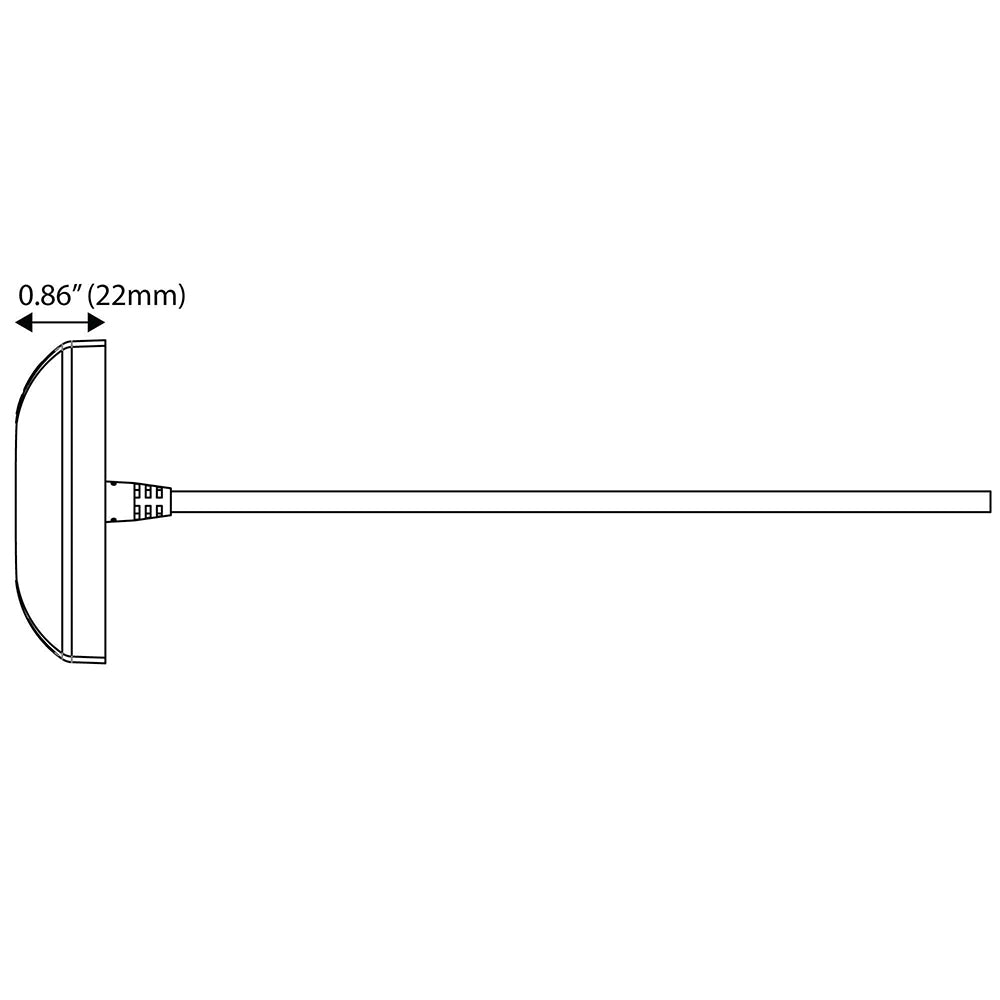

| Size | 8.62” L x 3.07” W x 0.86” D |
| Cable Length | 9.7’ (3m) |
| IP Rating | IP68 (fully submersible) |
| Certification | CE Approved / EMC Compliant |
| Warranty | 2 years |
| UPC | 5051803007241 |
What’s in the Box
-
OceanLED X-Series X8 Midnight Blue Underwater Light [012305B]
-
Mounting hardware (4 screws)
-
Installation manual
Stainless steel bezel sold separately.
