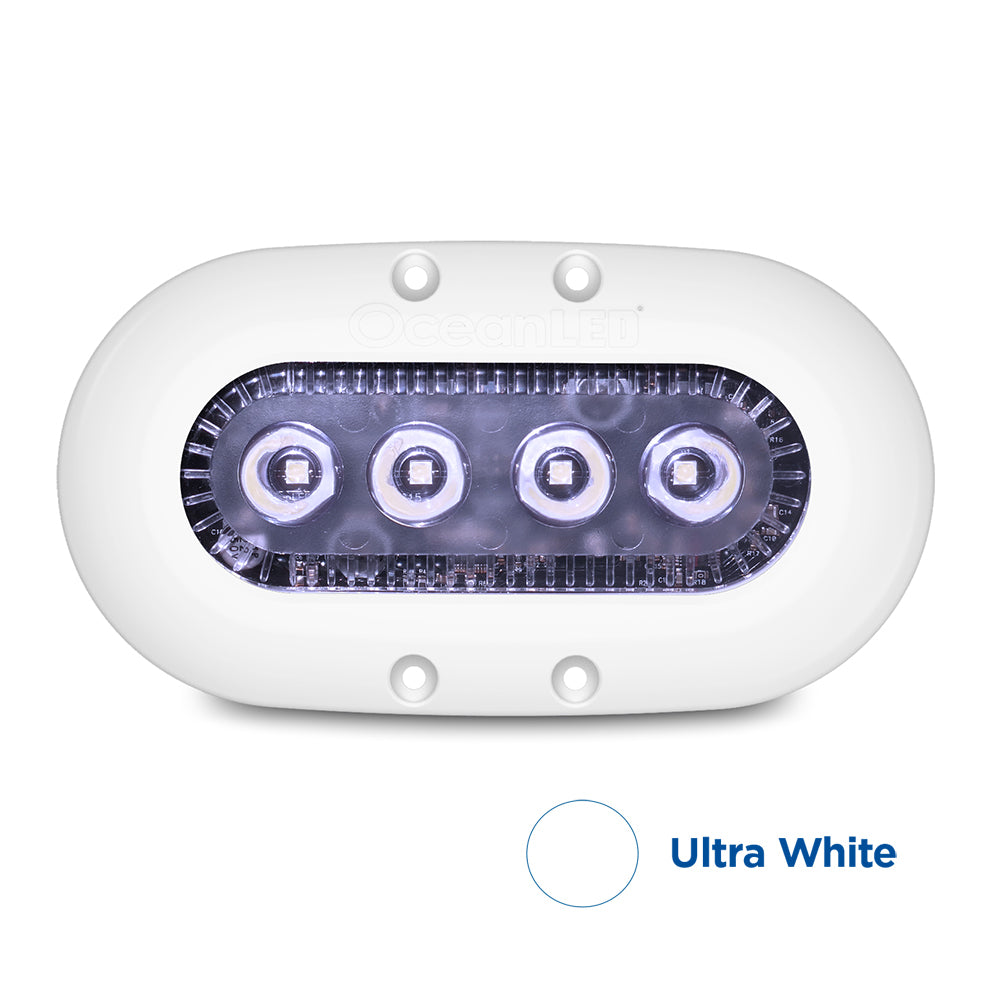

3OceanLED X-Series X4 – White LEDs Underwater Boat Light [012301W]
High-Performance White LED Lighting for Boats Up to 30' – Compact, Bright, and Built to Last
The OceanLED X-Series X4 – White [012301W] delivers serious brightness in a compact, low-profile body that’s perfect for small to mid-sized boats. With 1,150 fixture lumens and a 60° circular beam angle, this IP68-rated underwater LED light is designed to enhance visibility, attract fish, and boost your boat's overall aesthetics—whether you're night cruising, fishing, or lighting up the dock.
Made from chemically resistant optical polymer, this surface-mounted fixture features internal drivers, Tritonium-coated lenses for easy cleaning, and an innovative Fish-Strobe mode to bring in more baitfish. Installation is quick and straightforward, requiring only a 12.5mm hole and 4 screws. With ultra-low power draw and reverse polarity protection, the X4 is efficient, reliable, and easy to integrate with most 12V or 24V marine systems.
🔹 Why Choose the OceanLED X4 White?
-
Bright & Efficient: 1,150 fixture lumens (1,450 total lumens) of clean Ultra White light—equivalent to a 150W metal halide lamp
-
Advanced Optics: 60° focused beam angle for wide, deep underwater illumination
-
Fish-Strobe Mode: Random strobe effect proven to attract baitfish for better night fishing
-
IP68 Waterproofing: Built for continuous underwater use with durable, sealed construction
-
Tritonium Lens Coating: Resists marine growth and wipes clean in seconds
-
Compact & Easy Install: Ideal for weekend DIYers—just drill one hole and secure with four screws
-
Built-in Driver: No bulky external driver required
-
Low Power Draw: Only 0.8A @ 12V or 0.4A @ 24V, perfect for efficient marine setups
-
Trusted Durability: 40,000+ hour CREE LEDs ensure long-lasting performance
⚓ Best For
-
Transom or hull lighting for boats up to 30 feet
-
Enhancing dockside ambiance and underwater visibility
-
Night fishing with bait-attracting Fish-Strobe mode
-
Above-water lighting on decks, trailers, or cockpits
-
DIY marine lighting upgrades and refits
📐 Technical Specifications
| Feature | Value |
|---|---|
| Light Color | Ultra White (6500K) |
| Total Lumens | 1,450 (1,150 fixture lumens) |
| Beam Angle | 60° Circular |
| LED Lifespan | 40,000+ hours |
| Operating Voltage | 9–32V DC |
| Current Draw | 0.8A @ 12V / 0.4A @ 24V DC |
| Light Penetration | 20 ft (avg.) / 45 ft (clear water) |
| IP Rating | IP68 |
| Driver | Internal |
| Lens | Pilkington Optiwhite w/ Tritonium coating |
| Material | Chemically resistant optical polymer |

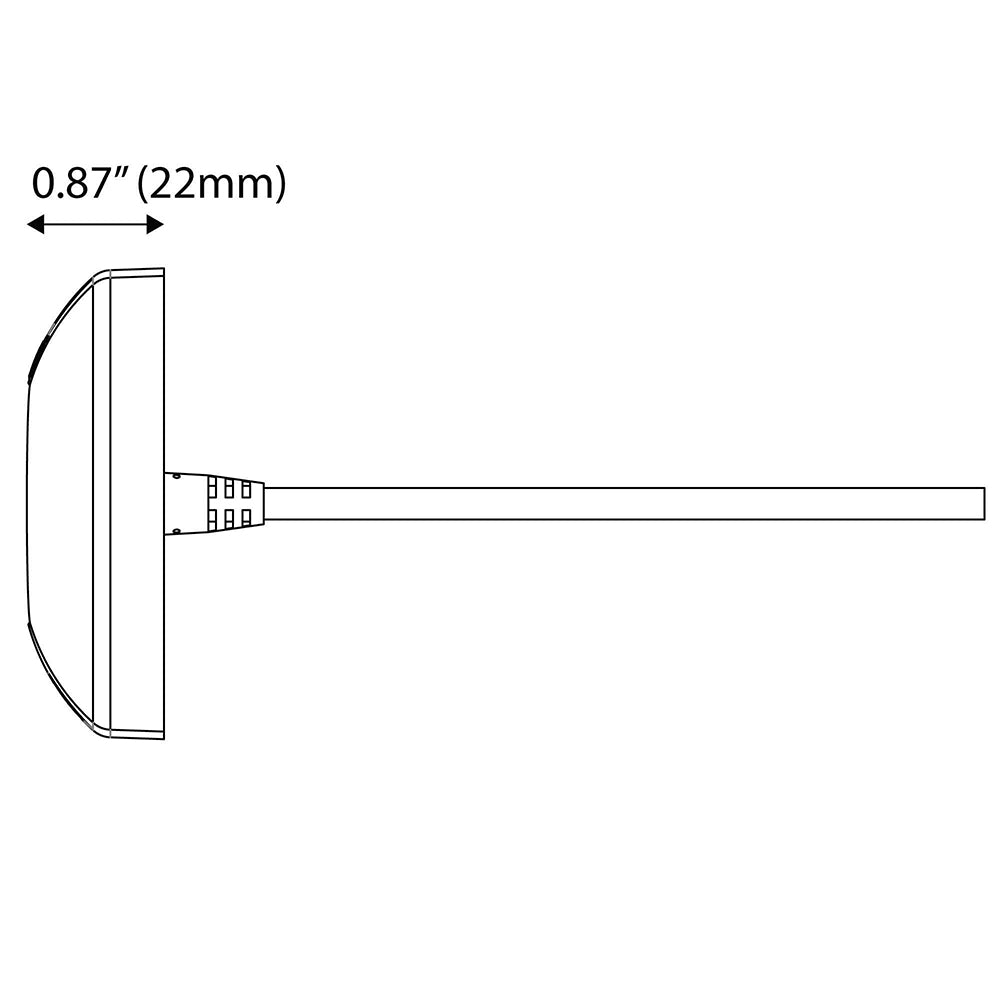

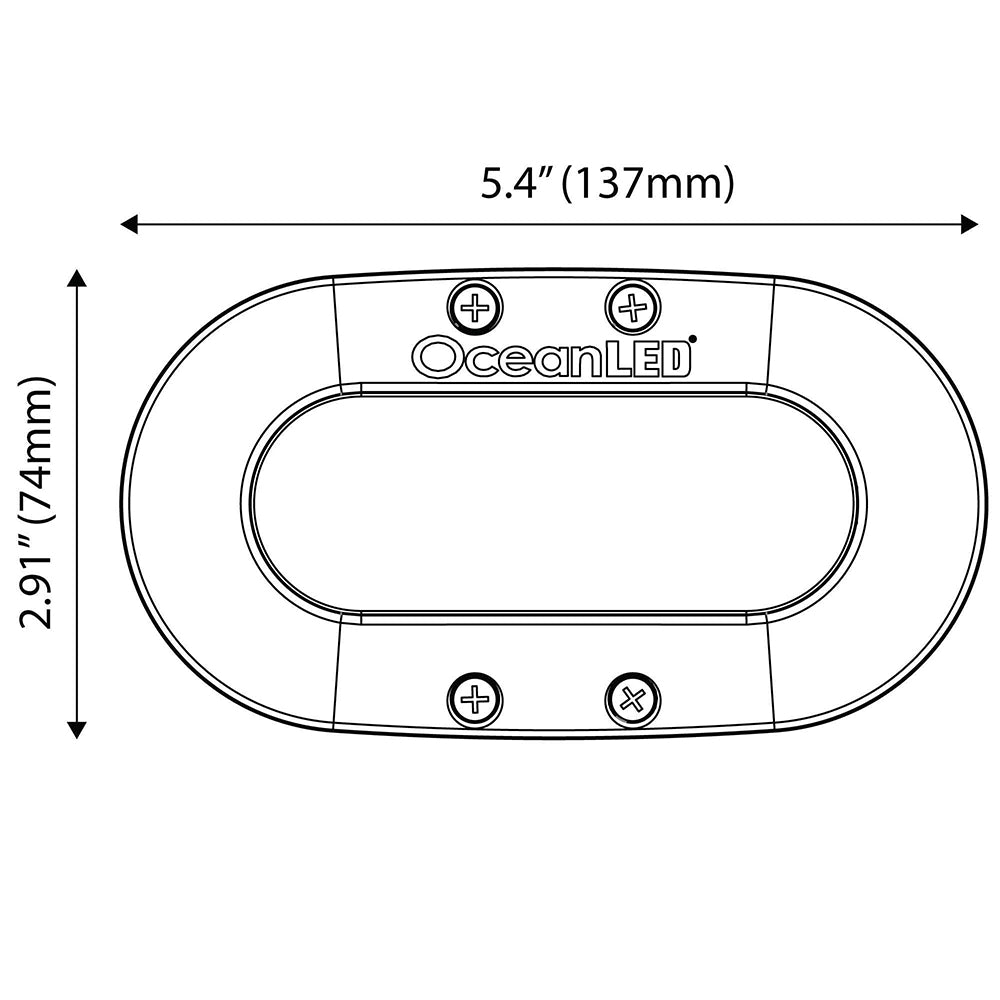

| Dimensions (LxWxD) | 5.4" x 2.91" x 0.86" (137mm x 74mm x 22mm) |
| Mounting Style | Surface Mount |
| Cable Length | 3M (9.7 ft) |
| Hole Size for Install | 12.5mm (0.5") |
| Number of LEDs | 4 |
| Certifications | CE, EMC Approved |
| Warranty | 2 Years |
| UPC | 5051803007203 |
📦 What’s in the Box
-
OceanLED X-Series X4 White LED Underwater Light [012301W]
-
4x Mounting Screws
-
Installation Manual
Sold as a single unit.
❓ Frequently Asked Questions
Is the OceanLED X4 White fully waterproof?
Yes, it’s IP68-rated for continuous underwater immersion in saltwater and freshwater.
Can this be installed above the waterline?
Yes, it's suitable for cockpit, deck, and trailer lighting too.
Is the Fish-Strobe mode helpful for fishing?
Definitely. The randomized flashing pattern attracts baitfish and improves night fishing results.
Can I install this myself?
Absolutely. All you need is a small 12.5mm hole and four screws—no bonding or complex wiring.
Will it work with 12V and 24V systems?
Yes, the X4 supports 9–32V DC input, perfect for most marine power configurations.
