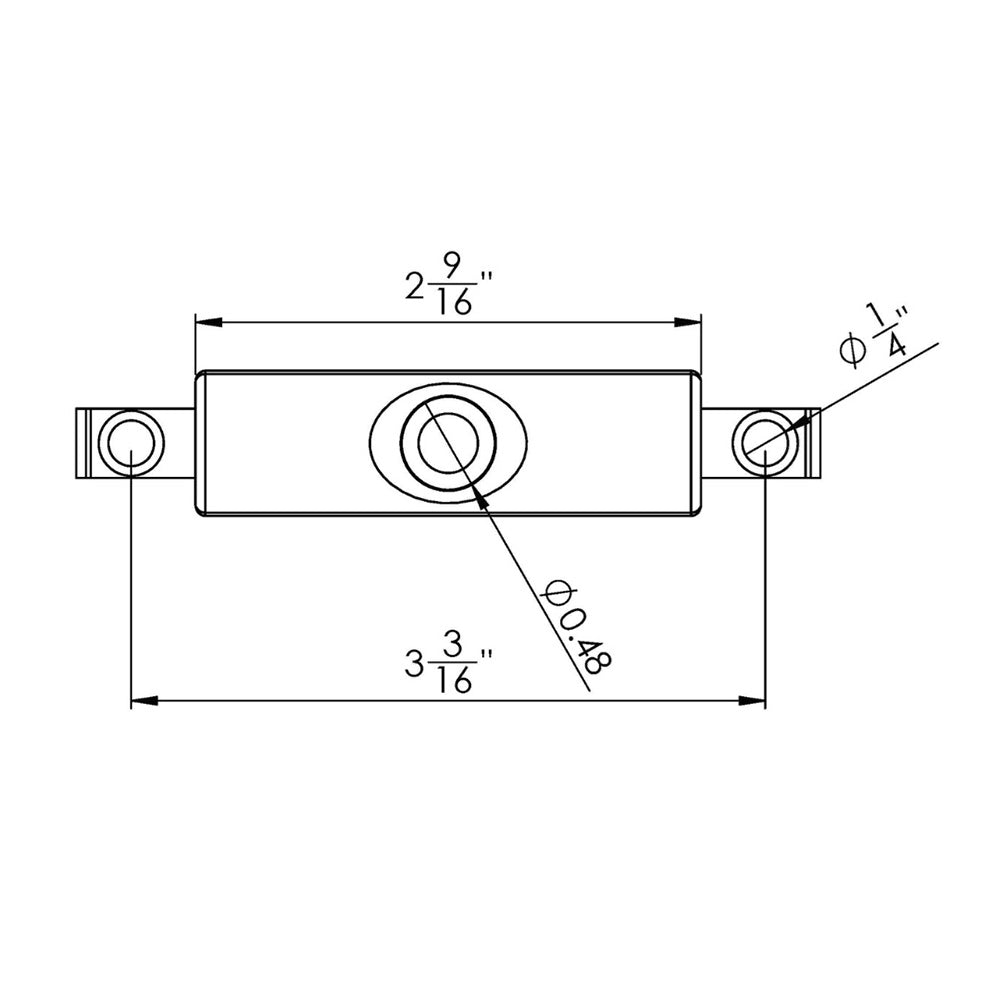

SuproFlex Mounted LED Navigation Light Set, 2-9/16" - USCG Compliant Marine Lighting
Transform Your Boat's Safety and Style with Professional-Grade Navigation Lighting
Navigate with confidence using the SuproFlex Mounted LED Navigation Light Set engineered specifically for boats up to 30 feet and designed to integrate seamlessly with your SuproFlex rub rail system. This low-profile navigation lighting solution delivers the brightness of traditional 10-watt incandescent bulbs while consuming significantly less power and requiring virtually no maintenance.
Key Features & Benefits
USCG-Compliant Safety Performance
- Fully certified under ABYC/USCG requirements for both sail and powerboat designation
- 112.5-degree unobstructed view with reduced glare for optimal visibility
- Component ID 2619788 - officially approved under NMMA Type Accepted Agreement
- Meets the latest ABYC A-16 and C-5 compliance standards (effective August 1, 2023)
Perfect For
-
Sailboats up to 30 ft
-
Powerboats up to 30 ft
-
Boaters upgrading to USCG/ABYC compliant LED navigation lights
-
Those seeking an integrated rub rail lighting solution with minimal glare
Superior LED Technology

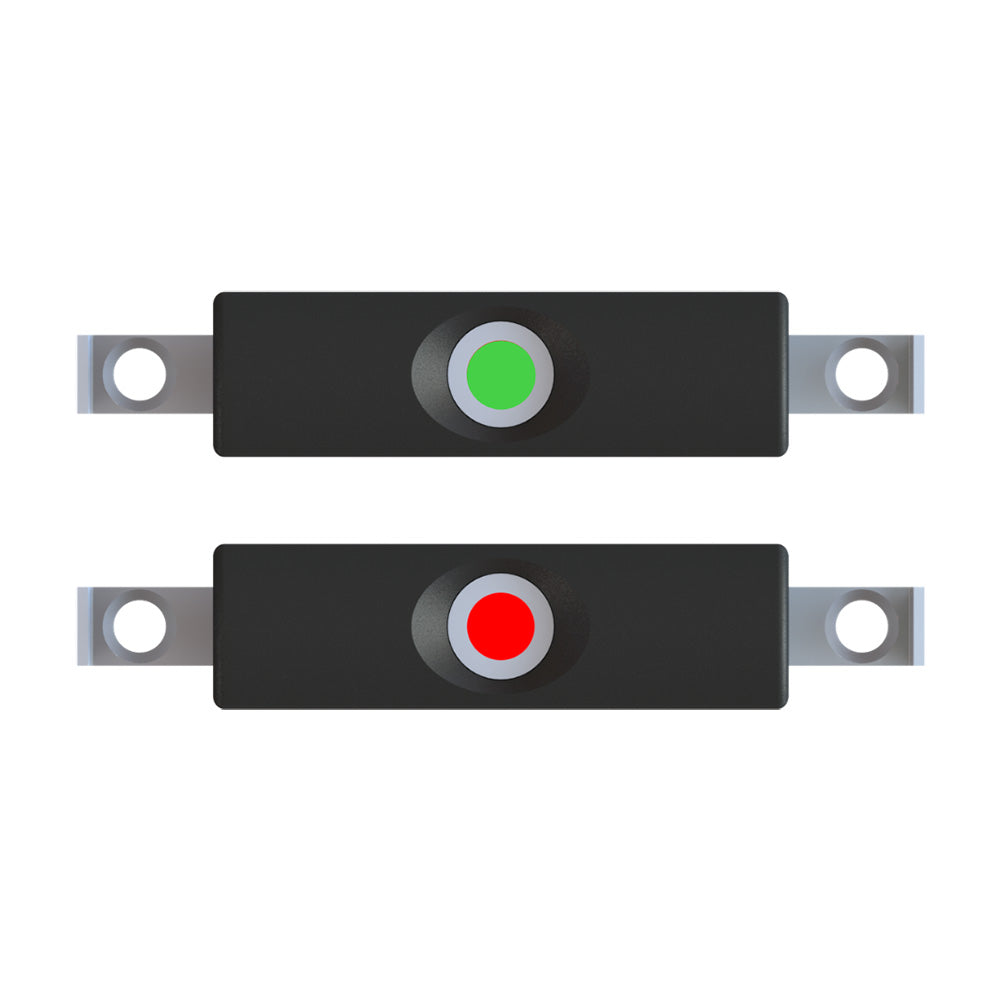

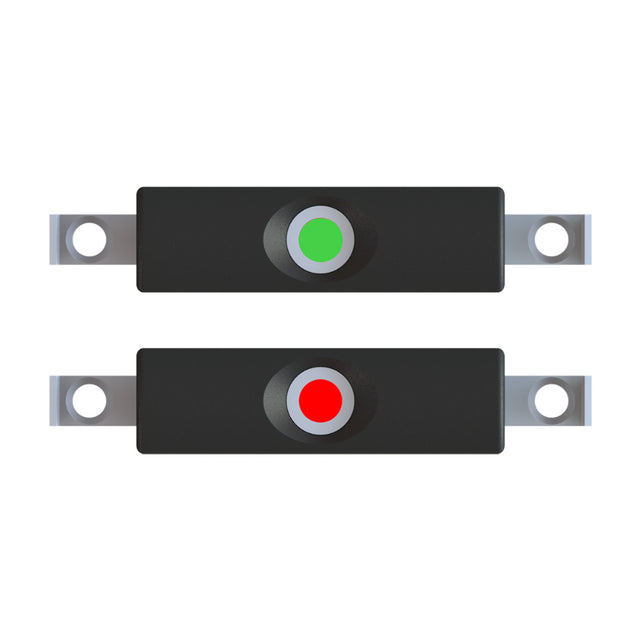

- Complete pair: One 3-watt port (red) light and one 2-watt starboard (green) light
- LED Cree chip technology for exceptional brightness and longevity
- Low-voltage operation (12-14VDC) for energy efficiency
- Brightness comparable to 10-watt incandescent lights with a fraction of the power consumption
Marine-Grade Durability
- IP68 water-resistant rating for complete submersion protection
- Anodized aluminum heat sink ensures maximum heat dissipation and extended lifespan
- Saltwater-resistant construction built for harsh marine environments
- Patent-protected design (USD760427) guarantees innovative engineering
Space-Saving Integration
- Sleek, low-profile design maximizes valuable deck space
- Custom-fit compatibility with V11-9960 and V11-9990 SuproFlex profiles
- Easy installation with a straightforward mounting system
- Uses standard #8 stainless steel fasteners (sold separately)
Technical Specifications
|
Specification Details |
Details |
|---|---|
|
Voltage |
12-14VDC |
|
Power Consumption |
Port: 3W, Starboard: 2W |
|
Light Output |
Equivalent to 10W incandescent |
|
Viewing Angle |
112.5 degrees unobstructed |
|
Water Resistance |
IP68 rated |
|
Heat Management |
Anodized aluminum heat sink |
|
Mounting Hardware |
#8 stainless steel fasteners (not included) |
|
Compliance |
ABYC/USCG approved |
|
Warranty |
1-year limited warranty |
Why Choose SuproFlex LED Navigation Lights?
Professional marine contractors and serious boat owners trust SuproFlex navigation lights because they deliver uncompromising performance where it matters most. Unlike generic marine lighting, these lights are specifically engineered for integration with SuproFlex rub rail systems, providing a clean, professional appearance that doesn't sacrifice deck space or functionality.
The advanced LED Cree chip technology ensures consistent, bright illumination that meets strict USCG visibility requirements while dramatically reducing power consumption critical for extended cruising or when operating on battery power.
Installation & Compatibility
Perfect for vessels up to 30 feet, this navigation light set installs directly into your existing SuproFlex rub rail profiles (V11-9960 and V11-9990). The streamlined installation process eliminates the need for additional deck penetrations while providing superior protection against saltwater intrusion.
Professional installation recommended for optimal performance and warranty compliance. Complete installation instructions and spec sheets are included with every purchase.
Ready to upgrade your boat's navigation lighting? Order your SuproFlex Mounted LED Navigation Light Set today and experience the difference professional-grade marine lighting makes for safety, performance, and peace of mind on the water.
Part Number: F38-9960 | UPC: 631363093592
- For certification inquiries, please visit nmma.org
