Lumitec Mirage - Flush Mount Down Light - Glass Finish/Polished SS Bezel - White Non-Dimming [113113]

Lumitec Mirage, Flush Mount Down Light, Glass Finish with Polished Stainless Bezel, White Non-Dimming [113113]

A low-profile marine down light that punches above its size. Mirage uses high-efficiency LEDs to deliver clean 5000K white light with a slim 1.11-inch depth and a polished stainless bezel that looks at home in cabins, salons, and T-tops. This product is designed for 10 to 30 volt systems and built for the marine environment.

Key highlights

• Bright, crisp 5000K white, 145 lumens

• Ultra-slim body, 1.11-inch depth for tight headliners

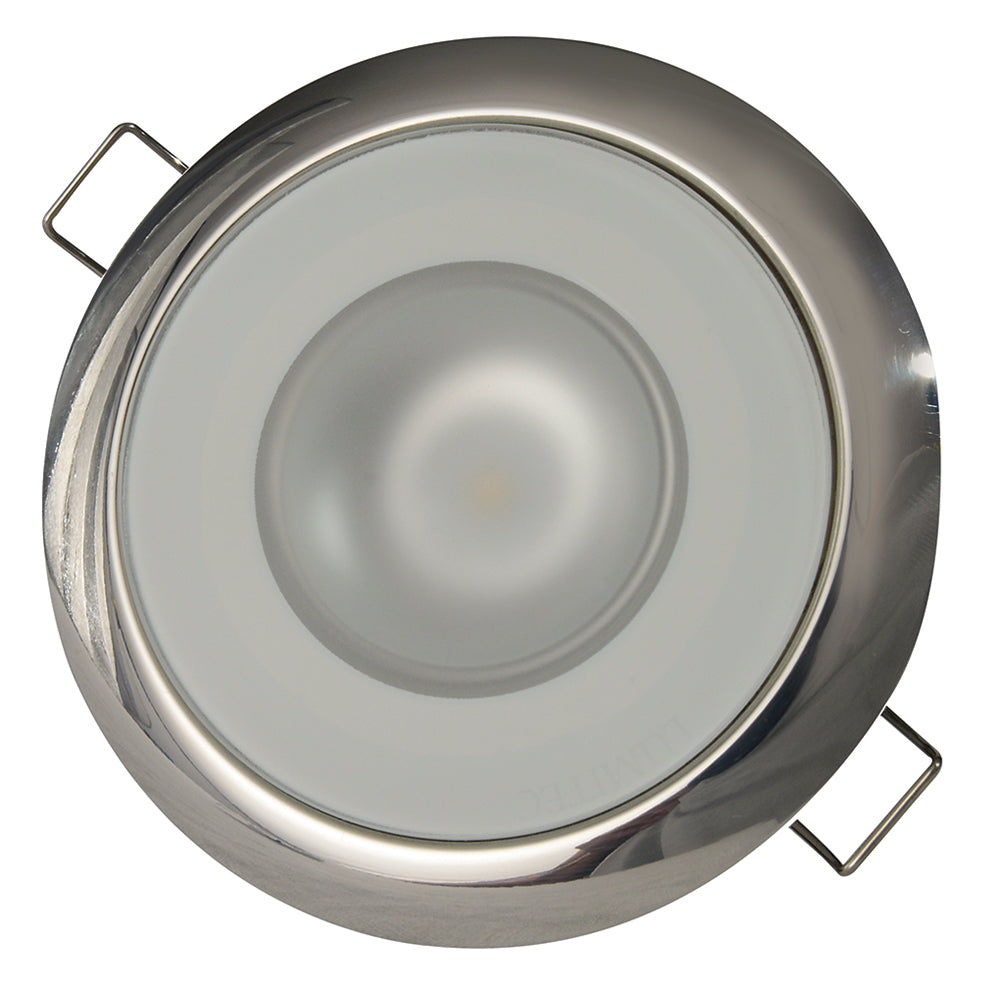

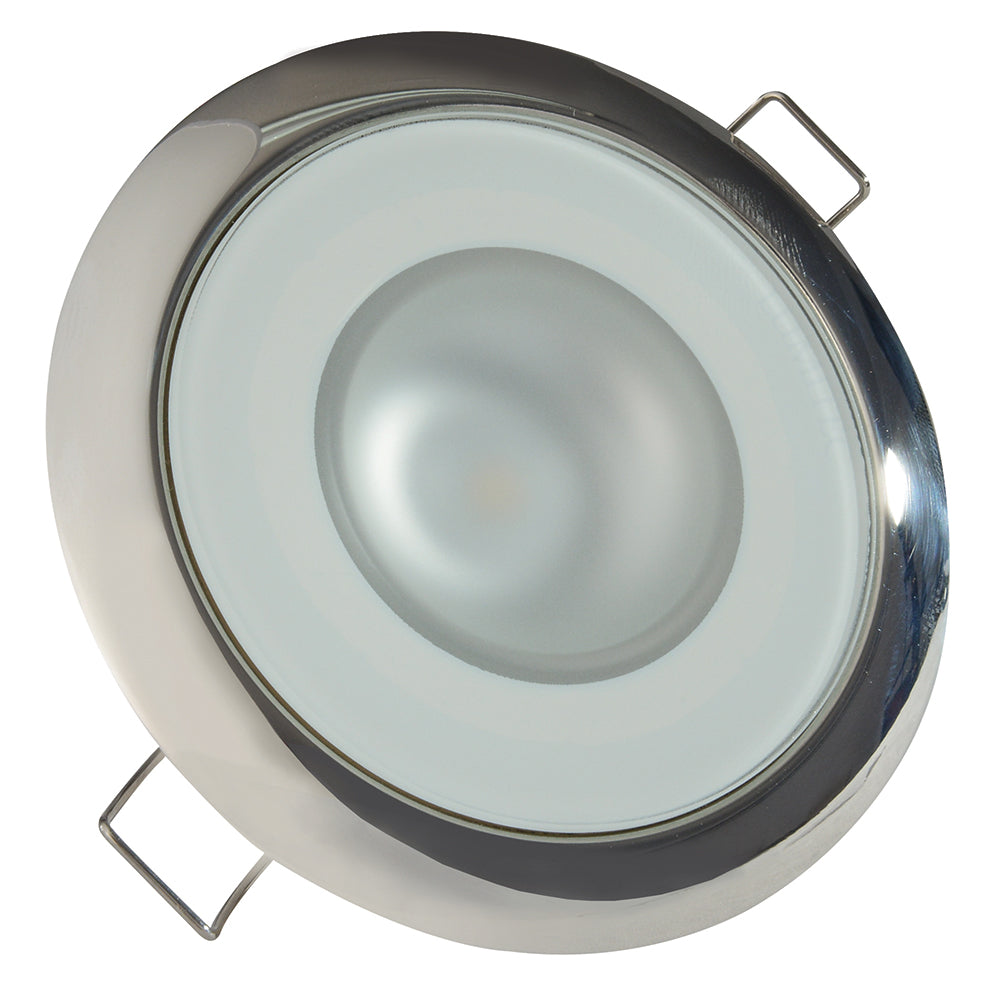

• Polished stainless steel bezel with glass finish lens

• 10 to 30 volt DC input, works on 12 or 24 volt boats

• Efficient draw, about 0.315 A at 12 V, 0.175 A at 24 V

• Non-dimming model for simple on/off control

• Built for harsh, salty conditions with sealed construction

• Backed by Lumitec’s limited 5-year warranty

Best for

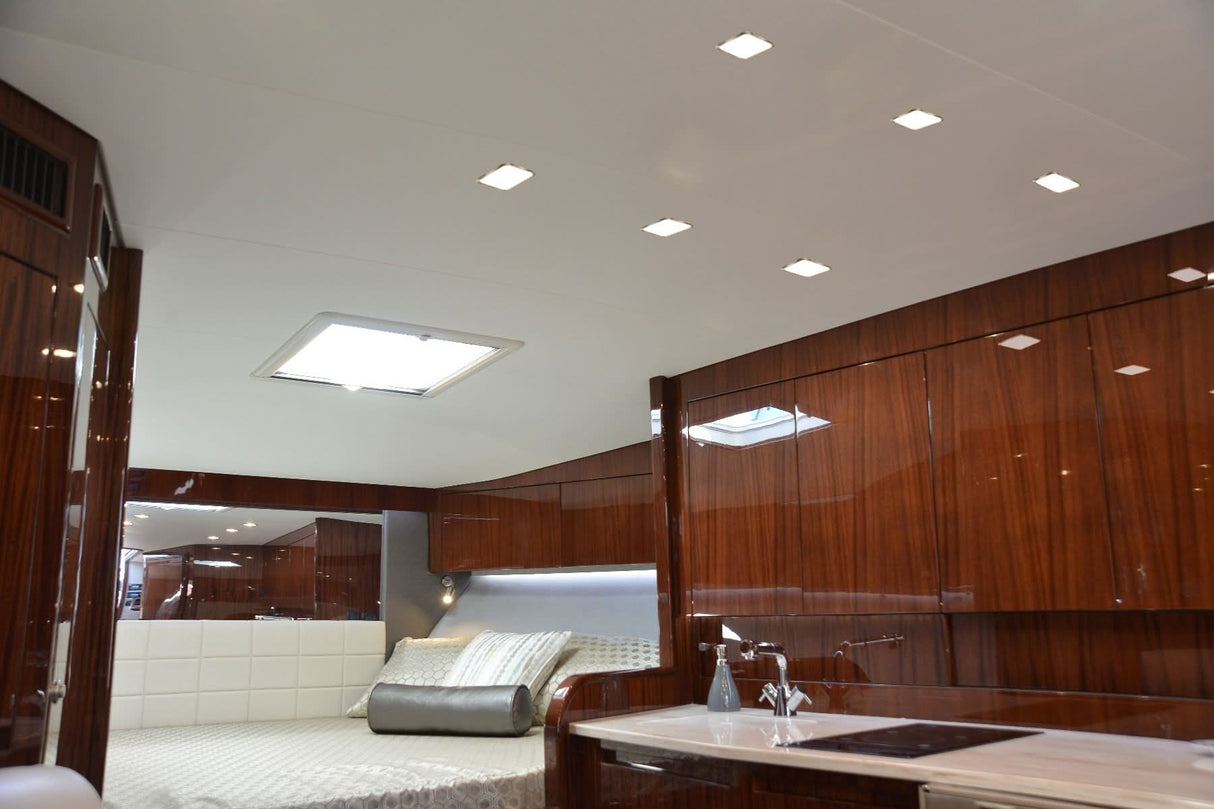

• Salon and cabin down lighting where a clean look matters

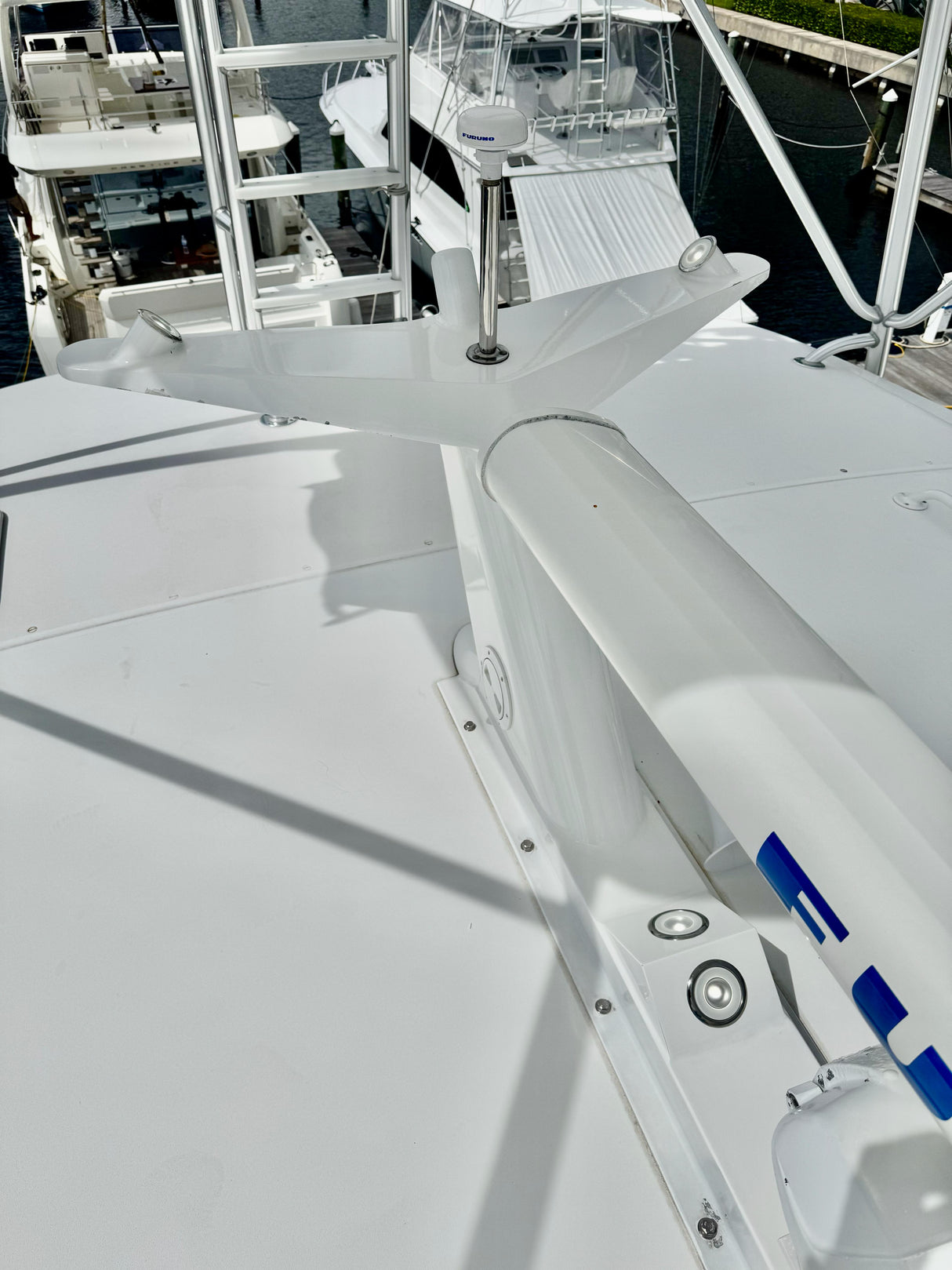

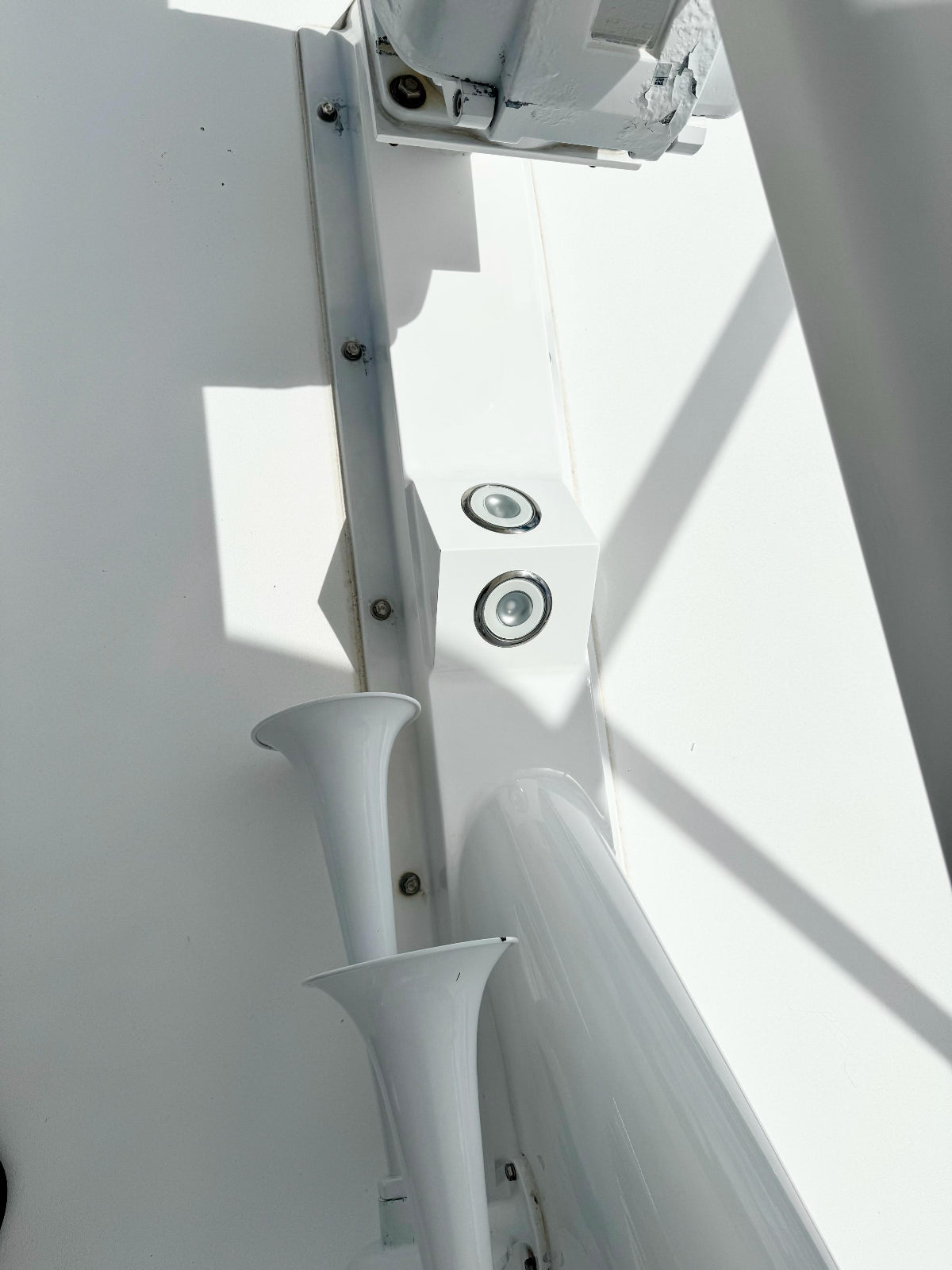

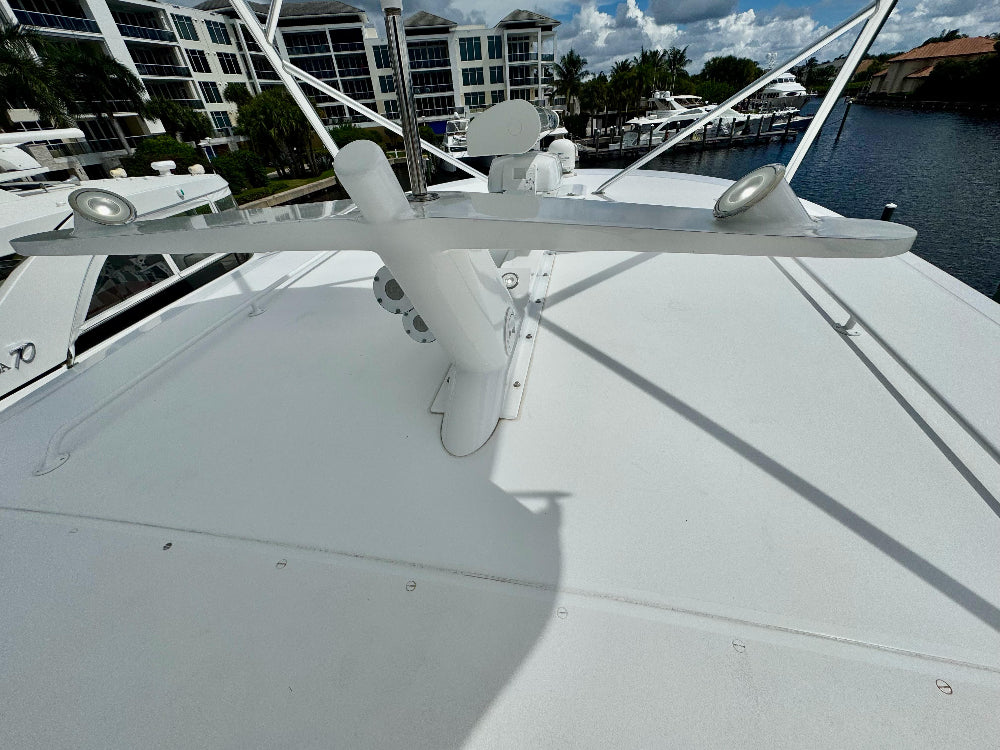

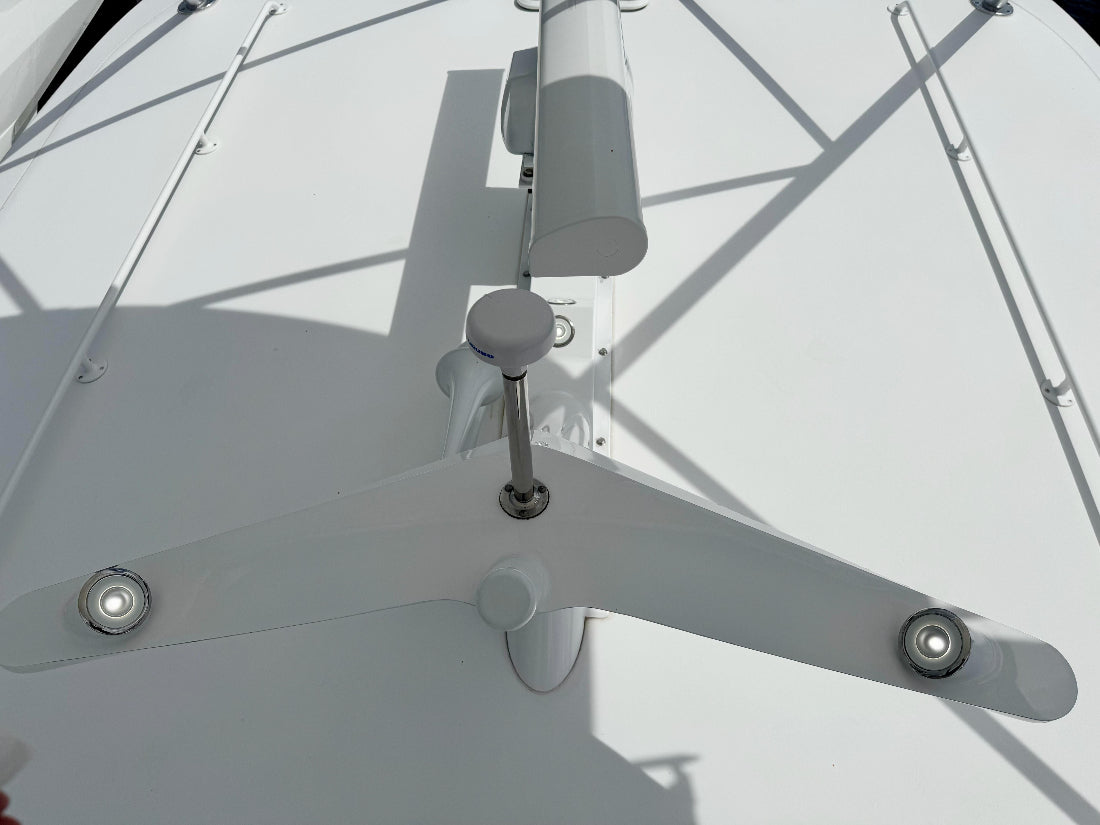

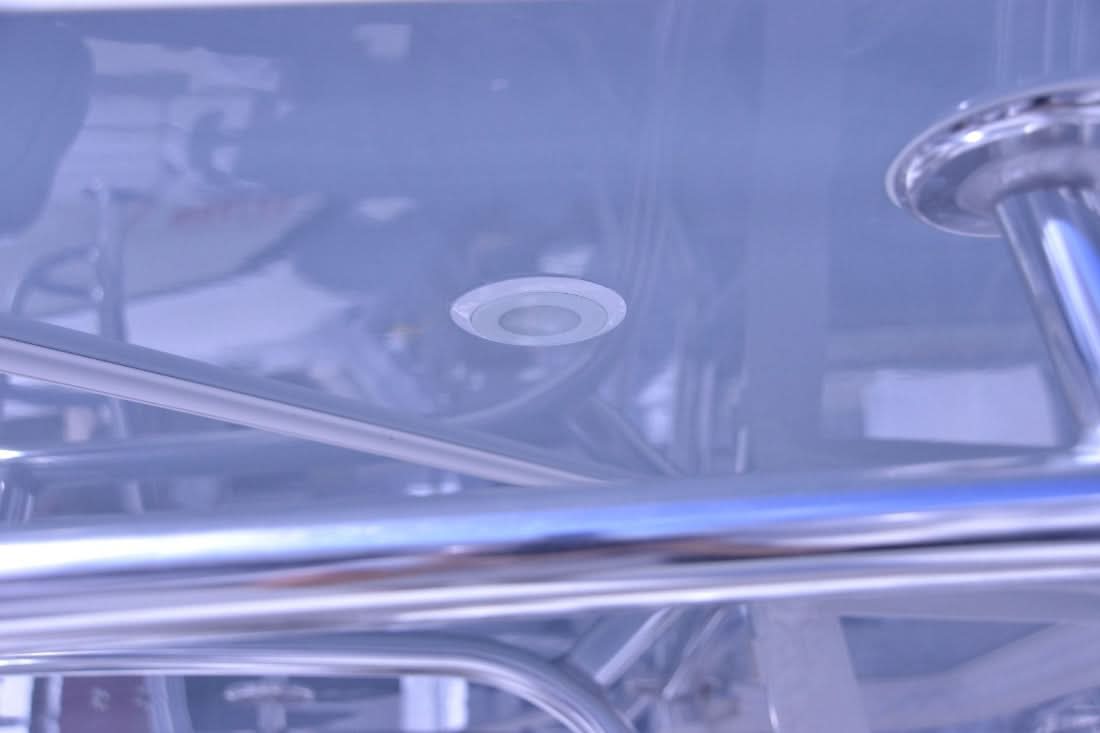

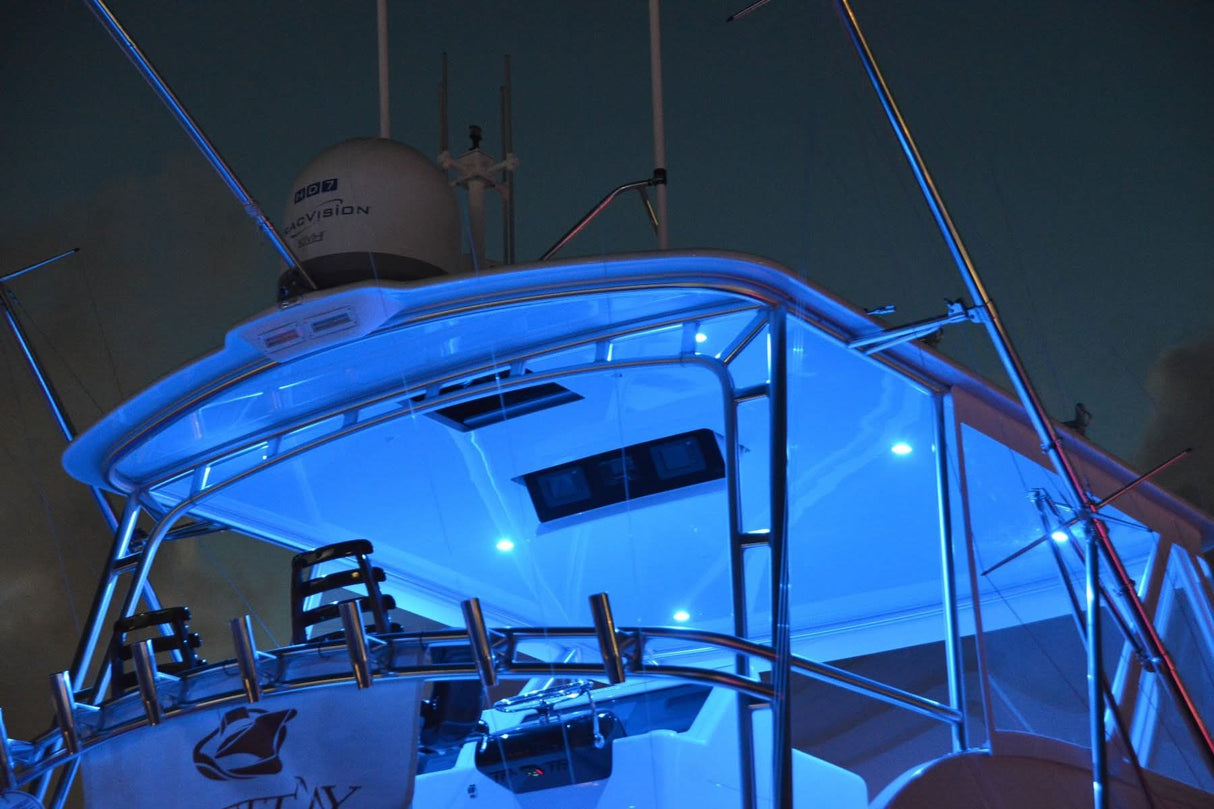

• T-tops and hardtops that need a shallow recessed light

• Courtesy and task lighting on center consoles and sportfish

Specifications

• Voltage input range 10 to 30 V DC

• Current draw 0.315 A at 12 V, 0.175 A at 24 V

• Rated power 4 W typical

• Light output 145 lumens, white

• Correlated color temperature 5000 K

• Color rendering index 70 plus

• Operating temperature minus 31 to 131 °F, minus 35 to 55 °C

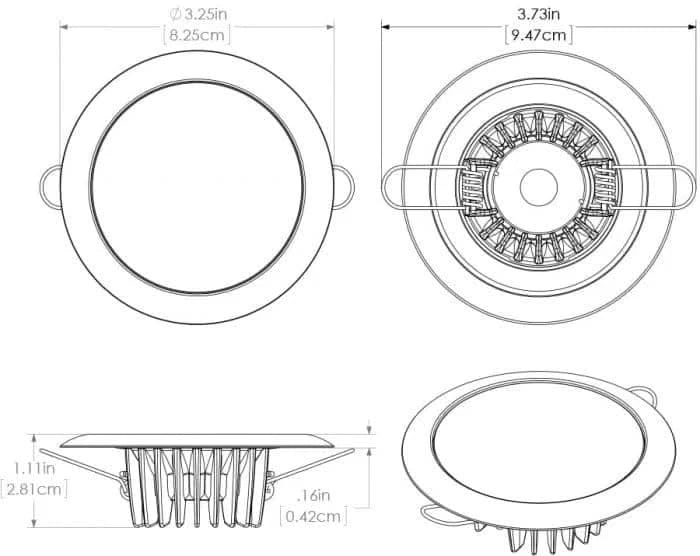

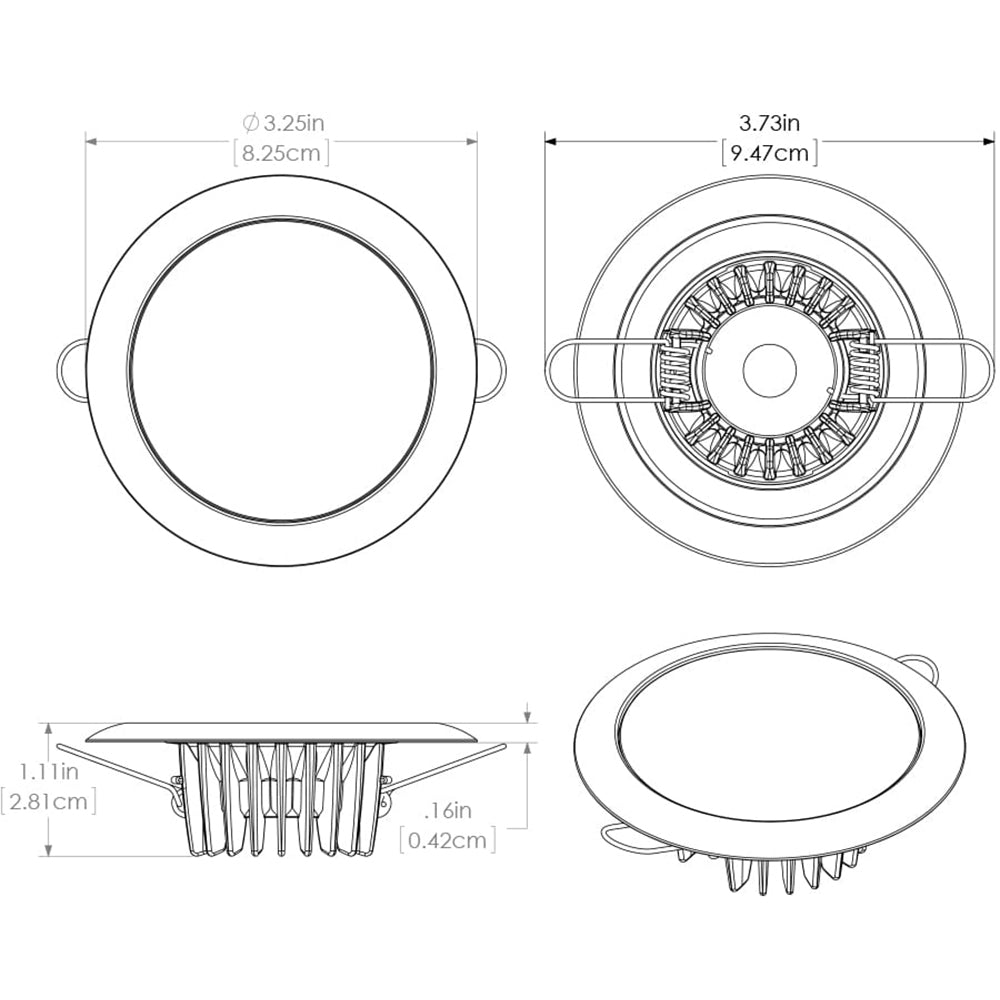

• Face width 3.25 inches, 8.25 cm

• Face height 3.25 inches, 8.25 cm

• Depth 1.11 inches, 2.81 cm

• Housing stainless steel, polished bezel

• LED non-dimming

• UPC 089300103758

• Box size 2 by 3 by 3 inches, weight 0.2 lb

What’s in the box

• Mirage flush mount down light, polished stainless bezel

• Mounting hardware

• Quick start guide

Installation notes

• Verify 10 to 30 V DC supply and fuse the circuit to match total load

• Use tinned marine-grade wire and heat-shrink connectors

• Keep gasket surfaces clean, seat the fixture evenly, and avoid over-tightening

• Non-dimming model, use a standard marine switch or breaker for control

Compliance and safety

• California Proposition 65 warning: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. Learn more at P65Warnings.ca.gov.

• Warranty: Lumitec Limited 5-year warranty

FAQs

Is this the dimmable Mirage model
No. This is the white non-dimming version for simple on and off control.

Will it work on 12 and 24 volt systems
Yes. The driver accepts 10 to 30 volt DC input, so it runs on both.

How bright is 145 lumens on a boat
It is ideal for courtesy and task lighting in cabins and under hardtops. For large spaces, use multiple fixtures and plan spacing to avoid shadows.

Can I retrofit this into a shallow headliner?
Yes. The body depth is 1.11 inches, which fits most tight spaces. Always check your cutout depth before drilling.

What finish is the bezel
Polished stainless steel with a glass finish lens for a clean, modern look.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• LED: Yes
• Voltage - Input Range (Volts): 10-30v
• Dimming: No
• Housing: Stainless
• LED Color: White
• Box Dimensions: 2"H x 3"W x 3"L WT: 0.2 lbs
• UPC: 089300103758

Brochure (pdf)
