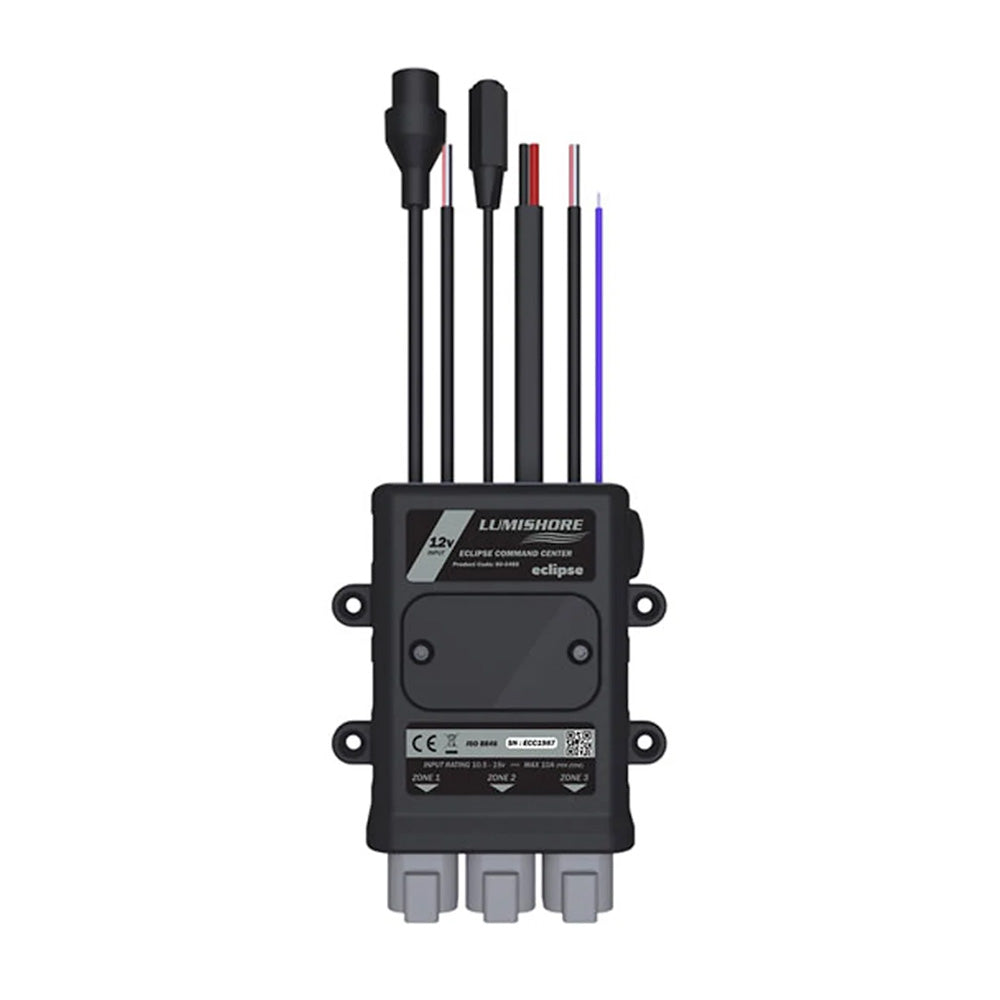

Lumishore ECLIPSE Command Center [010-04486-00]
“All pricing is subject to change without notice due to tariffs, supply chain fluctuations, or manufacturer adjustments. Please call DRSA for the most up-to-date pricing.”
Description
Description
ECLIPSE Command Center
The ECLIPSE Command Center allows seamless integration and control of your ECLIPSE lights via your MFD.
This is the World’s first ultra-compact box to include built-in drivers and zones for multiple types of lights. With 3 built-in configurable lighting zones that can each be set up to control your lights, and expansion modules available to increase that capability to up to 6 zones.
Built-in Wi-Fi allows for direct smart device connectivity. Connect to compatible MFDs via an Ethernet port. Or control your lighting zones via a simple switch.
Lumishore’s intuitive interface makes accessing and managing your lighting zones simple!
Specifications:
- Supply Voltage Range: 12V DC Only (10 - 15V DC)
- Max Current Draw (12/24V DC): 30A (3 Zones of 10A)
- Surge Protection: Yes
- Number of Zones: 3 (add 3 more with expansion modules)
- Max Current Per Zone: 10A
- Max No. Lights Per Zone: 16 (total current draw must be 10A or less)
- Low Voltage Protection: Yes
- Reverse Polarity Protection: Yes
- Ingress Protection: IP67
- Simple Installation: Yes
- Plug-and-Play Setup: Yes
- Dimming: Yes
- Color Selection: Yes
- Sound-to-light: Yes
- Strobe: Yes
Quick Guide (pdf)
