Compact LED Engine Room Light – 10W, IP67 Rated

Professional-Grade Illumination for Critical Marine Spaces

The Scandvik Compact LED Engine Room Light delivers exceptional performance in the most demanding marine environments. Engineered with IP67 waterproof protection and SAE J1171 ignition protection, this 10W fixture provides reliable 727-lumen output while maintaining the safety standards that marine professionals demand.

This compact powerhouse enhances visibility in confined spaces where traditional lighting falls short, providing boat owners and marine technicians with the dependable illumination necessary for safe operations and maintenance in engine rooms, utility compartments, and enclosed areas.

•

  Key Performance Features

  Superior Light Output & Efficiency

  • 727 lumens of crisp, cool white light (5700-6300K) ensures clear visibility for detailed work
  • 10W power consumption with minimal current draw: 0.83A at 12V, 0.42A at 24V
  • 120° wide beam angle provides comprehensive coverage, reducing the need for multiple fixtures

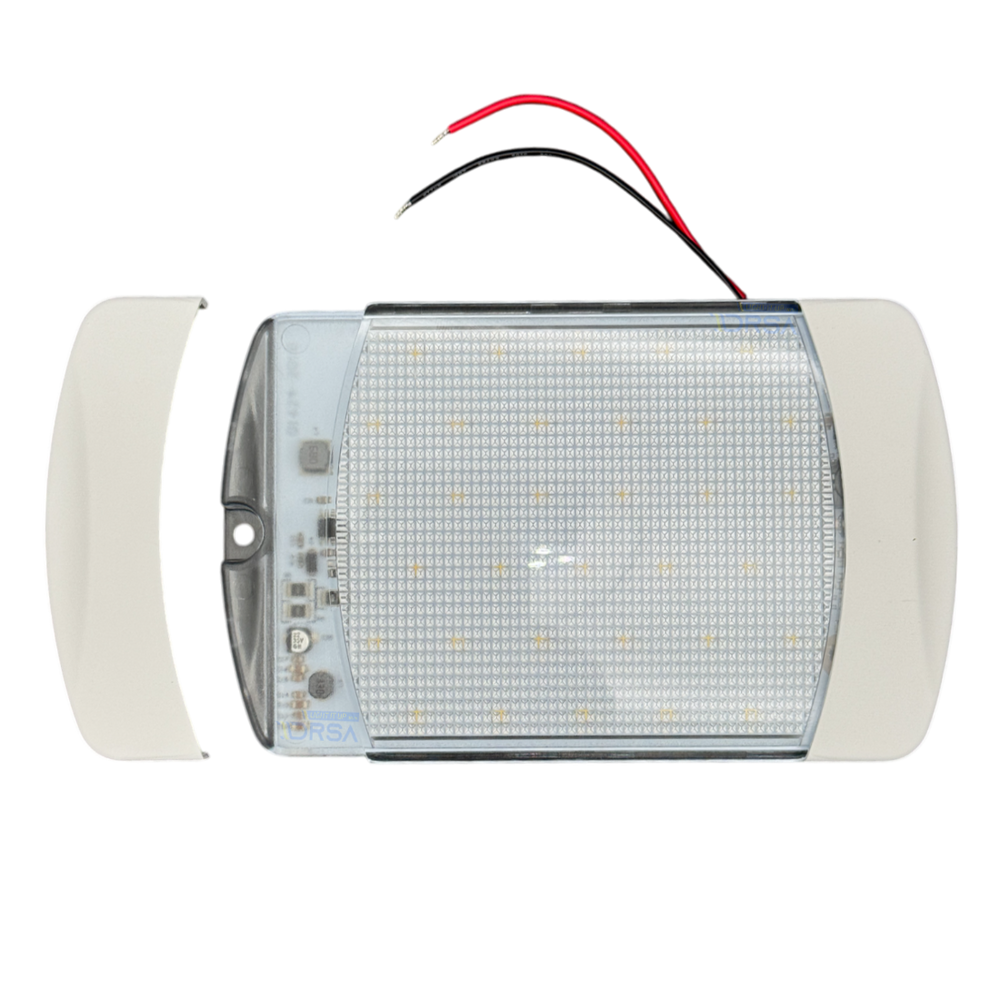

  • 33 high-efficiency 2835 LEDs deliver consistent, long-lasting performance

  Marine-Grade Safety & Protection

  • IP67 rating guarantees complete protection against dust ingress and water immersion
  • SAE J1171 ignition protection prevents spark ignition in vapor-prone environments
  • USCG, ABYC, and NMMA certified for comprehensive marine compliance
  • Vibration and shock resistant construction withstands harsh marine conditions

  Space-Efficient Design

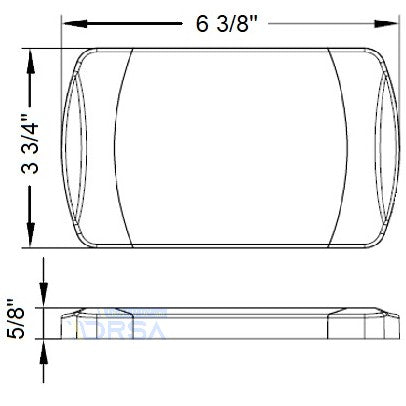

  • Compact dimensions (6-3/8" L × 3-3/4" W × 5/8" H) fit tight overhead and wall installations

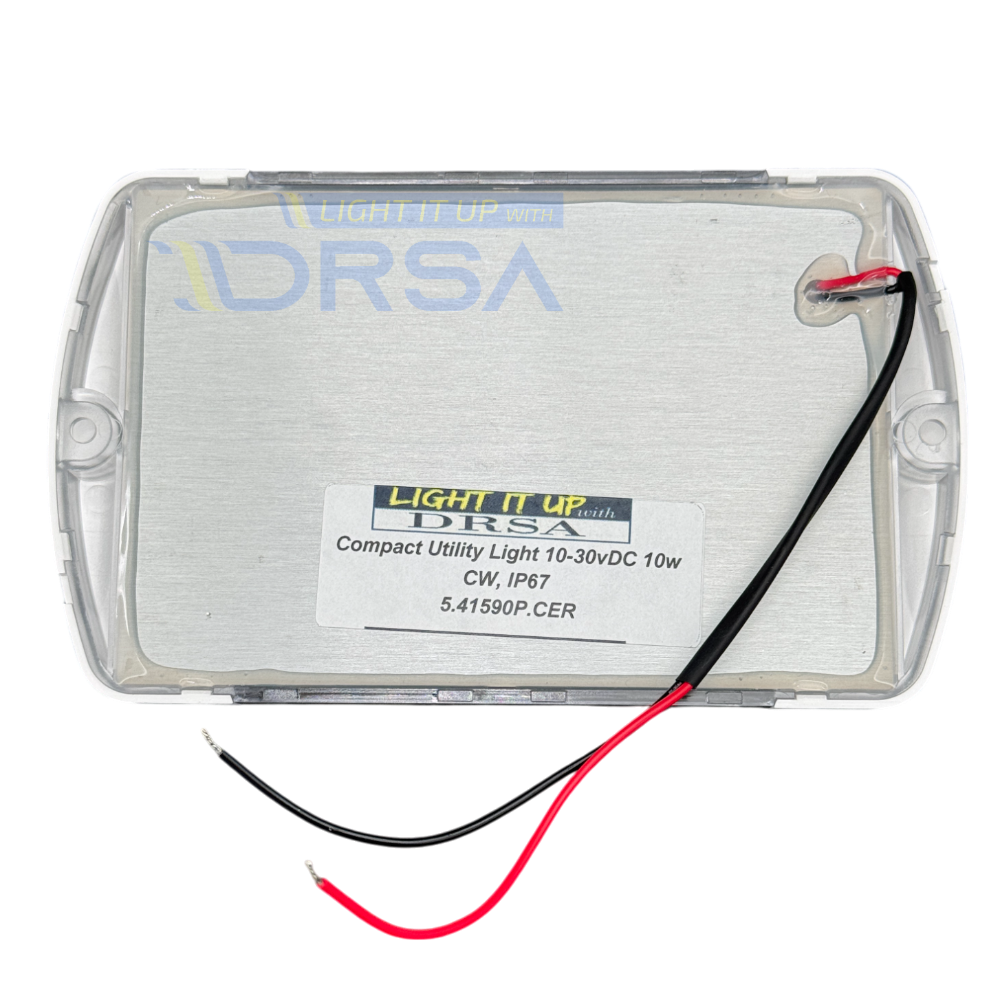

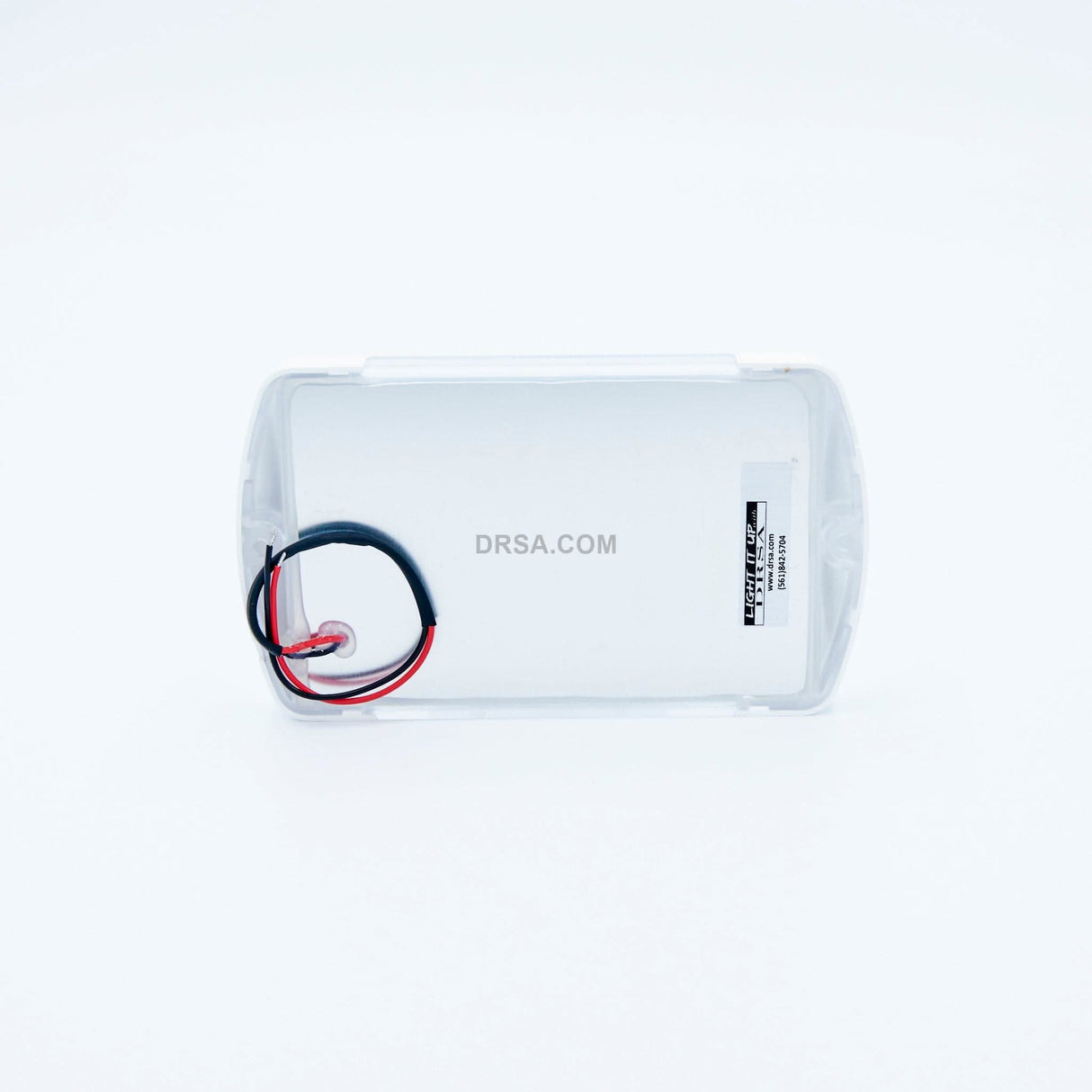

  • Flexible wiring exits from end or bottom to accommodate various mounting configurations
  • Low-profile surface mount design maximizes headroom in confined spaces
  • Polycarbonate lens resists impact damage and UV degradation

  Ideal Marine Applications

  Engine Room Illumination

  Perfect for vessels under 30 feet where space constraints demand efficient, powerful lighting for engine maintenance and inspection tasks.

  Utility and Storage Compartments

  Essential for bilge areas, storage holds, and service compartments requiring waterproof lighting with ignition protection.

  Commercial Workboat Applications

  Trusted by marine professionals for utility spaces where safety certifications and reliable performance are non-negotiable.

  RV and Off-Grid Systems

  Excellent for recreational vehicles and off-grid installations requiring low power consumption and high reliability.

  Technical Specifications

  Specification	Details
  Operating Voltage	10-30V DC
  Power Consumption	10W
  Current Draw	0.83A @ 12V / 0.42A @ 24V
  LED Configuration	33 × 0.5W 2835 LEDs
  Light Output	727 lumens

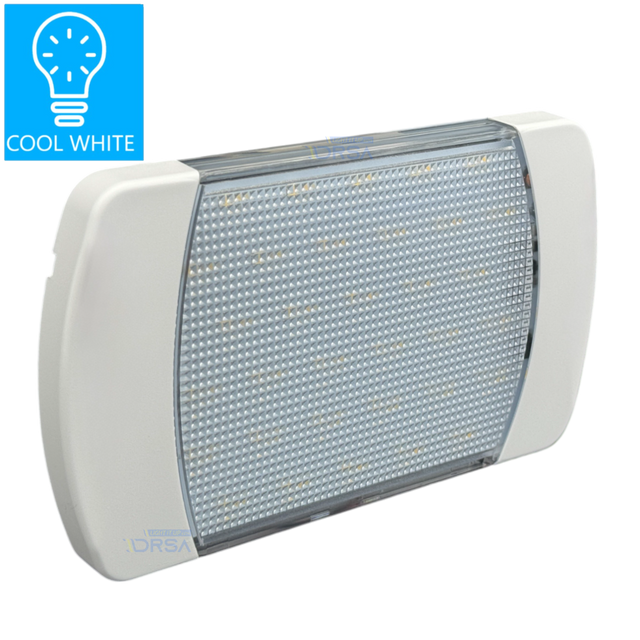

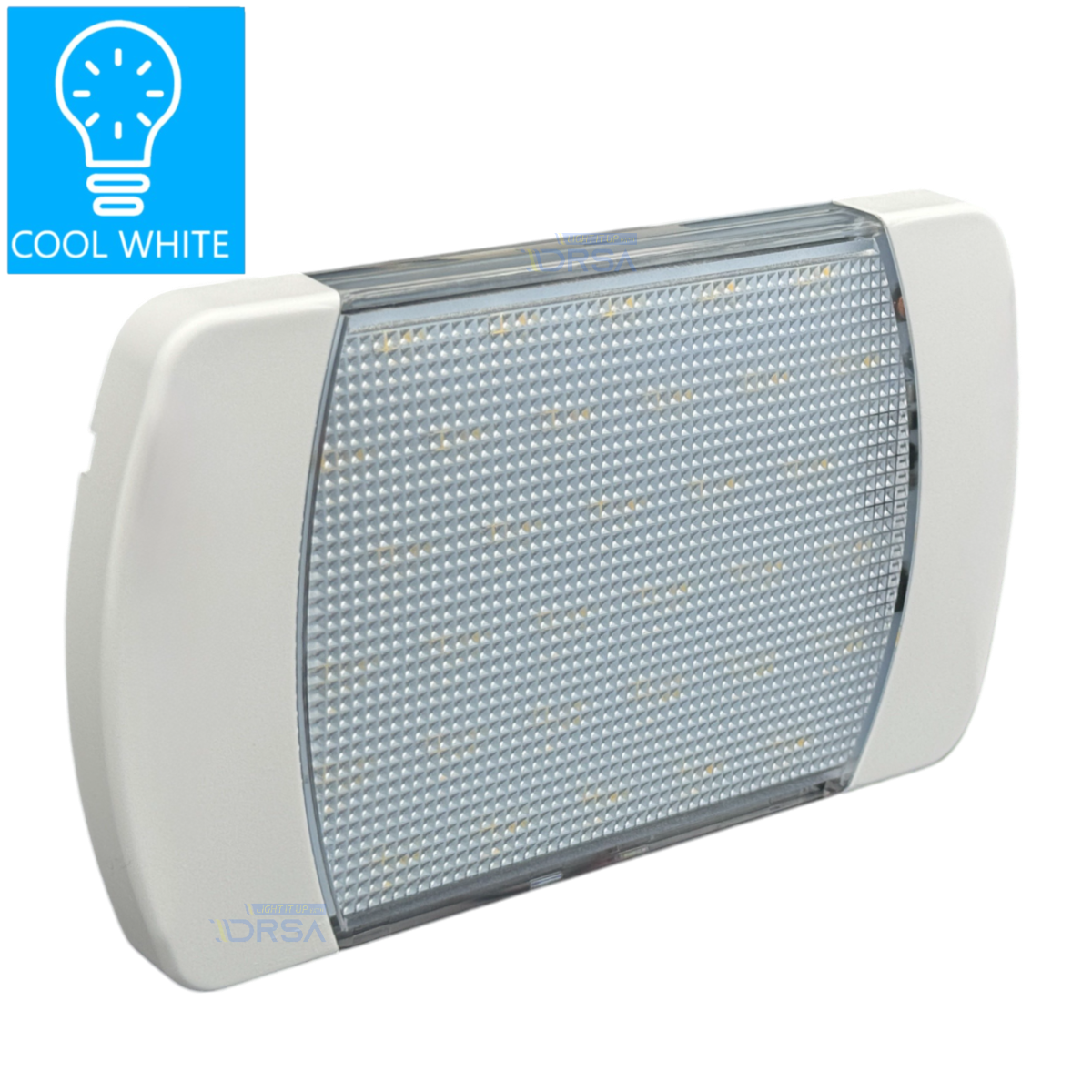

  Color Temperature	5700-6300K (Cool White)
  Beam Angle	120°
  Housing Material	Polycarbonate lens, impact-resistant plastic body
  Protection Rating	IP67 (dustproof and waterproof)
  Safety Certifications	SAE J1171, USCG, ABYC, NMMA
  Dimensions	6-3/8" L × 3-3/4" W × 5/8" H

  Professional Installation & Reliability

  The Scandvik Compact LED features surface-mount installation with included hardware, enabling quick setup in challenging marine environments. Flexible wiring options ensure professional installations even in the most constrained spaces.

  Energy Efficiency: With a power consumption of just 10W, this fixture significantly reduces the electrical system load while delivering superior illumination compared to traditional halogen alternatives.

  Long-Term Value: Marine-grade construction and USCG-approved components ensure reliable operation season after season, reducing maintenance costs and enhancing operational safety.

  Why Marine Professionals Choose Scandvik

  Regulatory Compliance: Meeting USCG, ABYC, and NMMA standards ensures your vessel maintains full compliance with marine safety regulations.

  Proven Durability: IP67 waterproof rating and corrosion-resistant materials deliver dependable performance in the harshest saltwater environments.

  Safety-First Design: SAE J1171 ignition protection provides essential safety in enclosed compartments where fuel vapors may be present.

  Installation Flexibility: Compact design and versatile mounting options enable professional installations in space-constrained marine environments.

  Frequently Asked Questions

  Q: Is this fixture suitable for wet marine environments?
  A: Yes, the IP67 rating provides complete protection against dust and water immersion, making it ideal for engine rooms, bilges, and other wet marine spaces.

  Q: Does this light require ignition protection?
  A: This fixture is SAE J1171 certified for ignition protection, making it suitable for enclosed areas where flammable vapors may accumulate.

  Q: Will this work with my 12V boat electrical system?
  A: Absolutely. The fixture operates efficiently on 10-30V DC systems, including standard 12V and 24V marine configurations.

  Q: How difficult is installation?
  A: The surface-mount design with flexible wiring exists enables straightforward installation with basic tools, typically completed in under 15 minutes.

  Complete Your Marine Lighting System

  Enhance your vessel's safety and functionality with professional-grade illumination. The Scandvik Compact LED Engine Room Light provides the reliability, compliance, and performance that serious boaters demand.

  Explore our complete collection of marine engine room and utility lighting at DRSA.com, or browse our comprehensive selection of marine LED lighting solutions for all your vessel's illumination needs.

  Order your Scandvik Compact LED Engine Room Light today and ensure your critical marine spaces receive the professional-grade illumination they need for safe and efficient operations.
