Ancor Standard Duplex Cable - Flat 16/2 AWG - 2 x 1mm2 Red/Black -Sold by the Foot [1217-FT]
Description
Description

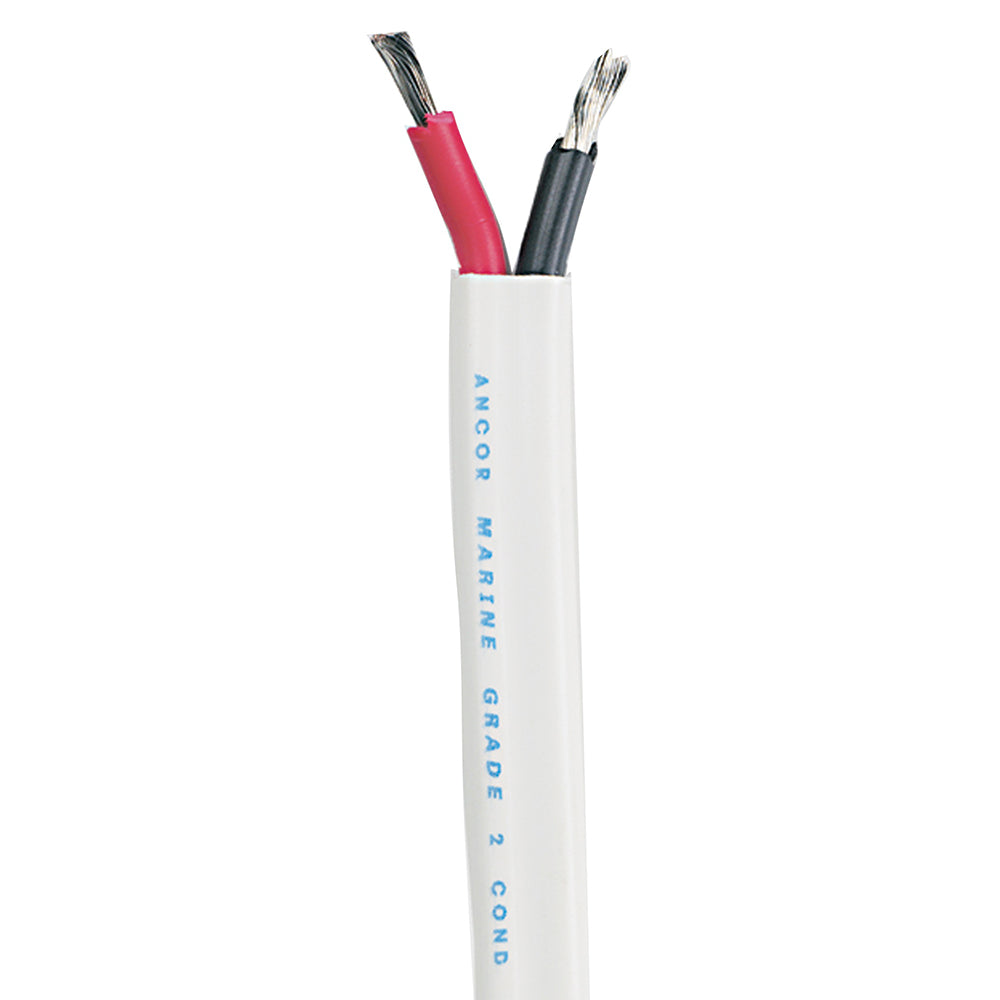

Ancor Standard Duplex Cable - Flat 16/2 AWG - Red/Black - Sold by the Foot [1217-FT]
This marine-grade duplex cable handles power and ground wiring on boats with reliable performance. It's built to exceed UL 1426, ABYC, and US Coast Guard standards, so it resists corrosion, vibration, and harsh elements like saltwater or UV rays. You'll get flexible tinned copper strands that stay tough in extreme cold, making it a solid choice for safe, long-lasting electrical setups. Sold by the foot, order exactly what you need without waste.
Key Features
- Flat 16/2 AWG design with 2 x 1mm² conductors for easy routing in tight boat spaces
- Premium vinyl insulation rated at 600V, 105°C dry and 75°C wet for dependable use
- Stays flexible down to -40°F/C to prevent cracking in cold weather
- Resists saltwater, battery acid, oil, gasoline, heat, abrasion, and UV radiation
- Ultra-flexible Type 3 tinned copper stranding fights corrosion and electrolysis
- Red/black color coding simplifies positive/negative identification during installs
- Exceeds UL 1426, ABYC, and USCG Charter boat standards for safety
- Reduces fatigue from vibration and flexing on moving vessels
- Sold by the foot for custom lengths without extra cost
Perfect For
- Wiring marine lights, pumps, or accessories on boats under 40 feet
- Power and ground runs in saltwater environments like fishing vessels
- Electrical upgrades on sailboats or powerboats needing corrosion resistance
- Trailer wiring or RV systems exposed to weather and road vibration
- Custom installs where you need exact lengths for clean, efficient setups
Technical Specifications
| Feature | Specification |
|---|---|
| Model Number | 1217-FT |
| Gauge | 16/2 AWG (2 x 1mm²) |
| Color | Red/Black |
| Length | Sold by the Foot |
| Voltage Rating | 600V |
| Temperature Rating | 105°C Dry / 75°C Wet / Flexible to -40°F/C |
| Conductor Material | Tinned Copper (Type 3 Stranding) |
| Insulation | Premium Vinyl |
| Certifications | Exceeds UL 1426, ABYC, USCG (CFR Title 46) |
| Box Dimensions | 1"H x 1"W x 12"L |
| Weight | 0.2 lbs (Per Foot Approx.) |
What’s in the Box
- Custom length of Ancor standard duplex cable (sold by the foot)
Frequently Asked Questions
- Is this cable waterproof? It resists water and saltwater corrosion, but isn't fully submersible. Use it for protected marine wiring.
- Can I install it myself? Yes, it's straightforward with basic tools like strippers and crimpers, follow ABYC guidelines for secure connections.
- Is it compatible with 12V systems? Yes, it works great for 12V DC boat electrics, handling power draws without voltage drop.
- Does it handle heat and cold? Yes, it's rated for extreme temperatures and stays flexible in cold weather without becoming brittle.
- Is it safe for engine compartments? Yes, it resists oil, gasoline, and heat, meeting USCG standards for charter boats.
Why Choose Ancor Standard Duplex Cable - Flat 16/2 AWG? This cable offers proven durability that outlasts standard wire in marine settings. Boaters trust it for its tinned copper that cuts corrosion risks and keeps systems running smoothly. It delivers real value by meeting strict safety standards while making installs easier.
Upgrade your system with marine-grade reliability order today at DRSA.com.
