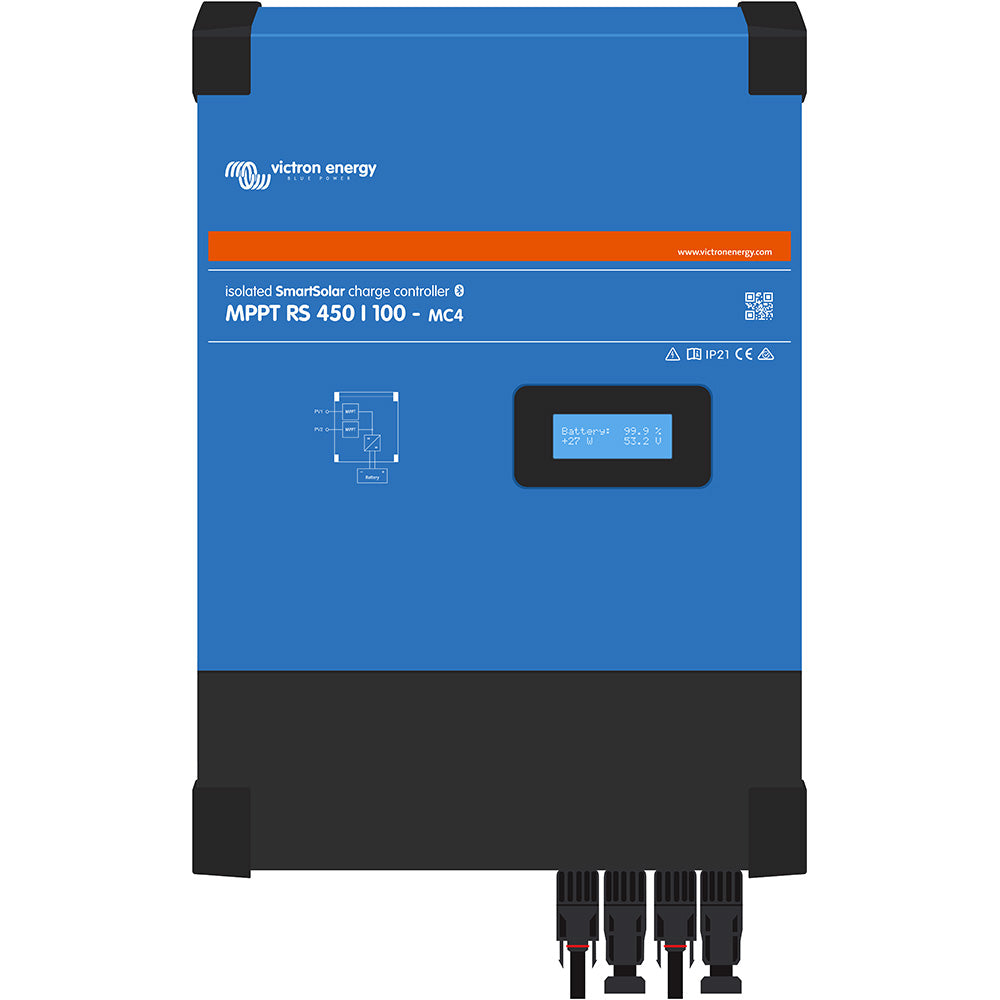

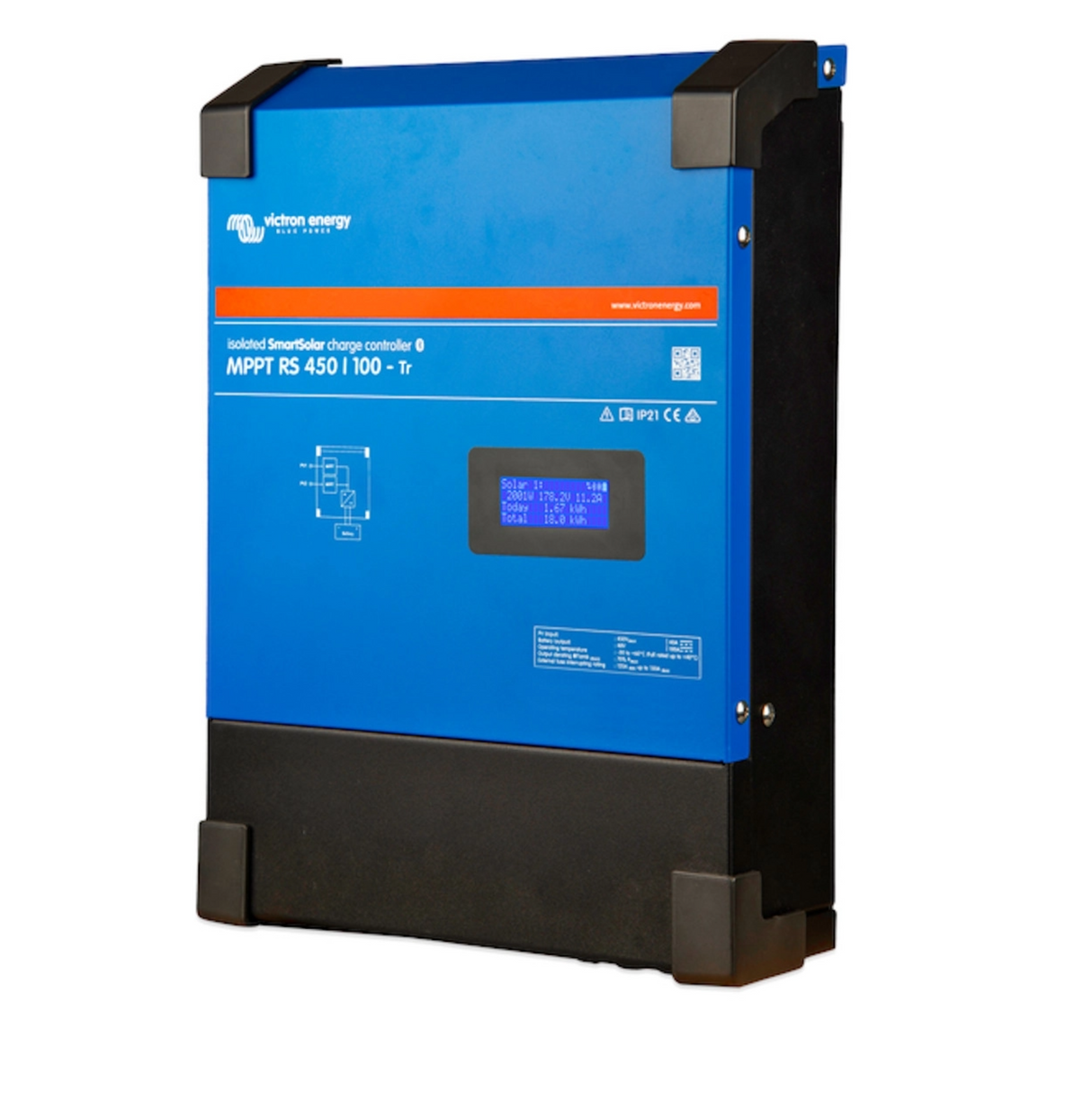

Victron SmartSolar MPPT 450/100-MC4 VE.Can VE.Direct 450/100 [SCC145110510]

Victron SmartSolar MPPT 450/100-MC4 VE.Can VE.Direct Solar Charge Controller - 5.76kW, 48V [SCC145110510]

Maximize your solar energy harvest with the Victron SmartSolar MPPT 450/100-MC4 VE.Can VE.Direct Solar Charge Controller [SCC145110510], a professional-grade solution for large-scale 48V battery systems in marine, RV, and off-grid applications. Delivering 5.76kW (100A) of charging power, this ultra-fast MPPT controller connects to PV arrays with a wide 80-450V DC input, ensuring optimal performance even in changing light conditions. With Bluetooth monitoring, VE.Can daisy-chaining, and IP43-rated durability, it’s perfect for powering marine electronics like Boss Audio MCK500WB.6 or RV appliances via inverters like Victron Phoenix 12/1200.

Featuring isolated PV connections, a digital display, and fully programmable charge settings, the SmartSolar MPPT 450/100-MC4 supports lead-acid, lithium, and other battery chemistries. Its lightweight 7.9kg design, active cooling, and covered MC4 terminals enhance safety and aesthetics, aligning with Victron’s modern product suite. Whether you’re building an off-grid cabin or outfitting a yacht, this controller delivers reliable, efficient charging with advanced connectivity.

Key Features

• 5.76kW Charging Power: Delivers 100A to 48V battery banks, ideal for large solar systems.

• Ultra-Fast MPPT: Maximizes energy harvest with rapid tracking, even under shading or variable light conditions.

• Wide PV Input Range: Supports 80-450V DC (120V startup), accommodating large series-connected PV arrays up to 7200Wp per tracker.

• Bluetooth & VictronConnect: Monitor and configure via smartphone for real-time battery and PV data, including voltage, current, and trends.

• VE.Can Daisy-Chaining: Connect up to 25 units with RJ45 cables for synchronized charging and GX device integration (e.g., Cerbo GX).

• Remote Monitoring: Victron Remote Management Portal (VRM) offers free, anytime access via internet-connected GX devices; GlobalLink 520 for offline setups.

• Digital Display: Shows battery volts, charge current, PV voltages, and error codes for at-a-glance monitoring.

• Isolated PV Connections: Enhances safety with full galvanic isolation, reducing electrical risks.

• Programmable Settings: Customizable charge profiles for lead-acid, lithium, and more, with remote temperature and voltage sensing.

• IP43 Durability: Metal case and covered MC4 connectors ensure safety and reliability in marine and RV environments.

• Active Cooling: Quiet, temperature-controlled fans maintain performance in high temperatures.

• I/O Flexibility: Includes programmable relay and compatibility with Victron smallBMS for advanced system integration.

Applications

• Marine Solar Systems: Charges 48V batteries for marine electronics, navigation systems, or lighting like Lumitec Mirage on yachts.

• RV Off-Grid Power: Powers RV appliances via inverters like Samlex NTX-3000S-12, maximizing solar energy for camping.

• Off-Grid Cabins: Supports large solar arrays for cabins or tiny homes, ensuring reliable battery charging.

• Grid-Connected Backup: Enhances energy storage systems (ESS) with high-efficiency charging and remote monitoring.

Technical Specifications

• Battery Voltage: 48V DC

• Max Charge Current: 100A (5.76kW)

• PV Input Voltage: 80-450V DC (120V startup)

• Max PV Power: 7200Wp per tracker (4000W per tracker, 5760W total)

• Max PV Input Current: 16A per tracker

• Max PV Short Circuit Current: 20A per tracker

• Efficiency: 98%

• Standby Power: Low, optimized for efficiency

• Connectors: MC4 for PV input, M8 stud for battery, auxiliary terminal for rapid shutdown

• Connectivity: VE.Can, VE.Direct, Bluetooth

• Display: Built-in, shows battery and PV parameters

• Protection: IP43-rated, PV isolation resistance monitoring, over-temperature, short circuit

• Weight: 7.9 kg (17.4 lbs)

• Dimensions: Not specified in source; compact for large systems

• Certifications: EN-IEC 62109-1, UL 1741, CSA C22.2

• Warranty: 5-year limited, extendable to 10 years for 10% additional cost

• Box Dimensions: Not specified in source

• UPC: Not provided in source

Warning: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

What’s in the Box?

• Victron SmartSolar MPPT 450/100-MC4 VE.Can VE.Direct Solar Charge Controller [SCC145110510]

• Mounting hardware

• Owner’s manual

*Sold as an individual unit. Contact your dealer for returns, repairs, or support issues.

Why Choose the Victron SmartSolar MPPT 450/100-MC4?

The Victron SmartSolar MPPT 450/100-MC4 is a cutting-edge choice for large-scale 48V solar systems, offering 5.76kW of charging power and 98% efficiency for marine, RV, and off-grid applications. Its ultra-fast MPPT technology maximizes energy harvest, even in low-light conditions, with users on CurrentConnected.com rating similar models 5/5 stars for speed and quiet operation (Web:16). The wide 80-450V PV input supports large solar arrays, reducing wiring complexity and costs, as noted on SunergySolar.com.au (Web:1).

Bluetooth monitoring via VictronConnect and VE.Can daisy-chaining enable seamless integration and scalability, with Web:12 highlighting synchronized charging for up to 25 units. The IP43-rated metal case and isolated MC4 connectors ensure safety and durability, with BOEMarine.com reviews praising its performance in marine environments (Web:22). Minor drawbacks include the cost of optional Bluetooth dongles and lack of VE.Smart Network compatibility (Web:4). Backed by a 5-year warranty (extendable to 10 years), this controller is a reliable investment for advanced solar setups.

Price: As of January 2025, prices range from R17,594.79 (~$970 USD) to R18,694.91 (~$1,030 USD), per Shop-Solar.co.za (Web:8). Check DRSA.com or authorized dealers like Wholesale Marine for current pricing.

Frequently Asked Questions

Is the Victron SmartSolar MPPT 450/100-MC4 suitable for marine use?

Yes, its IP43-rated enclosure and isolated PV connections ensure safety in marine environments, though it should be installed in a dry location. Pair with ASEA 3.6 kVA Isolation Transformer for shore power integration.

What batteries are compatible with this controller?

It supports lead-acid, AGM, gel, and lithium batteries, with fully programmable charge settings via VictronConnect (Web:9).

Does it include Bluetooth?

Yes, built-in Bluetooth allows monitoring and configuration via the VictronConnect app. VE.Can and VE.Direct ports support GX device integration (Web:3).

How many solar panels can it handle?

Supports up to 7200Wp per tracker (4000W per tracker, 5760W total) with a 450V max Voc, ideal for large series-connected arrays (Web:8).

What is the warranty?

Victron offers a 5-year limited warranty, extendable to 10 years for an additional 10% cost, per BlueMarine.com (Web:2).

Shop the Victron SmartSolar MPPT 450/100-MC4 Today

Optimize your solar system with the Victron SmartSolar MPPT 450/100-MC4 [SCC145110510]. With 5.76kW power, Bluetooth monitoring, and marine-grade durability, it’s perfect for boats, RVs, and off-grid cabins. Order now at DRSA.com and harness reliable solar energy. Need help with setup or compatibility? Contact our team for expert support!
