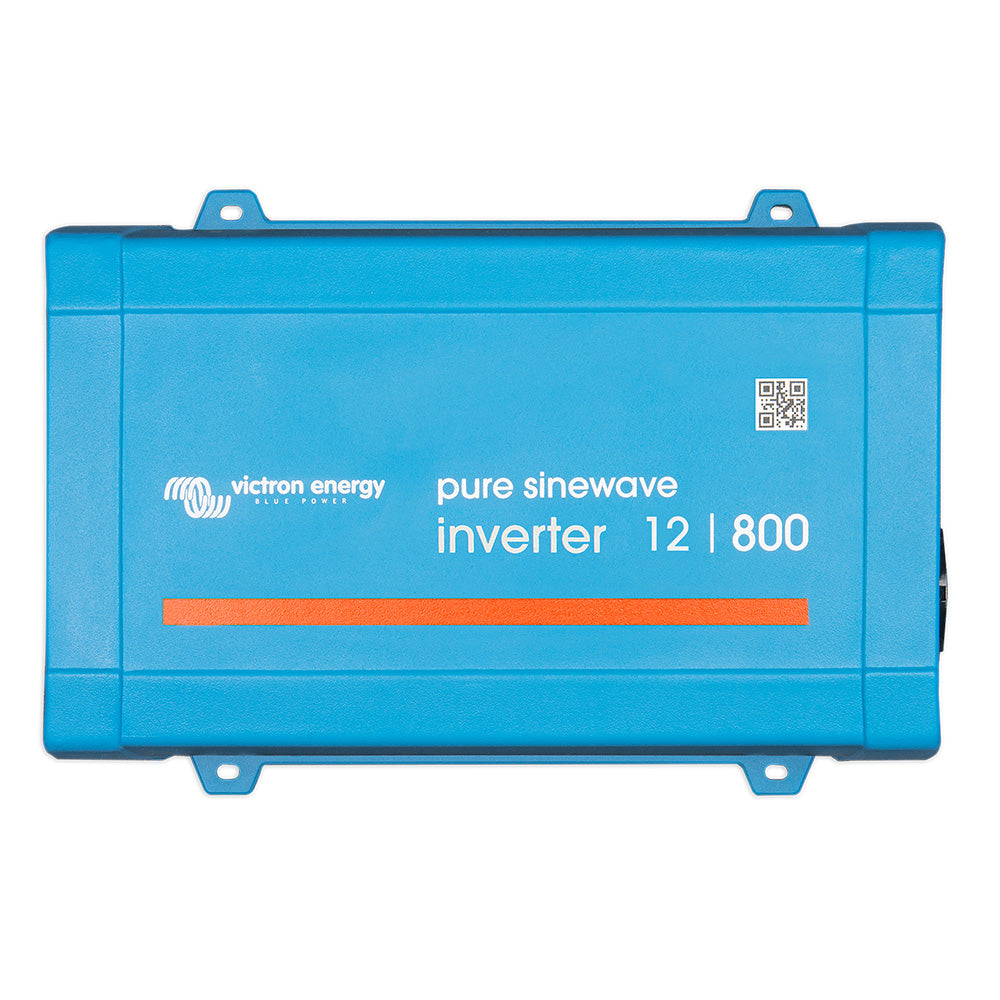

Victron Phoenix Inverter 12/800 - 120V - VE.Direct GFCI Duplex Outlet - 650W [PIN121800510]

Victron Phoenix Inverter 12/800 – 120V – VE.Direct GFCI Duplex Outlet [PIN121800510]

Compact, Efficient Pure Sine Wave Inverter for Marine, RV & Off-Grid Power Systems

The Victron Phoenix 12/800 Inverter delivers 650W of clean, reliable 120V AC power from a 12V DC battery bank—ideal for sensitive electronics, marine stereos, navigation systems, and off-grid equipment. This compact inverter features a GFCI duplex outlet, VE.Direct monitoring, and UL 458 certification, making it perfect for marine and RV applications.

With 90% peak efficiency, ECO mode for low idle power, and a 1500W surge capacity, this inverter handles a range of onboard AC loads—from LED lighting to small power tools. Its rugged IP21-rated housing and built-in safety protections make it a reliable choice for demanding mobile environments.

---

Why You'll Love It

• Pure Sine Wave Power (650W) – Safe for laptops, audio systems, navigation gear, and more

• 1500W Peak Power – Supports high-surge loads like pumps, lights, and tools

• GFCI Duplex Outlet – Protects against ground faults in marine/RV environments

• VE.Direct Port – Connects to PC (via USB) or mobile device (via Bluetooth dongle) for monitoring

• ECO Mode – Reduces idle consumption to just 1W

• Fully Programmable – Customize alarm thresholds, shutdown points, and ECO settings via software

• UL 458 & FCC Certified – Compliant with safety and interference standards for mobile use

• Compact & Lightweight – Only 12.8" long and 12 lbs for easy installation in tight spaces

---

Perfect For

• Boats and yachts (navigation systems, lighting, AV)

• RVs and campers (TVs, chargers, coffee makers)

• Off-grid solar systems or backup AC power

• Sensitive electronics needing clean, stable output

---

Technical Specifications

What’s in the Box

• Victron Phoenix 12/800 Inverter with GFCI Outlet

• Mounting Hardware

• User Manual
  Optional Bluetooth dongle and remote switch sold separately.

---

Why Choose the Victron Phoenix 12/800?

✅ Delivers clean sine wave output for delicate electronics
✅ Ultra-low standby power with ECO mode
✅ Compact and lightweight for tight spaces
✅ Fully programmable via VE.Direct port
✅ Trusted Victron Energy build quality and certifications

Whether you're powering a Boss Audio MGV520B, running lights, or keeping your laptop charged, the Phoenix 12/800 offers professional-grade performance with dependable battery management and marine-safe GFCI protection.

---

Frequently Asked Questions

Is it suitable for boats?
Yes. It's perfect for dry locations onboard. The GFCI outlet enhances safety for marine use.

Can it power a stereo or TV?
Absolutely. 650W continuous (with 1500W peak) supports most marine stereos, lights, laptops, and small appliances.

Does it include Bluetooth?
No, but it supports Bluetooth monitoring via an optional VE.Direct Bluetooth Smart dongle.

Is it remote-controllable?
Yes, it supports a two-pole remote switch (sold separately).

Can I customize settings?
Yes, connect via VE.Direct and VictronConnect app to adjust low-voltage cutoffs, ECO mode, and more.

---

Shop the Victron Phoenix 12/800 Inverter Today

Power your marine or off-grid setup with the Victron Phoenix 12/800 Inverter. With pure sine wave output, smart energy-saving features, and a GFCI outlet for safety, this inverter is built for real-world reliability. Order now and enjoy stable 120V power from any 12V battery bank. Need help with installation or setup? Contact our team for support.

The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption.

Inverter Specifications:

• Cont. Power at 25 degrees C: (1) 800VA
• Cont. Power at 25 degrees C / 40 degrees C: 650 / 560W
• Peak Power: 1500W
• Output AC Voltage / Frequency (adjustable): 230VAC or 120VAC +/- 3% 50Hz or 60Hz +/- 0,1%
• Input Voltage Range: 9,2 - 17 / 18,4 - 34,0 / 36,8 - 62,0V
• DC Low Shut Down (adjustable): 9,3 / 18,6 / 37,2V
• Dynamic (load dependent) DC Low Shut Down (fully configurable): Dynamic cut-off, see https://www.victronenergy.com/live/ve.direct:phoenix-inverters-dynamic-cutoff
• DC Low Restart & Alarm (adjustable): 10,9 / 21,8 / 43,6V
• Battery Charged Detect (adjustable): 14,0 / 28,0 / 56,0V
• Max. Efficiency: 90 / 90 / 91%
• Zero-Load Power: 6,5 / 7 / 9,5W
• Default Zero-Load Power in ECO Mode (default retry interval: 1 / 1,5 / 3,0W
• ECO Mode Stop & Start Power Setting: Adjustable
• Protection (2): a - f
• Operating Temperature Range -40 to +65 degrees C (fan-assisted cooling)

Enclosure Specifications:

• Material & Color: Steel chassis and plastic cover (blue Ral 5012)
• Battery-Connection: Screw terminals
• Maximum Cable Cross-Section: 25 / 10 / 10mm² /  AWG4 / 8 / 8
• Standard AC Outlets: 230V: Schuko (CEE 7/4), IEC-320 (male plug included); UK (BS 1363), AU/NZ (AS/NZS 3112); 120V: Nema 5-15R, GFCI
• Protection Category: IP 21
• Weight: 5,5kg / 12lbs
• Dimensions (H x W x D, mm): 105 x 230 x 325

Accessories:

• Remote On-off: Yes
• Automatic Transfer Switch: Filax

Standards:

• Safety: EN-IEC 60335-1 / EN-IEC 62109-1 / UL 458 (3)
• EMC: EN 55014-1 / EN 55014-2 / IEC 61000-6-1 / IEC 61000-6-2 / IEC 61000-6-3
• Automotive Directive ECE R10-4: 1) Nonlinear load, crest factor 3:1; 2) Protection key: a) output short circuit b) overload c) battery voltage too high d) battery voltage too low e) temperature too high f) DC ripple too high

Please contact your dealer for any returns, repairs or support issues related to this product.

Specifications:

• GFCI: Yes
• Box Dimensions: 8"H x 12"W x 15"L WT: 15 lbs
• UPC: 8719076049432

Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)
