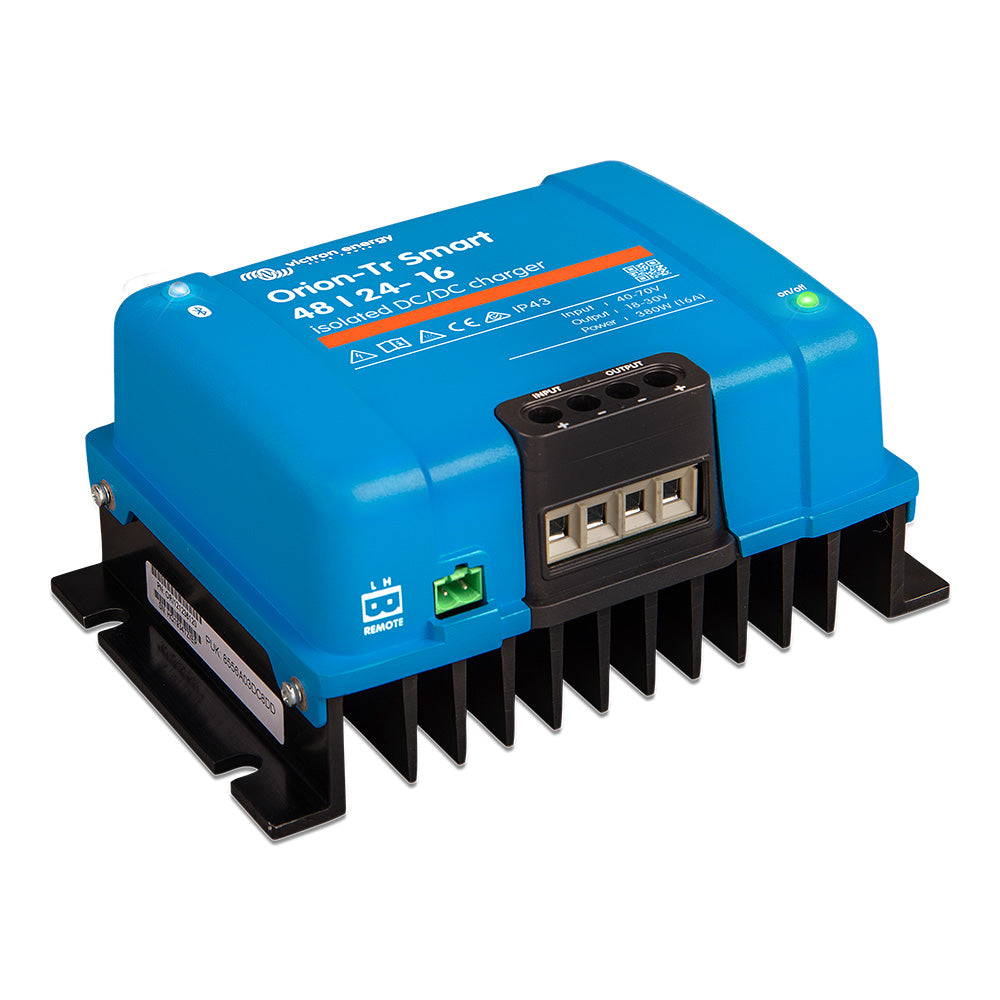

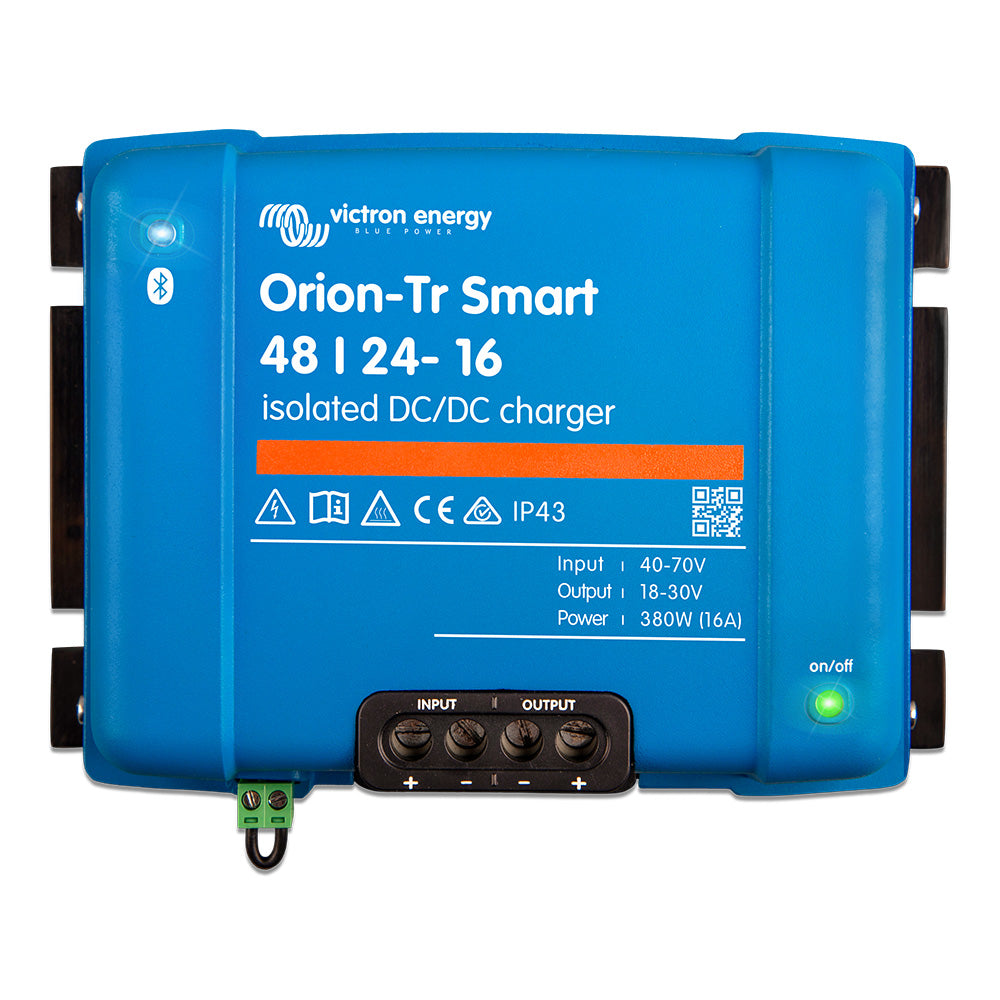

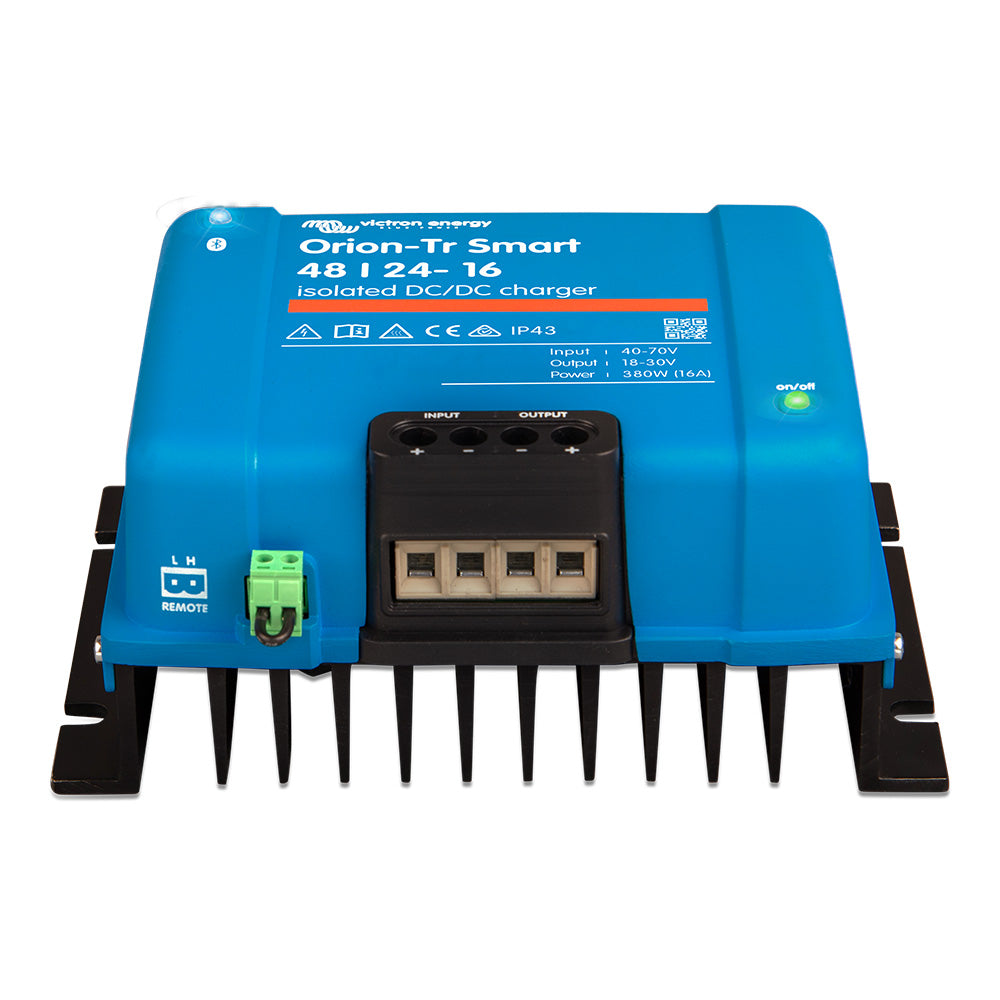

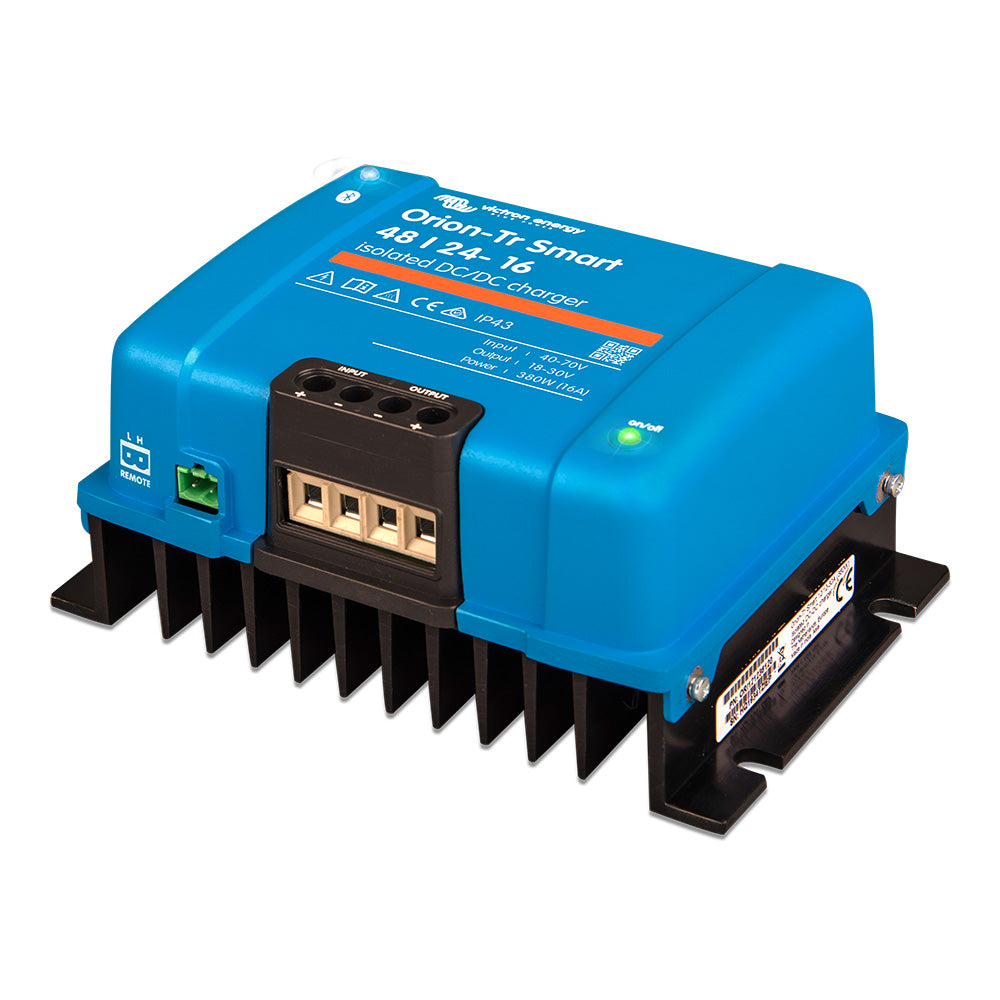

Victron Orion-Tr Smart 48/24-16A (380W) Isolated DC-DC Charger
Reliable 48V to 24V Power Conversion with Bluetooth Smart Control
The Victron Orion-Tr Smart 48/24-16A (380W) is a fully isolated DC-DC charger designed to deliver safe, efficient power conversion from 48V to 24V systems. Whether you’re managing dual battery setups in vehicles, boats, or off-grid applications, this advanced charger provides adaptive 3-stage charging and wireless programmability via Bluetooth using the VictronConnect app.
Why Choose the Orion-Tr Smart 48/24-16A?
-
Built-in Bluetooth for real-time monitoring and updates
-
Adaptive 3-stage charging for lead acid and lithium batteries
-
Fully programmable with custom charge profiles or fixed voltage
-
Engine running detection for smart alternator compatibility
-
Parallel-ready to scale your system with multiple units
Key Features
Smart Charging Performance
-
Bulk, absorption, and float modes intelligently adjust to battery needs
-
Prevents overcharging during shallow discharges and boosts performance after deep discharges
-
Supports lithium and lead-acid chemistries
Bluetooth Monitoring & Control
-
Connect to the VictronConnect app to view performance data and system alerts
-
Configure settings and firmware updates wirelessly
Engine Detection & Remote Control
-
Auto shutoff when the engine isn’t running to protect starter battery
-
Accepts input from remote on/off switches or relays for system automation
Flexible & Scalable
-
Use in 12V or 24V service battery systems with 48V input
-
Paralleling supported with unlimited units for higher current demands
Rugged, Marine-Ready Construction
-
IP43 rated (when installed with terminals facing down)
-
Full-rated output up to 40°C, with protection against high ambient temps
-
Short circuit proof with screw terminals for easy install
Technical Specifications
| Feature | Specification |
|---|---|
| Input Voltage | 40–70 V DC |
| Output Voltage | 24 V DC (adjustable) |
| Output Current | 16 A |
| Nominal Power | 380 W |
| Charging Algorithm | Adaptive 3-stage or fixed output |
| Bluetooth | Built-in (VictronConnect compatible) |
| Operating Temp Range | -20°C to +55°C |
| Protection Rating | IP43 (vertical installation) |
| Parallel Units Supported | Unlimited |
| Battery Compatibility | Lead acid & lithium |
| Remote On/Off | Yes (2-pole connector or switch logic) |
Perfect For
-
Boats and RVs with smart alternators
-
Commercial and industrial vehicles
-
Off-grid power systems using 48V batteries
Why Choose the Victron Orion-Tr Smart Charger?
✅ Programmable for any battery chemistry
✅ Bluetooth control and diagnostics
✅ Rugged and safe for marine and mobile use
Power Smarter. Charge Confidently.
Upgrade your DC power system with the Victron Orion-Tr Smart 48/24-16A and get safe, efficient power conversion backed by the reliability of Victron Energy.
