ML-5 LED Marine Recessed Downlight
Description
Description

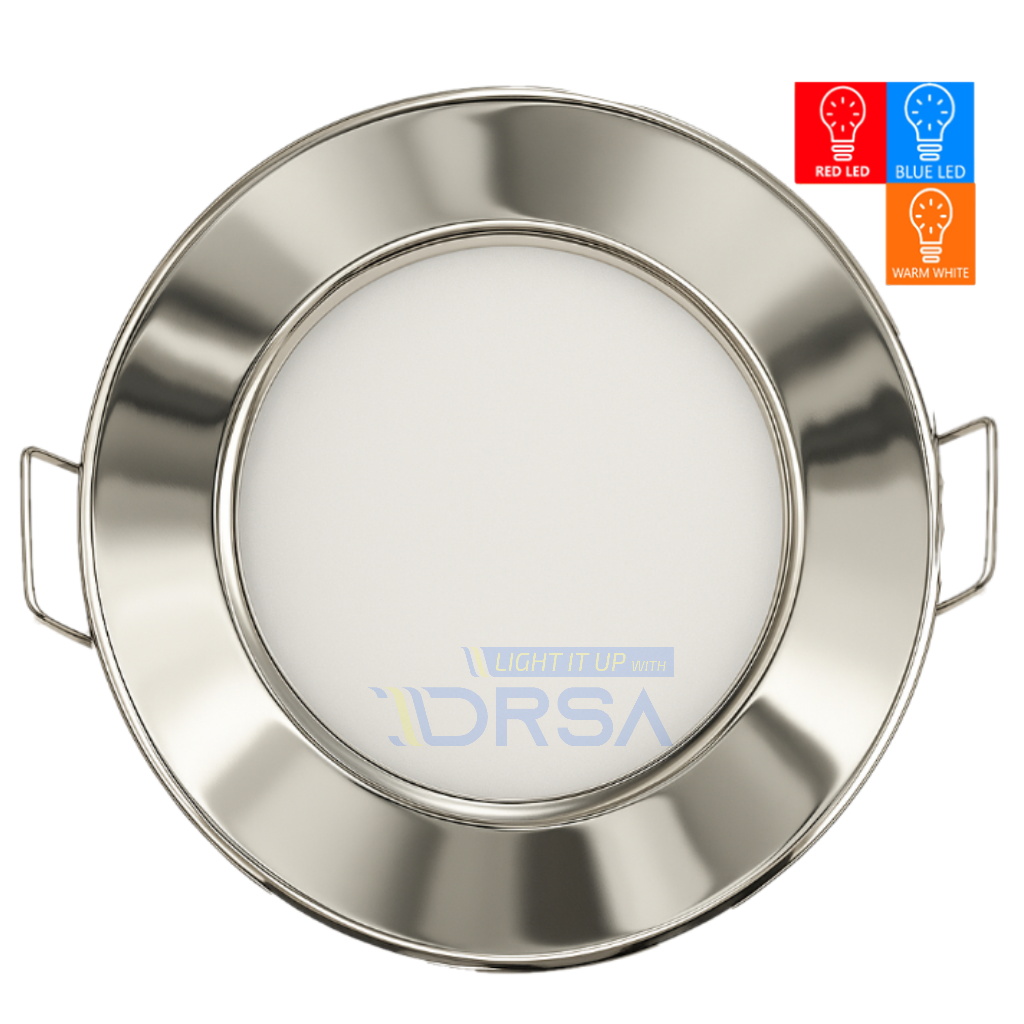

ML-5 LED Marine Recessed Downlight
Compact. Efficient. Built for the Sea.
The ML-5 LED Marine Recessed Downlight offers a powerful combination of marine-grade durability and energy-efficient illumination. Engineered for both interior and exterior marine applications, this sleek, compact fixture is perfect for tight spaces and retrofit installations.
With a 5-inch diameter and a discreet 1-inch height, the ML-5 downlight installs easily and blends seamlessly into ceilings, bulkheads, or under hardtops. Available in polished stainless steel or RAL 9010 powder-coated white, it complements a wide range of yacht interiors and exteriors.
Like all ML-Series lights, the ML-5 is backed by a 2-year manufacturer warranty, ensuring reliability you can trust at sea.
Key Specifications:
- Voltage: 12-24V DC system (10-30V range)
- Wattage: SW
- LED Type: SMD LEDs
- Luminous Flux: 300 lumens
- Beam Angle: 120°
- Color Rendering Index (CRI): 90, SDCM<3.0

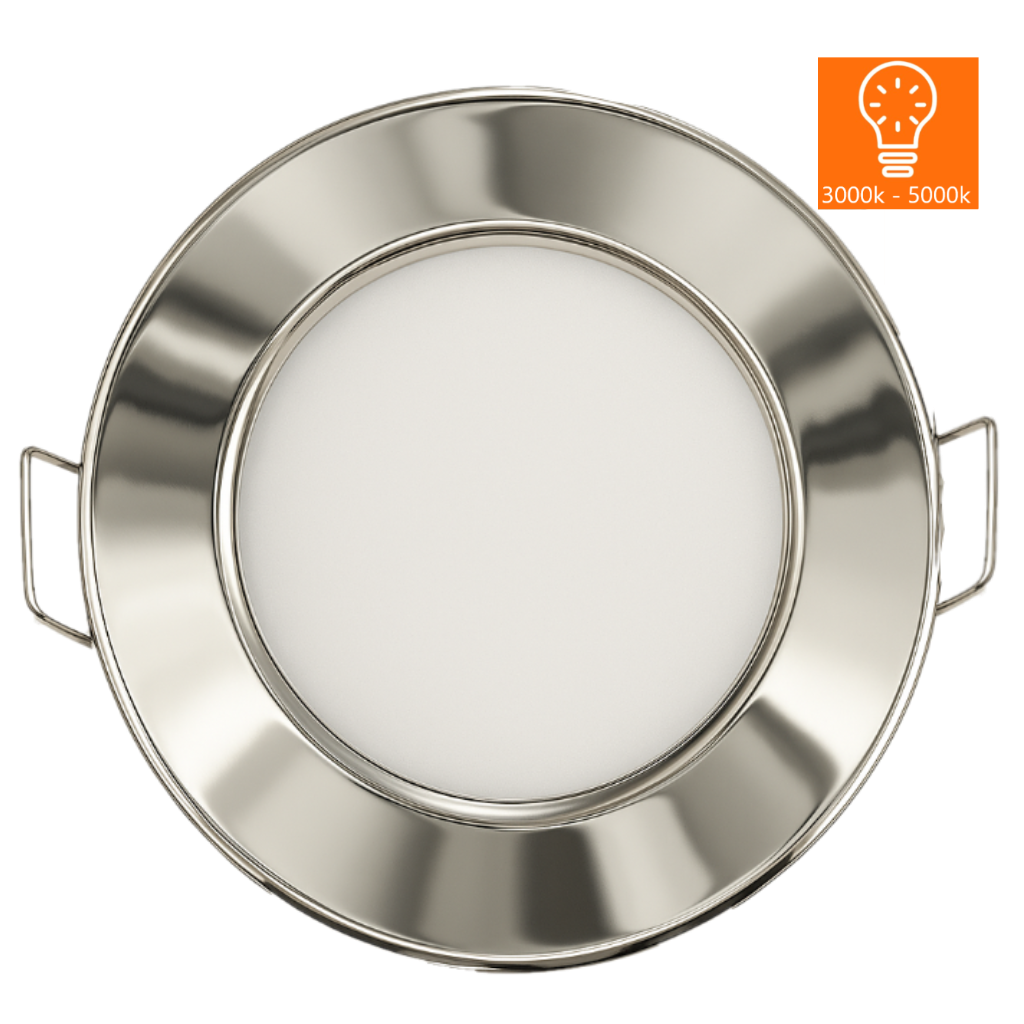

- Correlated Color Temperature (CCT): Selectable among 3000K, 4000K, or 5000K
- Driver: Isolated driver for 12/24V; 120V remote driver available
- Ingress Protection (IP) Rating: IP65 for the surface; IP54 for the back
- Dimming Capability: Compatible with TRIAC/ELV dimmers, adjustable from 10% to 100%
- Lifespan: 50,000 hours
Accessories Included:
- 35.5-inch waterproof connector cable
- Three 0 3*12 stainless steel mounting screws
- 2mm thick EVA waterproof sealing ring

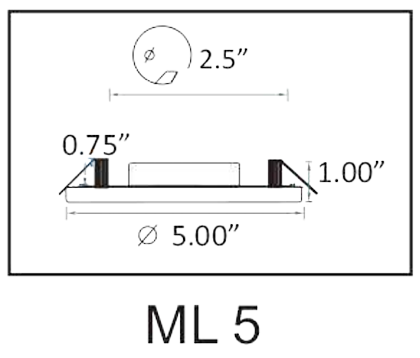

Dimensions:
- Product Size: 5.00 inches in diameter x 1.00 inch height
- Cut-Out Size: 2.50 inches in diameter
Materials and Finish:
- Materials: 316 Stainless Steel, Polycarbonate (PC), Aluminum

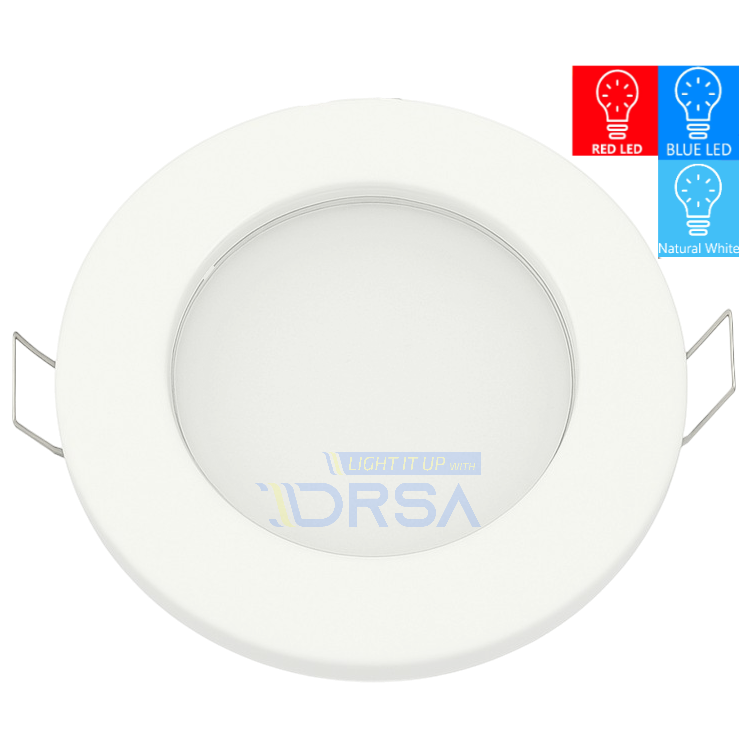

- Color Options: Polished Stainless Steel or Powder-Coated White (RAL 9010)
Perfect For
-
Cabin ceilings and reading nooks
-
Cockpit overheads or under hardtops
-
Bathrooms, galleys, or storage lockers
-
Smaller yachts and tender lighting retrofits
Technical Specifications
| Specification | Details |
|---|---|
| Voltage | 12–24V DC (10–30V range) |
| Wattage | 3W |
| LED Type | SMD LEDs |
| Luminous Flux | 300 lumens |
| Beam Angle | 120° |
| Color Temperature Options | 3000K / 4000K / 5000K |
| Color Rendering Index (CRI) | CRI 90, SDCM < 3.0 |
| Dimming Capability | 10–100% TRIAC/ELV compatible |
| Driver | Isolated driver (12/24V); 120V remote available |
| Ingress Protection | IP65 (front) / IP54 (rear) |
| Lifespan | 50,000 hours |
| Dimensions | 5.00" diameter × 1.00" height |
| Cut-Out Size | 2.50" diameter |
| Materials | 316 Stainless Steel, Polycarbonate, Aluminum |
| Finish Options | Polished Stainless / RAL9010 White |
| Accessories Included | 35.5" waterproof connector cable, 3 mounting screws, 2mm EVA sealing ring |
| Warranty | 2-Year Manufacturer Warranty |
