BCM - Evia 1-35H Single Adjustable Downlight – 2700K-6000K Tunable White, 24VDC
Description
Description

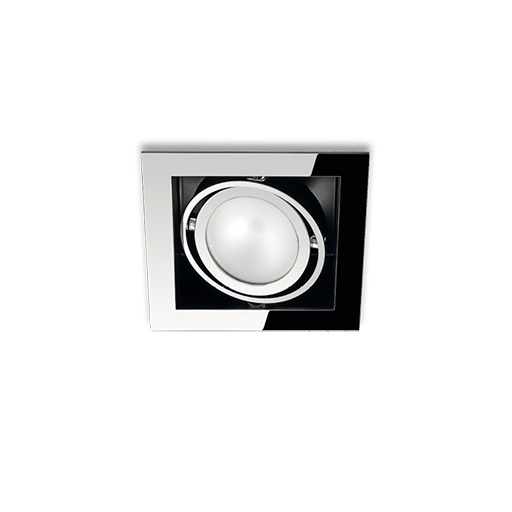

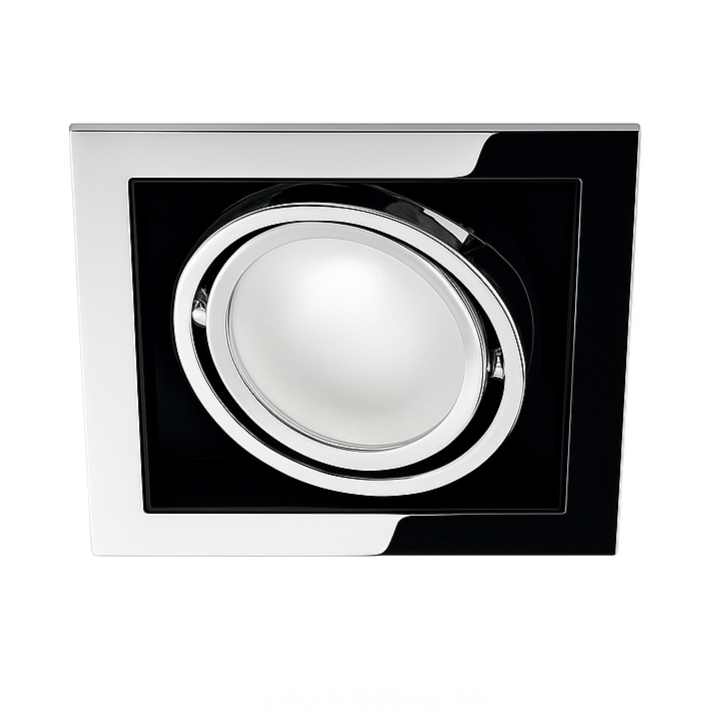

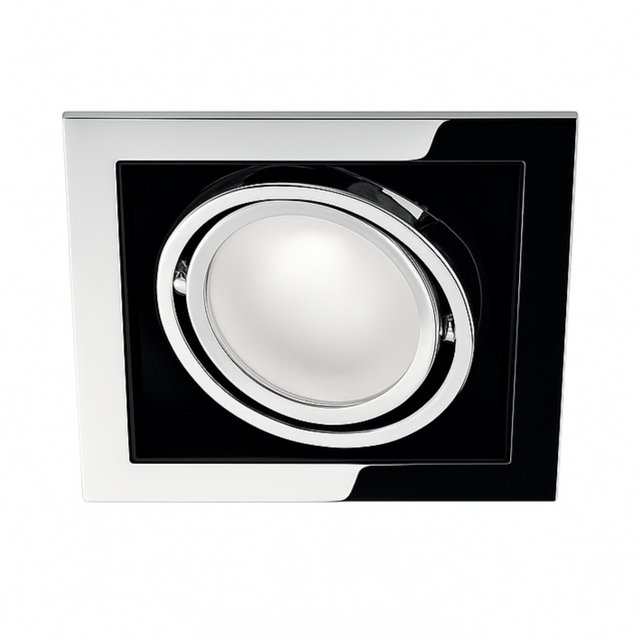

BCM Evia 1-35H Adjustable Downlight – Tunable White Marine LED
This compact LED downlight fits tight marine spaces with its slim 1.38" recessed depth and square 3.94" frame. It lets you tune the white light from warm 2700K to cool 6000K for the right mood in cabins or saloons. The adjustable reflector directs the beam where you need it, and it draws just 4W on 8-32V DC systems. Made with brass and aluminum for durability, it adds a polished stainless steel look to yacht interiors.
Key Features
- Tunable white from 2700K to 6000K adjusts color temperature for ambient or task lighting
- Adjustable reflector allows precise beam direction without glare
- Low 4W power draw keeps energy use minimal on boat batteries
- Wide beam angle spreads even light across spaces like cabins
- IP20 rating suits protected interior marine environments
- Built-in protections against transients and reverse polarity safeguard the fixture
- Dimmable with compatible switches for full brightness control
- Brass body and aluminum heatsink ensure heat dissipation and long life
- Stainless steel springs make mounting secure and straightforward
- Satin diffuser softens output for comfortable illumination
Perfect For
- Yacht cabins needing tunable mood lighting
- Sailboat saloons with limited headroom
- Luxury refits in heads or galleys
- Bulkhead mounts on boats under 40 feet
- New installs or halogen replacements in interiors
📏 Technical Specifications
| Specification | Details |
|---|---|
| Power Consumption | 4W |
| Input Voltage | 8–32V DC |
| Light Output | Approx. 320 Lumens |
| Beam Angle | Wide |
| Color Temperature | 2700K–6000K (Tunable White) |
| CRI | >80 |
| IP Rating | IP20 |
| Lens Type | Satin Diffuser |
| Housing Material | Brass Body, Aluminum Heatsink |

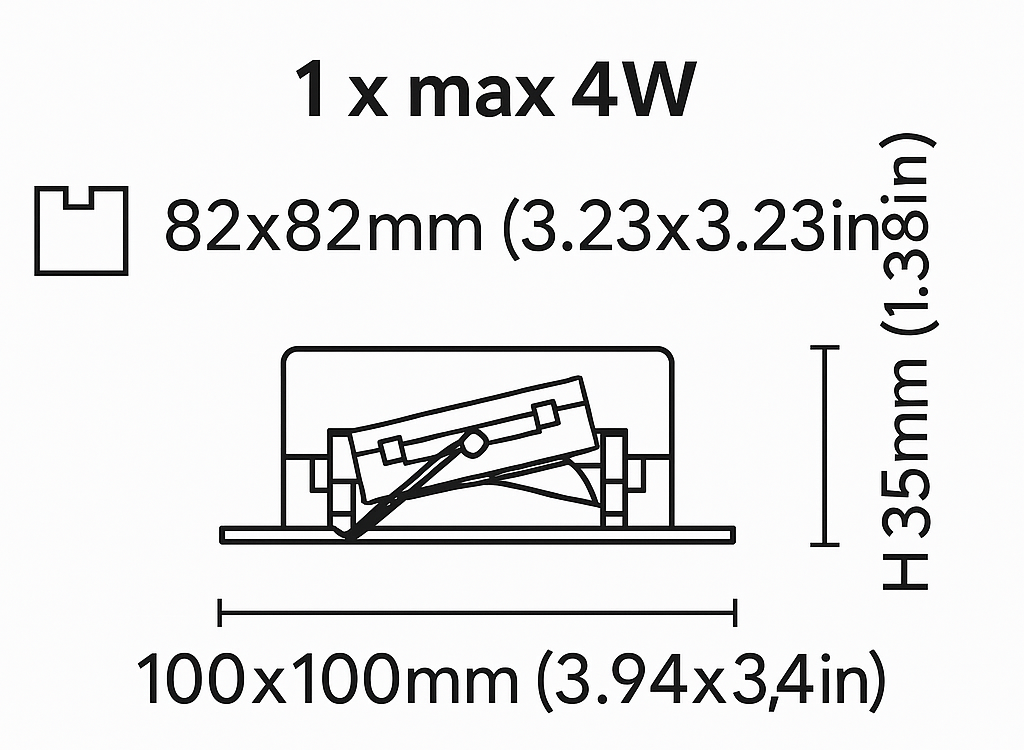

| Dimensions (Trim) | 3.94" x 3.94" (100mm x 100mm) |
| Recessed Depth | 1.38" (35mm) |
| Cutout Size | 3.23" x 3.23" (82mm x 82mm) |
| Mounting Type | Spring |
| Finish | Polished Stainless Steel |
| Certifications | CE, EMC, RoHS |
| Lifetime | 50,000 Hours |
| Warranty | 3 Years |
What’s in the Box
- BCM Evia 1-35H downlight fixture
- Mounting springs and hardware
- Installation guide
Frequently Asked Questions
- Is this light dimmable? Yes, it dims fully with compatible marine switches for adjustable brightness.
- Can I install it myself? Yes, the spring mount fits easily into cutouts with basic tools in fiberglass or wood.
- Is it compatible with 12V systems? No, it's designed for 8-32V DC, best on 24V setups common in yachts.
- How do I tune the color? Use a compatible controller or switch to adjust from warm to cool white.
- Is it waterproof? It has an IP20 rating for dry interiors avoid wet areas like showers.
Why Choose BCM Evia 1-35H Downlight?
It offers flexible tunable lighting in a slim design that fits marine constraints. You get reliable Italian-made quality with durable materials that hold up at sea. Customers value the easy adjustments and low power use for better onboard efficiency.
