Lumitec Pico C4-MAX Expansion Module [101873]
Description
Description

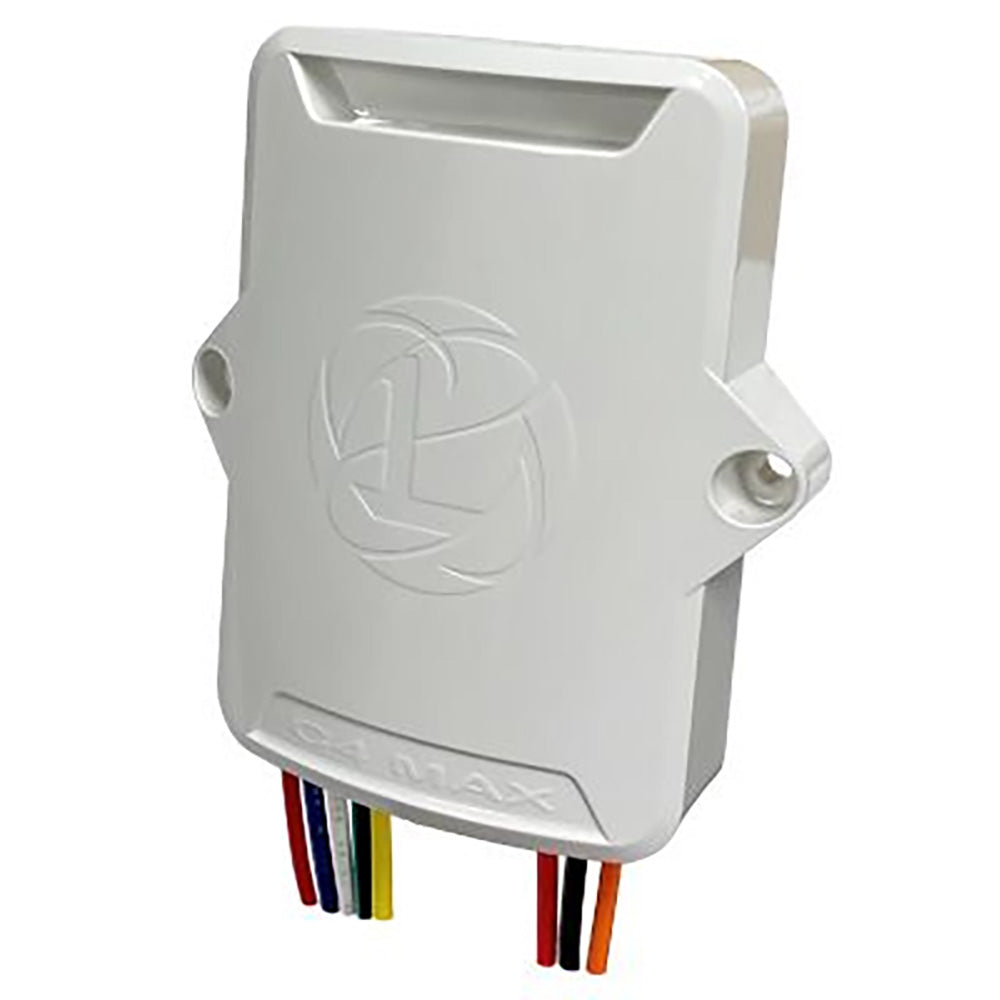

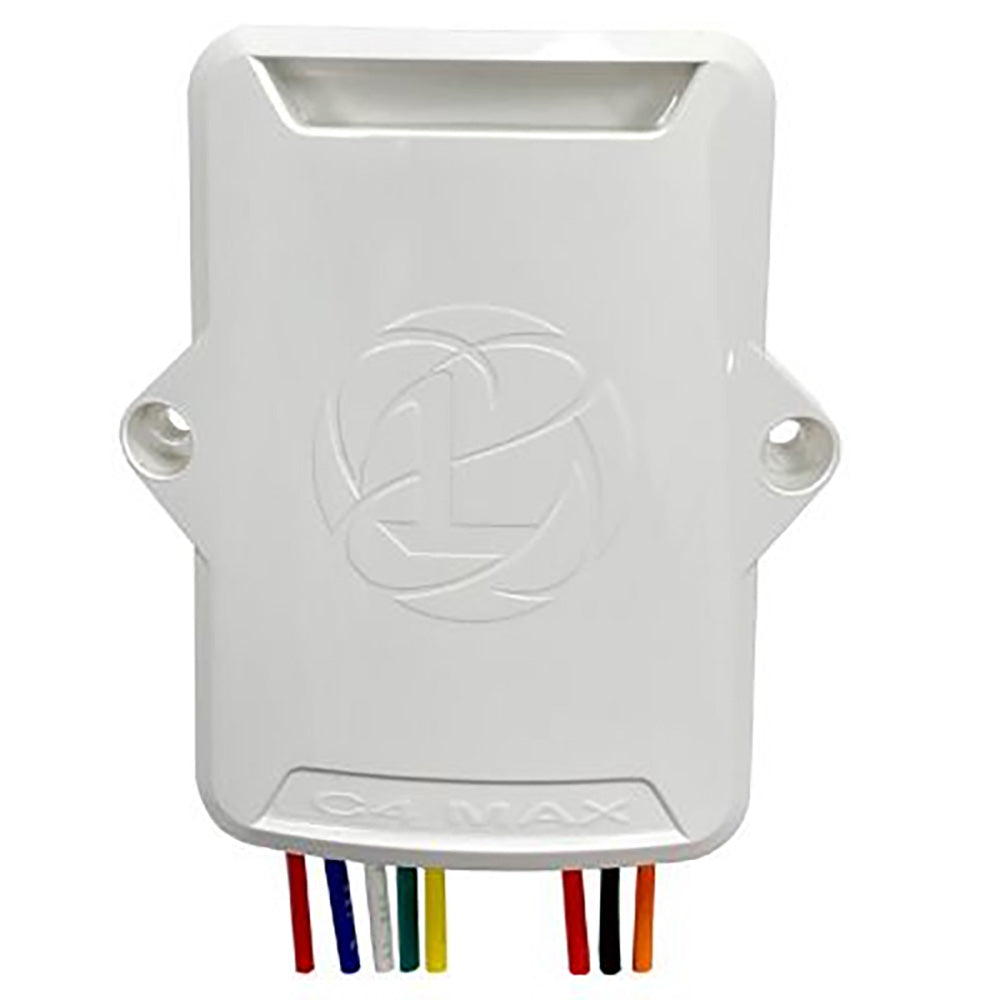

Lumitec Pico C4-MAX Expansion Module – 101873
High-Power RGB/RGBW Lighting Control for the Poco System
The Lumitec Pico C4-MAX Expansion Module is the ultimate performance upgrade for your Poco Digital Lighting Control system. Built to manage high-output RGB and RGBW lighting loads, the C4-MAX delivers exceptional power, flexibility, and compatibility across both Poco and Timed Toggled Protocol (TTP) systems.
Whether you’re upgrading your lighting setup or building a custom system from scratch, the Pico C4-MAX offers effortless integration with 12–24VDC wiring, robust marine-grade durability, and full control of third-party accessories.
Why You’ll Love It
-
Maximum Output. Minimal Effort.
With 10 amps per channel, the Pico C4-MAX easily powers high-output RGB/RGBW fixtures like strip lights, illuminated speakers, and accent lighting making it ideal for larger or more complex installs. -
Third-Party Accessory Control
Expand your lighting system beyond Lumitec. The C4-MAX enables full color and brightness control for compatible third-party RGB and RGBW accessories, even without built-in PLI functionality. -
Works With or Without Poco
The C4-MAX integrates seamlessly with Poco systems, but can also operate independently using Lumitec’s TTP (Timed Toggled Protocol) for control through a standard on/off switch. -
Marine-Rated Durability
Compact, IP67-rated, and engineered to perform in harsh marine environments. The C4-MAX is designed to fit tight installation spaces without sacrificing strength or reliability. -
Perfect for New Builds or Retrofits
Designed for standard 2-wire 12–24VDC systems, making it simple to install in both new and existing vessels without extensive rewiring.
Key Features
-
Controls RGB and RGBW third-party accessories
-
Works with Poco Digital Lighting Control or TTP switches
-
Delivers up to 10A per channel output
-
Integrates easily with 12–24VDC two-wire systems
-
Compact, waterproof, and fully marine-rated
-
Made in the USA with Lumitec’s trusted warranty
Technical Specifications
| Feature | Specification |
|---|---|
| Input Voltage | 10–30V DC |
| Max Load per Channel | 10 Amps |
| RGBW Compatible | Yes |
| TTP Enabled | Yes |
| PLI Enabled | Yes |
| Number of Channels | N/A (Supports RGB/RGBW loads) |
| Housing Material | White |
| Waterproof Rating | IP67 |
| Operating Temperature | -31°F to +131°F (-35°C to +55°C) |
| Certifications | CE Certified |
| UL Certified | No |
| Dimensions | 3.5” H x 3.1” W x 0.88” D |
| Country of Origin | Made in USA |
| Warranty | 5 Years |
Perfect For
-
High-power RGB and RGBW LED strip lighting
-
Illuminated speakers, cup holders, and accent lights
-
12V and 24V system integrations
-
Builders or boat owners looking for maximum lighting output
-
Retrofit projects with limited access to wiring
Why Choose the Pico C4-MAX?
✅ Controls high-output RGB/RGBW lighting up to 10A per channel
✅ Compatible with Poco or standard TTP switches
✅ Seamlessly integrates with third-party accessories
✅ IP67 waterproof and built for marine environments
✅ Compact, powerful, and Made in the USA
✅ Backed by Lumitec’s 5-Year Warranty
Warranty
Lumitec 5-Year Warranty
Effective January 1, 2025, all Lumitec products come standard with a 5-year limited warranty, covering defects in materials and workmanship for the full term. This provides reliable protection and long-lasting performance across every season.
