F-28 LED Engine Room Utility Light – 10–30VDC
Description
Description
F-28 LED Engine Room Utility Light – IP67 Waterproof, 600 Lumens, 10–30VDC
Slim, Sealed, and Built for the Harshest Marine Environments
The Imtra F-28 LED Utility Light delivers robust, energy-efficient illumination in compact form, purpose-built for the toughest marine conditions. Ideal for engine rooms, utility compartments, storage lockers, and wet areas, this ultra-slim light is fully waterproof and emits a glare-free, downward beam that keeps your vessel illuminated and safe.
The F-28’s integrated constant current driver, polycarbonate housing, and sealed construction (IP67-rated) make it a reliable choice for boat owners seeking durability and performance. With 600 lumens of output and a long lifespan of 50,000 hours, it’s a smart upgrade for any tight onboard space.

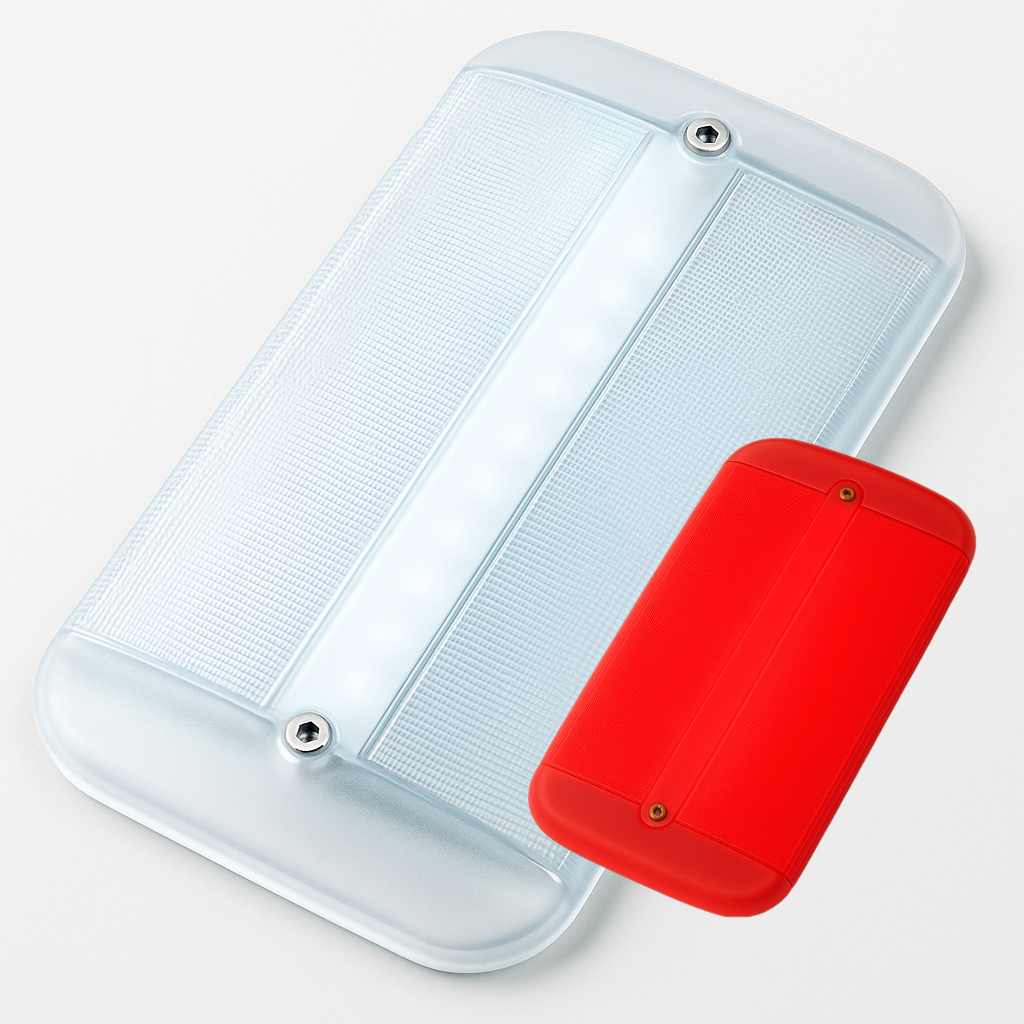

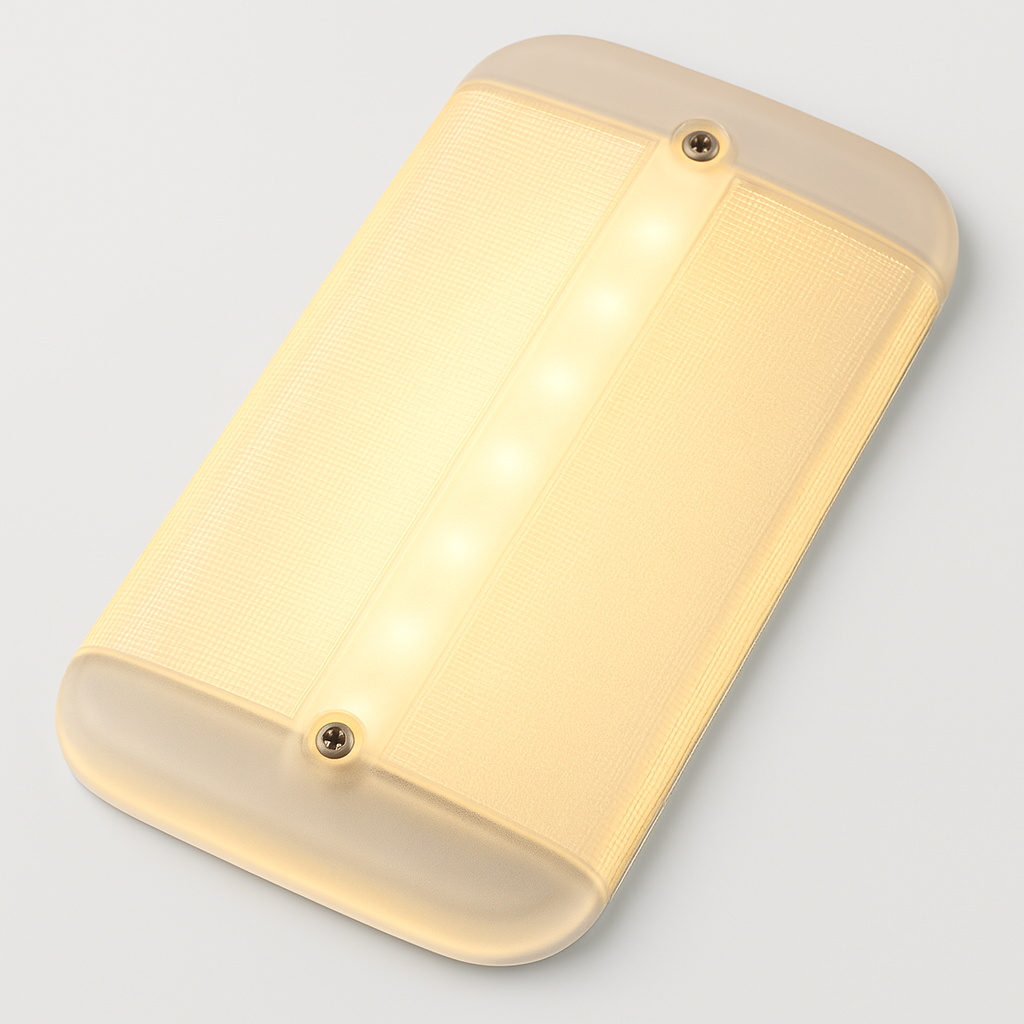

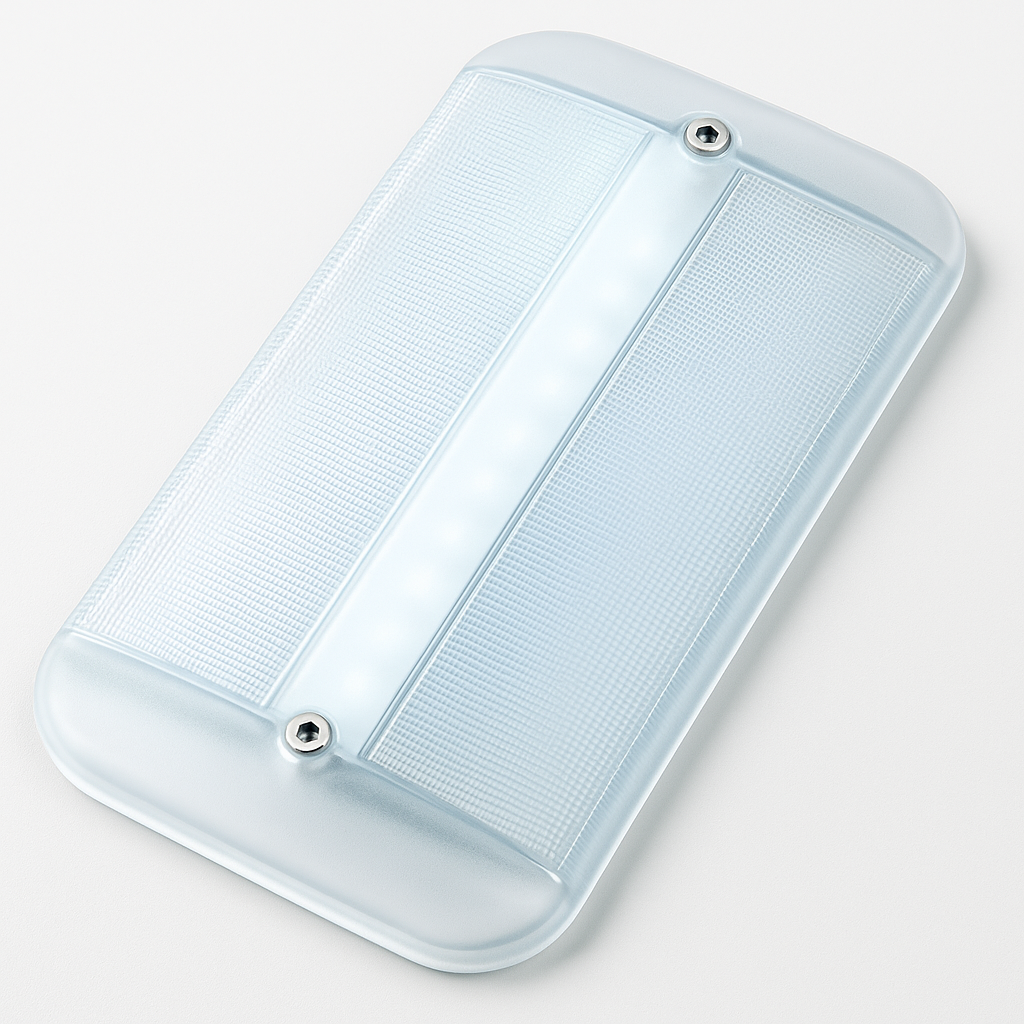

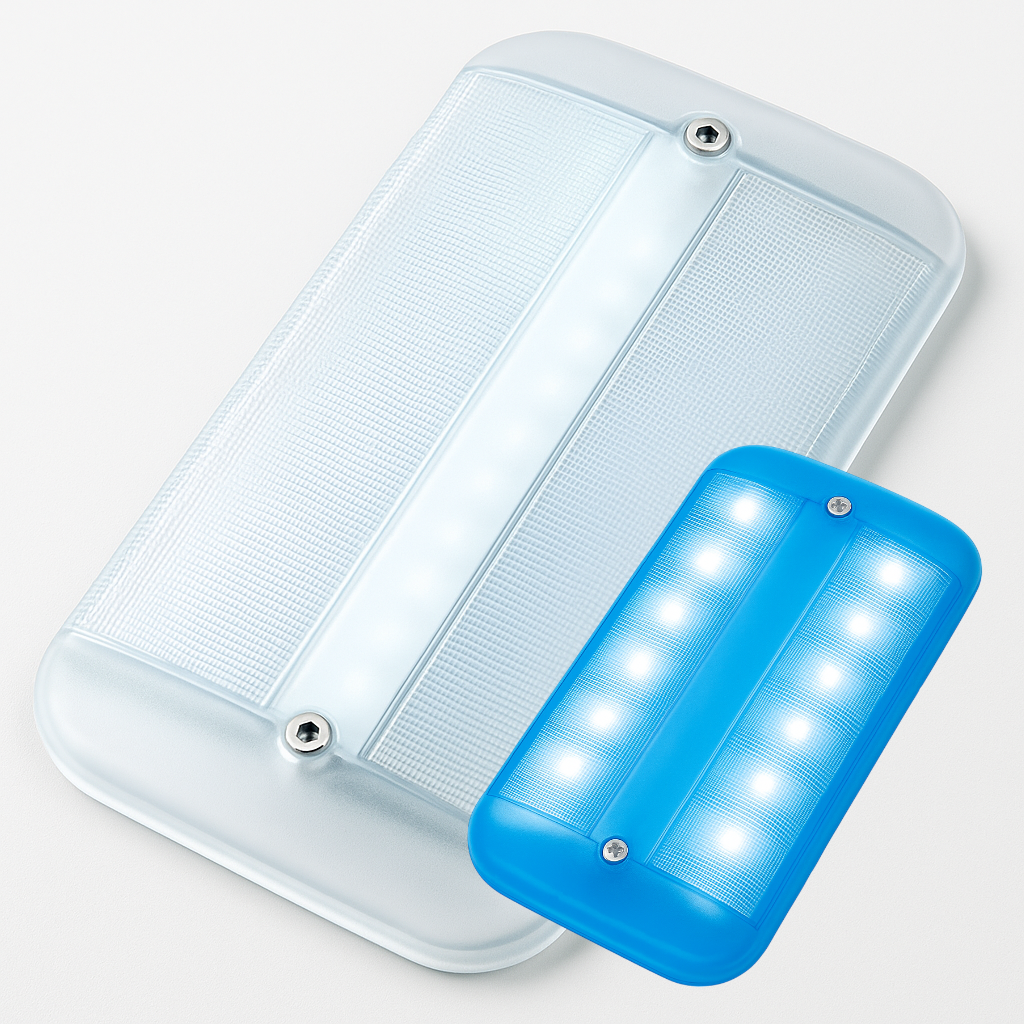

Available in Cool White, Warm White, or Bi-Color (White with Red, Blue, or Green), with or without touch control, this utility light gives you the flexibility to light any space your way.
Perfect For:
-
-
Engine rooms
-
Bilges and utility closets
-
Mechanical compartments
-
Underdeck and wet zones
-
Exterior stowage spaces
-
Why You'll Love It
-
Ultra-slim profile – just 0.50” thick
-
IP67-rated – fully sealed for wet environments
-
High-output 600 lumens
-
Available in single-color or bi-color LED options
-

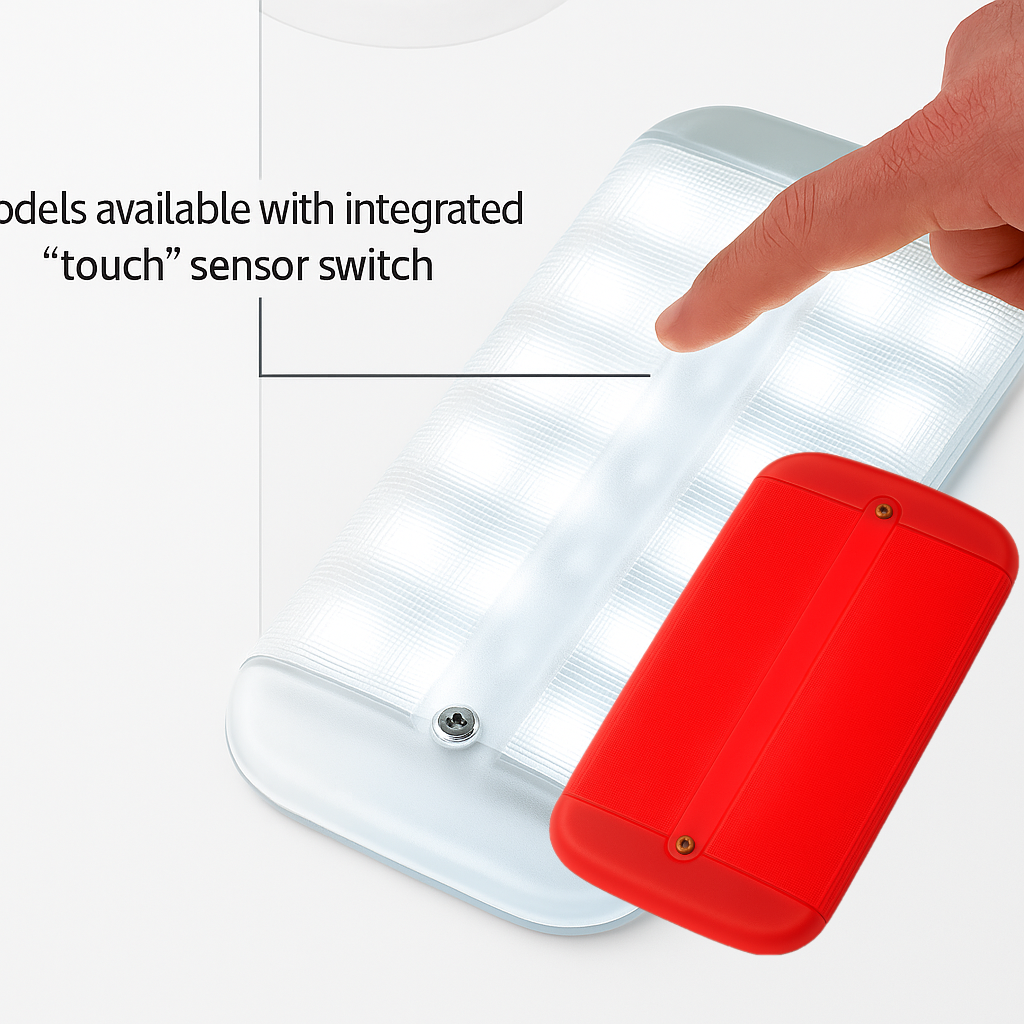

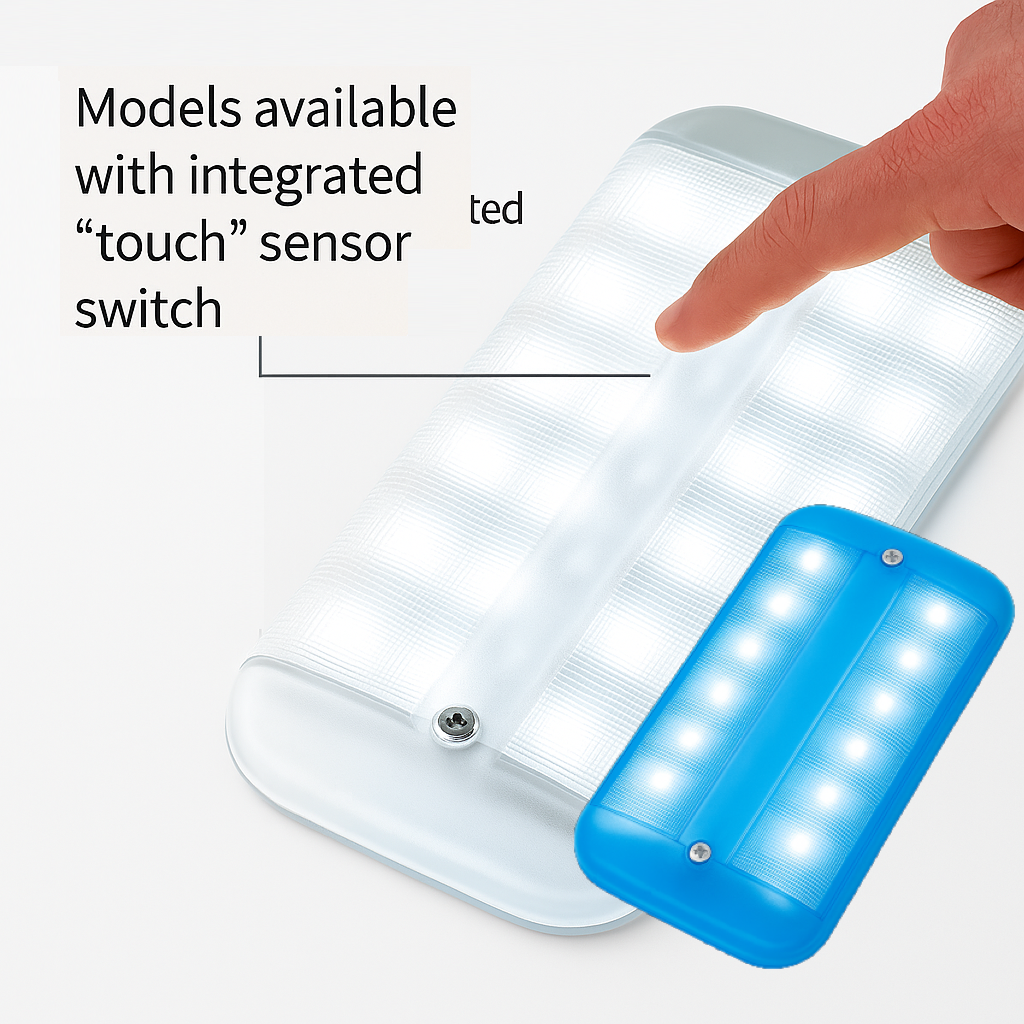

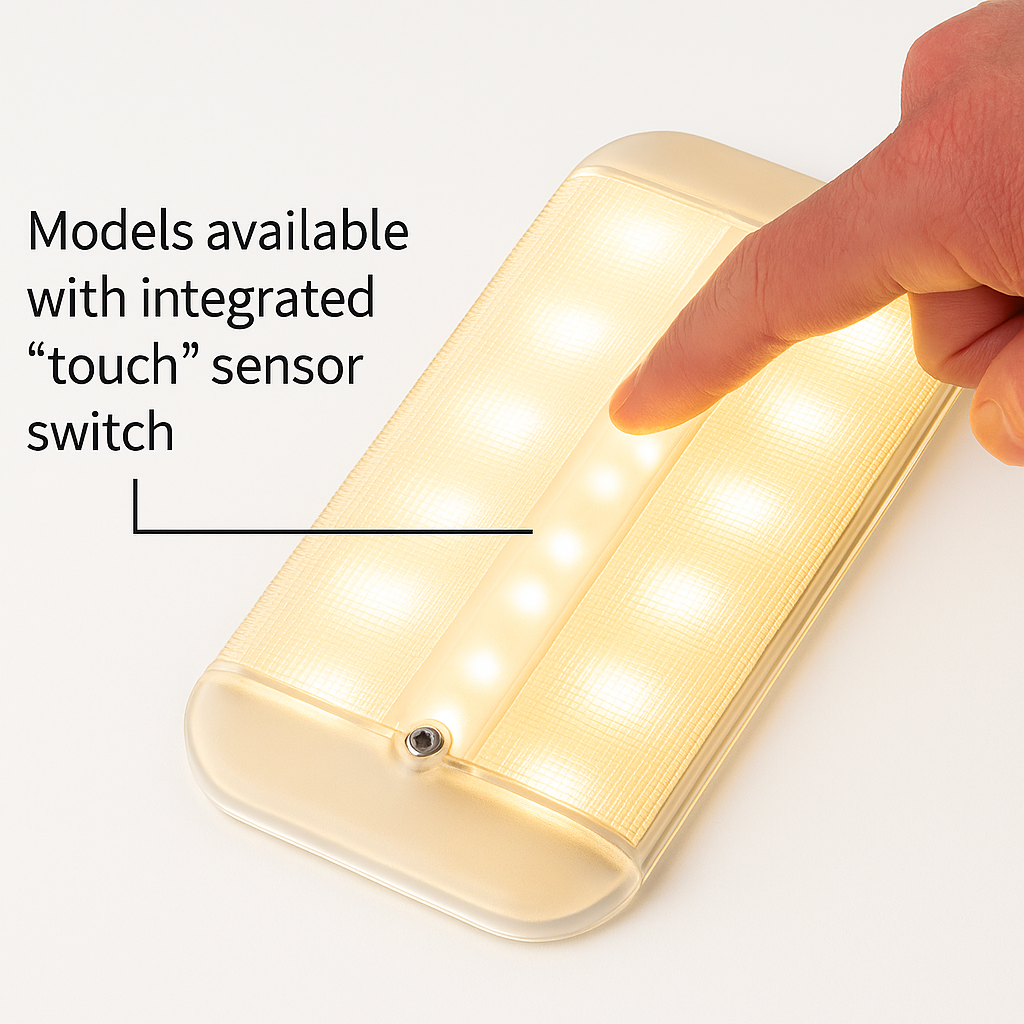

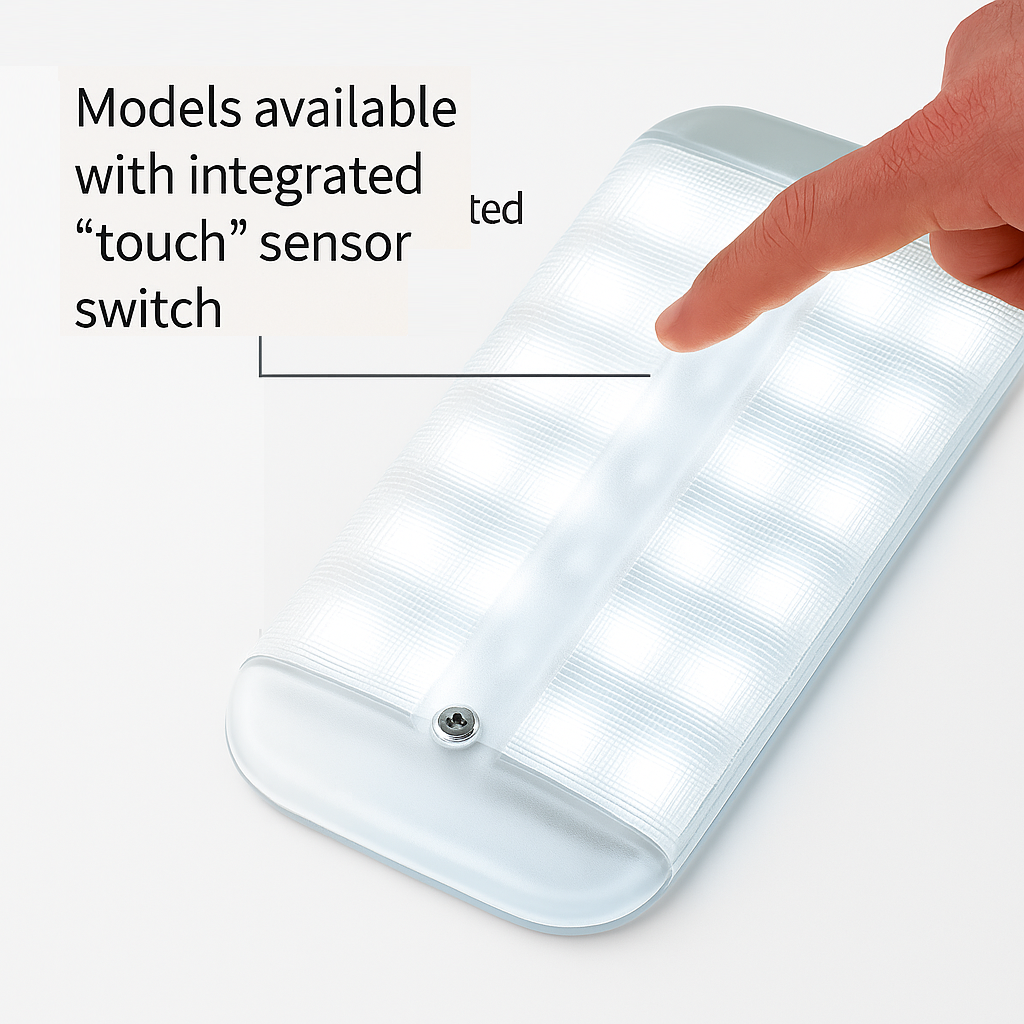

Optional integrated touch switch (single-color only)
-
Polycarbonate housing and lens for marine-grade durability
Technical Specifications
Name | Description |
---|---|
Housing Finish/Material | Polycarbonate |
Trim Ring (Bezel) Dimensions | 6.70 x 3.54" (170 x 90mm) |
Trim Ring (Bezel) Finish/Material | Semi-transparent Polycarbonate |
Input Voltage | 10–30VDC |
Power Consumption | 7.0W |
Luminous Flux | 600 lm |
Output Color | Cool White / Blue |
Correlated Color Temperature (CCT) | 5700K |
Color Rendering Index (CRI) | 75 |
Lifetime Hours | 50,000 hrs |
Light Technology | LED |
Driver | Integrated |
Mounting Method | Screws |
Lens Material | Polycarbonate |
Integrated Switch | No |
Switch | Not Included |
Certifications & Compliance | CE, RoHS |
Electrical Protections | Reverse Polarity, Transients, EMI |
Ingress Protection | IP67 |
Ingress Protection Rating (IP) | IP65+ |
Warranty | 3 Years |
Class | F-Rated, Class III |
Approximate Ship Weight (lbs) | 1 |
Manufacturer’s Part No | IL8043 |
