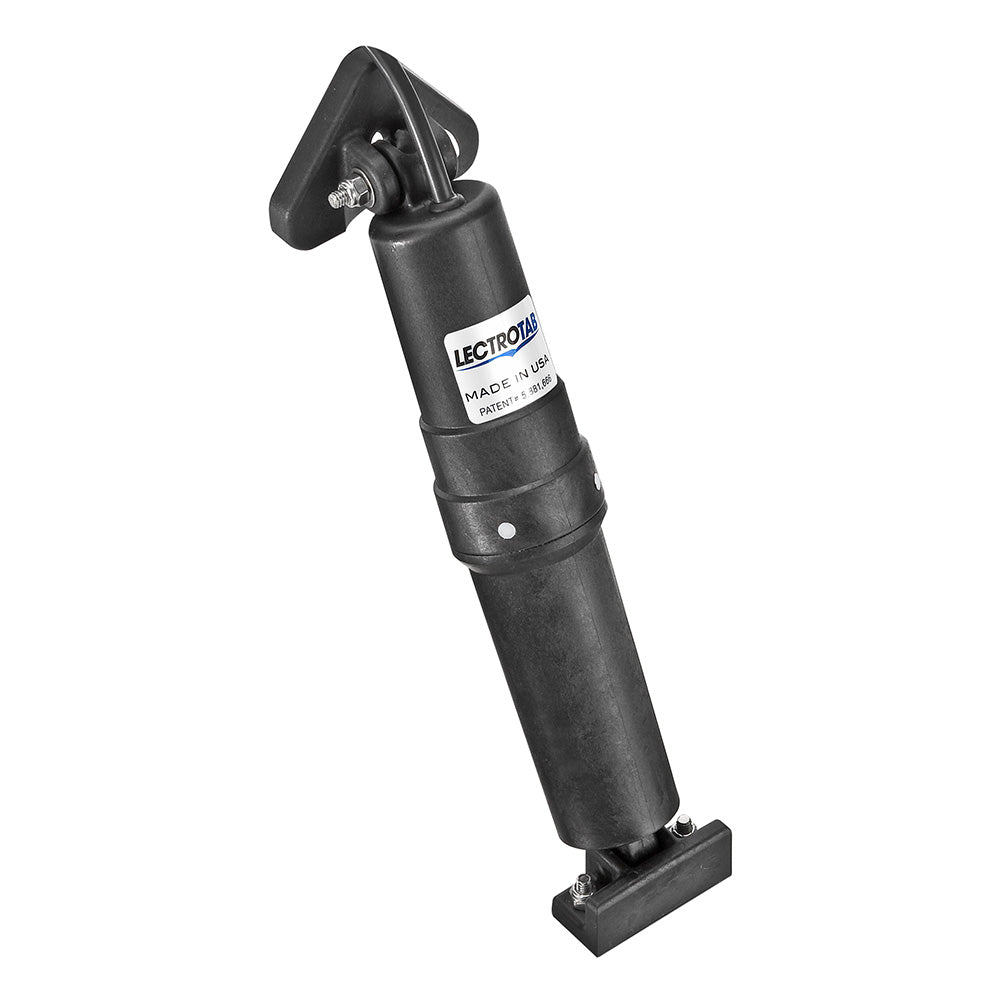

Lectrotab Standard Trim Tab Actuator - 12V - 28' Cable [A-BK-24]
“All pricing is subject to change without notice due to tariffs, supply chain fluctuations, or manufacturer adjustments. Please call DRSA for the most up-to-date pricing.”
Description
Description
Standard Trim Tab Actuator - 12V - 28' Cable
Lectrotab trim tab actuators are precision-engineered to combine quiet operation with a non-hydraulic, maintenance-free design. The unit is corrosion-free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic, permanently sealed housing. No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low-profile transom mounting bracket. Actuators come in 12 and 24 VDC with an 8-second recommended stroke time or a 4-second stroke time.
Features:
- Actuator DC Voltage - 12V
- 28' Cable
- The upper ram seal location cannot be damaged due to a fouled ram or barnacle growth
- Utilizes an internal pressure equalization system
- Upgrades to the most popular hydraulic and electromechanical systems
- Internal brake system prevents unwanted tab movement when underway or backing down
- Quiet operation
- All actuators are fully load tested to push 1000 lbs of force
- Non-metallic external structure that cannot corrode and will not deteriorate in the sun or underwater
Specifications:
- Model: A-BK-24
- DC Voltage: 12VDC
- Stroke Length: 2.25"/57mm
- Stroke Speed: 8 sec
- Distance from Bolt to Pin: 11.5"/292mm
- Vertical Height (Typical Installation Fully Retracted):11.875"/302mm
- Cable Length (Feet/Meter): 28'/8.5m
- Upper Mounting Bracket: Standard
- Lower Mounting Bracket: Standard
- Use Actuator with Tabs: All Tabs
*Sold as an Individual
