Black Oak Pro Series 3.0 Curved Double Row 40" LED Light Bar - Combo Optics - Black Housing [40CC-D5OS]
Description
Description
Black Oak Pro Series 3.0 Curved Double Row 40" LED Light Bar – Combo Optics, Black Housing
Unmatched Power. Rugged Durability. Serious Performance.
The Black Oak Pro Series 3.0 Curved Double Row 40" LED Light Bar is built to dominate extreme off-road, marine, and utility lighting needs. Featuring 80 high-output Osram 5W LEDs arranged in a double row across a curved 40-inch frame, this powerhouse produces a staggering 52,800 raw lumens of clean, white light. With both spot and flood optics, it delivers wide-area coverage with long-distance reach—perfect for UTVs, trucks, and roof rack applications.
Designed to thrive in brutal environments, the Pro Series 3.0 comes with IP69K-rated sealing, 360° ceramic protection, a Dynamax reinforced housing, and marine-grade stainless steel mounting hardware. Whether you're crawling through dunes or working in rough terrain, this bar is built for the challenge.
Why Choose the Black Oak Pro Series 3.0 – 40" Curved Light Bar?
✅ Extreme Brightness
80 Osram 5W LEDs deliver 52,800 raw lumens with 400W of lighting power.
✅ Combo Beam Pattern
Spot and flood optics combine for distance and area lighting in one powerful beam.
✅ Rugged & Waterproof
IP69K rating, 2-stage Hydrex seal, and ceramic coating defend against water, salt, and UV damage.
✅ Durable Build
Heavy-duty Dynamax housing and Lexan lens resist impacts, dust, and debris.
✅ Easy Install Kit Included
Includes wiring harness, switch, brackets, and hardware—ready for plug-and-play installation.
Technical Specifications
| Feature | Specification |
|---|---|
| Total Wattage | 400W |
| Amp Draw | 17.9 Amps |
| LED Count | 80 Osram 5W LEDs |
| Raw Lumens | 52,800 |
| Voltage Range | 12V |
| IP Rating | IP69K (fully sealed, submersible) |
| Beam Pattern | Spot-Flood Combo |
| Housing Color | Black |

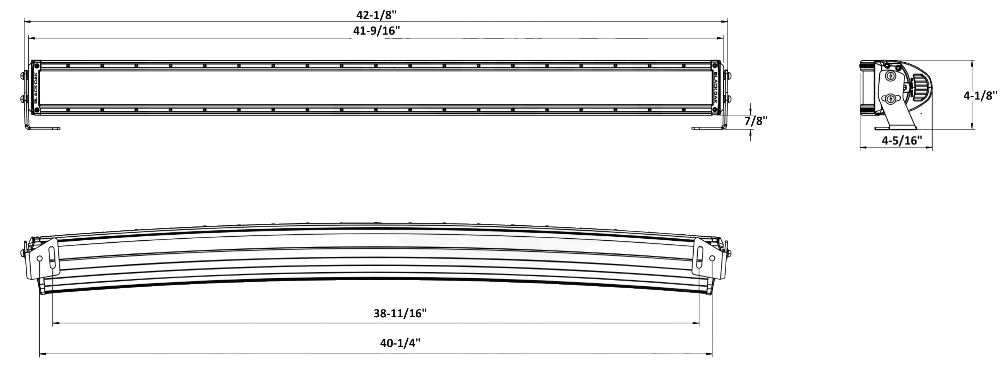

| Dimensions (with brackets) | 41.4" x 4.125" |
| Weight | 13.8 lbs |
| Connection | Deutsch connector |
| Warranty | Lifetime |
Ideal For
-
Off-road vehicles, UTVs, and Jeeps
-
Roof rack or Gobi rack lighting
-
Desert riding and trail crawling
-
Marine and heavy-duty utility setups
-
Addictive Desert Designs bumpers
What’s in the Box
-
40" Curved LED Light Bar
-
Complete wiring harness with fuse, relay & switch
-
Mounting brackets & 12-gauge wire
-
All installation hardware
*Sold as an Individual
Specifications:
- Beam Pattern: Spot-Flood Combo
- Housing: Black
- Length (Inches): 40"
- Voltage - Input Range (Volts): 12v
- Box Dimensions: 6"H x 8"W x 46"L WT: 15 lbs
- UPC: 850044517633
