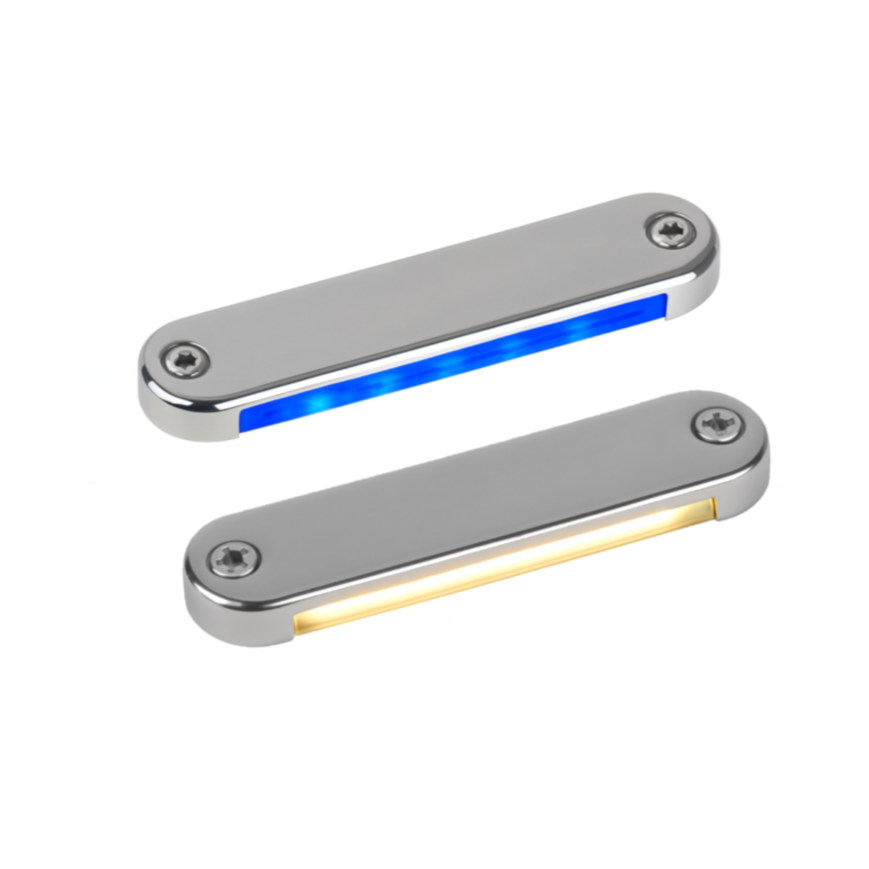

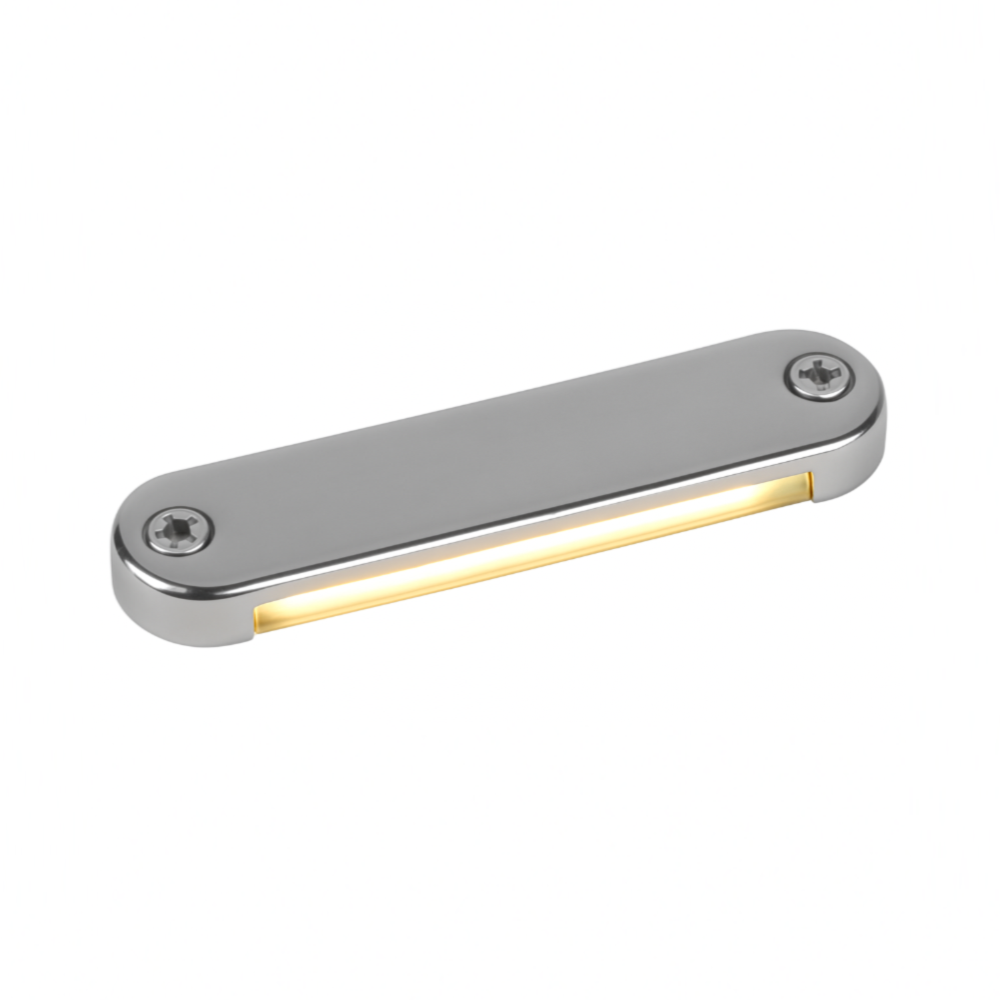

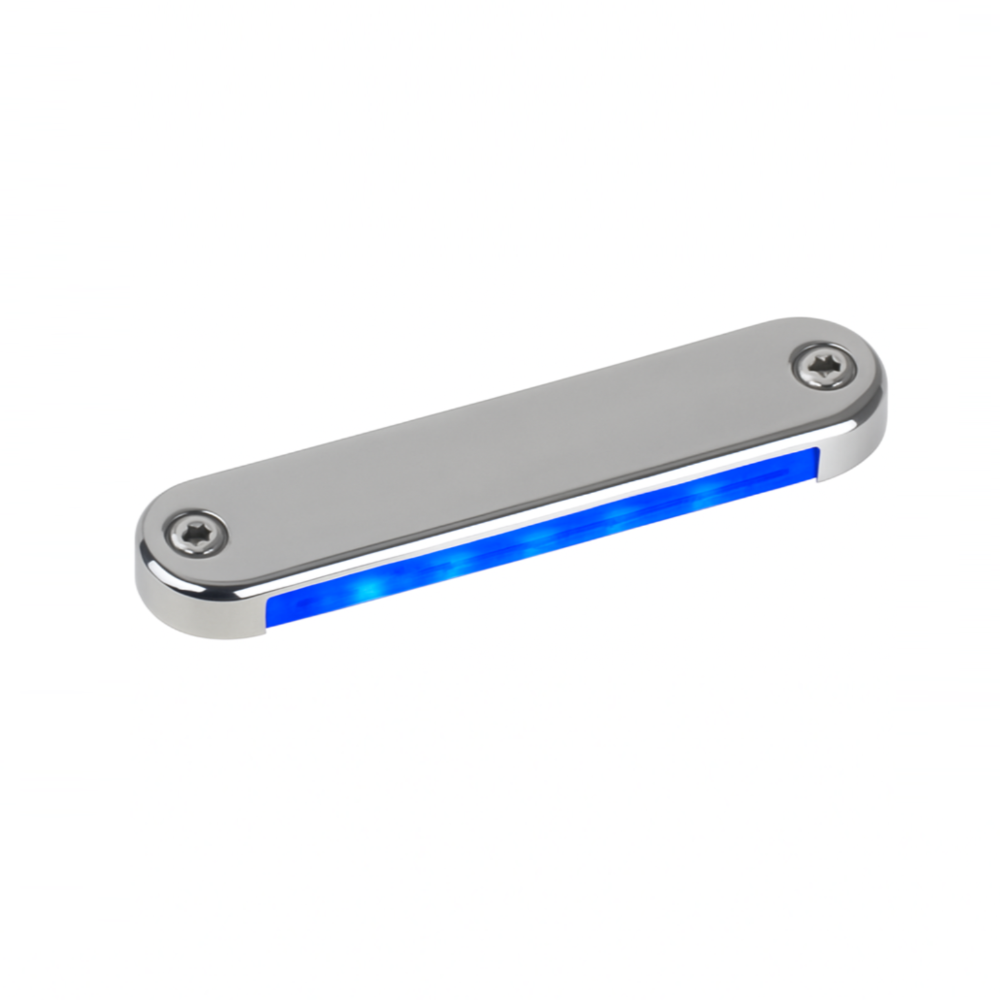

Duxbury LED Courtesy Light – Stainless Steel, 10–30VDC, 0.48W
Description
Description
Duxbury LED Courtesy Light – Stainless Steel, 10–30VDC, 0.48W, IP66
Reliable, Low-Glare Lighting for Steps, Walkways, and Decks
The Duxbury LED Courtesy Light by Imtra is the perfect solution for safe, stylish, and energy-efficient onboard lighting. Designed with a durable AISI 316 stainless steel bezel, this surface-mount fixture delivers a soft, downward-facing beam that enhances visibility without creating glare. Whether you're lighting stair risers, walkways, or deck spaces, the Duxbury LED combines functionality and elegance to elevate your vessel’s ambiance.
Built for the marine environment, this light is IP66-rated for complete protection against water and dust, ensuring reliable performance in harsh conditions. With a low power draw of just 0.48W at 12V, it’s an energy-efficient choice for long trips, helping you save battery life while maintaining a well-lit and safe environment.
Key Features
-
Marine-Grade Durability:
Constructed with corrosion-resistant AISI 316 stainless steel for long-lasting performance in saltwater environments. -
Waterproof & Reliable:
Fully sealed and potted LED assembly with an IP66 rating to withstand water spray, dust, and vibrations. -
Soft, Non-Glare Illumination:
Downward-angled beam with a 90° spread and 10 lumens for safe, ambient lighting. -
Energy-Efficient Performance:
Operates at just 0.48W on 12V or 0.96W on 24V, reducing power consumption and extending battery life. -
Customizable Lighting Options:
Available in Cool White, Warm White, or Blue LED outputs to match your boat’s style and vibe. -
Advanced Protections:
Built-in safeguards against reverse polarity, voltage spikes, and transients for reliable operation. -
Long Lifespan:
Rated for 50,000 hours of use, minimizing the need for replacements over time.
Perfect For
- Stair Risers: Illuminate steps on yachts or sailboats for safe nighttime navigation.
- Toe-Kick & Under-Gunwale Lighting: Add a subtle glow to tenders, small boats, or luxury vessels.
- Walkways & Decks: Enhance visibility on vessels under 40' with low-profile, ambient lighting.
- Sheltered Exterior Spots: Create safety lighting for fishing boats or other marine applications.
Technical Specifications
| Feature | Specification |
|---|---|
| Voltage | 10–30V DC |
| Power Consumption | 0.48W @ 12V, 0.96W @ 24V |
| Light Output | 10 Lumens |
| Beam Angle | 90° |
| LED Colors Available | Cool White, Warm White, Blue |
| Mounting Style | Surface Mount |
| Material | AISI 316 Stainless Steel |
| Ingress Protection | IP66 |
| Lifetime Rating | 50,000 Hours |
| Certifications | CE |
What’s in the Box?
- Duxbury LED Courtesy Light fixture
- Mounting screws
- Wiring pigtail
- Installation instructions
Frequently Asked Questions
Is this light waterproof?
Yes, the IP66 rating ensures it’s fully protected against water spray and dust, making it ideal for marine environments.
Can I install it myself?
Absolutely! The surface-mount design is easy to install with basic tools and requires no special wiring.
Is it compatible with 12V systems?
Yes, it operates on 10–30VDC, making it suitable for both 12V and 24V boat batteries.
Does it get hot during use?
No, the low-wattage LED stays cool, even after extended operation.
Can I dim this light?
Yes, it’s compatible with marine dimmers for adjustable brightness.
Why Choose the Duxbury LED Courtesy Light?
The Duxbury LED combines rugged stainless steel construction with advanced LED technology to deliver reliable, energy-efficient lighting for marine environments. Its soft, non-glare illumination enhances safety and ambiance without draining your battery or requiring frequent maintenance. Backed by DRSA’s 35+ years of expertise in marine lighting, this fixture is a trusted choice for boat owners worldwide.
Duxbury LED Courtesy Light – Stainless Steel, 10–30VDC, 0.48W
