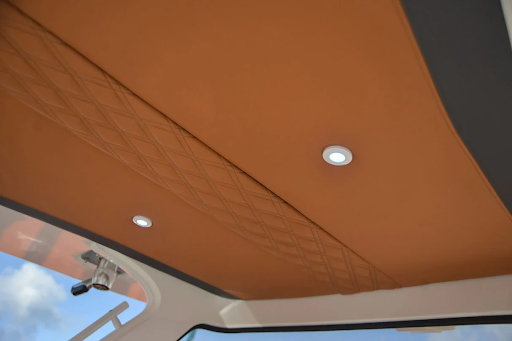

Installing LED downlights on your boat can transform its ambiance, improve safety, and enhance energy efficiency. DRSA, a trusted name in marine lighting since 1988, offers a range of high quality LED downlights, such as the Lumitec Aurora Surface Mount Dome Light and Bay1 Round LED Courtesy Light, designed for durability in harsh marine environments.
Whether you’re a DIY boat owner, a marine electrician, or a boat builder, this comprehensive guide provides step by step instructions for installing DRSA LED downlights, along with maintenance tips to ensure long lasting performance. From preparation to wiring and final testing, we’ll cover everything you need to know to light up your vessel with confidence.
Why Choose DRSA LED Downlights?
DRSA’s LED downlights are engineered for marine applications, offering unmatched reliability, energy efficiency, and aesthetic appeal. Key benefits include:
- Marine Grade Durability: IP67 rated fixtures withstand saltwater, humidity, and vibration.
- Energy Efficiency: LED technology consumes up to 80% less power than traditional bulbs, ideal for extended voyages.
- Versatile Aesthetics: Options like warm white or RGBW lighting create the perfect ambiance for cabins, decks, or salons.
- Long Lifespan: DRSA’s LED downlights, such as the Lumitec Aurora, last up to 50,000 hours, reducing replacement costs.
DRSA provides a wide selection of downlights, including surface mount and recessed options, making them ideal for boats of all sizes, from small sailboats to luxury yachts.
Tools and Materials Needed
Before starting the installation, gather the following tools and materials:
- DRSA LED Downlights: Choose fixtures like the Lumitec Aurora Surface Mount Dome Light or Bay1 Round LED Courtesy Light from DRSA.
- Marine Grade Wiring: Use tinned copper wire to prevent corrosion.
- Wire Connectors: Waterproof butt connectors or heat shrink terminals for secure connections.
- Tools: Drill with hole saw (for recessed lights), screwdriver, wire stripper, crimping tool, and multimeter.
- Mounting Hardware: Stainless steel screws or adhesive mounts, included with DRSA fixtures.
- Cleaning Supplies: Isopropyl alcohol and microfiber cloth for surface preparation.
- Safety Gear: Gloves, safety glasses, and a dust mask for sanding or drilling.
- Optional: Dimmer switch or RGBW controller for advanced functionality.
Step by Step Installation Guide for DRSA LED Downlights
Follow these steps to install DRSA LED downlights safely and effectively, ensuring compliance with American Boat and Yacht Council (ABYC) standards.
1. Plan the Lighting Layout
A well planned layout ensures optimal illumination and aesthetic balance. Consider the following:
- Identify Key Areas: Determine where downlights will enhance functionality or ambiance, such as cabins, galleys, or deck walkways.
- Measure Spacing: Space downlights evenly, typically 4 to 6 feet apart, depending on beam angle and desired brightness. For example, the Lumitec Aurora provides a wide flood beam, ideal for broad coverage.
- Check Power Requirements: Verify your boat’s electrical system (12V or 24V DC) matches the downlight specifications. DRSA lists voltage ratings for all products, such as the Bay1 Round LED Courtesy Light (24VDC).
Tip: Sketch a layout using measurements of your boat’s interior or exterior. Consult DRSA for recommendations on fixture placement for specific vessel types.
2. Prepare the Installation Surface
Proper surface preparation ensures secure mounting and prevents water ingress:
- Clean the Surface: Use isopropyl alcohol and a microfiber cloth to remove dirt, grease, or salt from the mounting area.
- Mark Mounting Points: For surface mount lights like the Lumitec Aurora, mark screw holes with a pencil. For recessed lights, use a template to mark the cutout area.
- Drill Holes: For recessed lights, use a hole saw sized to the fixture’s cutout diameter. For surface mount lights, drill pilot holes for screws.
- Sand Edges: Smooth any rough edges with fine sandpaper to prevent damage to the fixture or surface.
Safety Note: Wear a dust mask and safety glasses when drilling or sanding, especially on fiberglass surfaces.
3. Run Marine Grade Wiring
Proper wiring is critical for safety and performance in marine environments:
- Plan the Wiring Route: Route wires through existing conduits or cable runs, avoiding high heat areas like engine rooms unless using heat resistant cables.
- Cut and Strip Wires: Measure and cut tinned copper wire to length, stripping 1/4 inch of insulation from each end.
- Connect to Power Source: Identify a suitable power source, such as a distribution panel or battery, ensuring it matches the fixture’s voltage (12V or 24V). Use a fuse or circuit breaker rated for the total amperage of the lights.
- Secure Wiring: Use cable ties or clips to secure wires, preventing movement or chafing. Ensure all connections are waterproof using heat shrink terminals.
Tip: DRSA offers wiring guides and technical support to ensure ABYC compliant installations.
4. Mount the LED Downlights
Mounting methods vary based on the fixture type:
- Surface Mount Lights: Secure the fixture, such as the Lumitec Aurora Surface Mount Dome Light, using stainless steel screws provided by DRSA. Align the fixture with pre drilled pilot holes and tighten screws evenly to avoid cracking the housing.
- Recessed Lights: Insert the fixture, like the Bay1 Round LED Courtesy Light, into the cutout hole. Secure with spring clips or mounting rings, ensuring a watertight seal. Apply marine grade sealant around the edges if needed.
- Test Fit: Before finalizing, test the fixture’s alignment and ensure it sits flush with the surface.
5. Connect the Wiring
Secure and safe connections prevent electrical issues:
- Match Polarity: Connect the positive (red) and negative (black) wires from the fixture to the corresponding power wires. For RGBW lights, follow the color coded wiring guide provided by DRSA.
- Use Waterproof Connectors: Crimp wires with waterproof butt connectors or heat shrink terminals, then apply heat to seal the connection.
- Optional Dimmer or Controller: For dimmable or RGBW lights, install a compatible dimmer switch or controller, such as those offered by DRSA, and wire according to the manufacturer’s instructions.
Safety Note: Use a multimeter to verify voltage and continuity before powering on to avoid short circuits.
6. Test the Installation
Testing ensures the lights function correctly and safely:
- Power On: Turn on the power source and test each light. Check for consistent brightness and, for RGBW lights, verify color changing functionality.
- Inspect for Issues: Look for flickering, dimness, or uneven illumination, which may indicate loose connections or incorrect voltage.
- Adjust as Needed: If a light doesn’t work, double check wiring polarity and connections. Contact DRSA for troubleshooting support if issues persist.
7. Finalize and Secure
Once all lights are operational:
- Secure Fixtures: Tighten all screws or clips to ensure fixtures are firmly in place.
- Seal Edges: Apply marine grade silicone sealant around recessed fixtures to prevent water ingress.
- Organize Wiring: Bundle excess wiring with cable ties and secure it away from moving parts or heat sources.
Maintenance Tips for DRSA LED Downlights
To keep your DRSA LED downlights performing at their best:
- Clean Regularly: Use mild soap and water to remove salt, grime, or fingerprints. Avoid abrasive cleaners that can damage the lens or housing.
- Inspect for Corrosion: Check connections and fixtures every 6 months for signs of corrosion, especially in saltwater environments.
- Test Controllers: For RGBW or dimmable lights, ensure controllers and apps are updated for optimal performance.
- Replace Damaged Parts: If a fixture is damaged, order replacements from DRSA, which offers compatible LED bulbs like G4 or MR16.
- Schedule Annual Checks: Inspect wiring and fixtures annually to catch issues early, especially before long voyages.
Conclusion
Installing DRSA LED downlights is a rewarding project that enhances your boat’s ambiance, safety, and efficiency. By following this step by step guide planning the layout, preparing the surface, wiring correctly, and testing thoroughly you can achieve a professional quality installation. With DRSA’s marine grade fixtures, like the Lumitec Aurora and Bay1 Round LED, you’ll enjoy durable, energy efficient lighting tailored to your vessel. Start your project today by browsing DRSA’s catalog and take advantage of their fast shipping and expert support to light up your boat with confidence. Contact us today to learn more or get expert assistance.
FAQs About Installing DRSA LED Downlights
Yes, DRSA’s plug and play fixtures, like the Lumitec Anywhere LED Utility Light, are DIY friendly with clear instructions. Complex setups may require professional help from DRSA.
Most DRSA downlights, such as the Bay1 Round LED Courtesy Light, operate on 24VDC, while others support 12VDC. Check product specs on DRSA to confirm compatibility.
Yes, DRSA downlights, like the Lumitec Aurora Surface Mount Dome Light, are IP67 rated, ensuring resistance to water and corrosion in marine environments.
DRSA’s LED downlights, such as the Lumitec Aruba LED Courtesy Light, last up to 50,000 hours, offering years of reliable performance.
Yes, DRSA offers compatible dimmers and RGBW controllers for adjustable brightness and color changing effects.
You’ll need a drill, hole saw, screwdriver, wire stripper, crimping tool, multimeter, and marine grade wiring. DRSA provides detailed installation guides.
