How to Install the SeaBlaze X3 LED Underwater Light on Your Boat

Installing underwater lighting is one of the most exciting upgrades boat owners can make. Not only does it improve the visual appearance of a boat at night, but it also enhances safety, water visibility, and the overall boating experience.

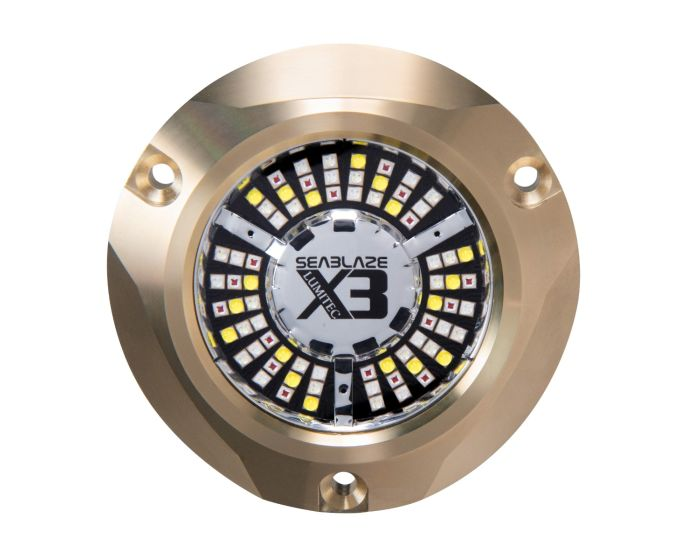

One of the most trusted underwater lighting options available today is the SeaBlaze X3 LED Underwater Light. This powerful marine lighting solution is designed to provide intense underwater illumination while remaining energy efficient and durable in harsh marine environments.

Manufactured by Lumitec, the SeaBlaze X3 is widely used by recreational boaters, fishing enthusiasts, and yacht owners who want reliable underwater lighting that enhances both aesthetics and functionality.

Many boat owners install underwater lighting along with navigation and anchor lighting systems such as the Lumitec Contour Anchor Light and Lumitec Surface Mount Navigation Light to create a complete marine lighting setup that improves safety and nighttime visibility.

This guide explains how to install SeaBlaze X3 LED underwater light systems step by step, including the tools required, installation procedures, wiring basics, and maintenance tips.

Why Install the SeaBlaze X3 LED Underwater Light?

Before learning how to install SeaBlaze X3 LED underwater light, it's helpful to understand why underwater lighting has become such a popular upgrade for boats.

The SeaBlaze X3 LED Underwater Light offers several key advantages that make it a preferred choice among boat owners.

Enhanced Nighttime Appearance

Underwater lights create a stunning visual glow around the back of the boat. When illuminated, the SeaBlaze X3 projects bright LED light into the water, producing an attractive lighting effect that enhances the vessel’s appearance.

This effect is especially impressive when the boat is docked at marinas or anchored at night.

Improved Water Visibility

Underwater lighting improves visibility around the boat, making it easier to monitor the water environment.

This can be helpful when docking, anchoring, or simply observing marine life.

Attracting Fish

Many anglers install underwater lights because they attract plankton and baitfish, which can attract larger fish species.

For night fishing enthusiasts, underwater lighting can improve fishing opportunities.

Energy Efficient Lighting

The SeaBlaze X3 LED Underwater Light uses LED technology that produces bright illumination while consuming minimal power from the boat’s electrical system.

Choosing the Correct Mounting Location

Selecting the right location is one of the most important steps when you install SeaBlaze X3 LED underwater light systems.

The light is usually mounted on the transom, which is the rear portion of the boat hull. Proper positioning ensures optimal light coverage and prevents interference with other boat components.

Key placement guidelines include:

• Install the light a few inches below the waterline
• Avoid installing directly behind propellers
• Stay clear of trim tabs or transducers
• Choose a flat section of the hull
• Ensure interior access for wiring

Proper positioning allows the light to illuminate the water effectively without being obstructed by turbulence or mechanical components.

Step 1: Mark the Mounting Area

After choosing the ideal location, hold the SeaBlaze X3 LED Underwater Light against the hull and mark the mounting hole positions.

Using masking tape around the drilling area can protect the hull surface and prevent scratches.

Double check measurements to ensure the light is aligned evenly and positioned correctly on the transom.

Step 2: Drill the Required Holes

Once the mounting area is marked, carefully drill the required holes.

There are generally two types of holes required:

• Mounting screw holes
• A wiring pass through hole

Drilling should be done slowly to avoid damaging fiberglass or aluminum hull materials. After drilling, smooth the edges and clean away debris to prepare for sealing.

Step 3: Apply Marine Sealant

Applying marine sealant is a critical step during installation. Sealant prevents water from entering the boat hull and protects internal components.

Apply sealant around:

• Each screw hole
• The wire entry hole
• The base of the light fixture

Marine sealant also helps secure the fixture firmly to the hull.

Step 4: Mount the SeaBlaze X3 Light

Next, position the SeaBlaze X3 LED Underwater Light from DRSA over the drilled holes and secure it with mounting screws.

• Tighten the screws carefully so the fixture sits flush against the hull surface.
• Avoid over tightening, which could damage the boat’s fiberglass or the fixture itself.
• Once installed, wipe away excess sealant for a clean finish.

Step 5: Run the Marine Electrical Wiring

After mounting the light, run the wiring through the pass through hole into the boat’s interior. Proper marine electrical wiring is essential for safe and reliable lighting performance.

Important wiring tips include:

• Use marine grade electrical wire
• Protect connections with heat shrink tubing
• Secure wires away from moving parts
• Avoid placing wires near high heat components

These precautions ensure long term reliability in a marine environment.

Step 6: Connect to the Boat’s Power System

The next step is connecting the lighting system to the boat’s electrical power supply.

• Most boat owners connect the SeaBlaze X3 LED Underwater Light to a dedicated switch panel.
• This allows the underwater lights to be turned on and off easily from the boat’s control console.
• Ensure all wiring connections are insulated and securely fastened.

If you're unsure about marine electrical wiring, consulting a marine electrician is recommended.

Step 7: Test the Lighting System

Before launching the boat, test the underwater light to ensure it operates correctly. Activate the power switch and verify that the light turns on and produces consistent illumination.

During testing, check for:

• Proper brightness
• Secure mounting
• Stable wiring connections
• No flickering

Testing ensures everything works properly before the boat returns to the water.

Expanding Your Boat Lighting System

While underwater lighting enhances aesthetics and visibility, many boat owners expand their lighting setups with additional safety lighting systems.

For example, the Lumitec Contour Anchor Light provides 360 degree visibility for anchored boats, helping other vessels detect your boat in low light conditions.

Similarly, the Lumitec Surface Mount Navigation Light helps indicate your boat’s direction and movement to nearby vessels.

Combining underwater lighting with navigation and anchor lights creates a comprehensive marine lighting system.

Maintenance Tips for Underwater Boat Lights

Once installed, the SeaBlaze X3 LED Underwater Light requires minimal maintenance. However, routine inspections help maintain performance and extend the lifespan of the lighting system.

Maintenance tips include:

• Cleaning the light lens regularly
• Removing marine growth or algae
• Checking wiring connections periodically
• Inspecting mounting hardware

Regular maintenance ensures maximum brightness and reliability.

Conclusion

The Lumitec Zambezi X2 Surface Mount Underwater Light is now considered an older model and has been replaced by the more advanced Lumitec SeaBlaze X3 LED Underwater Light, which introduces several upgrades in brightness, efficiency, design, and smart features.

The SeaBlaze X3 LED Underwater Light provides powerful illumination, improved nighttime visibility, and a dramatic visual effect that enhances the boating experience.

When combined with essential marine lighting systems such as the Lumitec Contour Anchor Light and Lumitec Surface Mount Navigation Light, boat owners can create a safer, more functional, and visually impressive vessel.

With proper installation and maintenance, underwater boat lights can provide years of reliable performance.
