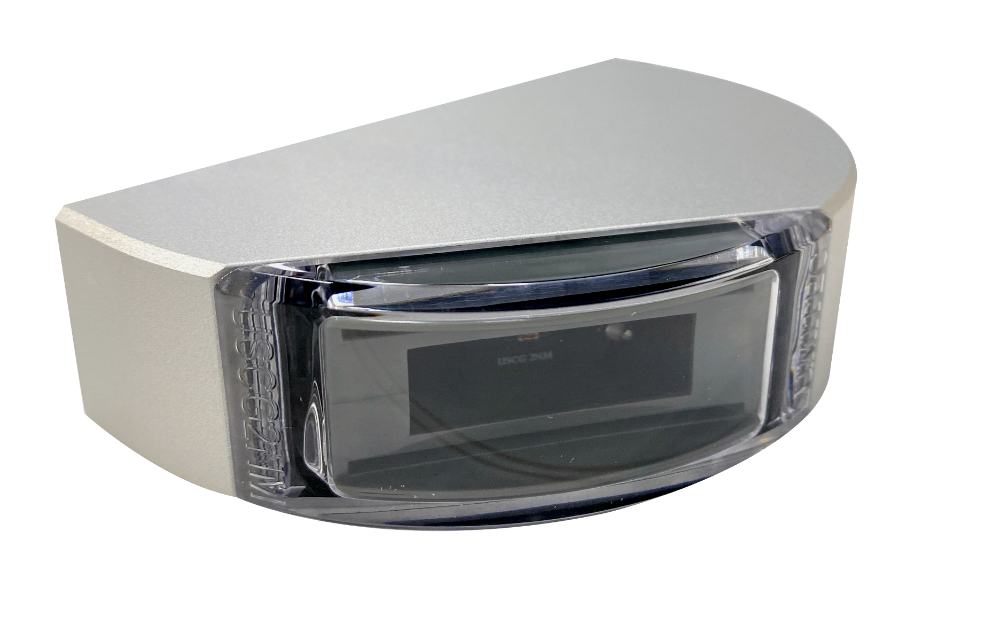

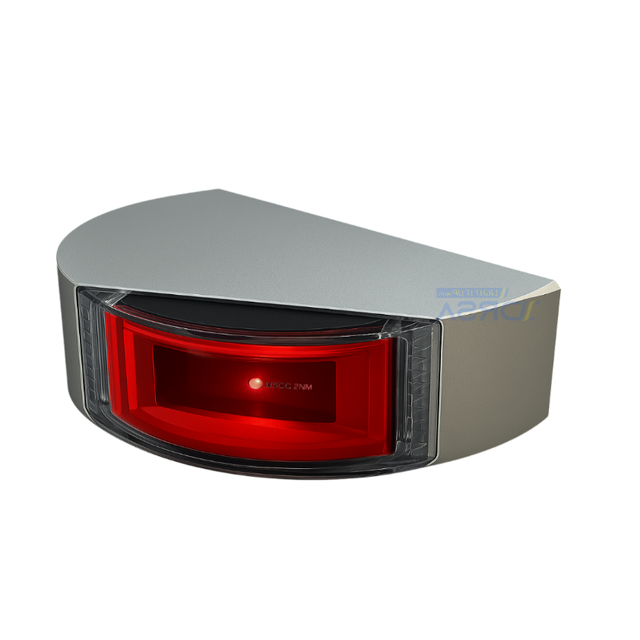

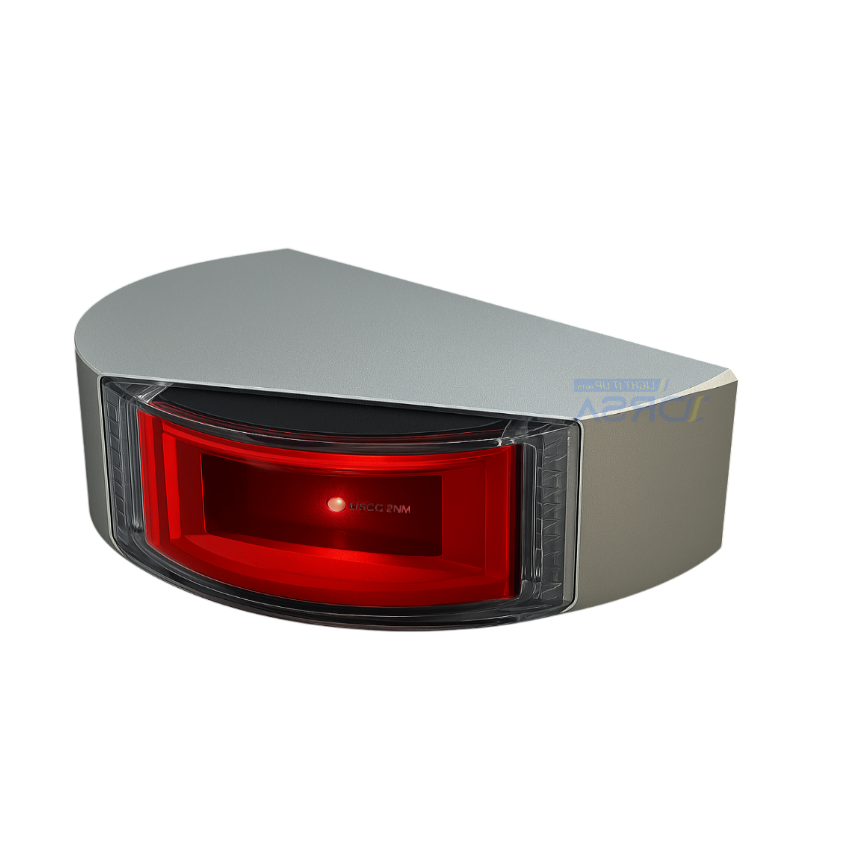

Lumitec Surface Mount Aluminum Navigation Lights – Port/Starboard
Description
Description
Lumitec Surface Mount Aluminum Navigation Lights – Port & Starboard | USCG 2NM LED
Modern, Rugged Navigation Lighting for Surface Mount Installations
When flush mounting isn’t an option, the Lumitec Surface Mount Aluminum Navigation Lights offer the perfect solution for retrofits or new builds. These compact, half-round fixtures are crafted from high-grade machined aluminum with a brushed finish, delivering reliable performance and a sleek look.
Designed for easy installation on vertical surfaces, they meet U.S. Coast Guard 2NM visibility standards and provide crisp red (port) and green (starboard) illumination with minimal power consumption.
Why You'll Love These Navigation Lights
-

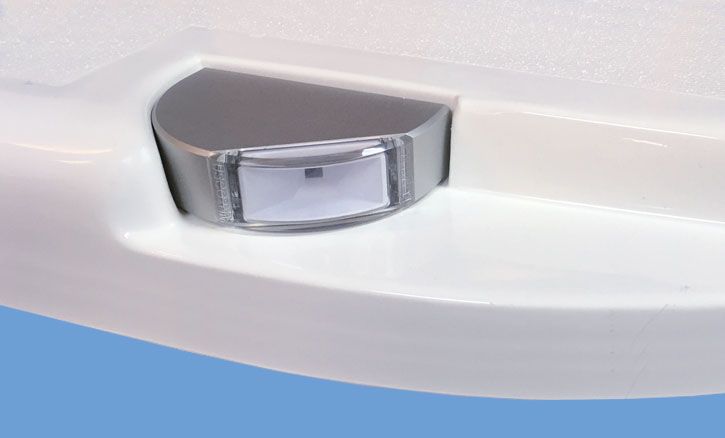

Surface Mount Simplicity – No inset cutouts required; ideal for tight retrofits
-
USCG Certified 2NM Visibility – Legal for navigation; peace of mind included
-
Rugged Marine-Grade Build – Brushed aluminum construction withstands the elements
-
Ultra-Low Power Draw – Just 0.4W per light at 12V or 24V
-
Modern Aesthetics – Low-profile, clean look that complements any hull design
Perfect For
-
Retrofitting boats with limited space for flush-mount fixtures
-
Vertical surface mounting on sailboats, powerboats, center consoles, and yachts
-
Builders seeking CE-certified, U.S.-compliant navigation lighting
Technical Specification
| Feature | Specification |
|---|---|
| Voltage | 10–30V DC |
| Current Draw | 67mA @ 12V / 33mA @ 24V |
| Power Consumption | 0.4W |
| Visibility | 2NM (USCG Certified) |
| Color Output | Port – Red / Starboard – Green |
| Material | High-grade Machined Aluminum |
| Finish | Brushed Aluminum |
| IP Rating | IP67 |
| CE Certified | Yes |
| Operating Temp | -31°F to +131°F (-35°C to +55°C) |

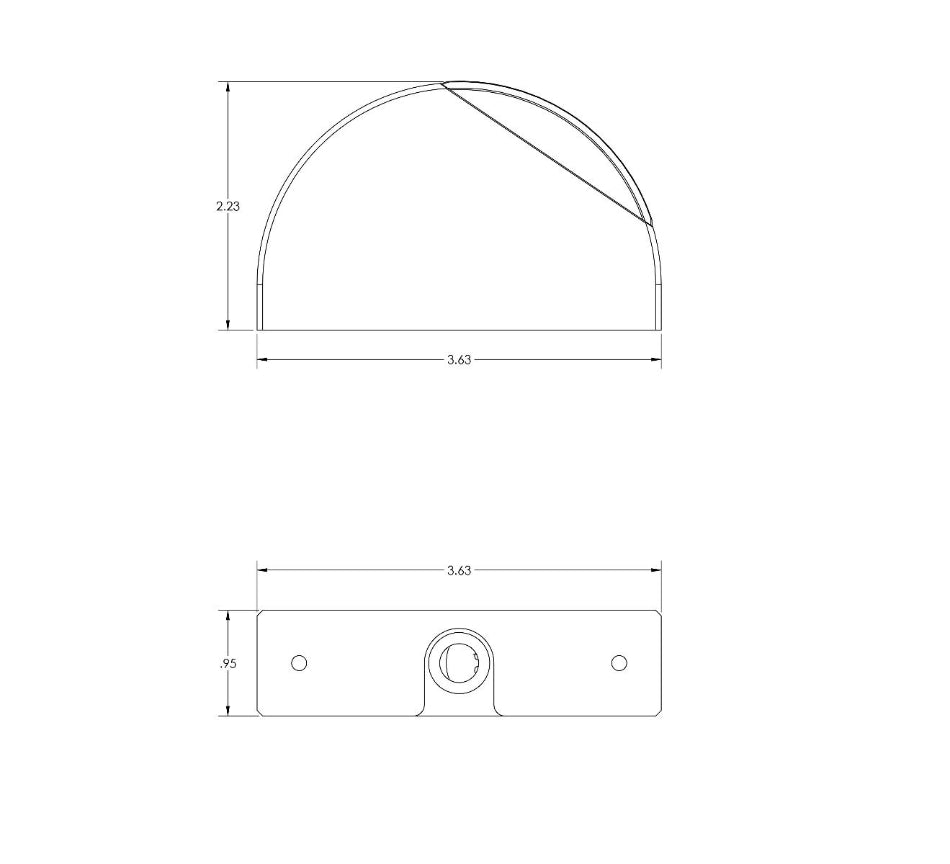

| Dimensions | 3.6" W x 1" H x 2.2" D |
| Mounting | Surface (Vertical Only) |
| TTP / PLI / 3PD | Not Compatible |
Warranty Information
All Lumitec products, including these Surface Mount Navigation Lights, are backed by a 5-year warranty against manufacturing defects. Built in the USA and engineered for long-lasting marine performance.
