Lopolight – 225° Masthead Light – Single LED, Silver Housing, Vertical Mount
Description
Description

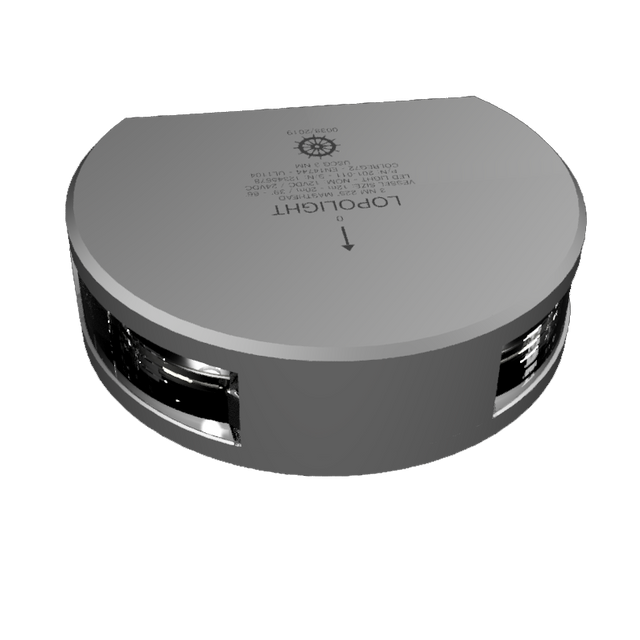

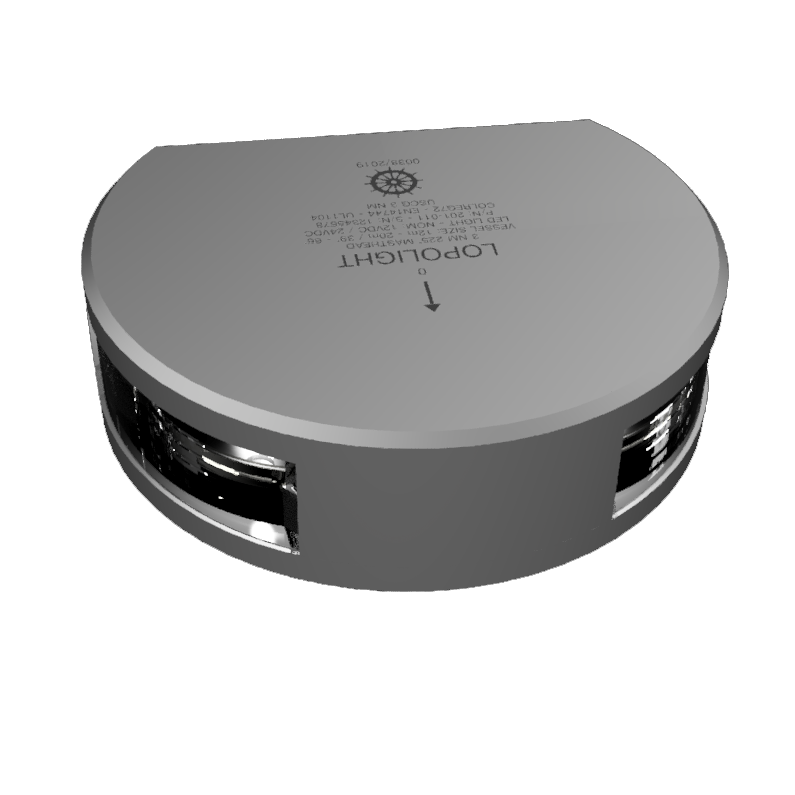

Lopolight – 225° Masthead Light – Single LED, Silver Housing, Vertical Mount
Advanced Navigation, Engineered for the Modern Mariner
Illuminate your vessel’s course with the Lopolight 225° Masthead Light, a precision-engineered navigation light built to deliver unmatched visibility, durability, and energy efficiency. Housed in anodized silver aluminum with a vertical mount design, this powerful single LED light casts a crisp 225-degree beam of white light—ideal for vessels up to 12 meters in length.
Engineered with dual high-output LEDs and a custom PMMA optical lens, the light ensures maximum visibility while using 35% less energy than conventional navigation lights. With Lopolight’s signature rugged construction and IP68 protection, it’s built to perform in the most extreme marine conditions.
Why You’ll Love the Lopolight 225° Masthead Light
-
225° White Beam Coverage: Meets global marine compliance for boats under 12 meters
-
Ultra-Efficient LED Design: Offers up to 35% energy savings without sacrificing brightness
-
Anodized Aluminum Housing: Made from marine-grade 6082 aluminum for superior corrosion resistance and vibration stability
-

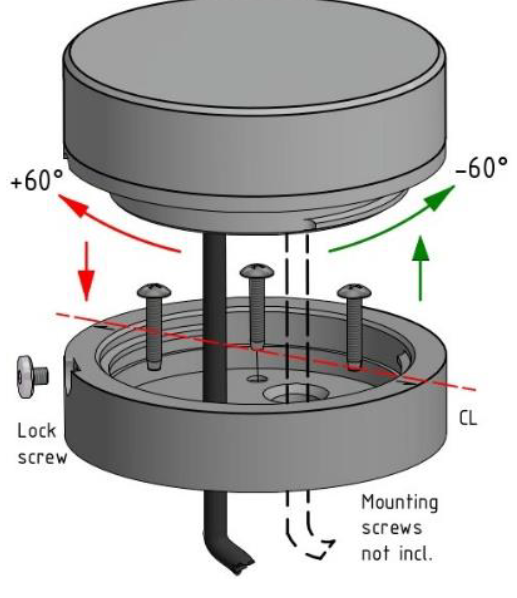

Vertical Mount Configuration: Simplifies installation and integration with modern boat profiles
-
Fully Compliant: Exceeds standards including COLREG 72, EN14744, IEC 60945, USCG, ABS, M.E.D., DNV, and LR
-
Extreme Temperature Operation: Functions reliably from -25°C to +55°C
-
PMMA Light Guide: Delivers sharp, consistent light distribution for long-range visibility
-
DNV Certified: Declaration of conformity and certification available at www.lopolight.com
Perfect For
-
Sailboats under 12 meters
-
Powerboats needing reliable, efficient masthead lighting
-
Offshore cruisers and coastal craft operating at night
-
Marine electricians and boatbuilders seeking compliant, high-end solutions
Technical Specifications
| Feature | Specification |
|---|---|
| Part Number | 201-010 |
| Light Color | White |
| Visibility | 2 NM |
| Operating Voltage | 10–32V DC |
| Power Draw | 2 Watts |
| Current @ 12VDC | 137 mA |
| Current @ 24VDC | 80 mA |
| Connection | 0.7m shielded marine-grade cable |

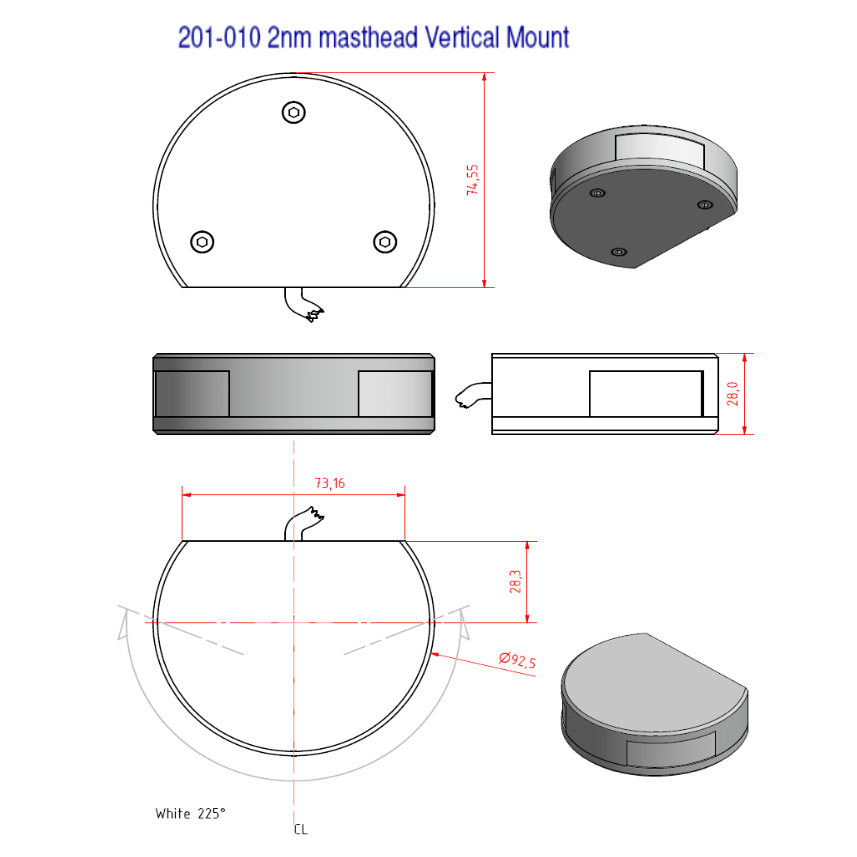

| Dimensions (Metric) | 74.55 x 28 x 73.16 mm |
| Dimensions (Imperial) | 2.9" x 1.1" x 2.88" |
| Weight (Metric) | 0.42 kg |
| Weight (Imperial) | 14.81 oz |
| Mounting | Vertical |
| Housing Material | Silver anodized aluminum (25µ) |
| Lens Material | PMMA |
| IP Rating | IP68 |
| Operating Temperature | -25°C to +55°C |
| Minimum Feed Wire Gauge | 0.5mm² (AWG22) |
| Certifications | COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR |
| Certification Access | www.lopolight.com – Support Section |
| Included in Package | Navigation light, pre-cabled wire (0.75m), 2 M6 x 8mm screws, installation guide |
| EAN Code | 5704438010208 |
| UPC Code | 879343010201 |
Why Choose Lopolight?
✅ Military-grade durability
✅ Engineered for longevity and low maintenance
✅ Trusted by boat builders and captains worldwide
Navigate With Confidence
When safety, efficiency, and reliability matter most, the Lopolight 225° Masthead Light delivers. Whether you’re cruising after dark or navigating open waters, this light ensures your vessel is seen, offering peace of mind every nautical mile.
